Used Italpresse 604 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

Used Italpresse 604 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine. Inventory item: DCM-2237.

Manufacturer: Italpresse

Model: IP-550

Features & Accessories:

  • Aluminum & Magnesium Capable
  • Italpresse Multi-Link Extractor

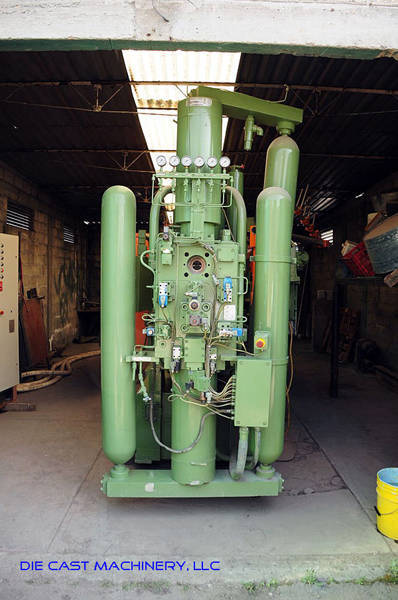

  • Four Bar Mount Shot End with shot position adjustment, with Fully Proportional Shot Control System and multiplier intensification system with Piston Bottle hydraulic supply
  • Hydraulic Bumper Plate Ejection System

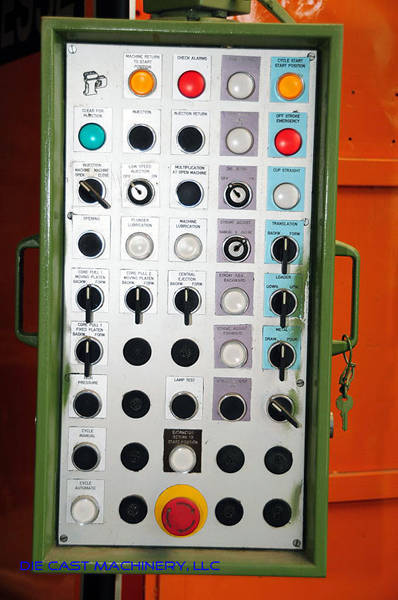

  • Siemens S5 Controls

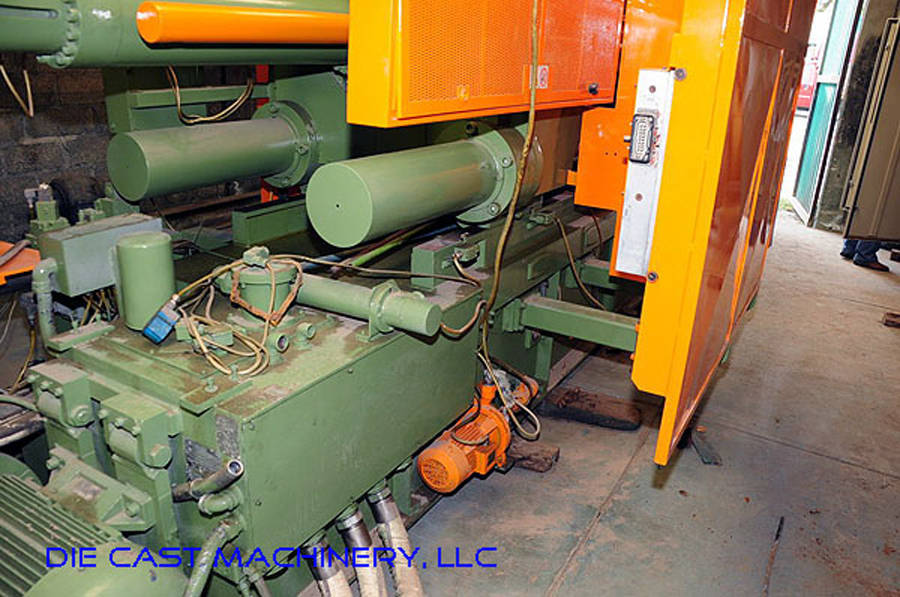

  • Fully Proportional hydraulics
  • Trabon Automatic Lubrication System

Item Specifications for DCM-2237

Specifications
Locking Force:
666 tons
Injection Force:
67.44 tons
Ejection Force:
28.6 tons

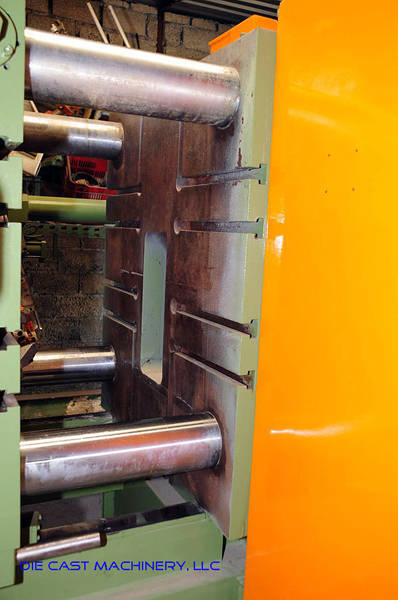

Tie Bar Diameter:
5.31 inches
Clearance Between Tie Bars:
27 x 27 inches
Die Height (maximum - minimum):
32 - 12 inches
Platens Dimensions:
.04 x .04 inches
Moving Platen Stroke:
24.8 inches
Central Ejection Stroke:
6.69 mm
Motor:
40.23 HP
Weight:
23.62 tons
Machine Dimensions (L x W x H):
25.43 x 8.2 x 9.68 feet

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Italpresse Model IP-550 604 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For Sale, Features include: Italpresse Multi-Link Extractor, Four Bar Mount Shot End with shot position adjustment, with Fully Proportional Shot Control System and multiplier intensification system with Piston Bottle hydraulic supply, Hydraulic Bumper Plate Ejection System, Siemens S5 Controls, Fully Proportional hydraulics, Trabon Automatic Lubrication System, Siemens S5 Controls, Second Hand, DCM-2237

The following technical terms are to assist you with searches: Used | Second Hand | Italpresse |IP-550 | 604 Metric Ton | Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine | For Sale | Italpresse Multi-Link Extractor | Four Bar Mount Shot End with shot position adjustment, with Fully Proportional Shot Control System and multiplier intensification system with Piston Bottle hydraulic supply | Hydraulic Bumper Plate Ejection System | Siemens S5 Controls | Fully Proportional hydraulics | Trabon Automatic Lubrication System | Siemens S5 Controls | DCM-2237

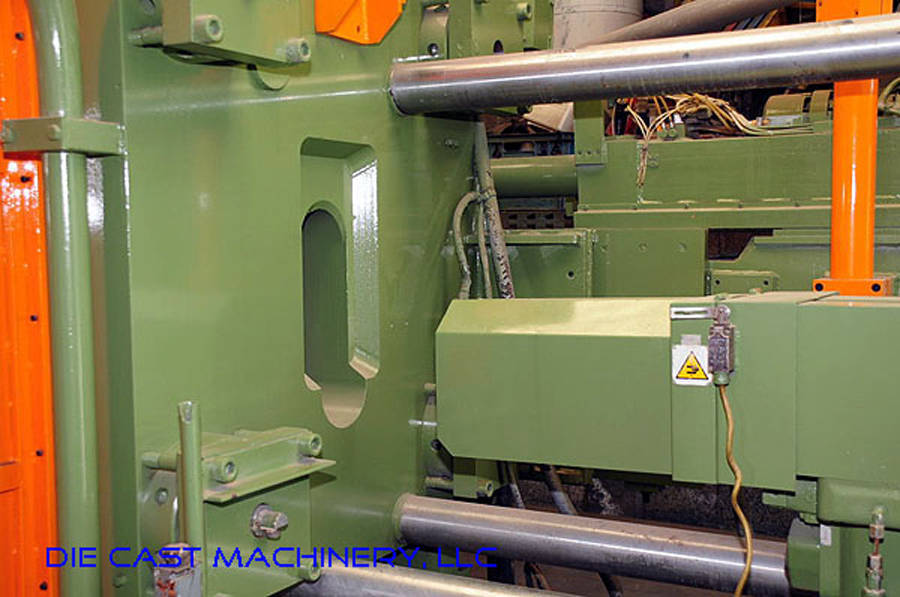

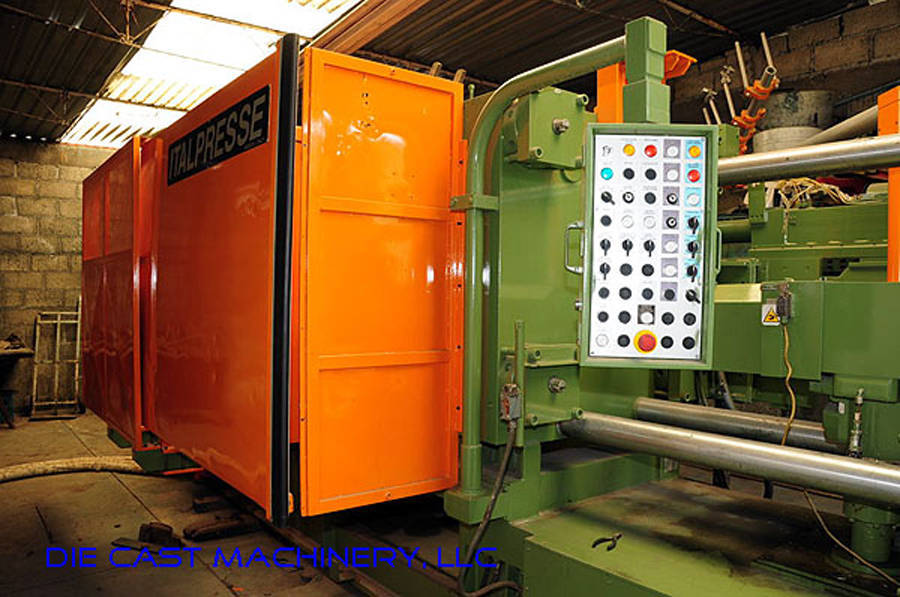

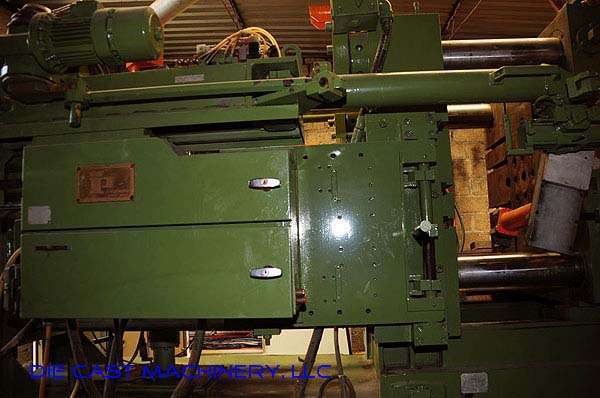

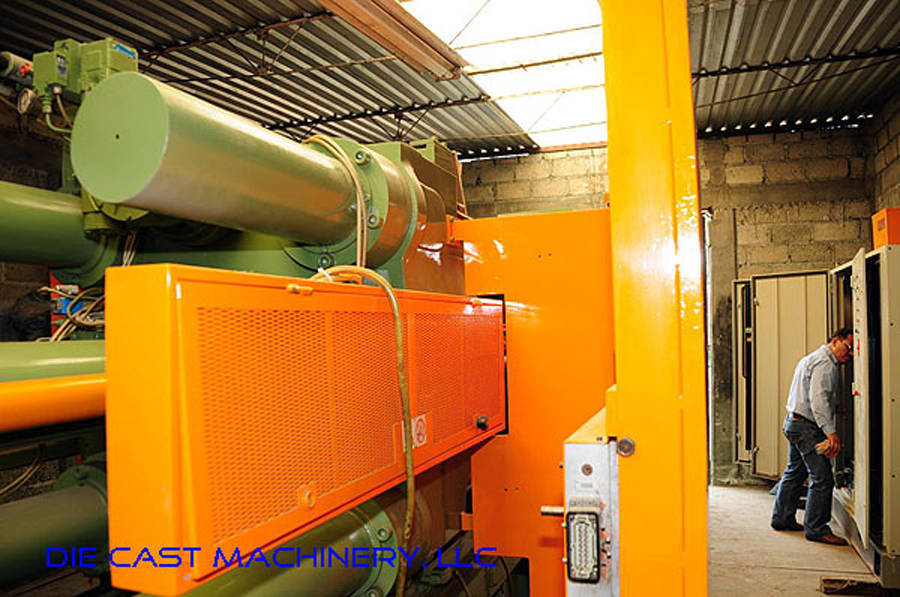

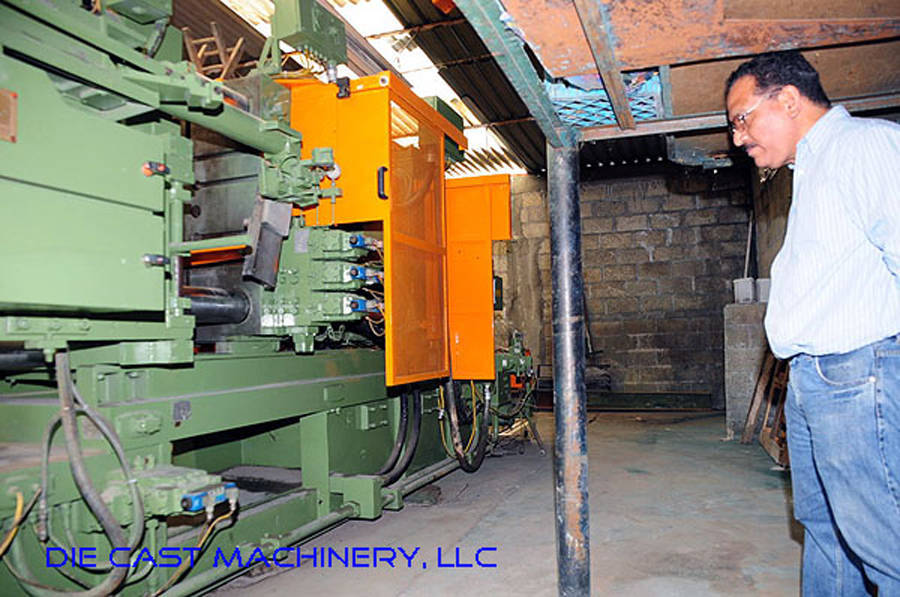

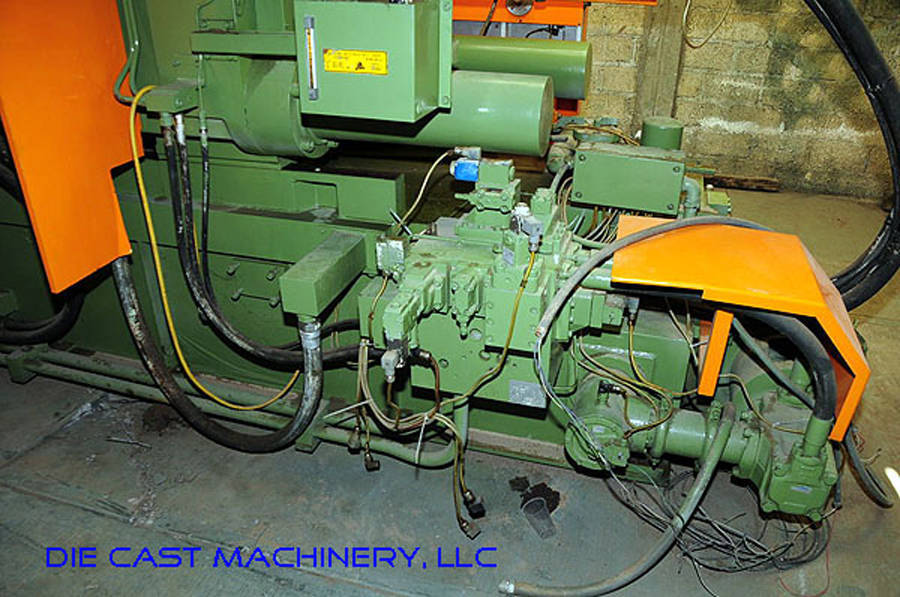

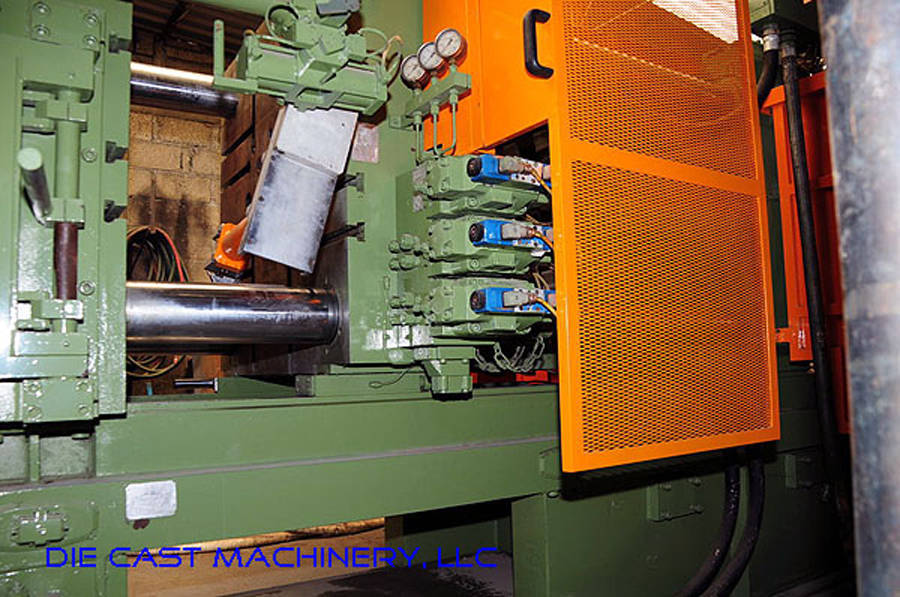

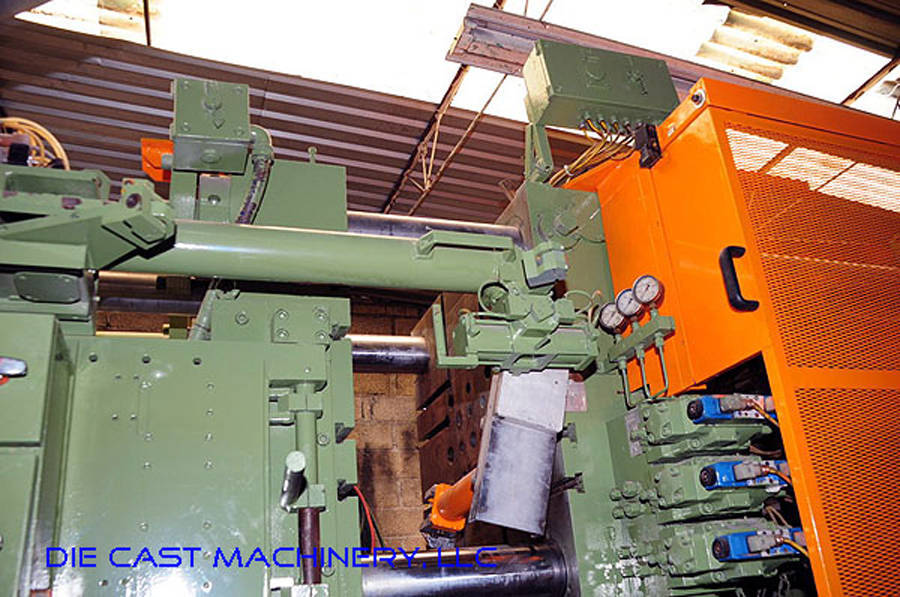

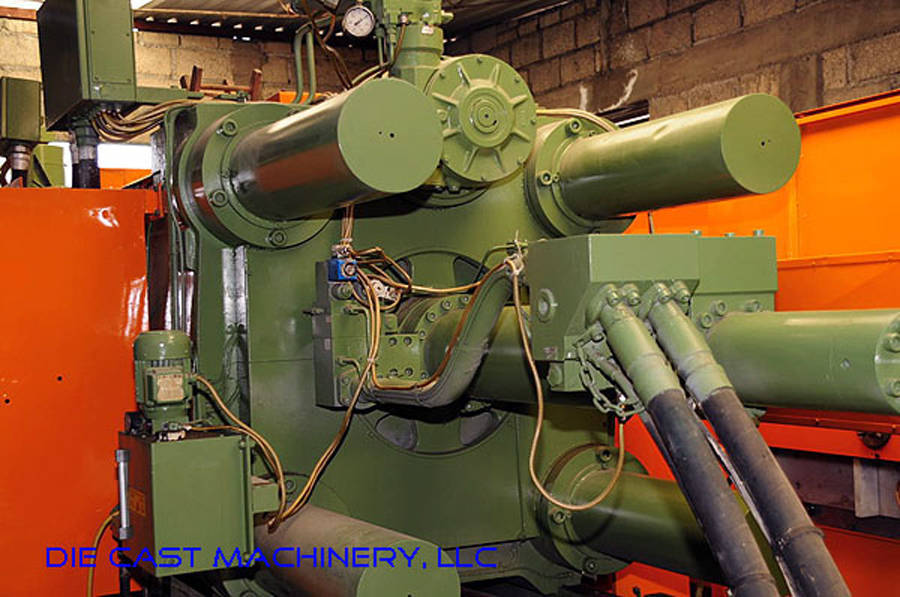

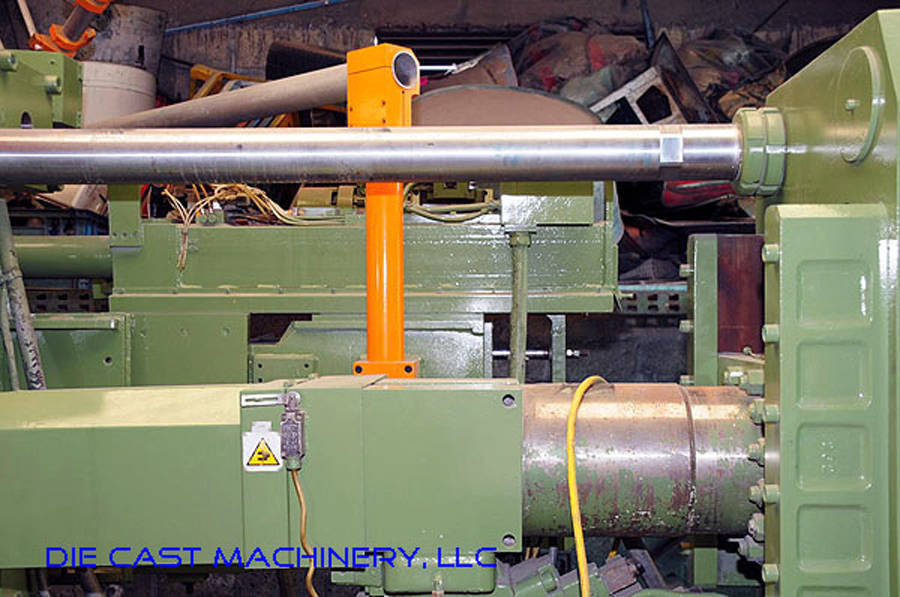

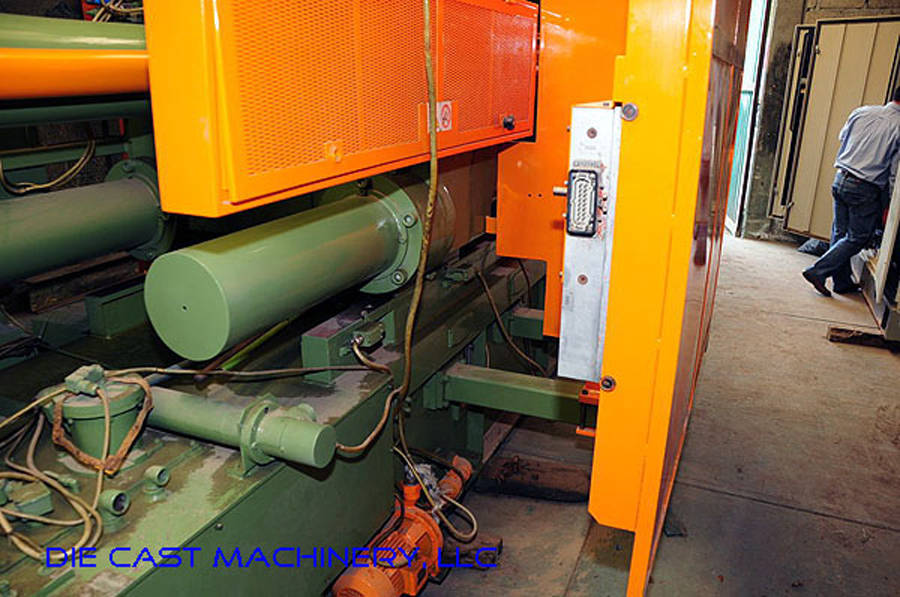

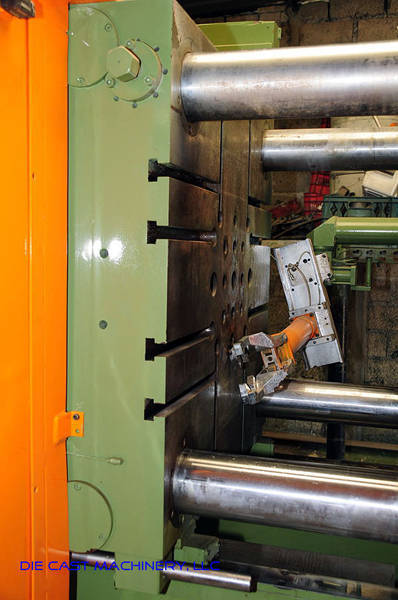

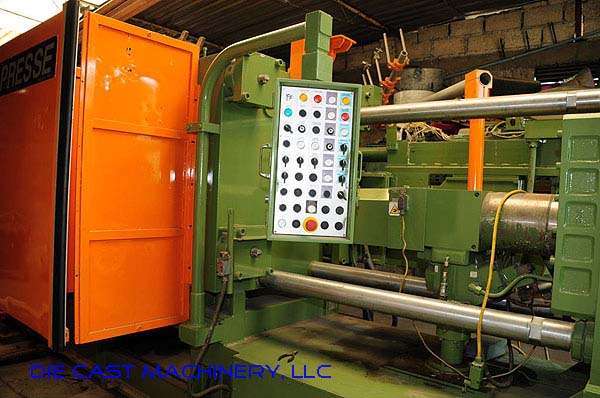

See jumbo large photos of this Italpresse IP-550
