Used Techmire 18 Metric Ton Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

Used Techmire 18 Metric Ton Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine. Inventory item: DCM-2246.

Manufacturer: Techmire

Model: 44NT

Features & Accessories:

  • Four Slide

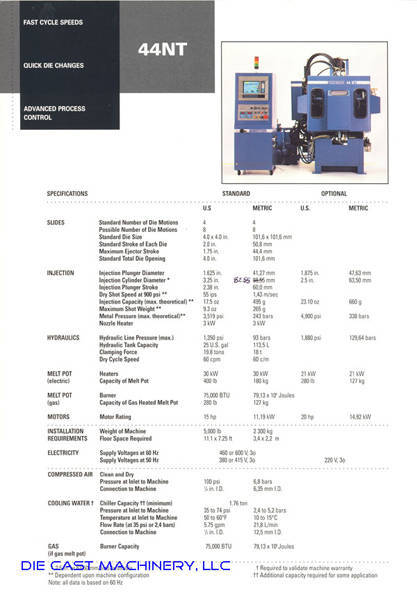

Item Specifications for DCM-2246

Specifications
Standard Die Size:
4 x 4 inch
Standard Die Stroke of Each Die Slide:
2 inches
Maximum Ejector Stroke
1.75 inches
Standard Total Die Opening
4 inches
Injection Plunger Diameter
1.625 inches
Injection Cylinder Diameter
3.25 inches
Injection Plunger Stroke
2.38 inches
Dry Shot Speed at 900 psi:
55 inches/sec
Injection Capacity (maximum theoretical):
17.5 ounces
Metal Pressure (maximum theoretical),
3,519 psi
Clamping Force:
19.8 Tons
Floor Space Required:
11.1 x 7.25 feet

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

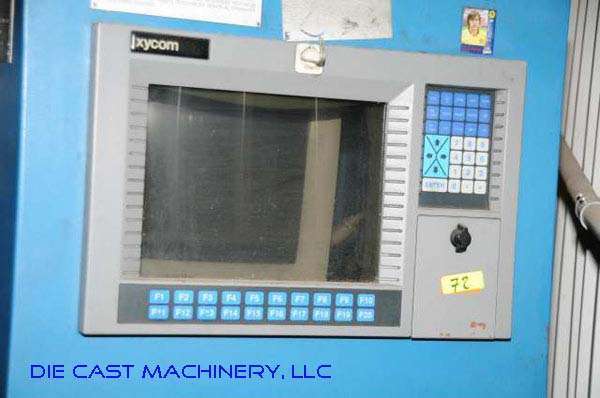

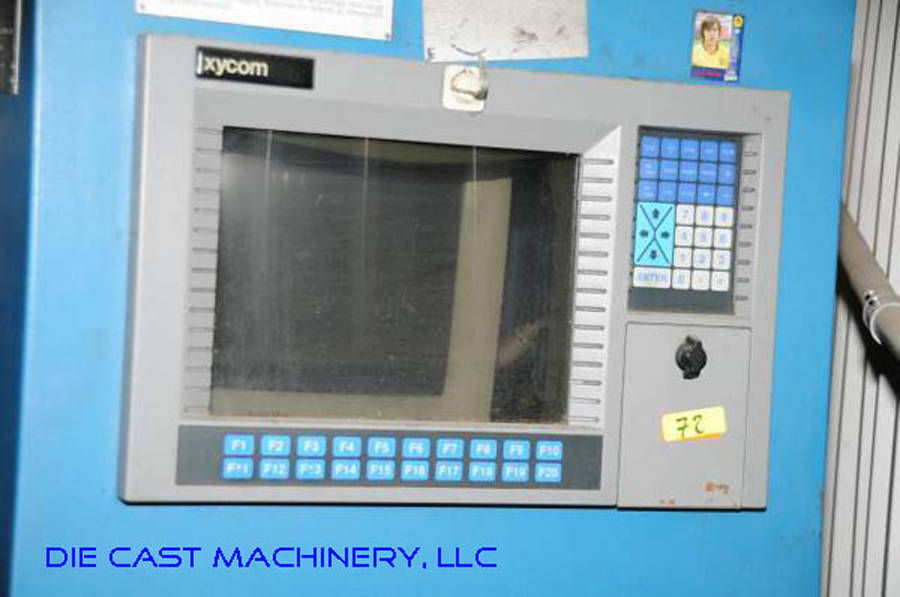

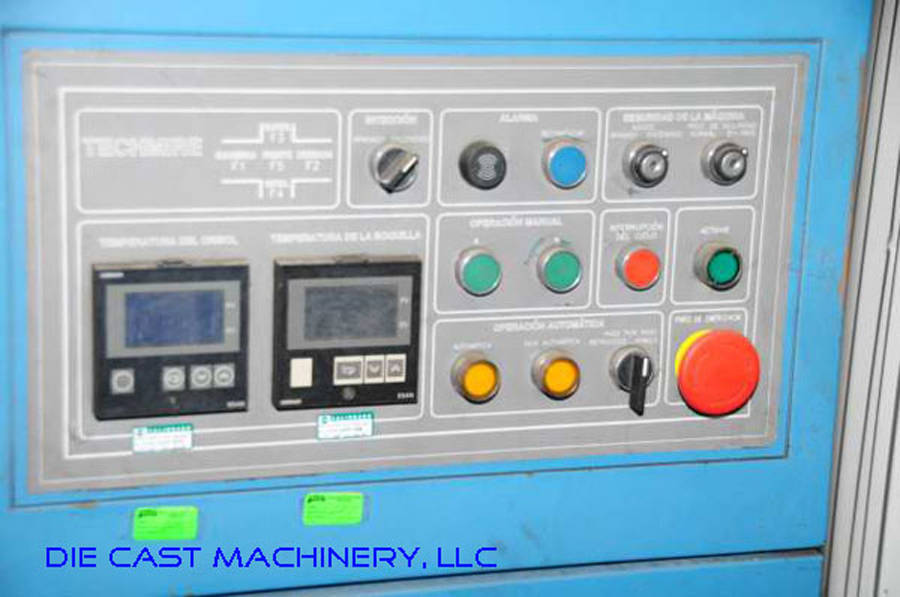

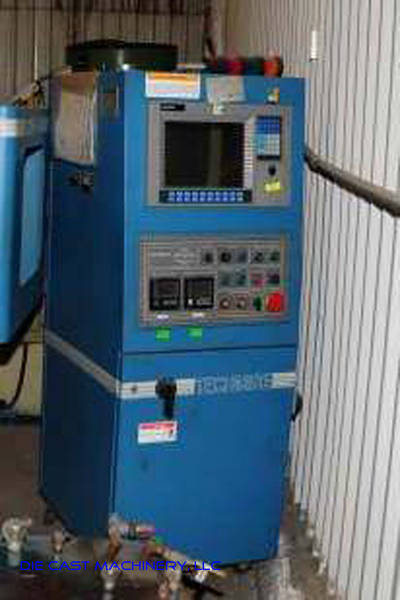

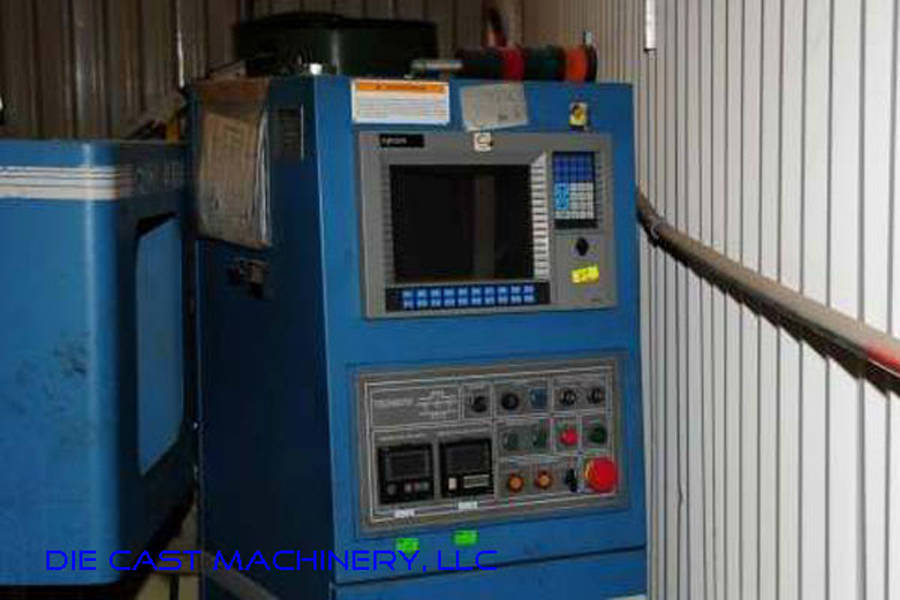

Used, Techmire Model 44NT 18 Metric Ton Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For Sale, Features include: Techmire Controls, Second Hand, DCM-2246

The following technical terms are to assist you with searches: Used | Second Hand | Techmire |44NT | 18 Metric Ton | Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine | For Sale | Techmire Controls | DCM-2246

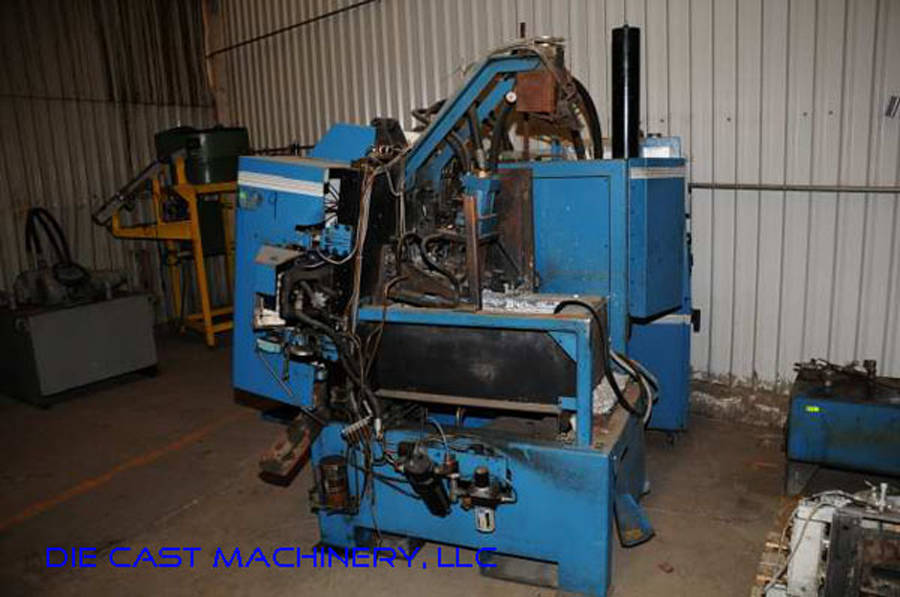

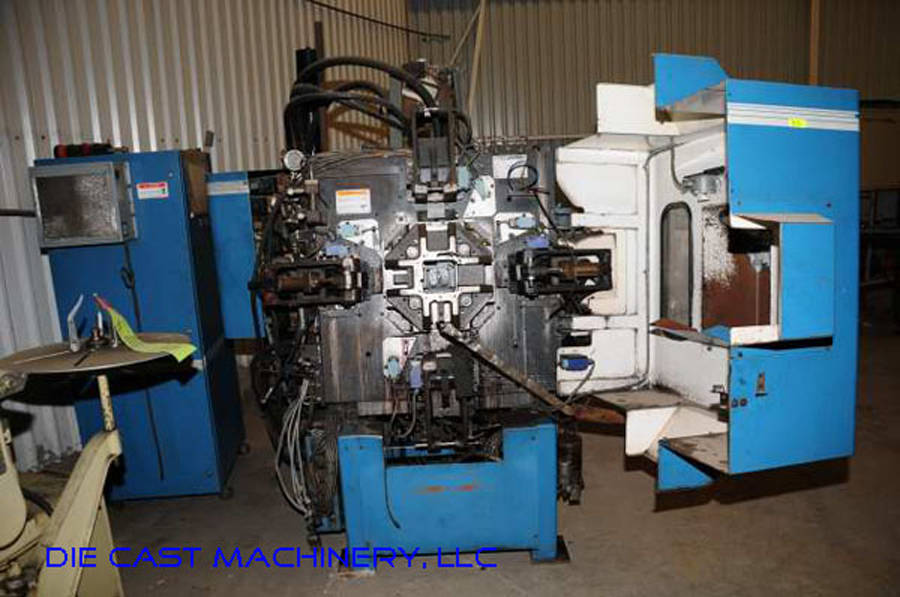

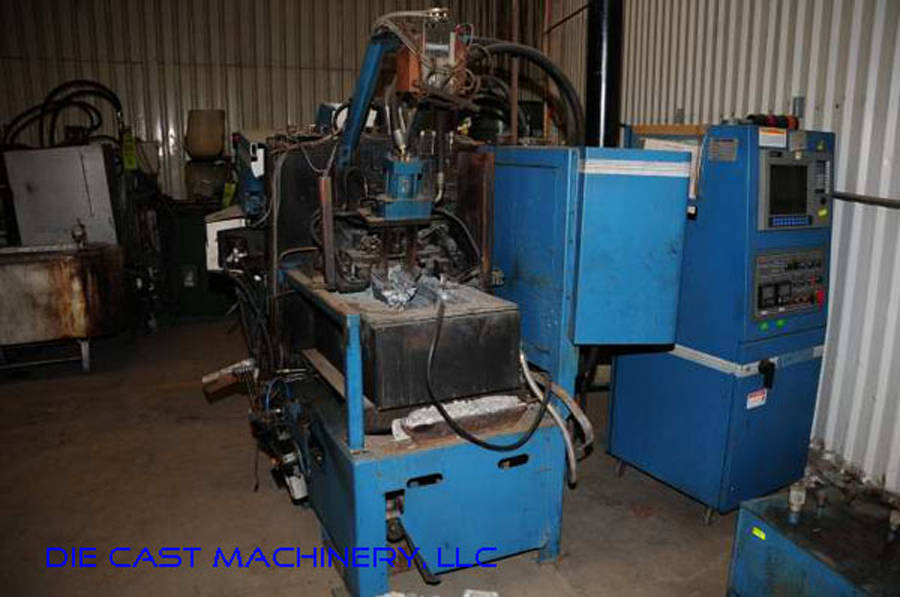

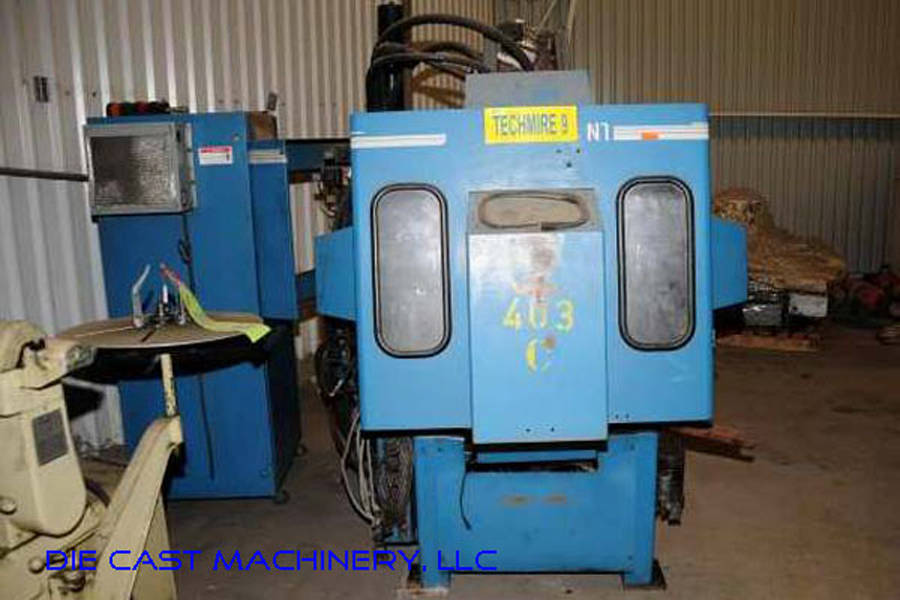

See jumbo large photos of this Techmire 44NT
