Sorry, this machine is sold.

Click here to view other available machines

Used Sterlco Model: M2B2016-M1 24 Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Sterlco

Model: M2B2016-M1

Size: 24

Inventory Number: DCM-2747

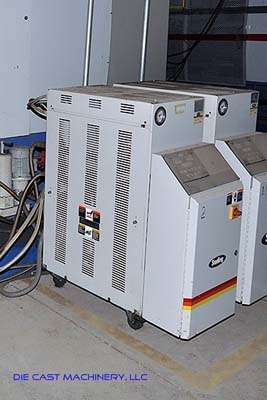

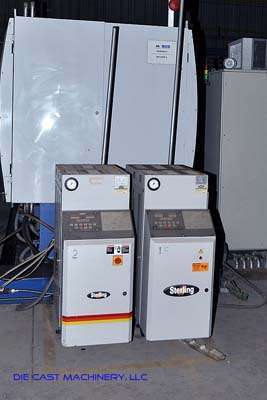

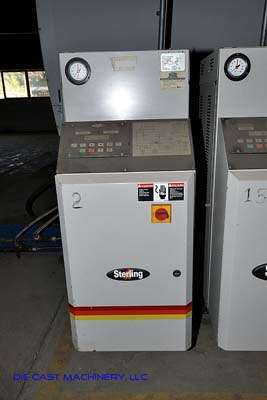

Used Sterlco Model: M2B2016-M1 24 Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit.

Click above for larger image

Features & Accessories:

  • Heating Capacity Zone #1: 24 KW - Total Heating Capacity: 24 KW
  • M2B Microprocessor Controls
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference

Item Specifications for DCM-2747

Specifications
Main Heater Power (Zone #1):
24 KW
Pump Motor Size (Zone #1):
2 HP
Flow Rate (Zone #1):
24 gallons per minute
Connection size/type:
1 inch NPT
Maximum Operating Temperature:
550 degrees F
Overall Size (L x W x H):
46 x 18.25 x 42 inches
Full Load Amps @ 480/3/60:
32.3
Approximate Shipping Weight:
600 lbs

Description

Used, Sterlco Model M2B2016-M1 24 Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: M2B Microprocessor Controls, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference , M2B Microprocessor Controls controls, second Hand, DCM-2747
