Used Prince Model: 220 HCM 250 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine

Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Prince

Model: 220 HCM

Size: 250 Ton

Inventory Number: DCM-2861

Used Prince Model: 220 HCM 250 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine.

View Available Hot Chamber Die Casting Machines

Click above for larger image

Features & Accessories:

  • Serial Number: D91017

Item Specifications for DCM-2861

Rated Tonage
250 tons
Tie Bar Diameter
4 inches
Clearance Between Tie bars
20 x 20 inches
Front Platen Size (T x W x H)
6.75 x 35 x 35 inches
Moving Platen Size (T x W x H)
8.75 x 35 x 35 inches
Die Thickness (min. - max.)
10 - 24 inches
Die Stroke
17.75 inches
Shot Positions:
Center and 4 inches below center
Machine Weight:
38,500 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.


Used, Prince Model 220 HCM 250 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley controls, second Hand, DCM-2861

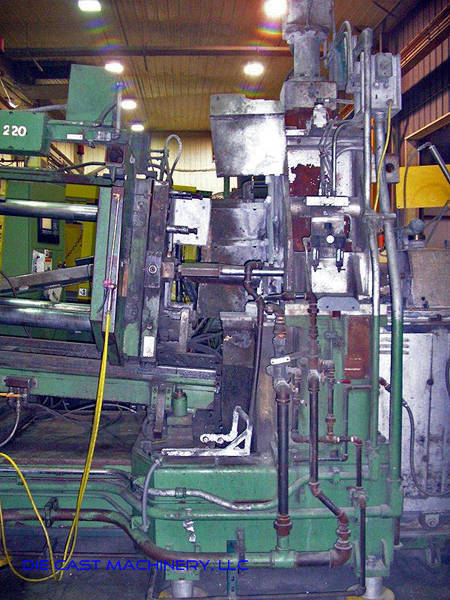

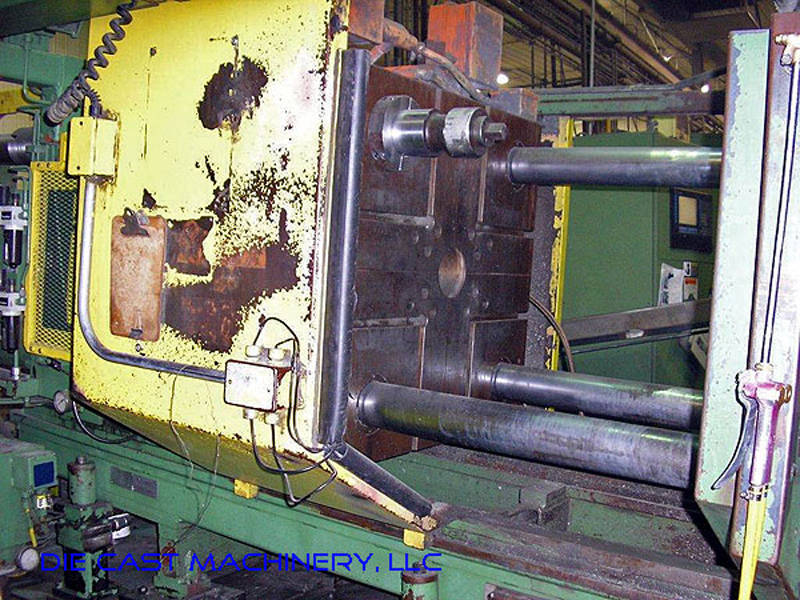

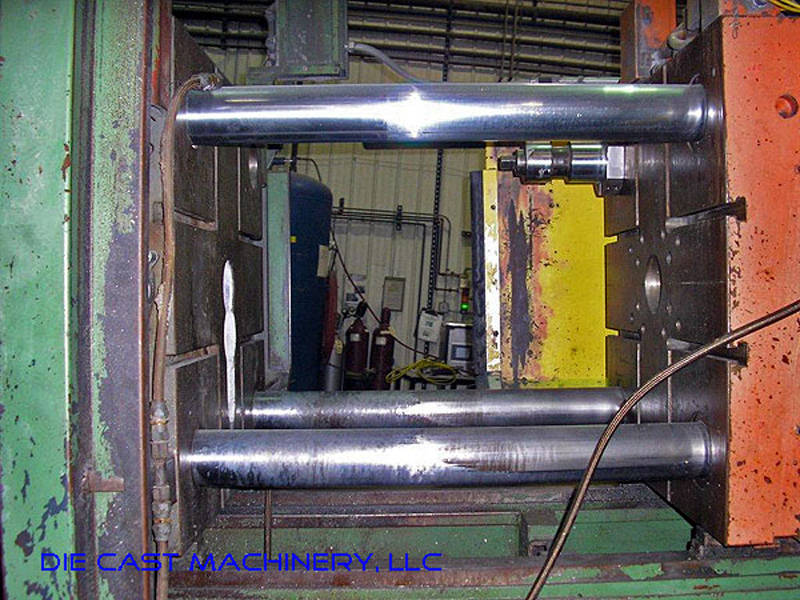

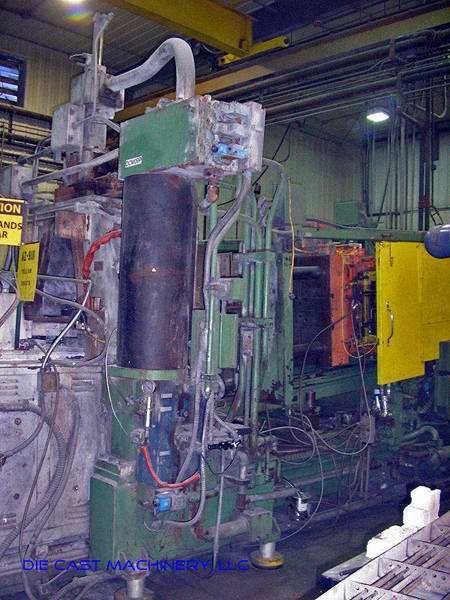

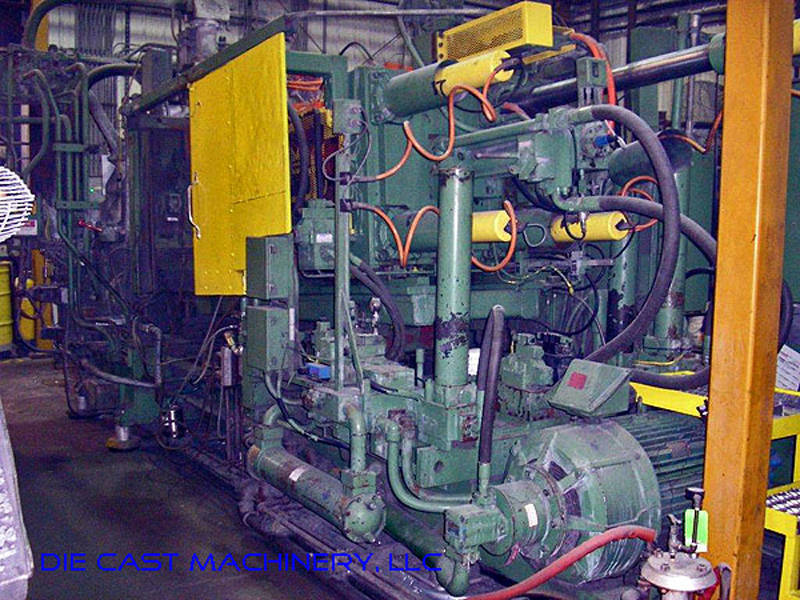

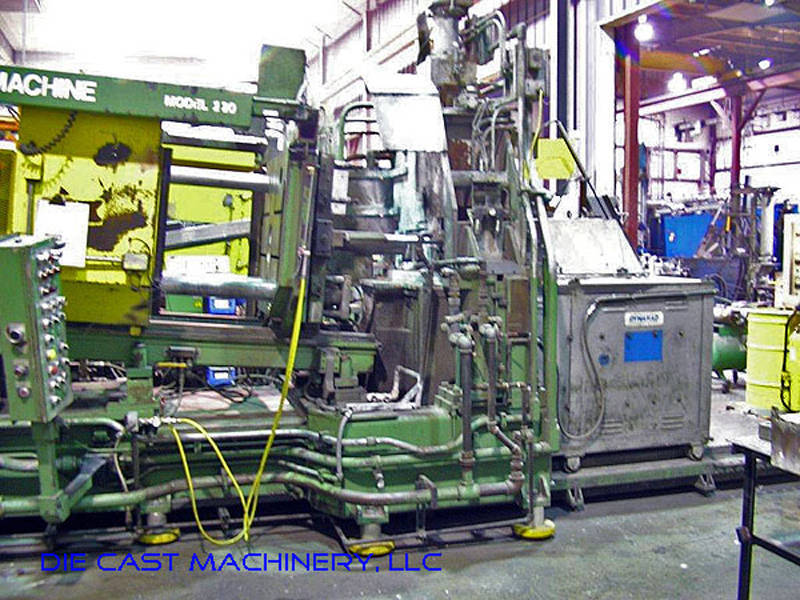

See jumbo large photos of this Prince 220 HCM
