Used Frech Model: DAM 500 S DV 500 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Frech

Model: DAM 500 S DV

Size: 500 Ton

Inventory Number: DCM-3665

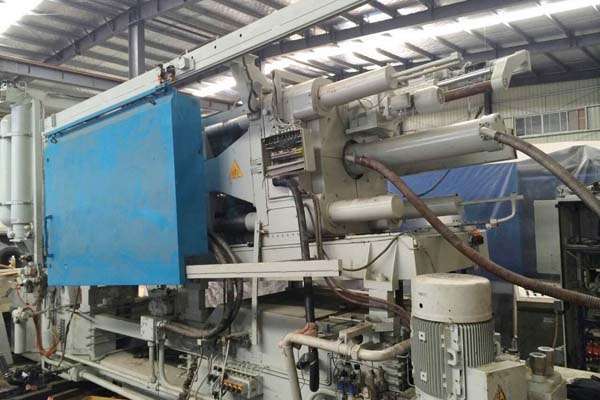

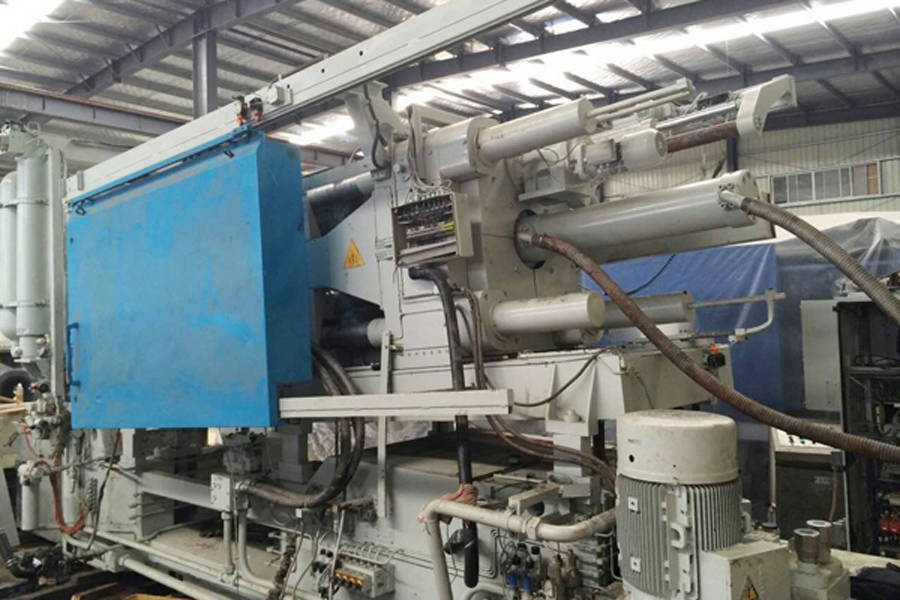

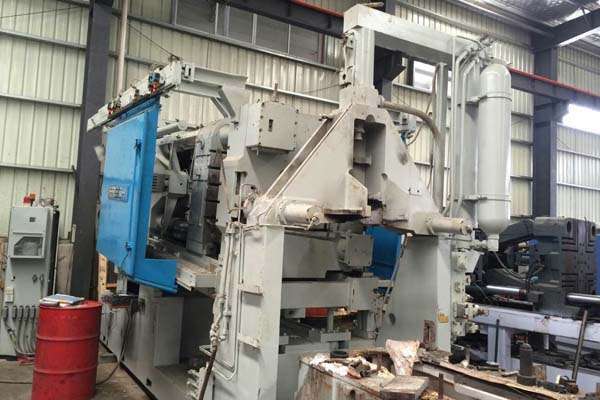

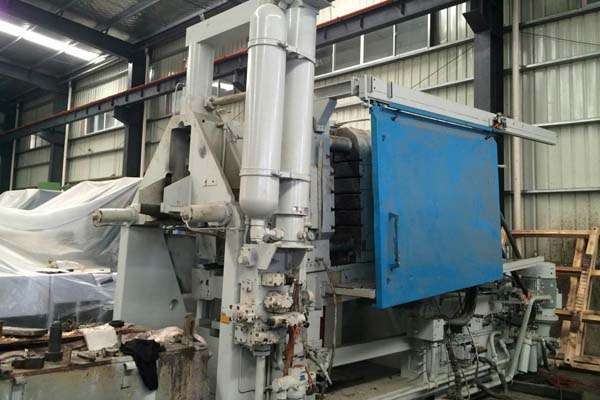

Used Frech Model: DAM 500 S DV 500 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine.

View Available Hot Chamber Die Casting Machines

Click above for larger image

Features & Accessories:

  • Top Operator Side Automatic Tie Bar Puller System with Power Front Split Nut

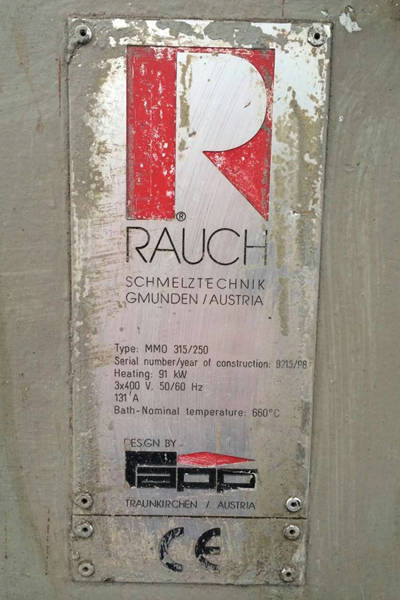

  • Rauch Type MMO Magnesium Melting Furnace
  • Electric Motorized Die Height Adjustment
  • Hydraulic Bumper Plate Ejection System

Item Specifications for DCM-3665

Specifications
Clamping Force:
638 ton
Die Thickness (minimum - maximum):
13.78 - 31.50 inches
Platen Dimensions (horizontal x vertical):
44 x 44 inches
Clearance between tie bars:
27.56 x 27.56 inches
Tie Bar Diameter:
5.51 inches
Closing Stroke:
26.77 inches
Injection Force:
20.02 tons
Injection Plunger Diameter:
3.1, 3.5, 3.9, 4.3 inches
Casting Volume:
46, 64, 85, 102.85 in3
Ejector Force:
31.35 tons
Ejector Stroke:
6.3 inches

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Frech Model DAM 500 S DV 500 Ton Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System with Power Front Split Nut, Rauch Type MMO Magnesium Melting Furnace, Electric Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Frech Data controls, second Hand, DCM-3665


See jumbo large photos of this Frech DAM 500 S DV
