Cold Chamber Die Casting Machines Model DC250J-S One (1) Used Toshiba 250 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine Inventory #: 2907 Condition: Used Available Toshiba - DC250J-S 250 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Toshiba PLC Controls used 1
Die Cast Machinery, LLC Inventory number: 2907
We offer for sale, subject to prior sale and the terms listed below:

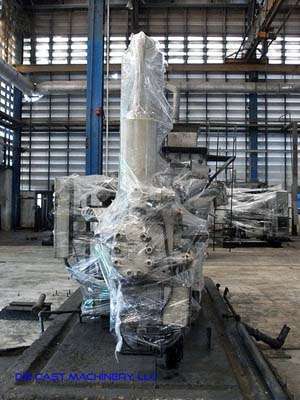

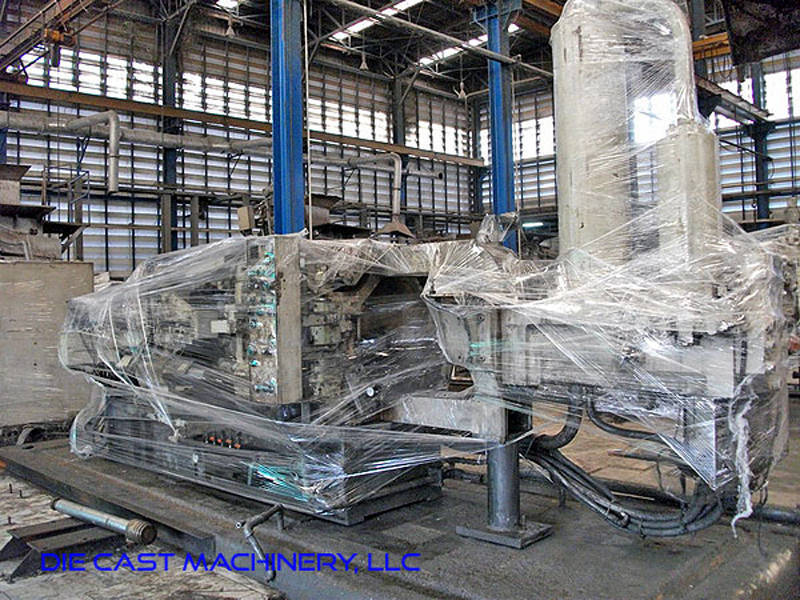

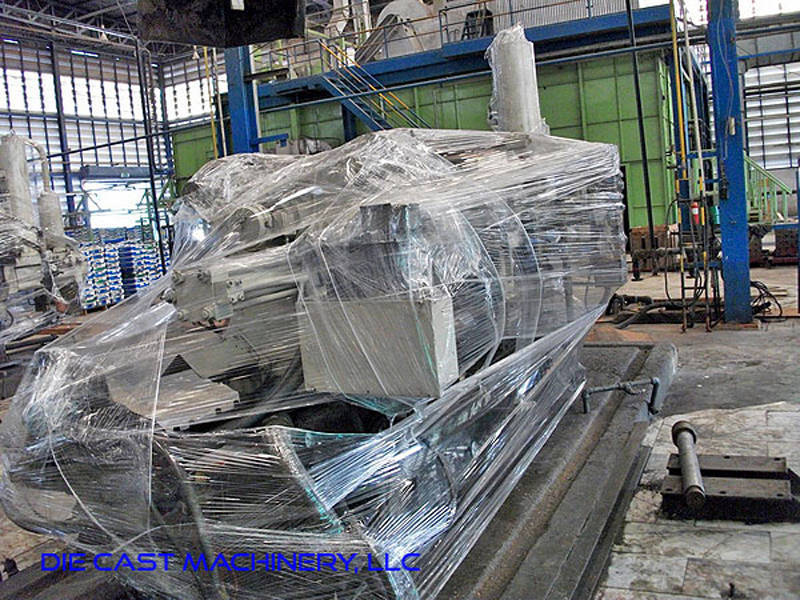

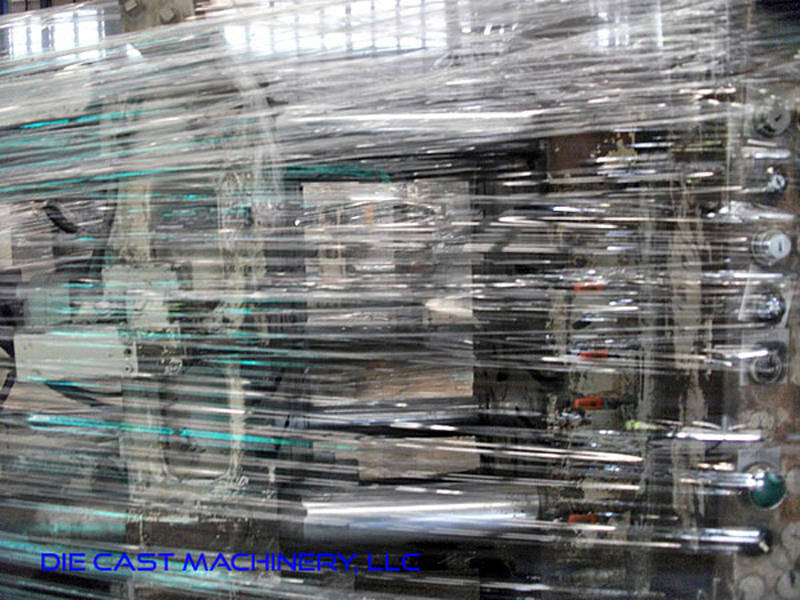

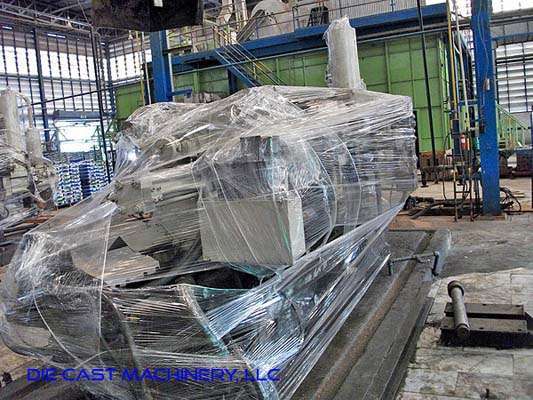

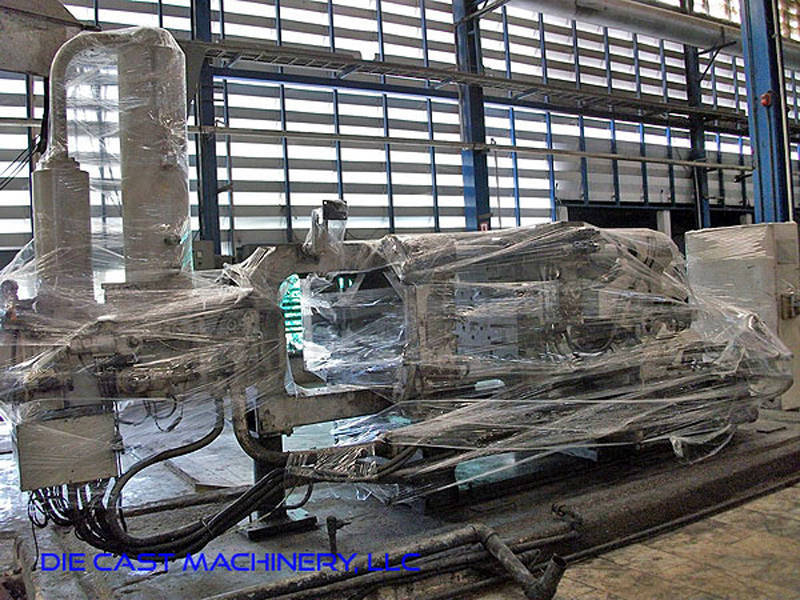

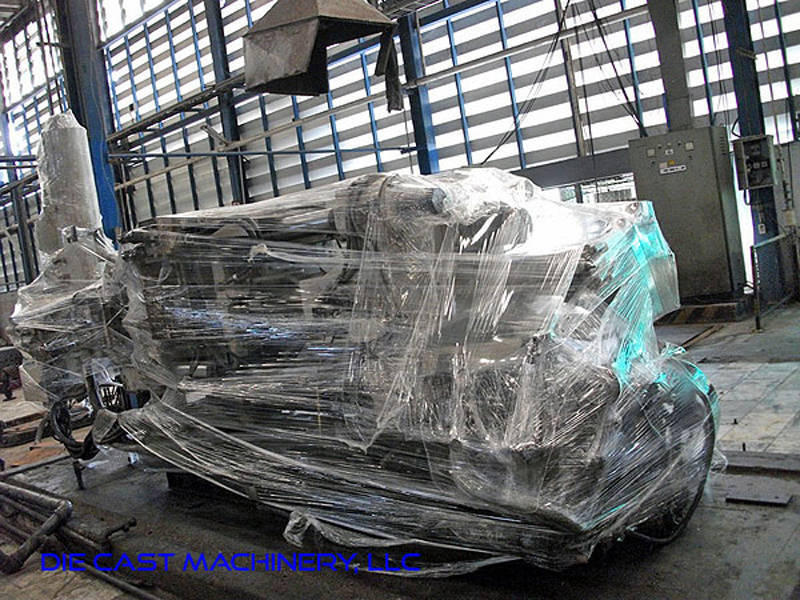

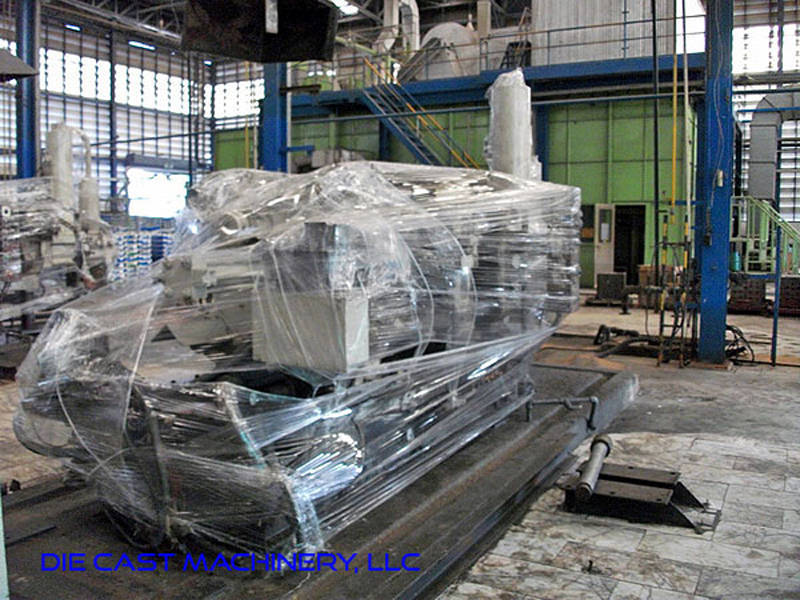

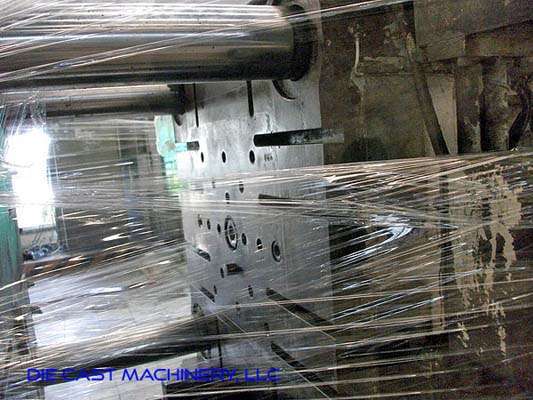

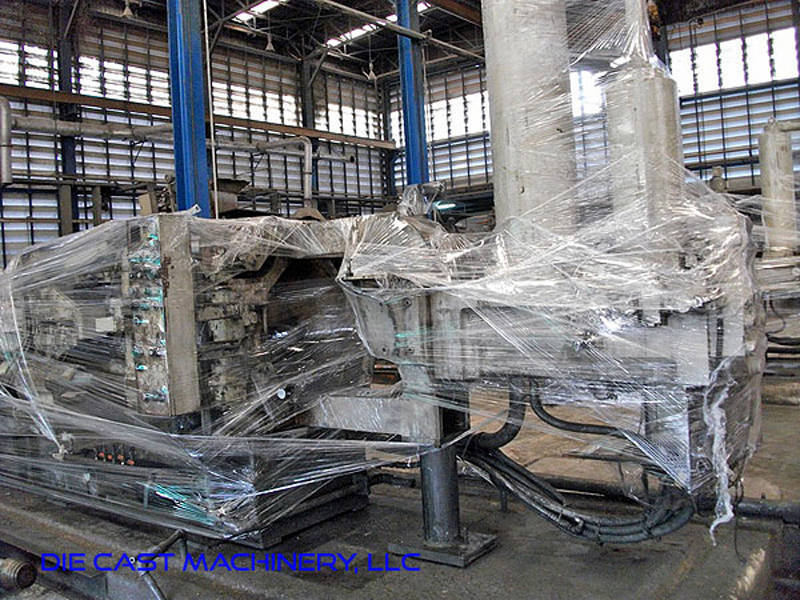

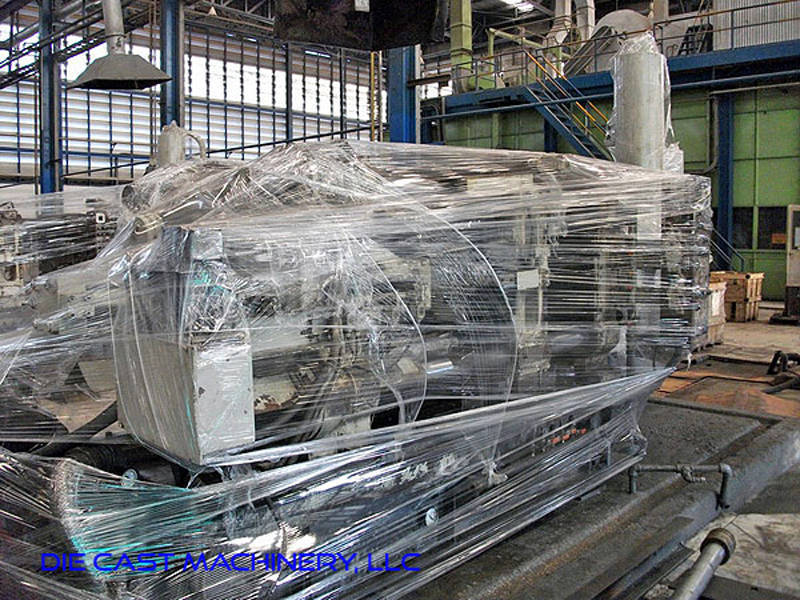

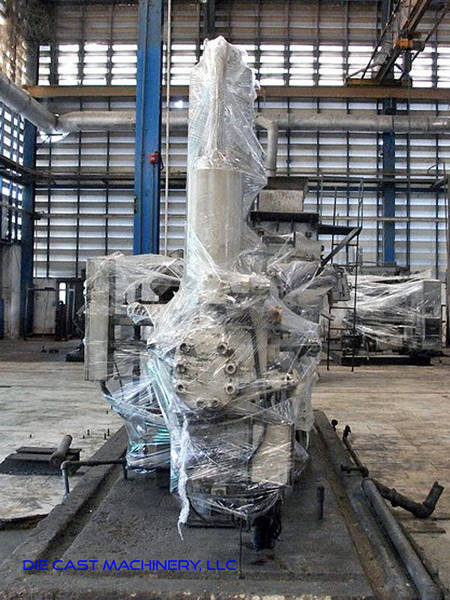

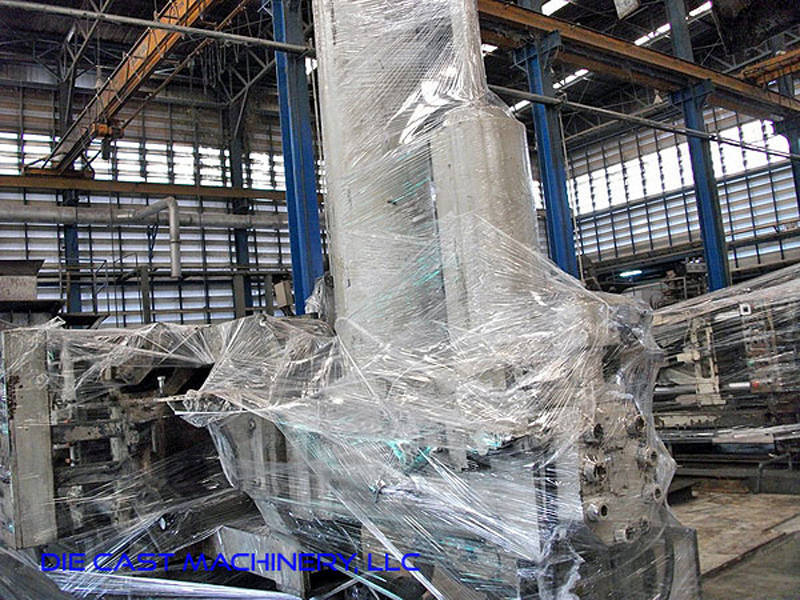

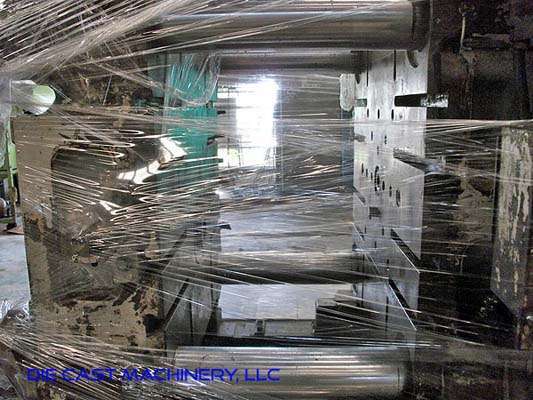

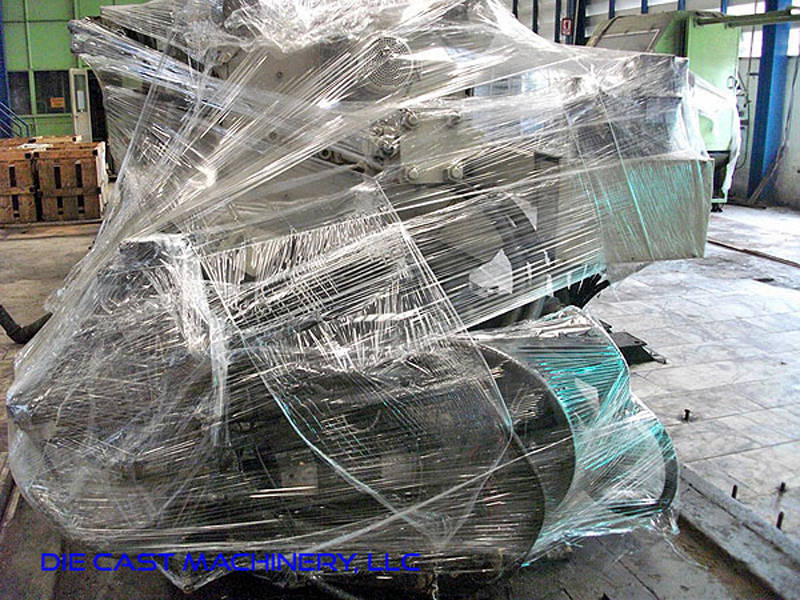

One (1) Used Toshiba 250 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

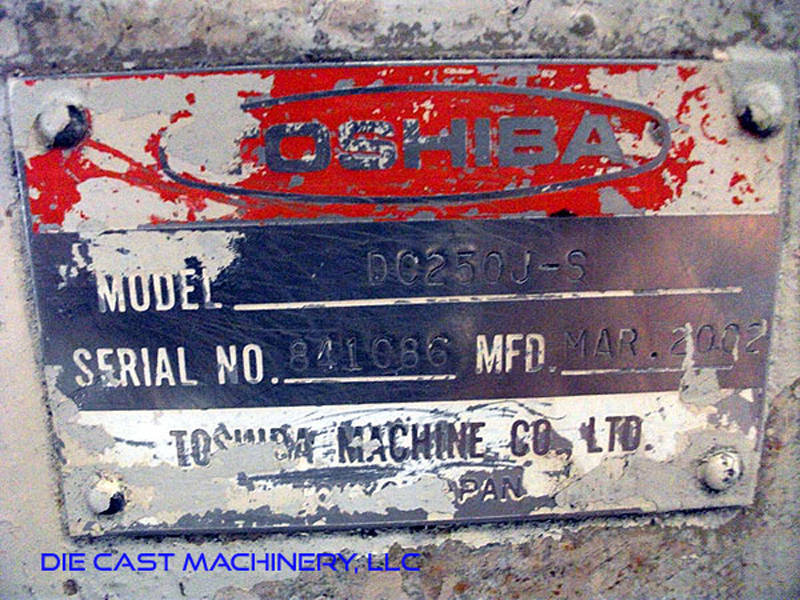

Model DC250J-S

Status: Available
Specifications: Metric / U.S. Standard
Locking Force: 250 tons / 275 tons
Platen Size: 850 x 850 mm / 33.4 x 33.4 inches

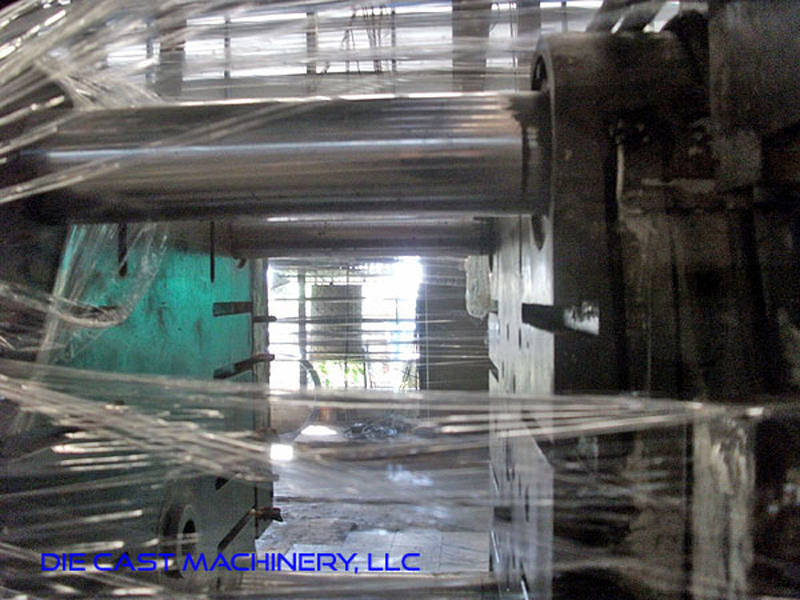

Clearance Between Tie Bars: 580 x 580 mm / 22.8 x 22.8 inches
Die Stroke (max - min): 360 mm / 14 inches
Die Height (max - min): 300 - 700 mm / 11.8 - 27.5 inches
Injection Force: 27.5 tons / 30 tons
Shot Positions: -125 mm / -2.9 inches
Ejection Stroke: 20 - 80 mm / .79 - 3.1 inches
Ejection Force: 124 KN / 13.9 tons
Machine Weight 15 tons / 16.5 tons
:Machine Size: 5.4 x 1.7 x 2.6 meters / 17.8 x 5.5 x 8.6 feet
Features & Accessories:
Electric Motorized Die Height Adjustment
Core Circuits
Hydraulic Ejection

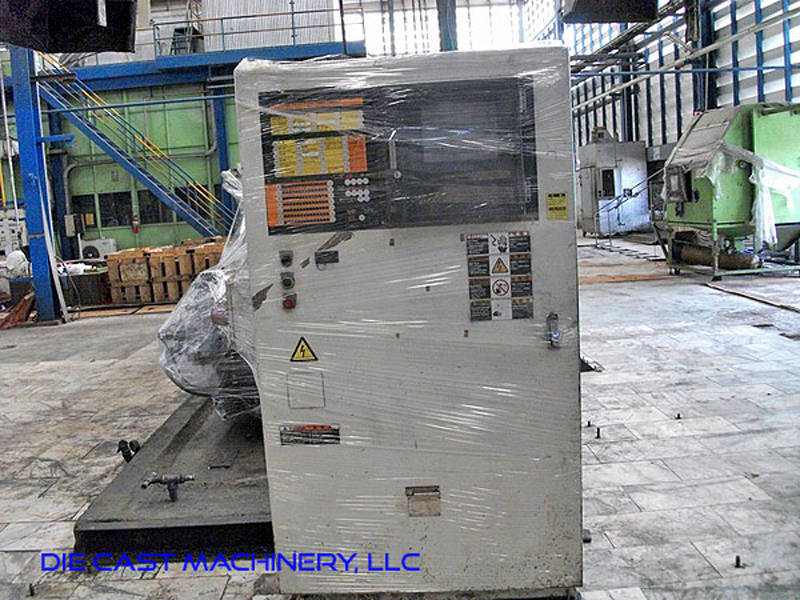

Toshiba PLC Controls
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Toshiba Model DC250J-S 250 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For Sale, Features include: Electric Motorized Die Height Adjustment, Core Circuits, Hydraulic Ejection, Toshiba PLC Controls, Toshiba PLC Controls, Second Hand, DCM-2907
