World Leader in Used Die Casting Machinery!

Used Zitai Model: ZDC-250TPSA 280 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Zitai

Model: ZDC-250TPSA

Size: 280 Ton

Inventory Number: DCM-3608

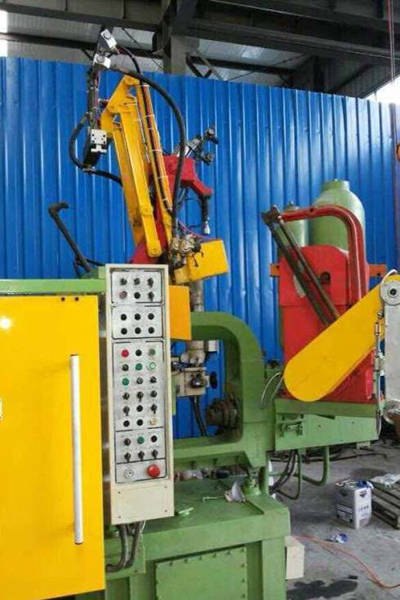

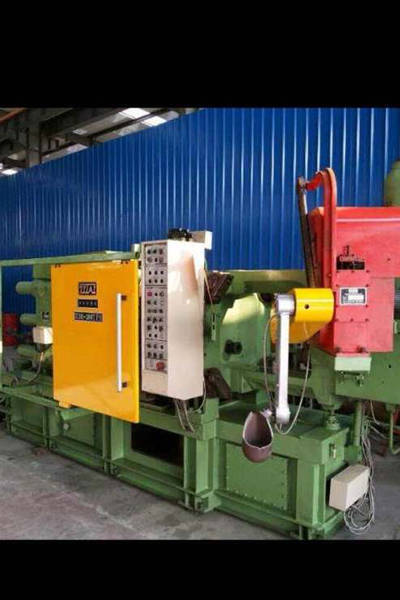

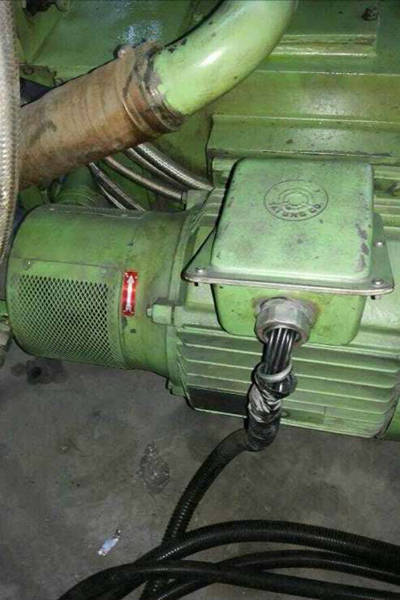

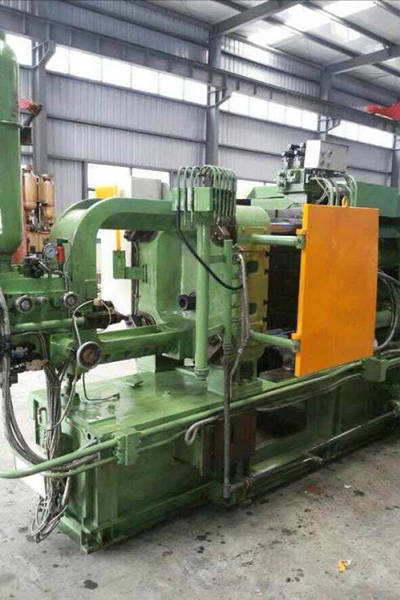

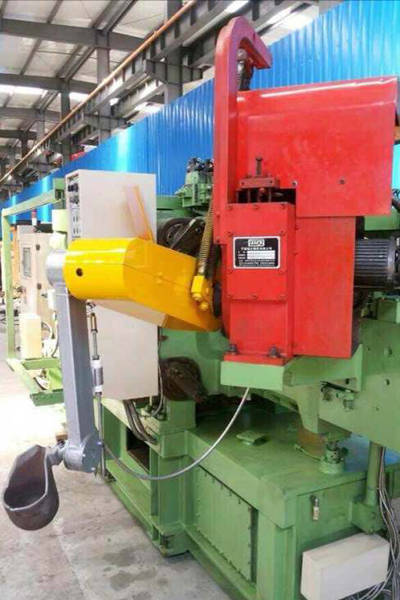

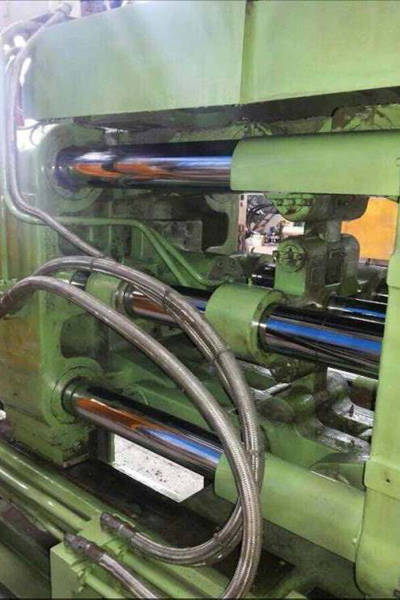

Used Zitai Model: ZDC-250TPSA 280 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Click above for larger image

Features & Accessories:

  • Equipped with Factory Automatic Ladler and Die Sprayer
  • Factory integrated Zitai ZLB-35C Series Automatic Ladler
  • Factory integrated Zitai ZSP-25B Series Auto Sprayer

Item Specifications for DCM-3608

Specifications
Rated Tonnage
275 tons
Tie Bar Diameter
4.3 inches
Clearance Between Tie bars
22.8 x 22.8 inches
Front Platen Size
33.8 x 33.8 inches
Die Thickness (min - max)
9.8 - 25.5 inches
Die Stroke
15.7 inches
Ejection Stroke
3.5 inches
Ejection Force
20.39 tond
Machine Size
18 x 6.2 x 9.1 feet
Machine Weight
19,841 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Zitai Model ZDC-250TPSA 280 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Factory integrated Zitai ZLB-35C Series Automatic Ladler, Factory integrated Zitai ZSP-25B Series Auto Sprayer , controls, second Hand, DCM-3608


See jumbo large photos of this Zitai ZDC-250TPSA
