Cold Chamber Die Casting Machines Model DC-1650-CL One (1) Used Toshiba 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 3021 Condition: Used Sold Toshiba - DC-1650-CL 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba PLC Controls used 1
Die Cast Machinery, LLC Inventory number: 3021
We offer for sale, subject to prior sale and the terms listed below:

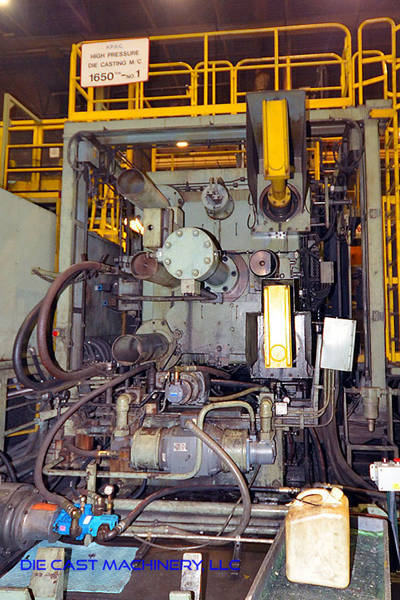

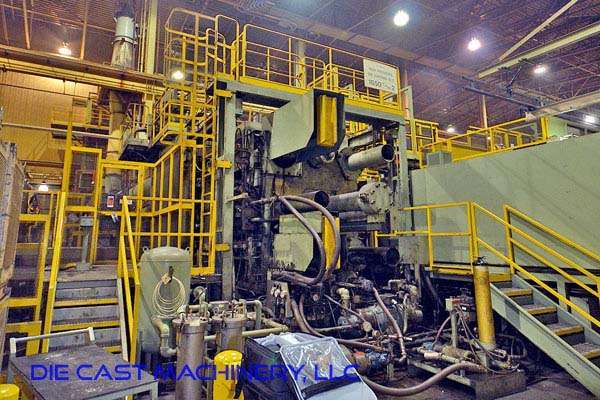

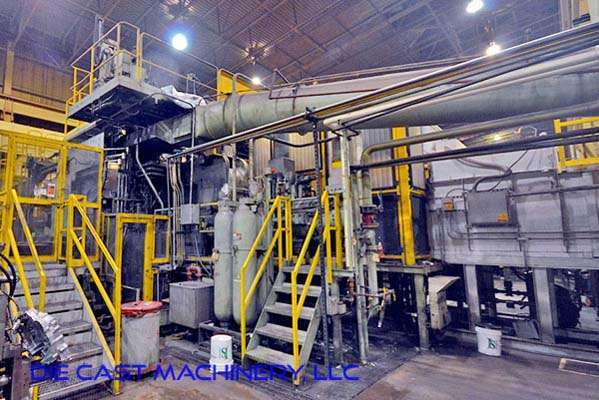

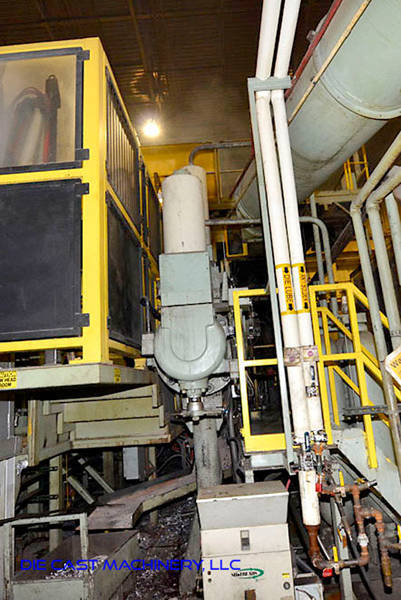

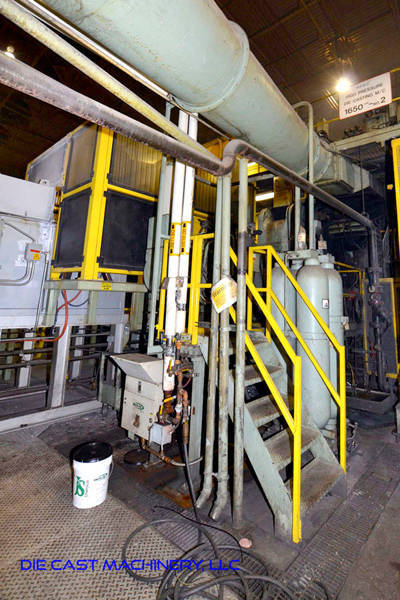

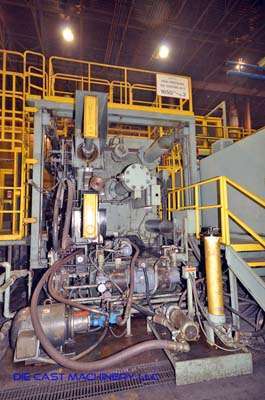

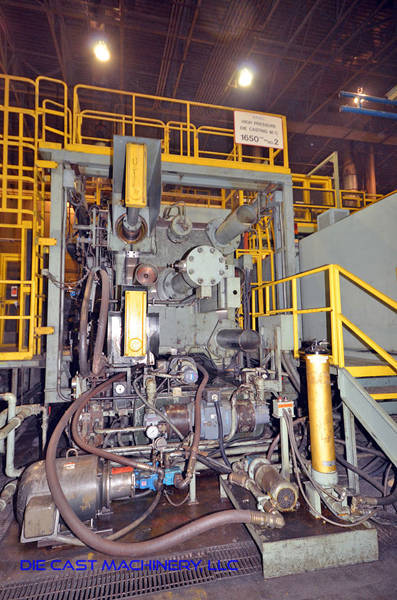

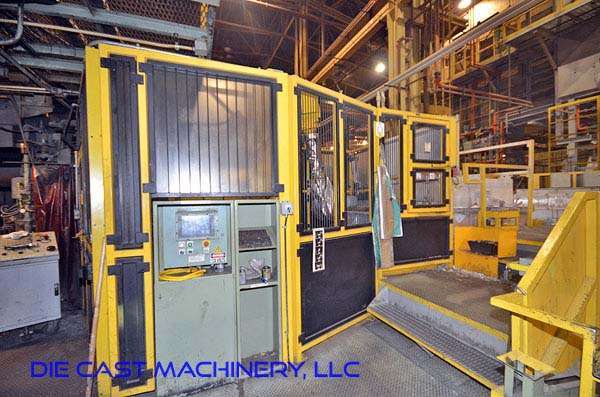

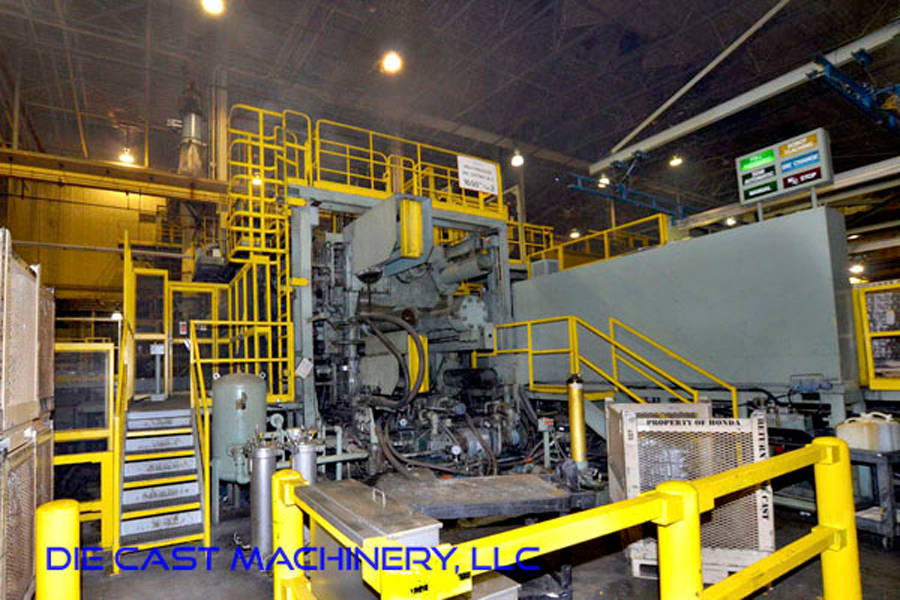

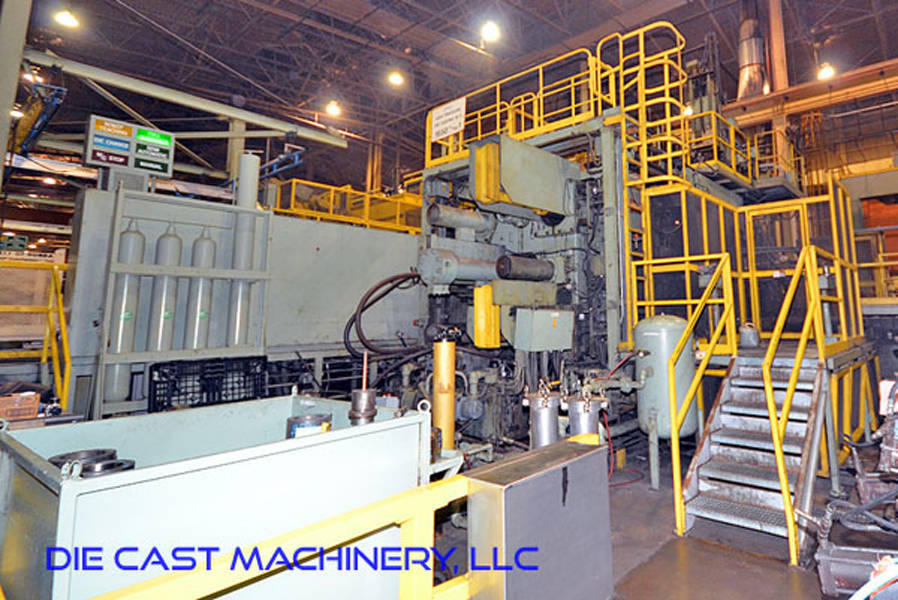

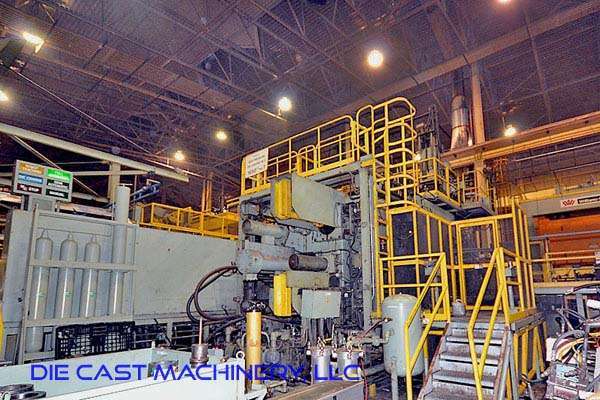

One (1) Used Toshiba 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model DC-1650-CL

Manufactured New in 1985

Status: Sold
Specifications: Metric / U.S. Standard
Clamping Force: 1650 Tons / 1,815 Tons
Clearance Between Tie Bars (H x V) 1300 x 1500 mm / 51 x 59 inches
Tie Bar Diameter: 280 mm / 11 inches
Platen Dimensions: 2060 x 2260 mm / 81.1 x 89 inches
Die Thickness (minimum - maximum): 700 - 1700 mm / 27.55 - 66.9 inches
Die Stroke: 1000 mm / 39.38 inches
Injection Force: 85 to 153 tons / 93 to 168 tons
Injection Stroke: 1200 mm / 47.25 inches
Shot Positions: 350 mm below Center / 13.78 inches below Center
Ejector Plate Stroke: 20 - 200 mm / .78 - 7.8 inches
Machine Size: 13.11 x 3.96 x 4.27 meters / 43 x 13 x 14 feet
Machine Weight: 139,706 kg / 308,000 lbs
Features & Accessories:
Dual Fully Automated Tie Bar Pulling on Top and Bottom Operator Side Tie Bars
Automatic Lubrication System with Monitoring System
Two Speed Hydraulic Motorized Die Height via central Bull Gear
Toshiba PLC Controls
C-Frame Shot End with Close Coupled Accumulators and Shot Intensifier
Hydraulic Bumper Plate Ejection System
PDF Documents for this Machine:
Toshiba DC-1650 CS Specifications.pdf
Front Platen Drawing.pdf
Moving Platen Drawing.pdf
Machine General Arrangment Drawing.pdf
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America



Description: Used, Toshiba Model DC-1650-CL 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Dual Fully Automated Tie Bar Pulling on Top and Bottom Operator Side Tie Bars, Automatic Lubrication System with Monitoring System, Two Speed Hydraulic Motorized Die Height via central Bull Gear, Toshiba PLC Controls, C-Frame Shot End with Close Coupled Accumulators and Shot Intensifier, Hydraulic Bumper Plate Ejection System, Toshiba PLC Controls, Second Hand, DCM-3021
