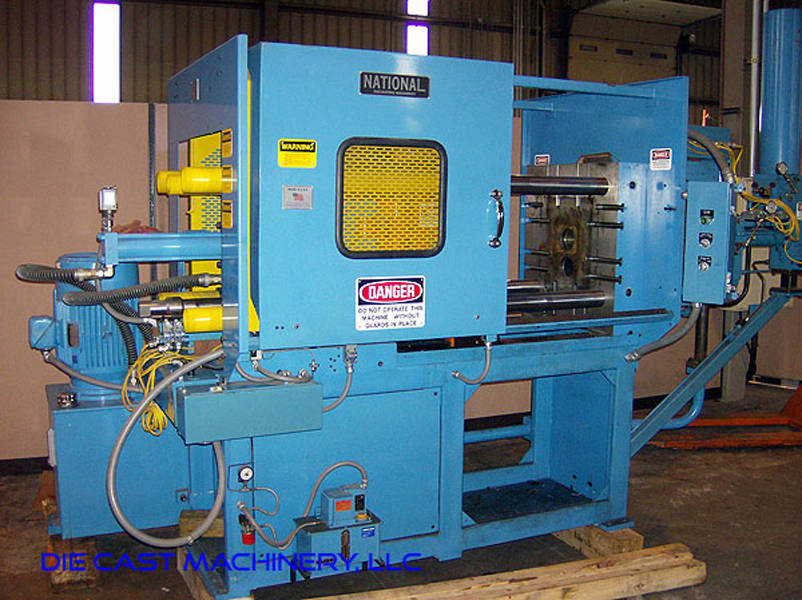

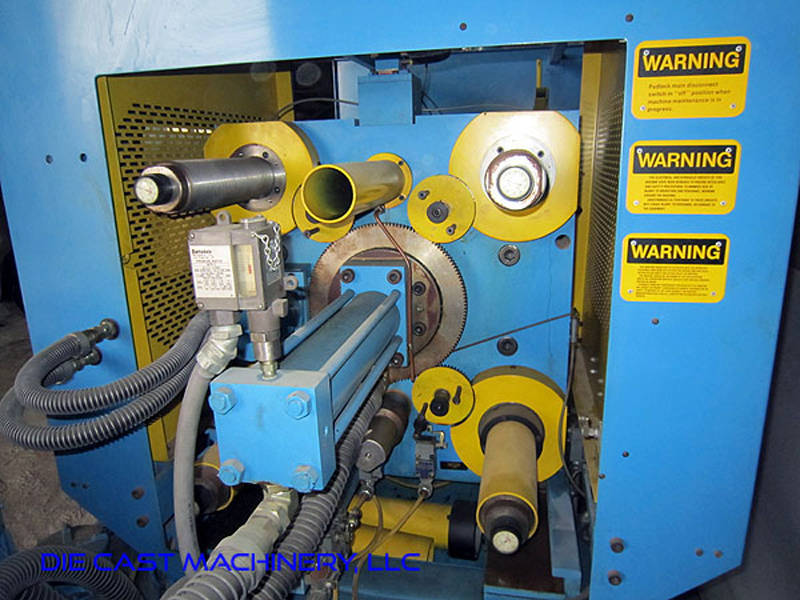

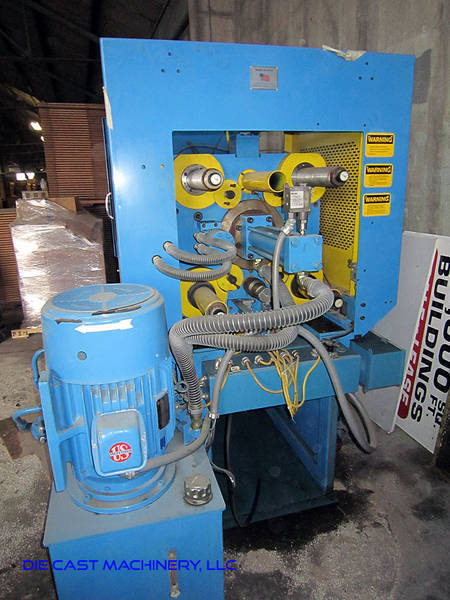

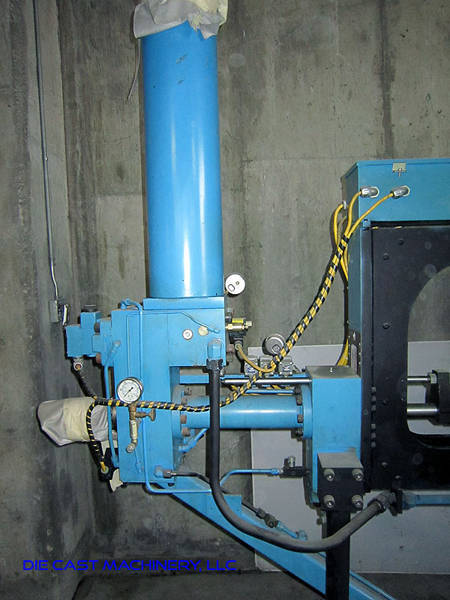

Used National 185 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

Used National 185 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine. Inventory item: DCM-3031.

Manufacturer: National

Model: H150AXV

Features & Accessories

  • Never Put Into Production
  • Air Safety Ratchet Device

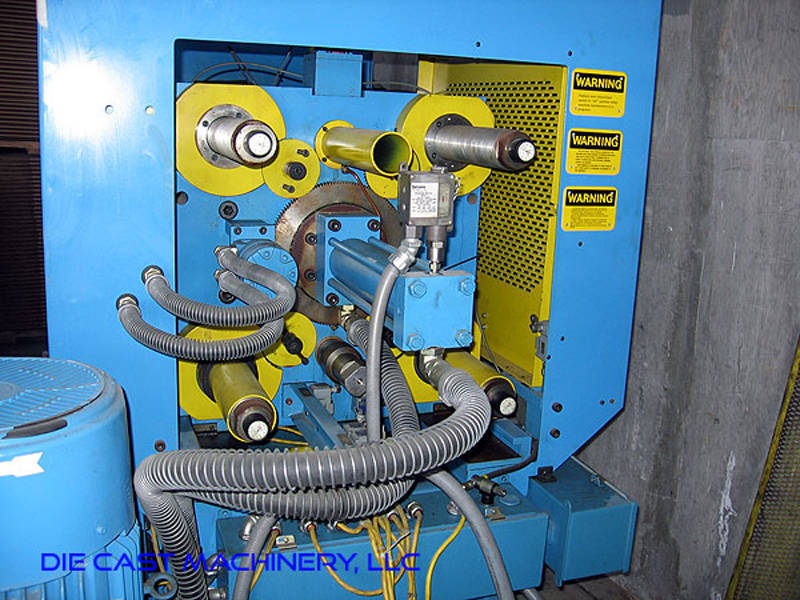

  • Hydraulic Motorized Single Point Die Height Adjustment System
  • Hydraulic Bumper Plate Ejection System
  • Central Automatic Lubrication System
  • Hydraulic Shot Intensifier Circuit
  • One (1) Hydraulic Core Circuit

Item Specifications for DCM-3031

Specifications
Clamping Force:
184.6 tons
Clamping Cylinder Diameter:
3.25 inches
Tie Bar Centers (H x V):
19 x 19 inches
Tie Bar Diameter:
3 inches
Distance Between Tie Bars (H x V):
16 x 16 inches
Stationary Platen Dimensions (V x H):
29 x 27 x 6 inches
Moving Platen Dimensions:
27 x 27 x 5 inches
Moving Platen Stroke:
10 inches
Die Height:
10 to 20 inches
Hydraulic Ejector Stroke:
2.5 inches
Hydraulic Ejector Force at 1500 PSI:
9.300 pounds
Shot Positions:
Center and 5 inches below center

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

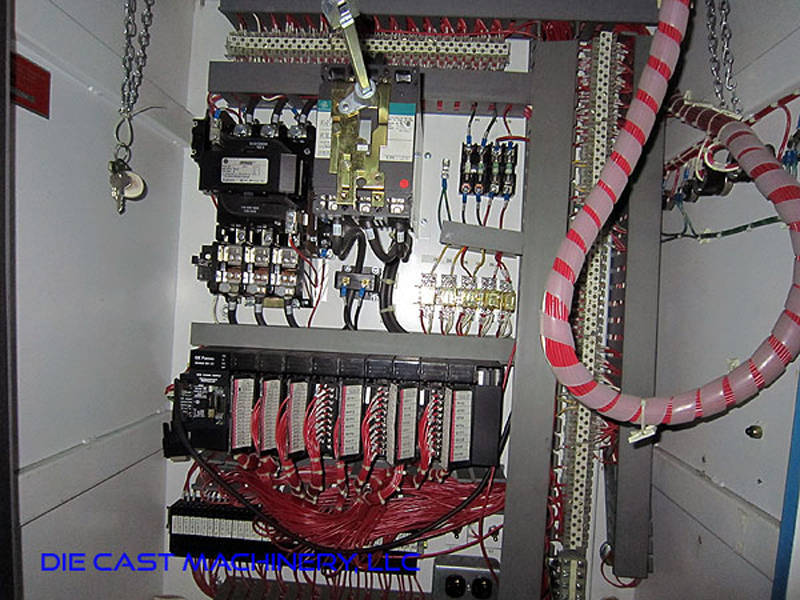

Used, National Model H150AXV 185 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Air Safety Ratchet Device, Hydraulic Motorized Single Point Die Height Adjustment System, Hydraulic Bumper Plate Ejection System, Central Automatic Lubrication System, Hydraulic Shot Intensifier Circuit, One (1) Hydraulic Core Circuit, GE Fanuc 90/30 PLC Controls, Second Hand, DCM-3031

The following technical terms are to assist you with searches: Used | Second Hand | National |H150AXV | 185 Ton | Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine | For Sale | Air Safety Ratchet Device | Hydraulic Motorized Single Point Die Height Adjustment System | Hydraulic Bumper Plate Ejection System | Central Automatic Lubrication System | Hydraulic Shot Intensifier Circuit | One (1) Hydraulic Core Circuit | GE Fanuc 90/30 PLC Controls | DCM-3031
