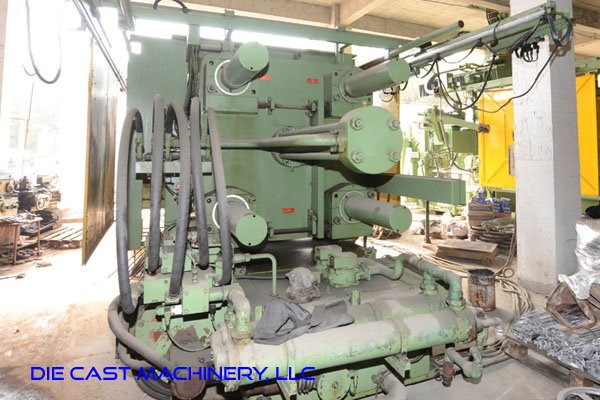

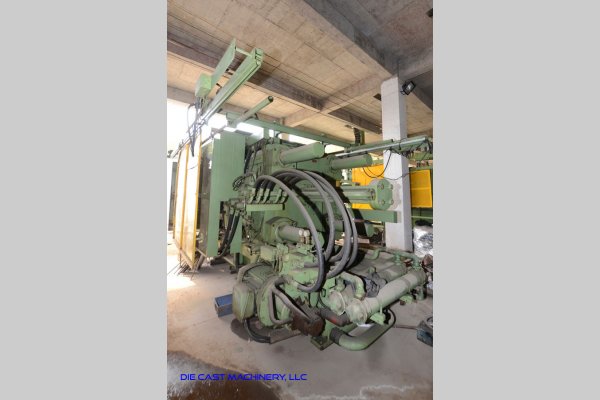

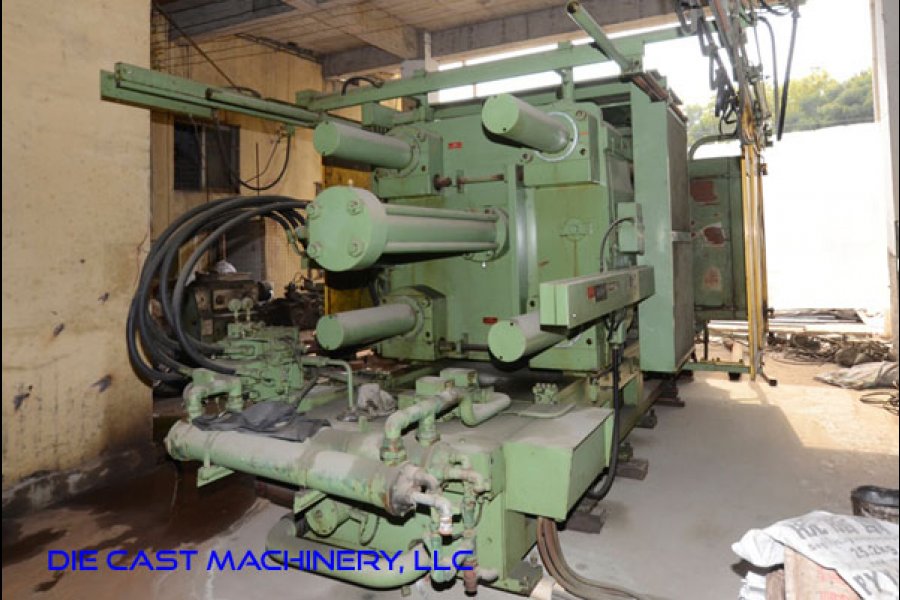

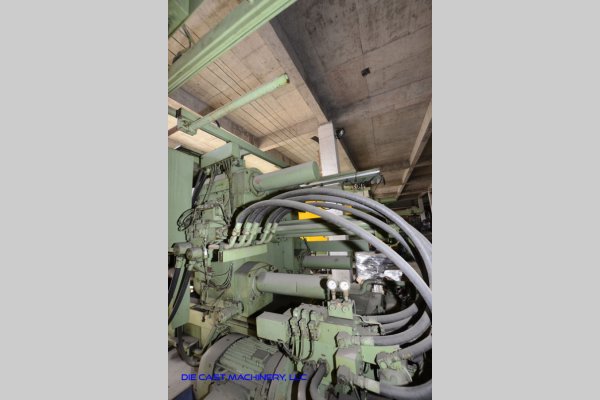

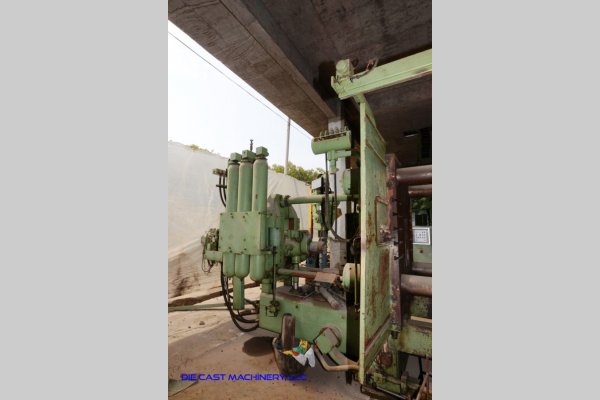

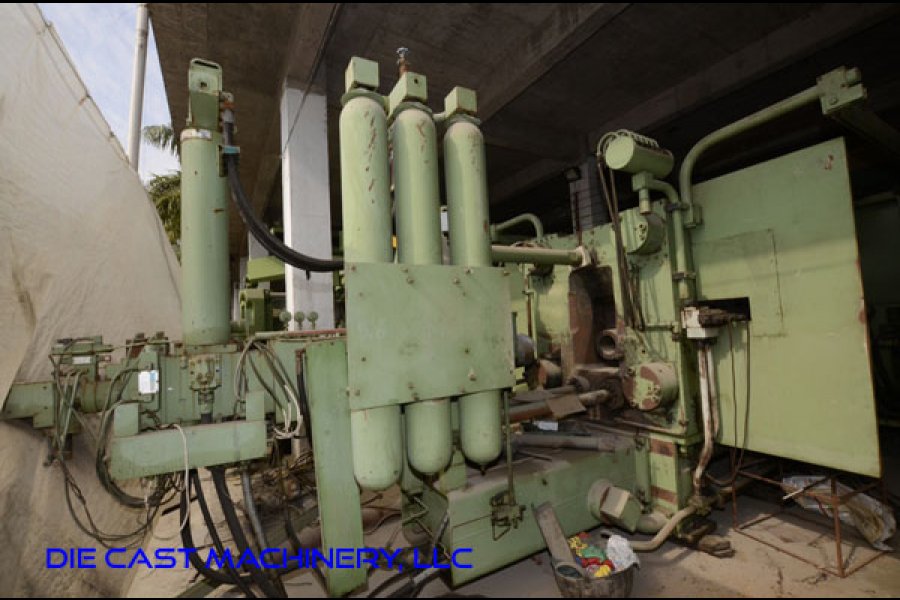

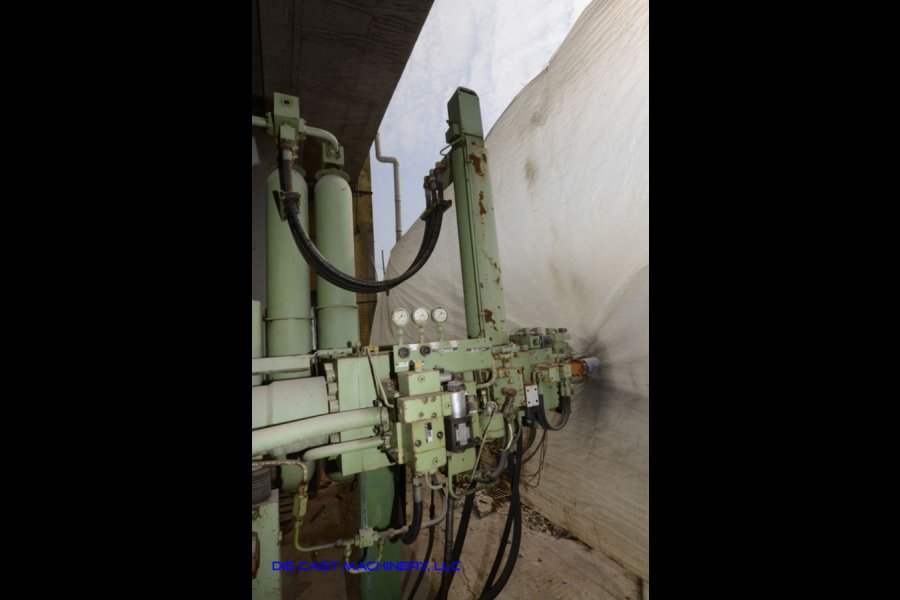

Used Buhler Model: H-400-B V5 400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Buhler
Model: H-400-B V5
Size: 400 Metric Ton
Inventory Number: DCM-3265
Used Buhler Model: H-400-B V5 400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine.
View Available Cold Chamber Die Casting Machines
Features & Accessories:

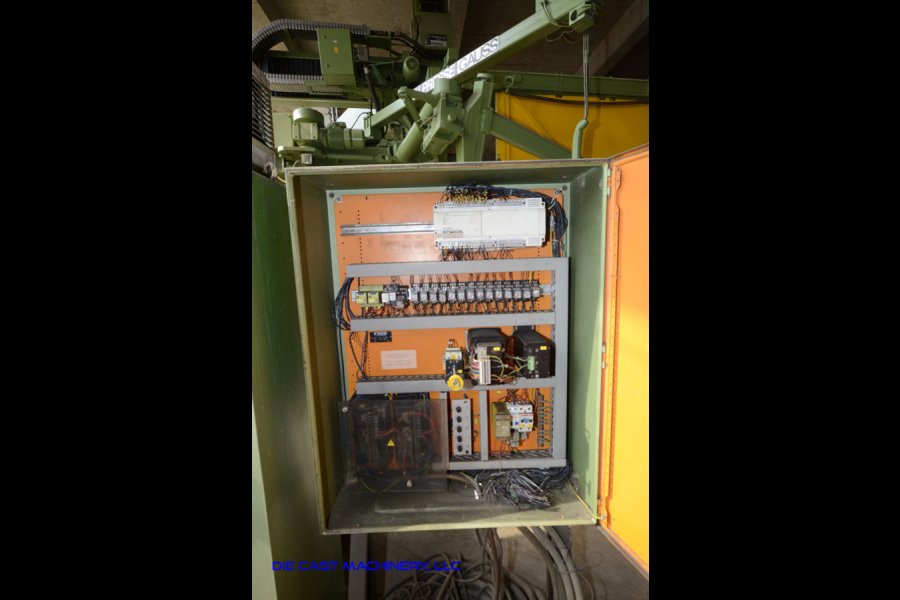

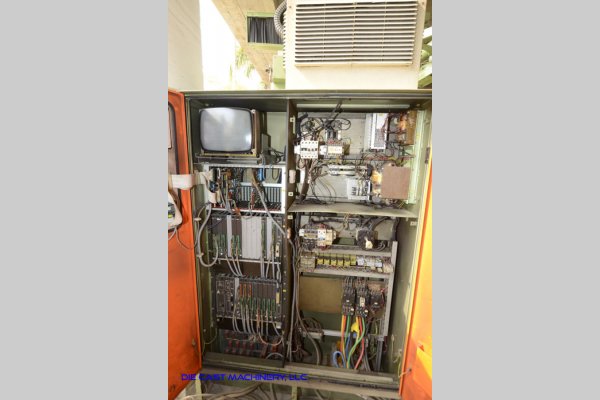

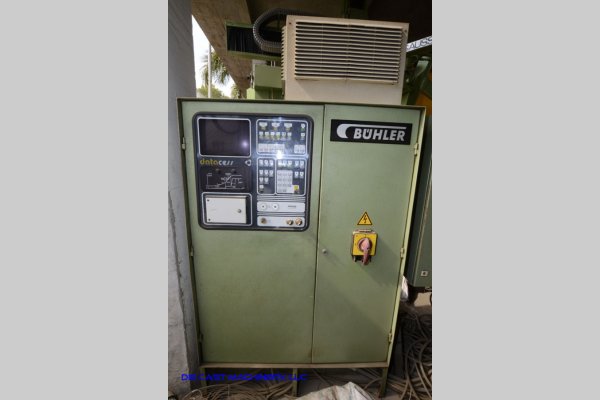

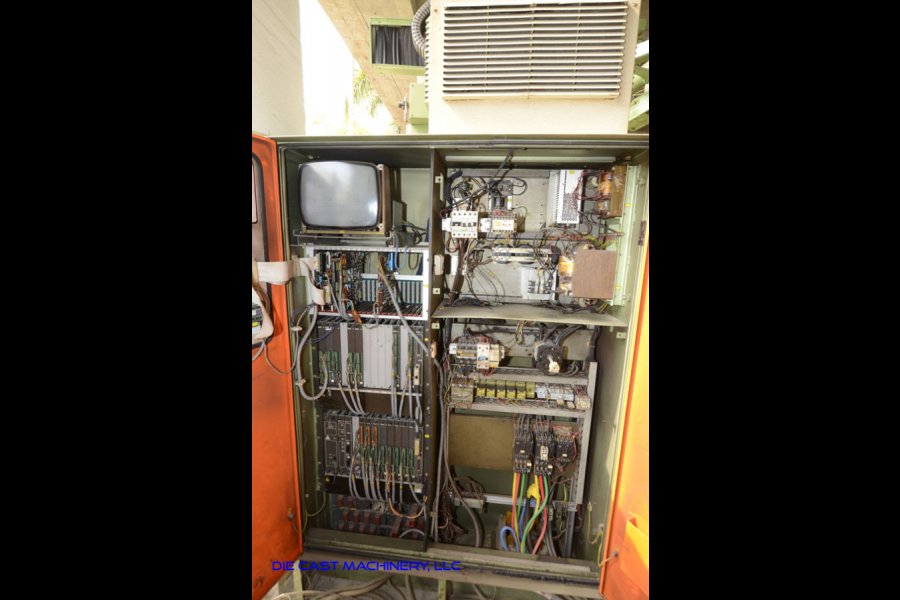

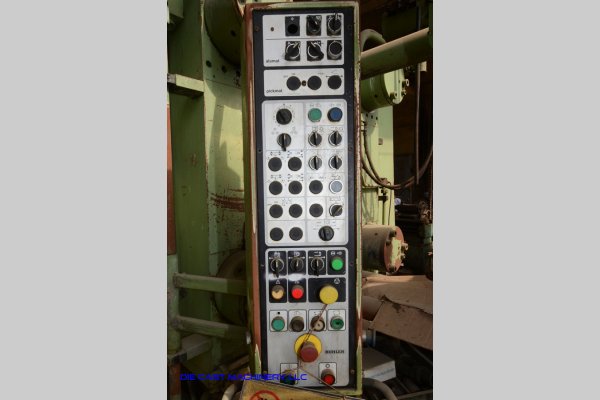

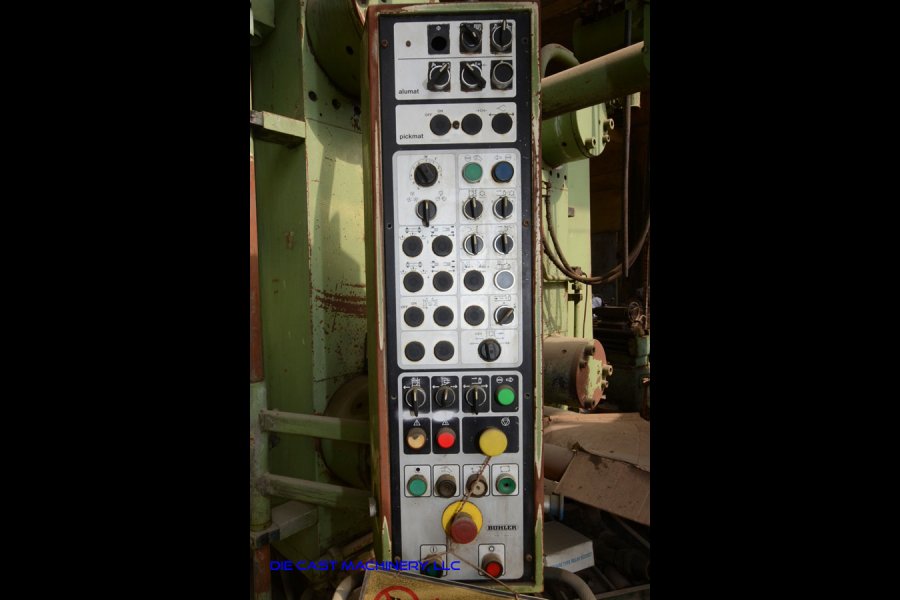

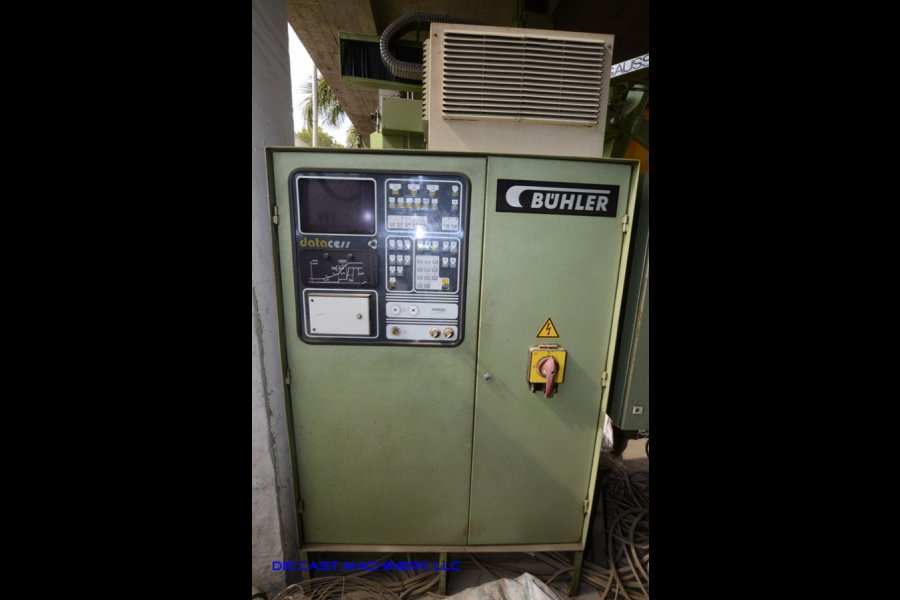

- Buhler Datacess Control
- Hydraulic Bumper Plate Ejection System
- Inserted (adjustable) Shot Position
- Automatic Lubrication System
- Motorized Die Height Adjustment
Item Specifications for DCM-3265
| Specifications | |
|---|---|
| Rated Tonnage |
440 tons
|
| Tie Bar Diameter |
4.72 inches
|
| Clearance Between Tie bars |
25.2 x 25.2 inches
|

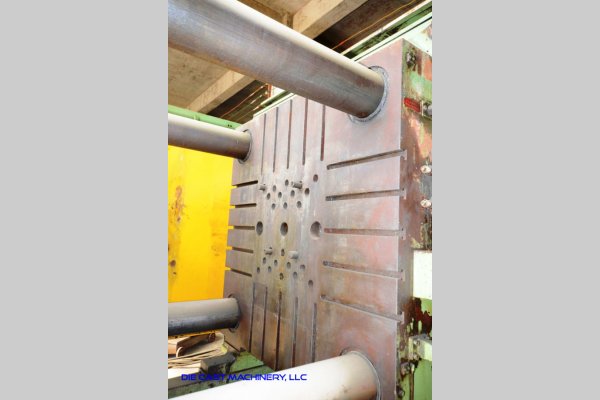

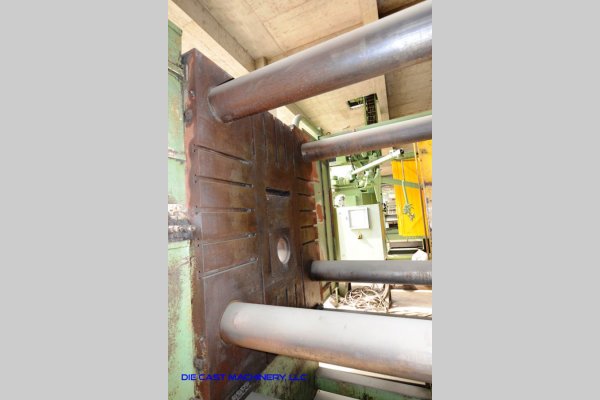

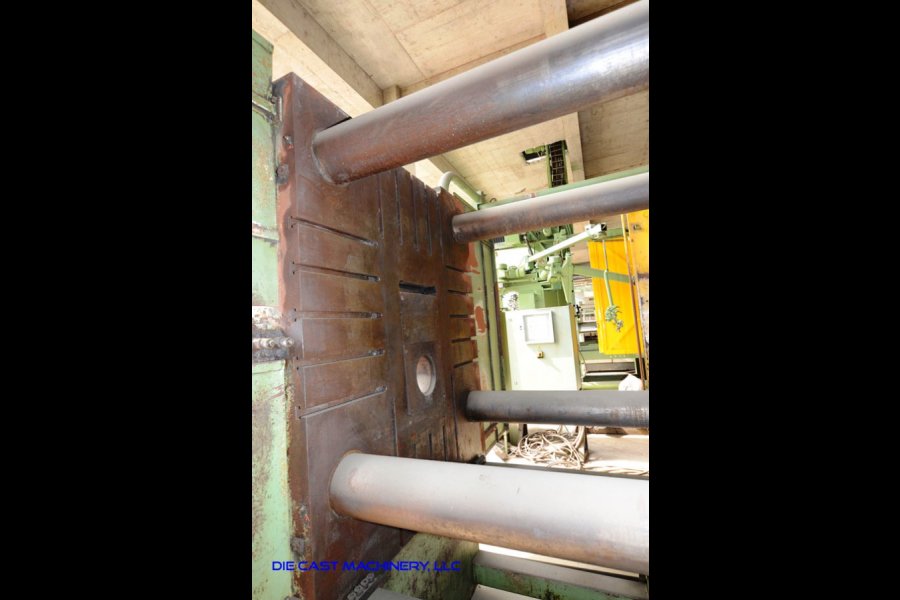

| Fixed Platen Size (H x V) |
38.9 x 44.5 inches
|

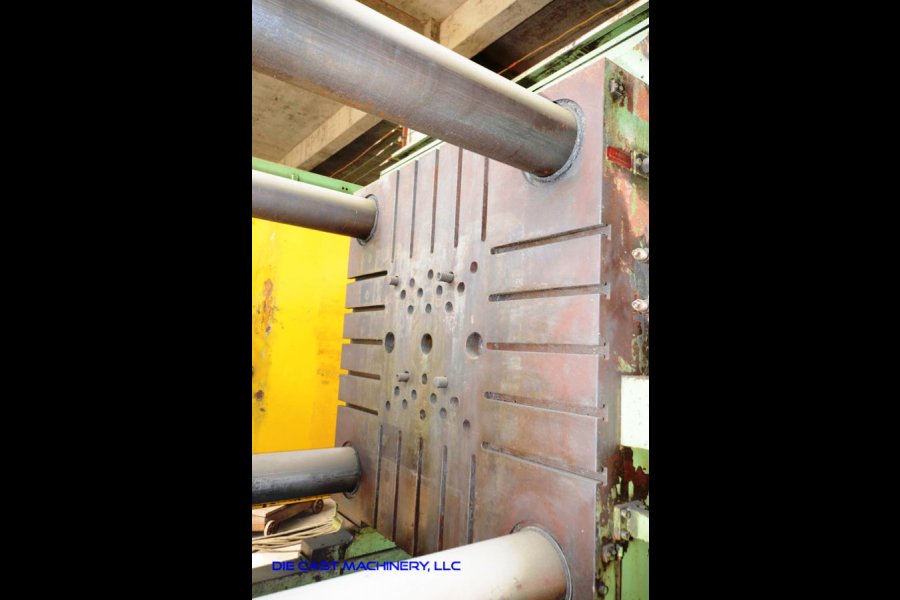

| Moving Platen Size (H x V) |
38.9 x 38.9 inches
|
| Die Thickness (min. - max.) |
12.99 - 41.34 inches
|
| Die Stroke |
25.2 inches
|
| Ejection Stroke |
6.89 inches
|
| Ejection Force |
24 tons
|
| Motor Size |
40 hp
|
| Machine Size (L x W x H) |
23.6 x 8.2 x 7.5 feet
|
| Machine Weight |
35,273 pounds
|
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Buhler Model H-400-B V5 400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Datacess Control, Hydraulic Bumper Plate Ejection System, Inserted (adjustable) Shot Position, Automatic Lubrication System, Motorized Die Height Adjustment Buhler Datacess controls, second Hand, DCM-3265

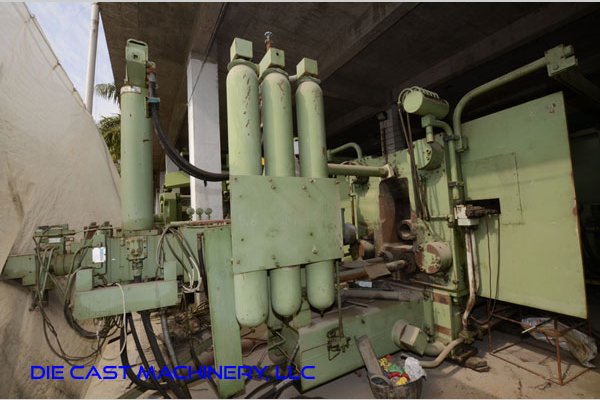

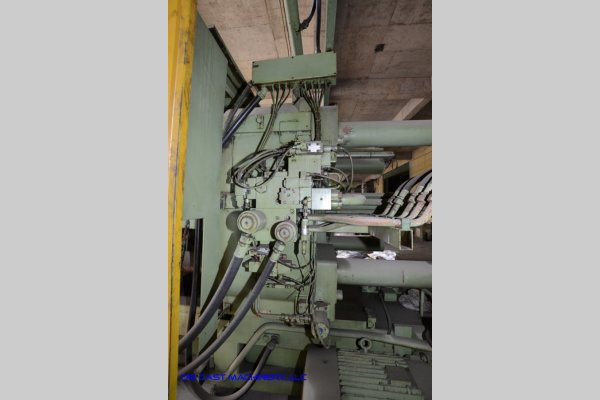

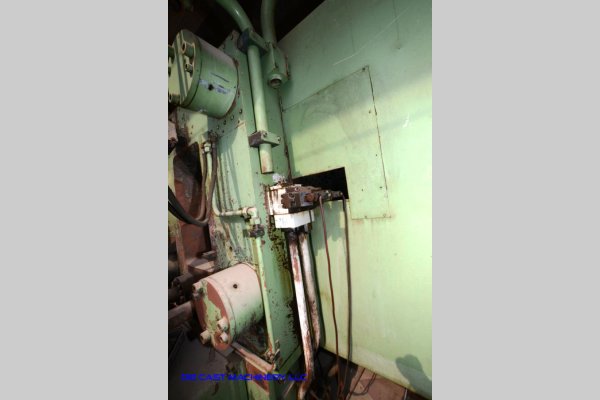

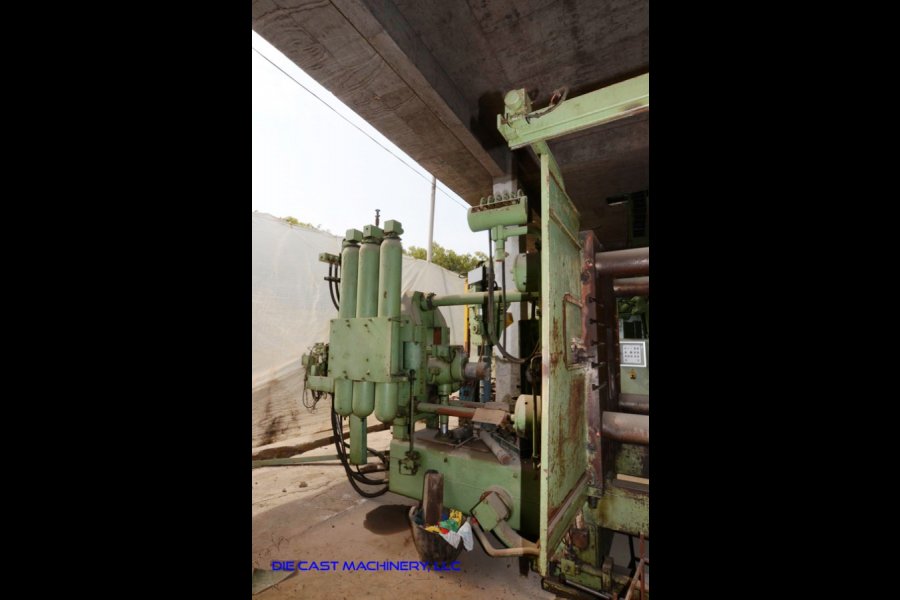

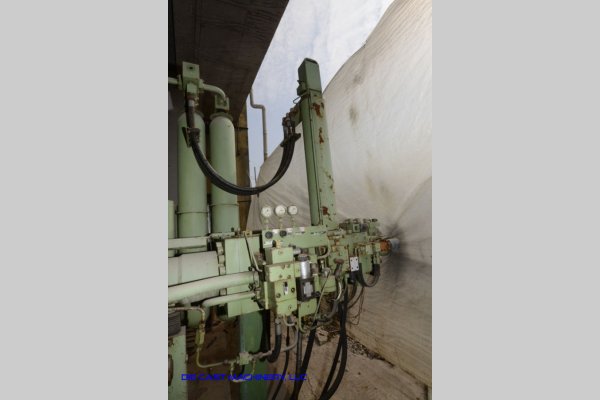

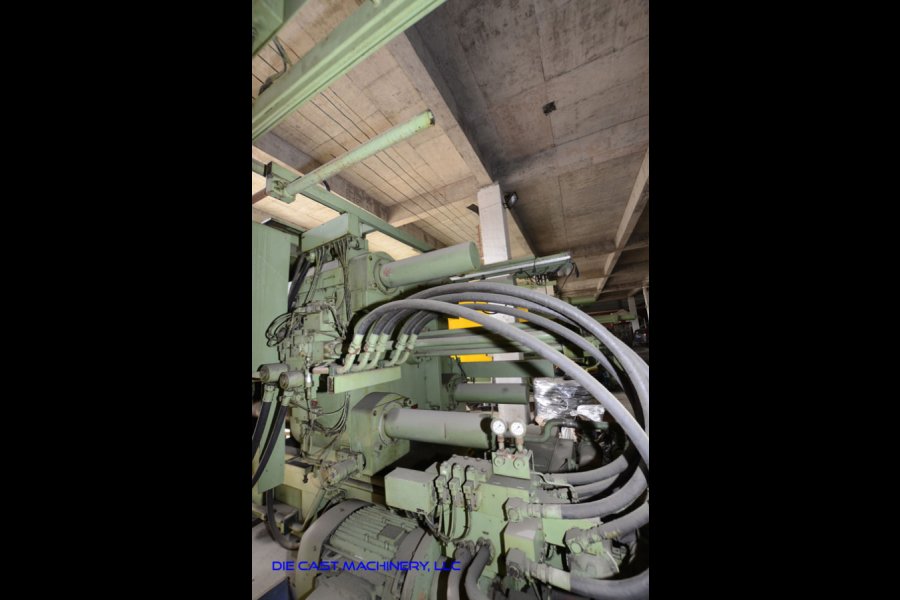

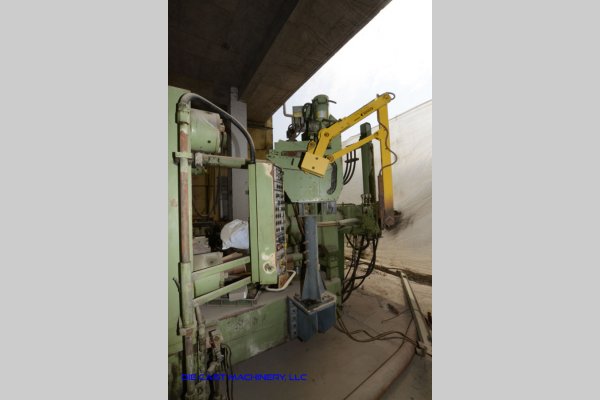

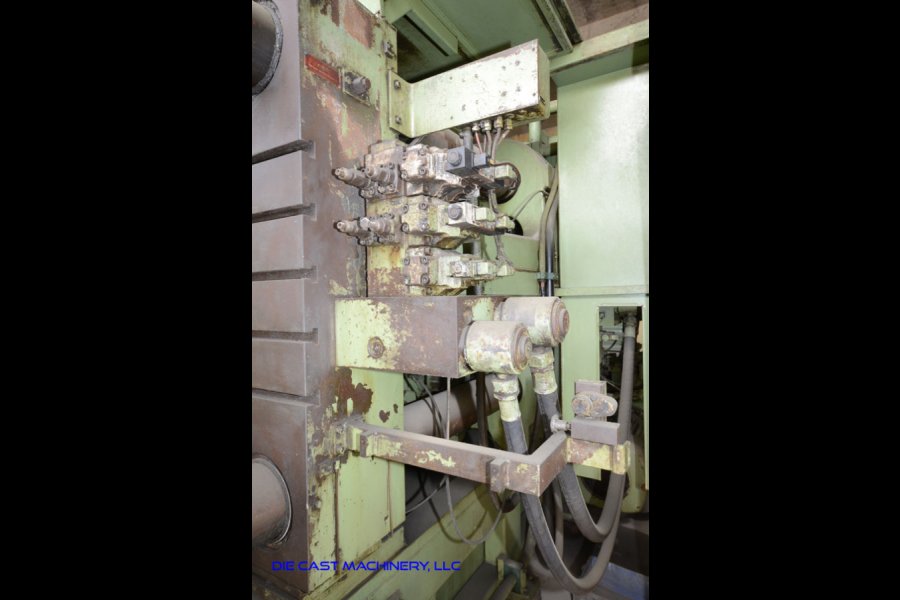

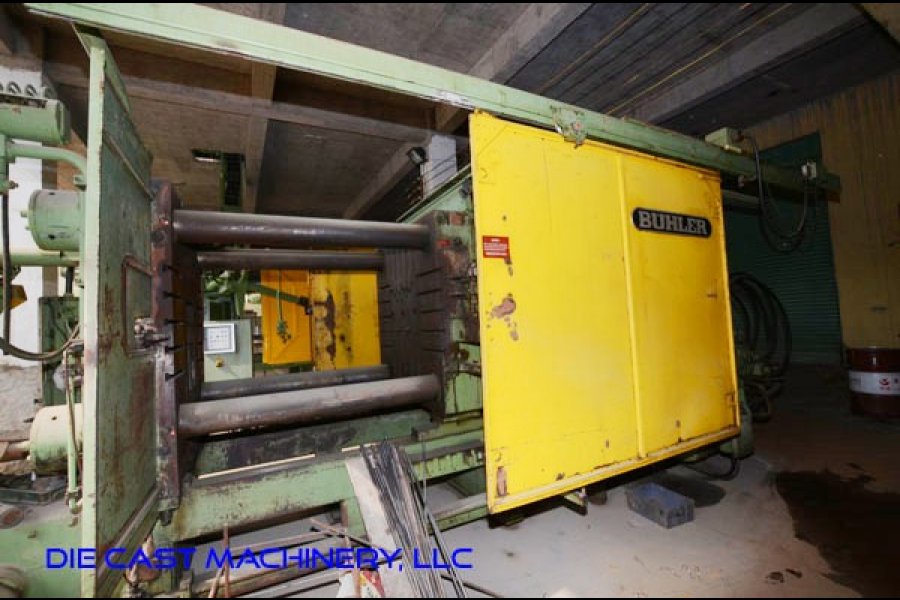

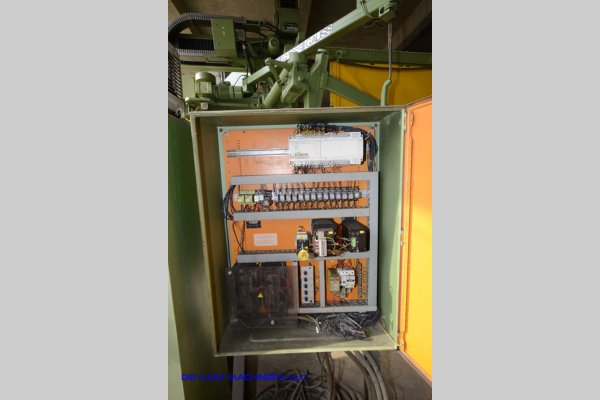

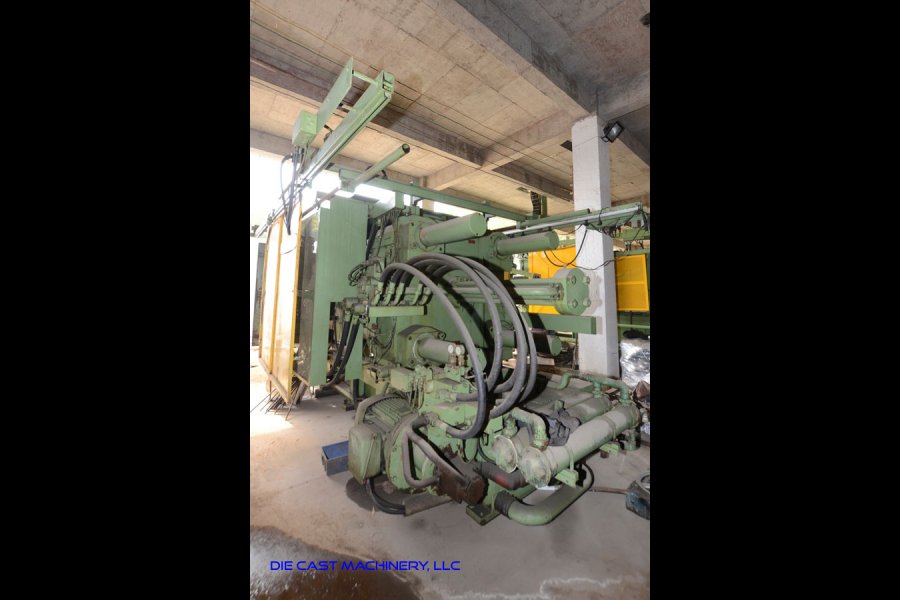

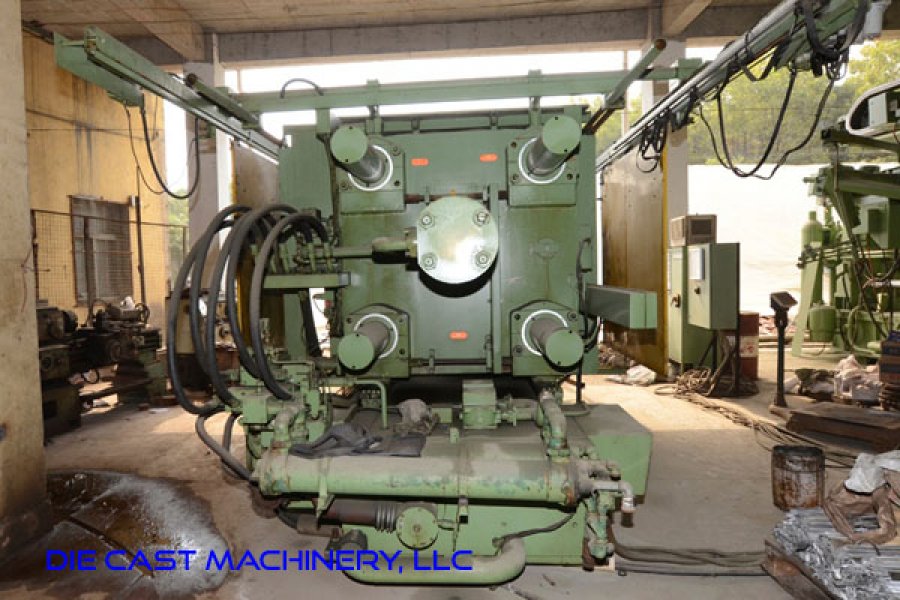

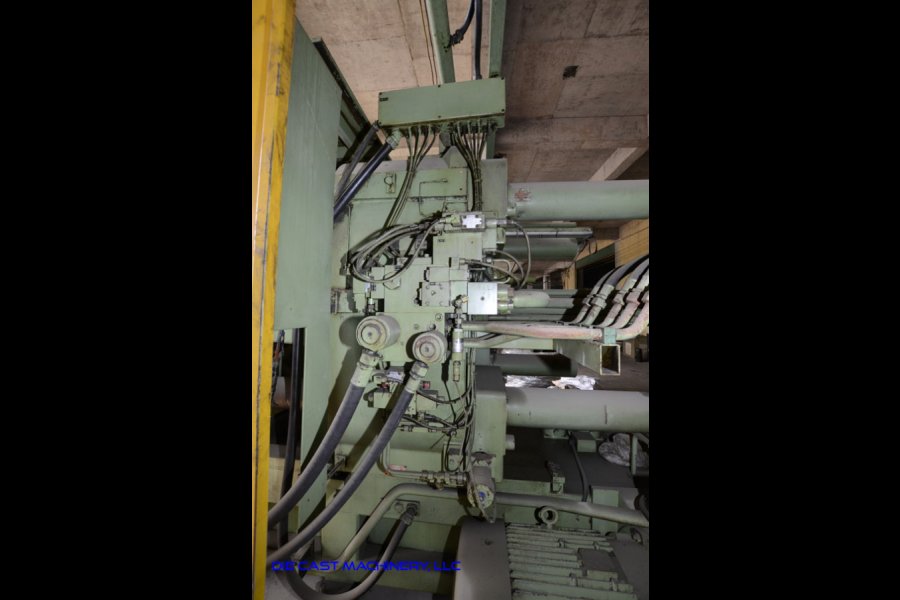

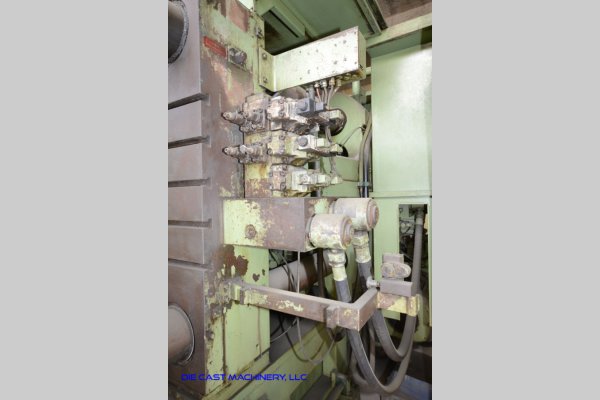

See jumbo large photos of this Buhler H-400-B V5
