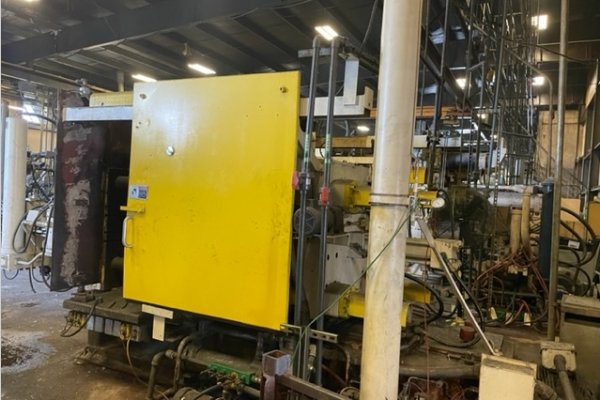

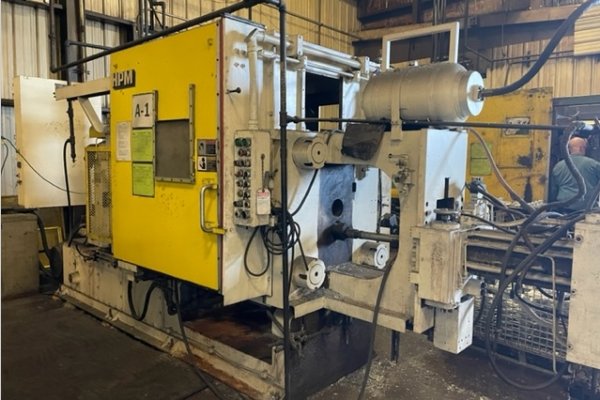

Used HPM Model: II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: HPM

Model: II-400-A

Size: 400 U.S. Tons

Inventory Number: DCM-5459

Used HPM Model: II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Click above for larger image

Features & Accessories:

  • Rebuilt and updated by HPM Remanufacturing in 2006. Inspect Under-power on Customer's Floor. NOTE: Customer states that the die close valve has an intermittent sticking problem and might need to be rebuilt or replaced.
  • Safety Ratchet Device, Manual Operator & Helper Safety Door

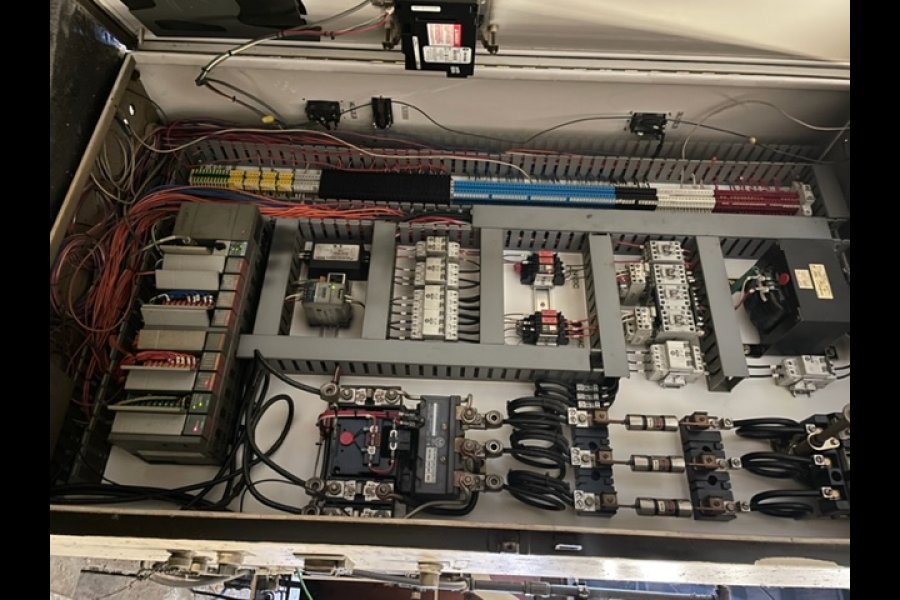

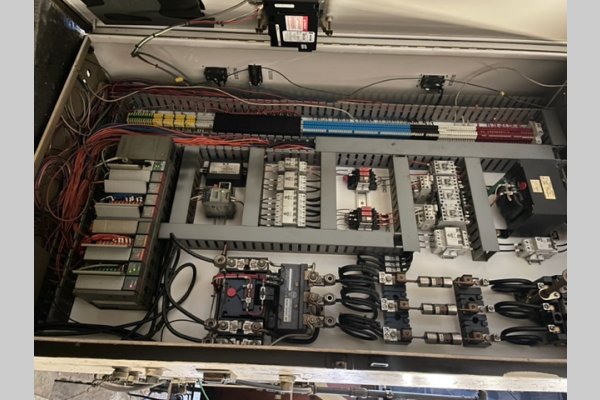

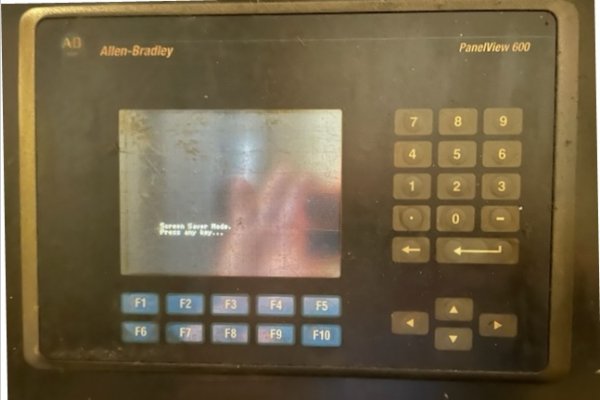

  • Allen Bradley SLC 5/03 Solid State Controls With Panelview 600 HMI
  • Hydraulic Bumper Platen Ejection System
  • Trabon Oil Type Automatic Lubrication System
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen & One (1) on Stationary Platen
  • Electric Motorized Die Height Automatic System

Item Specifications for DCM-5459

Specifications
Locking Force:
400 tons

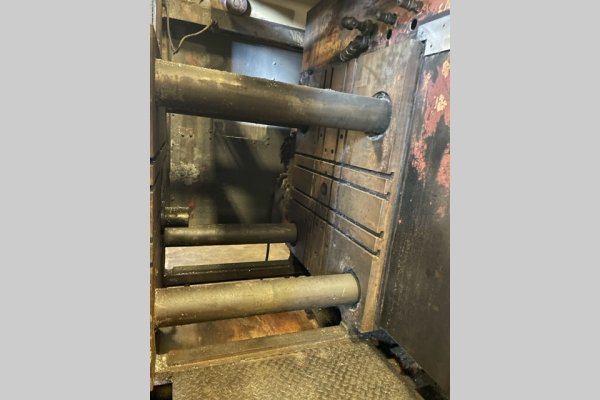

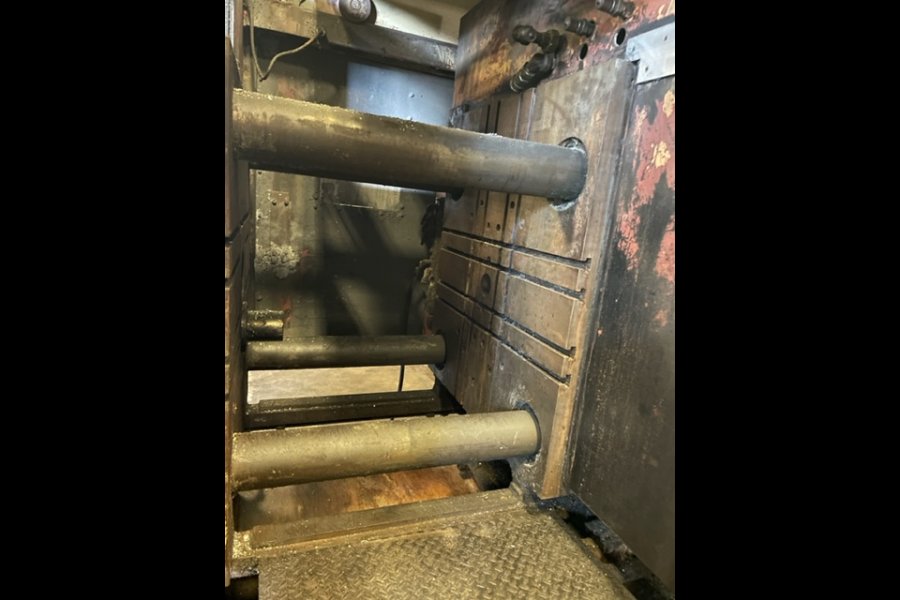

Tie Bar Diameter:
5 inches
Clearance Between Tie Bars:
24 x 24 inches
Die Thickness (minimum - maximum):
12 - 30 inches
Die Stroke:
15 inches
Moving Platen Size (H x V):
39 x 43.75 inches
Shot Positions (Removable Insert):
Center to -6 inches Below Center
Injection Cylinder Stroke:
14.5 - 18.5 inches
Ejector Stroke & Force:
5 inches & 12.72 tons
Main Motor Power:
40 HP
Machine Size(H x V x W):
21.4 x 9.8 x 6.7 feet
Approximate Weight:
38,000 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, HPM Model II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Safety Ratchet Device, Manual Operator & Helper Safety Door, Allen Bradley SLC 5/03 Solid State Controls With Panelview 600 HMI, Hydraulic Bumper Platen Ejection System, Trabon Oil Type Automatic Lubrication System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen & One (1) on Stationary Platen, Electric Motorized Die Height Automatic System, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-5459


See jumbo large photos of this HPM II-400-A
