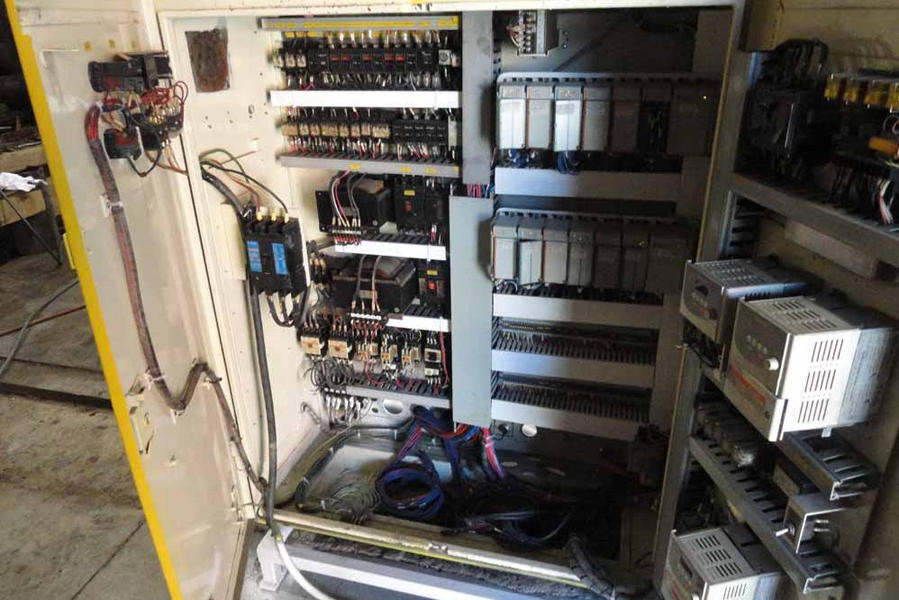

Cold Chamber Die Casting Machines Model DC350 CL-T One (1) Used Toshiba 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 4072 Condition: Used Available Toshiba - DC350 CL-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Compact Logix Controls used 1
Die Cast Machinery, LLC Inventory number: 4072
We offer for sale, subject to prior sale and the terms listed below:

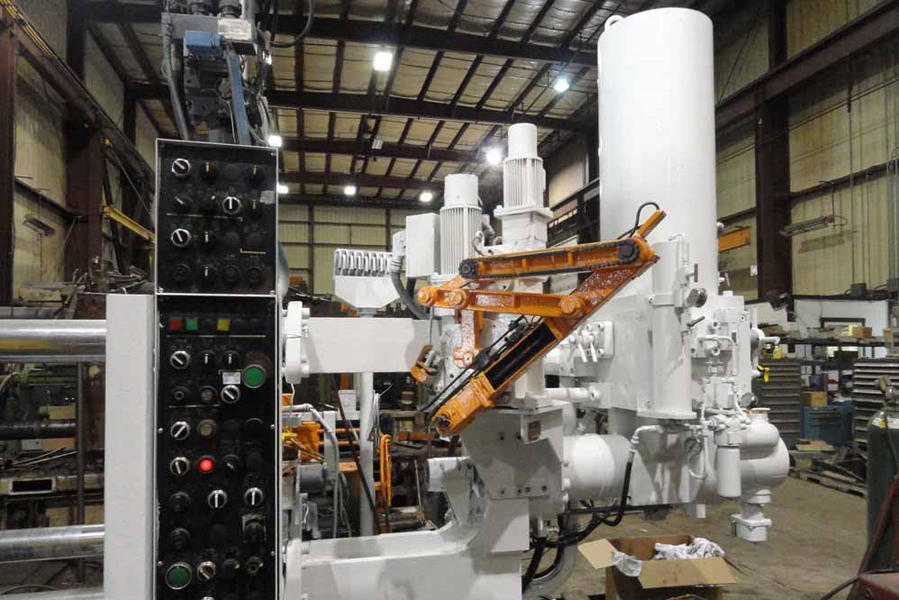

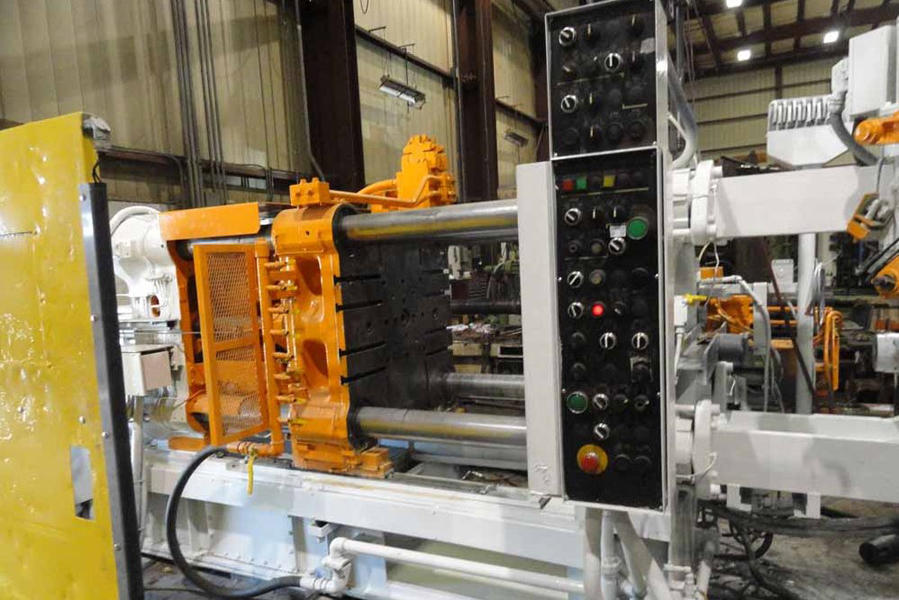

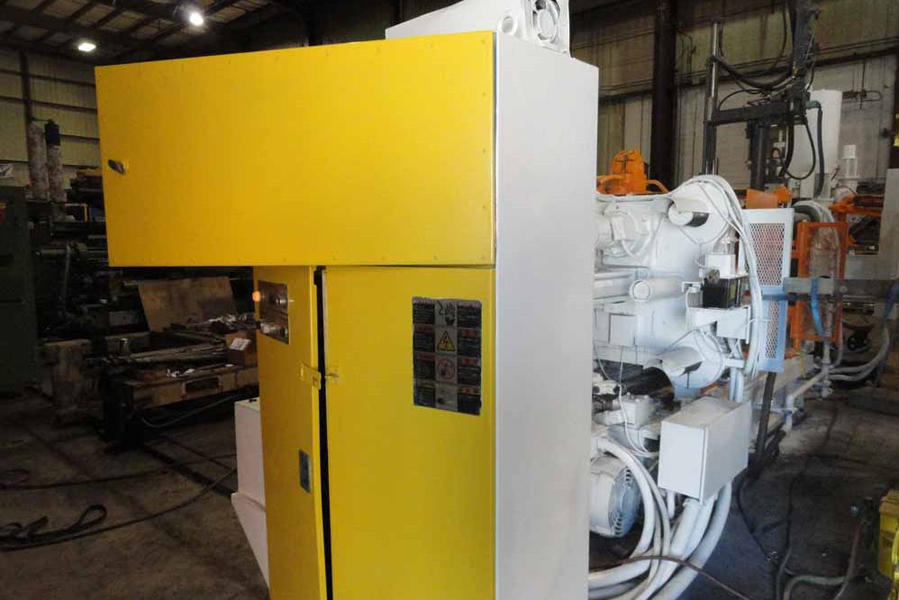

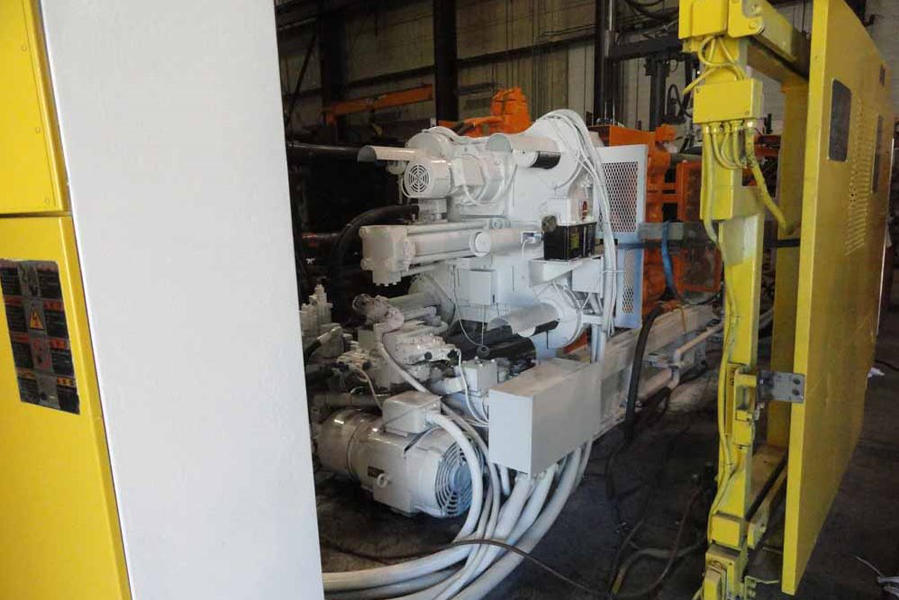

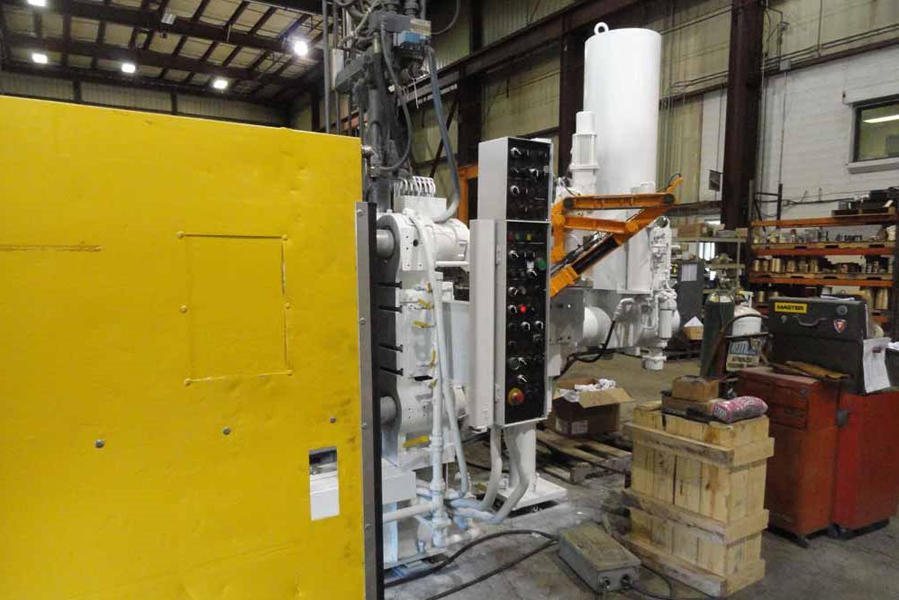

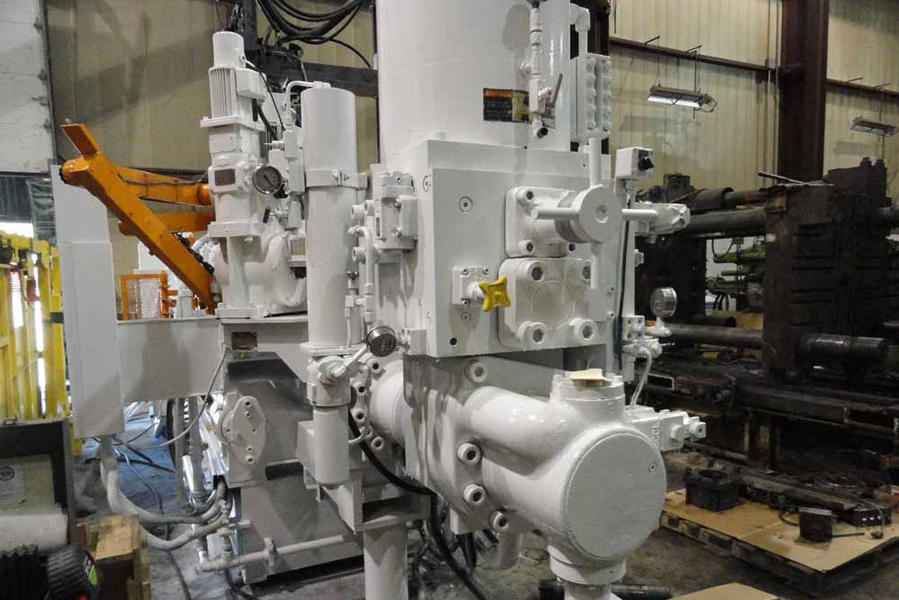

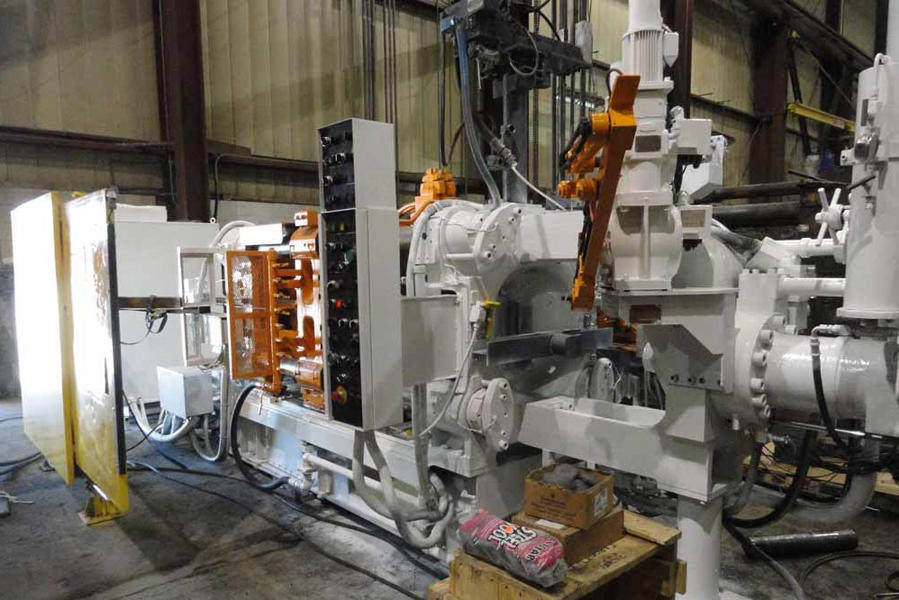

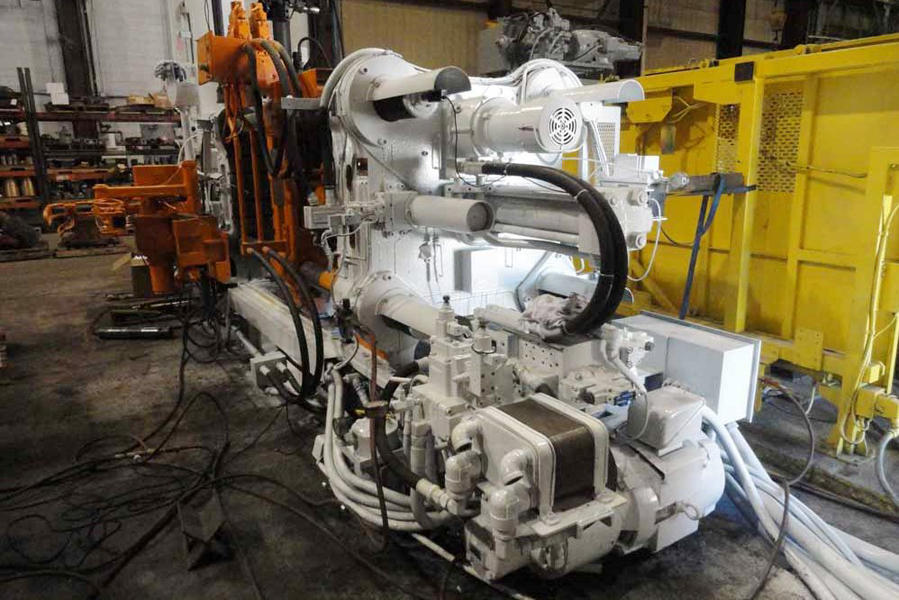

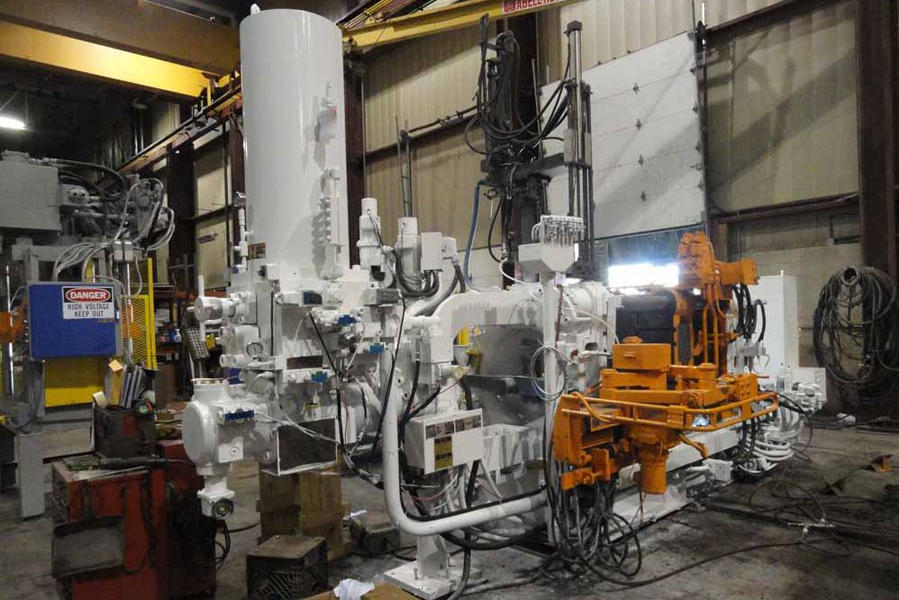

One (1) Used Toshiba 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model DC350 CL-T

Status: Available
Specifications: Metric / U.S. Standard
Locking Force: 350 tons / 385 tons
Platen Size: 935 x 935 mm / 36.81 x 36.81 inches
Tie Bar Diameter: 125 mm / 4.92 inches
Clearance Between Tie Bars (V x H): 650 x 650 mm / 25.59 x 25.59 inches
Die Thickness (max - min): 700 - 300 mm / 27.56 - 11.81 inches
Die Stroke: 420 mm / 16.54 inches
Injection Stroke: 480 mm / 18.9 inches
Injection Positions: 0 and -125 mm / 0 and -4.92 inches
Ejection Stroke: 20 - 90 mm / .79 - 3.54 inches
Main Motors: 22 kw / 16.4 hp
Machine Weight: 11,700 kg / 25,794 pounds
Features & Accessories:

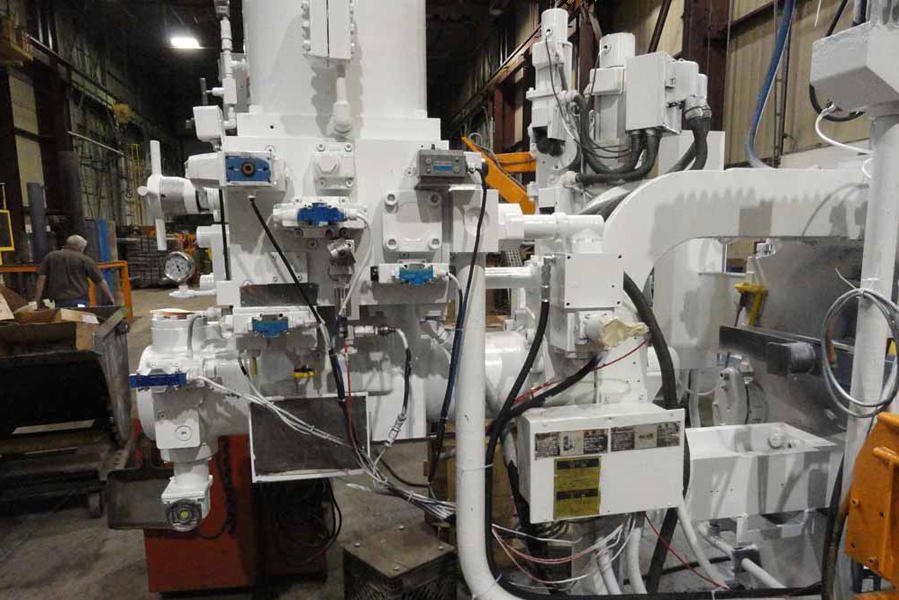

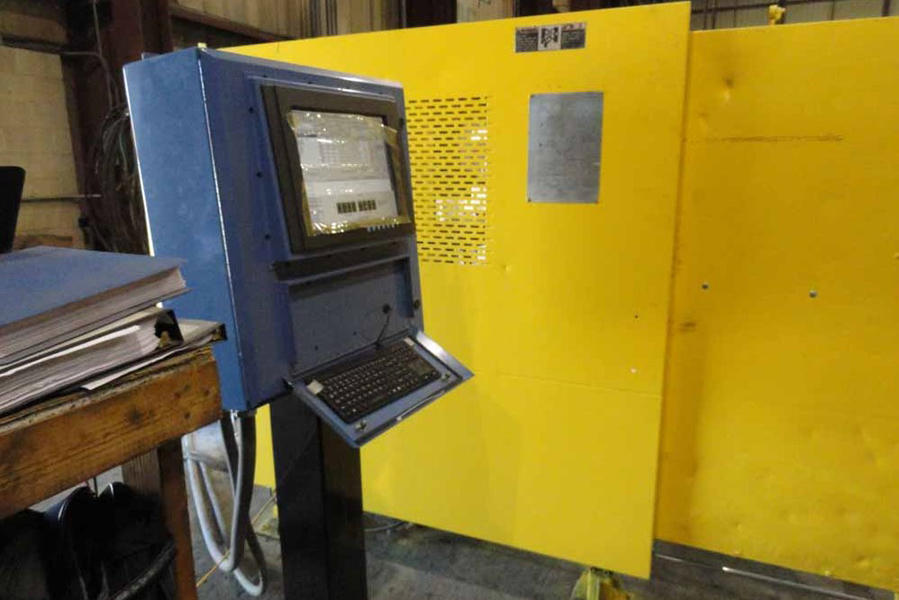

With Olmsted servo valve controlled by VisiTrak control system
Toshiba Die Sprayer
Toshiba Auto Ladle
Automatic Top Operator Tie Bar Puller
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Toshiba Model DC350 CL-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: With Olmsted servo valve controlled by VisiTrak control system, Toshiba Die Sprayer, Toshiba Auto Ladle, Automatic Top Operator Tie Bar Puller, Allen Bradley Compact Logix Controls, Second Hand, DCM-4072
