Used Idra Model: OL 320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Idra

Model: OL 320

Size: 320 Metric Ton

Inventory Number: DCM-3266

Used Idra Model: OL 320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Features & Accessories:

Item Specifications for DCM-3266

Specifications
Locking Force:
388 Tons
Tie Bar Diameter:
4.5 inches
Clearance Between Tie Bars:
22.4 x 22.4 inches
Die Thickness (Minimum to Maximum):
7.9 - 25.6 inches
Moving Platen Stroke:
22.4 inches

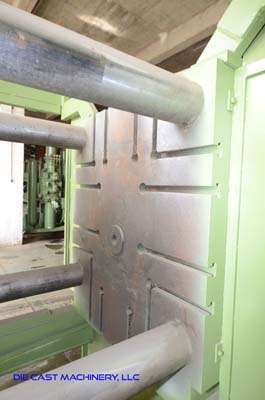

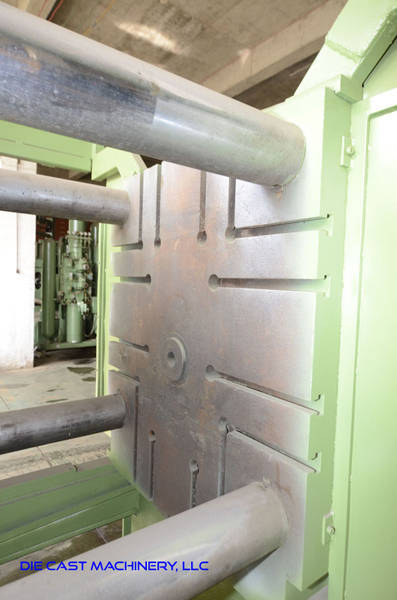

Platen Dimensions:
34.6 x 34.6 inches
Maximum Injection Force:
42.1 Tons
Ejection Force:
20 Tons
Motor Rating:
29.5 HP
Machine Size:
19 x 5.8 x 8.5 feet
Machine Weight:
30,860 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Idra Model OL 320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Siemens controls, second Hand, DCM-3266

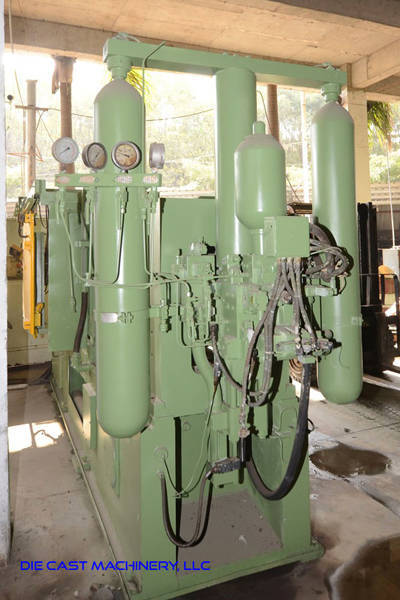

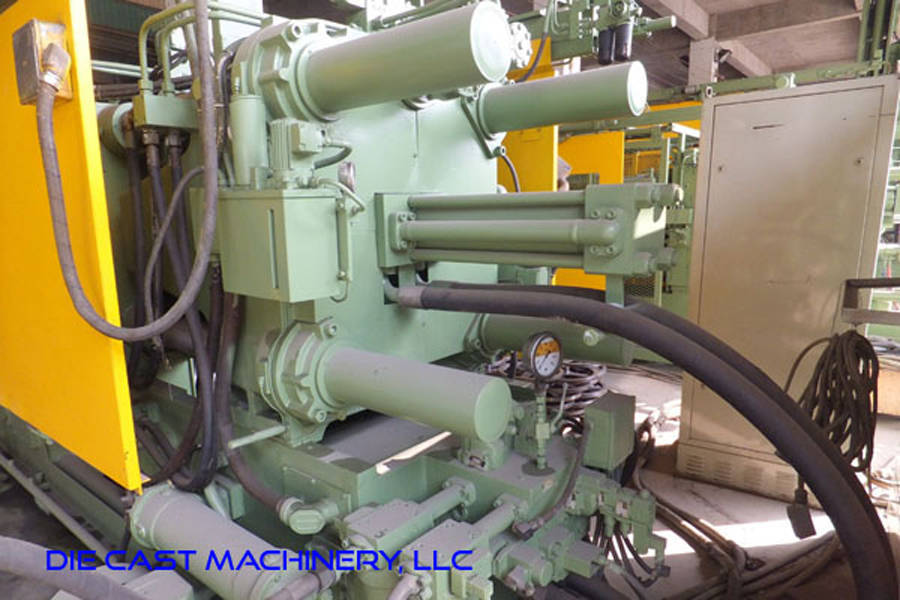

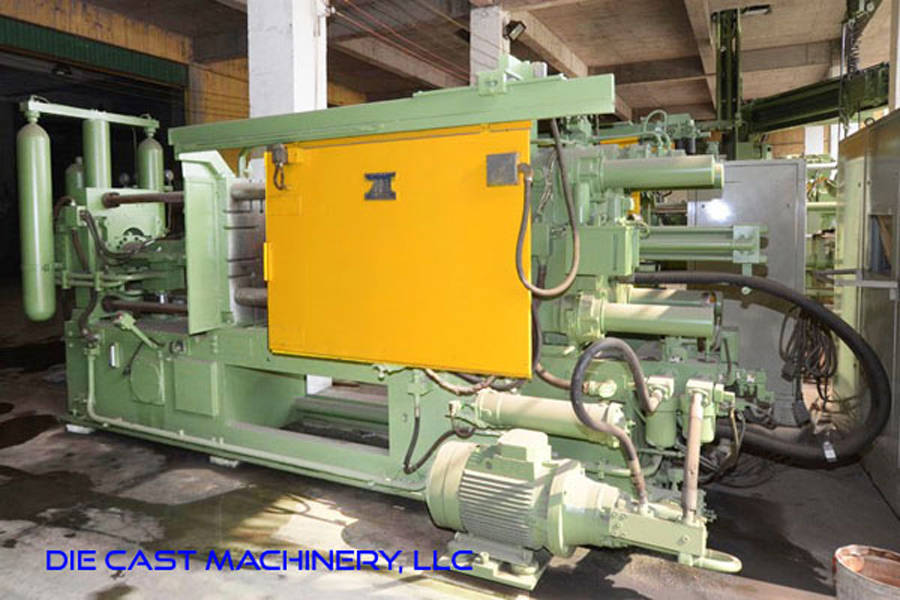

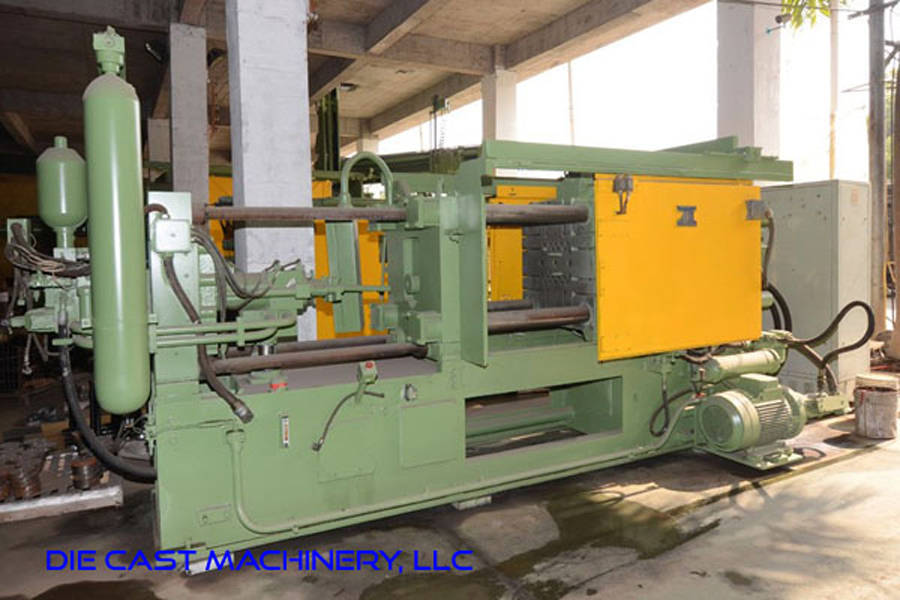

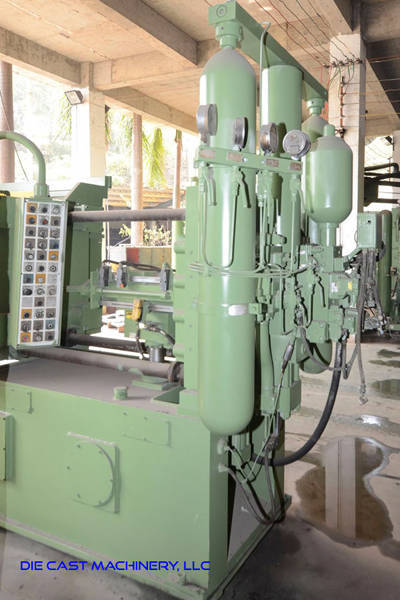

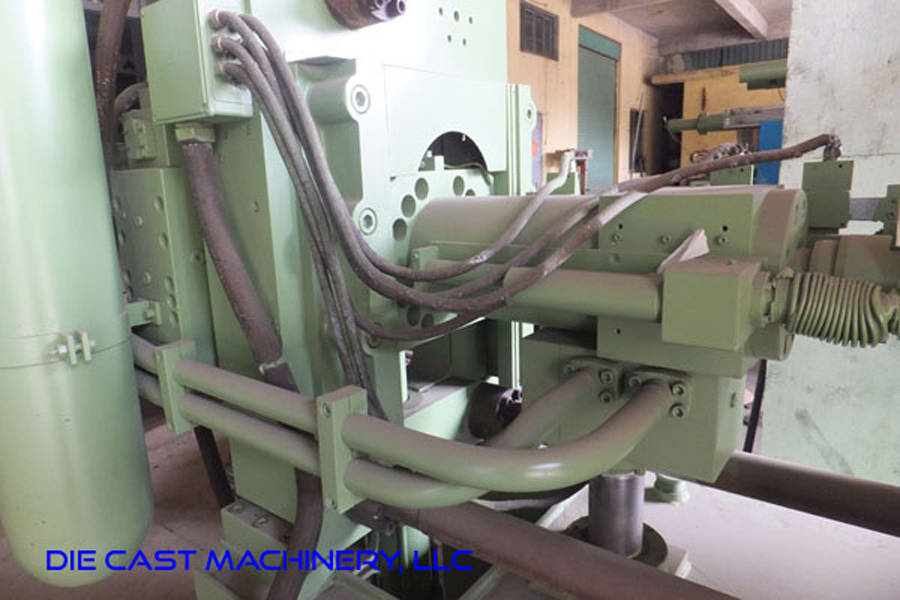

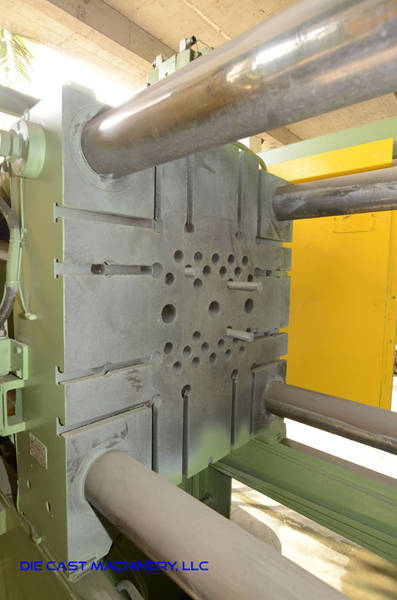

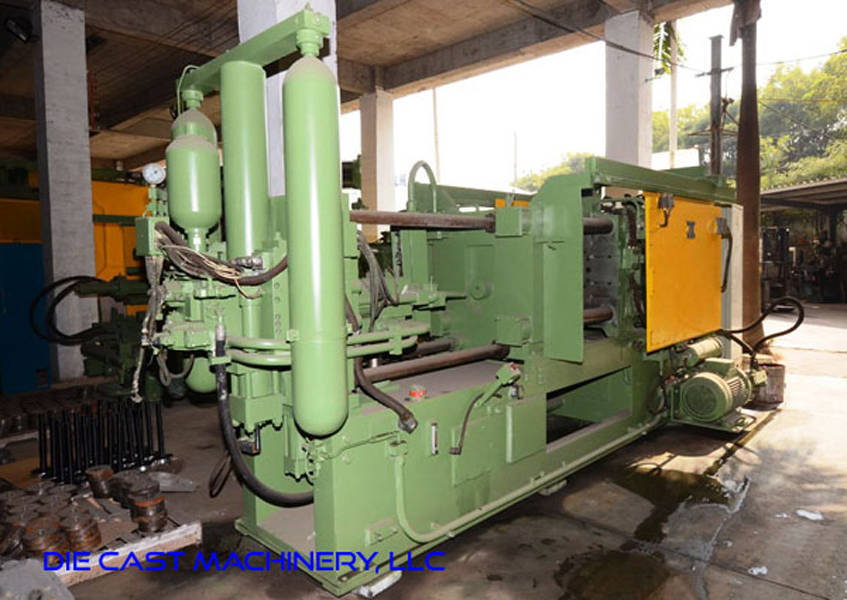

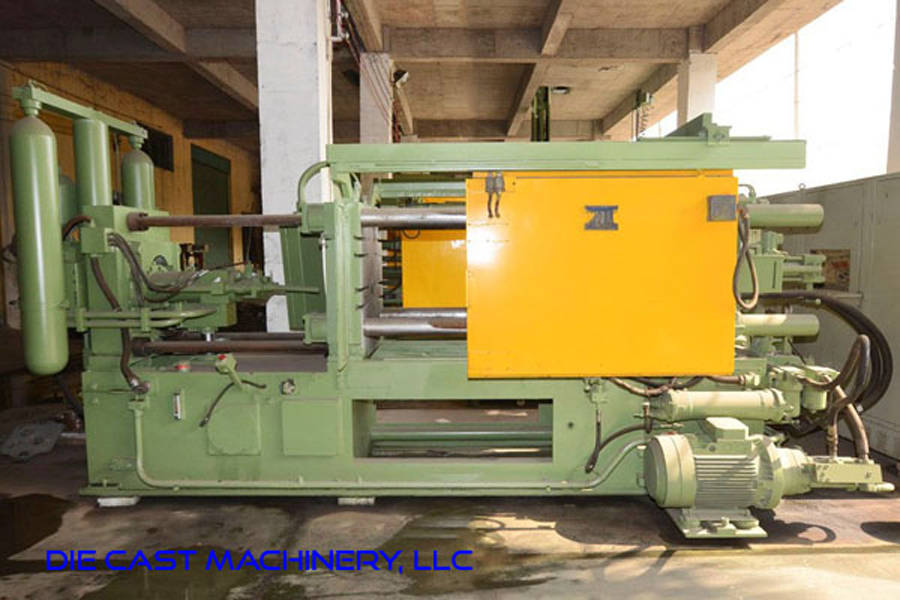

See jumbo large photos of this Idra OL 320
