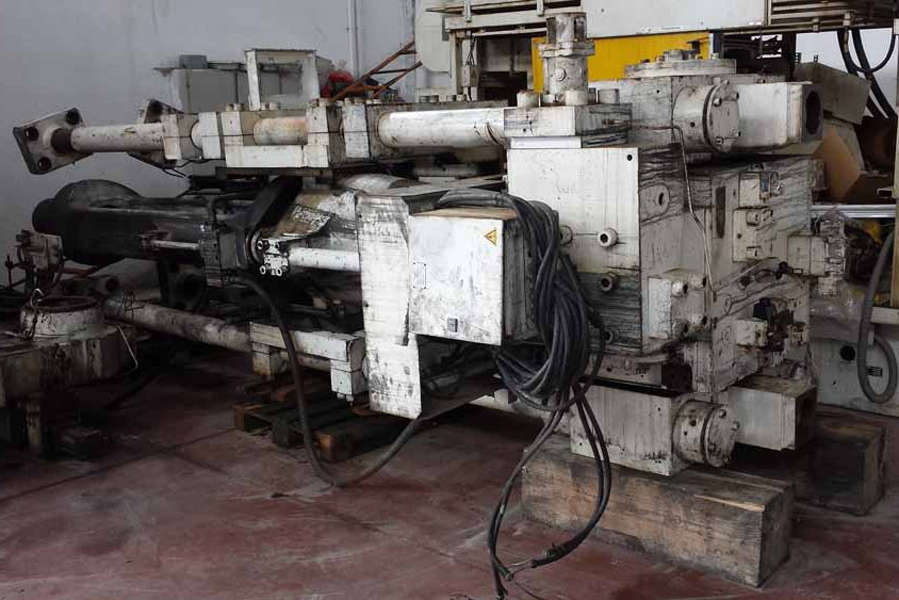

Used Ube Model: VSC1250 1250 Metric Ton Vertical Cold Chamber Aluminum High Pressure Squeeze Cast or Semi-Solid Die Casting Machine
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Ube
Model: VSC1250
Size: 1250 Metric Ton
Inventory Number: DCM-3593
Used Ube Model: VSC1250 1250 Metric Ton Vertical Cold Chamber Aluminum High Pressure Squeeze Cast or Semi-Solid Die Casting Machine.
View Available Cold Chamber Die Casting Machines
Click above for larger image
Features & Accessories:
Item Specifications for DCM-3593
Specifications | |
---|---|
Locking Force: |
1377.88 Tons
|
Tie Bar Clearance: |
53 x 42 inches
|
Minimum Die Height: |
35.43 inches
|
Die Opening Force: |
82.6 Ton
|
Die Stroke (maximum): |
35.43 inches
|
Moving Platen Size (vertical x horizontal): |
83 x 72.5 inches
|
Shot Position: |
center
|
Shot Injection Cyl Stroke: |
44 inches
|
Injection Force |
220 tons
|
Shot Injection Speed: |
11.81 inch/sec
|
Ejector Force: |
40.78 ton
|
Ejector Stroke (max): |
3.14 inches
|
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Ube Model VSC1250 1250 Metric Ton Vertical Cold Chamber Aluminum High Pressure Squeeze Cast or Semi-Solid Die Casting Machine For_Sale, Features Include: Ube Relay controls, second Hand, DCM-3593

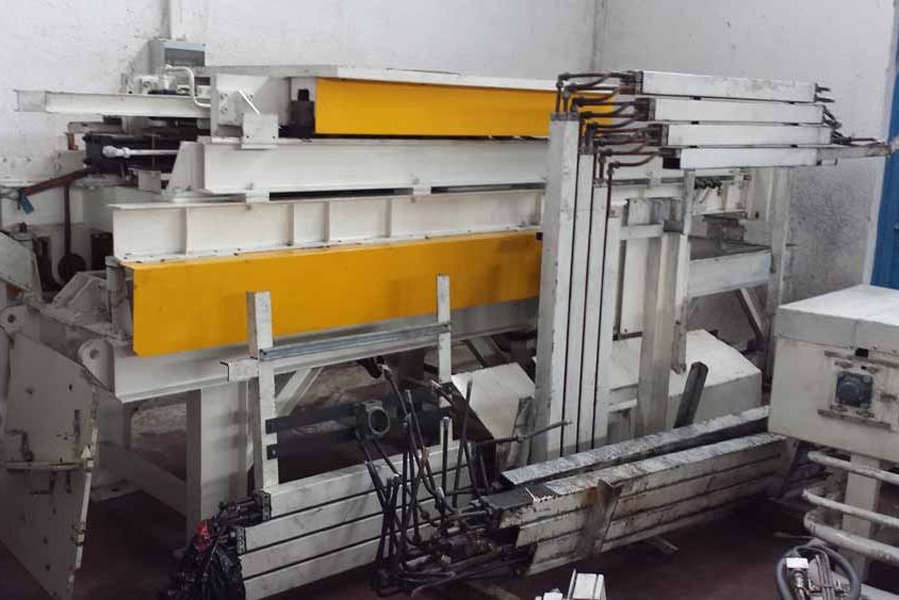

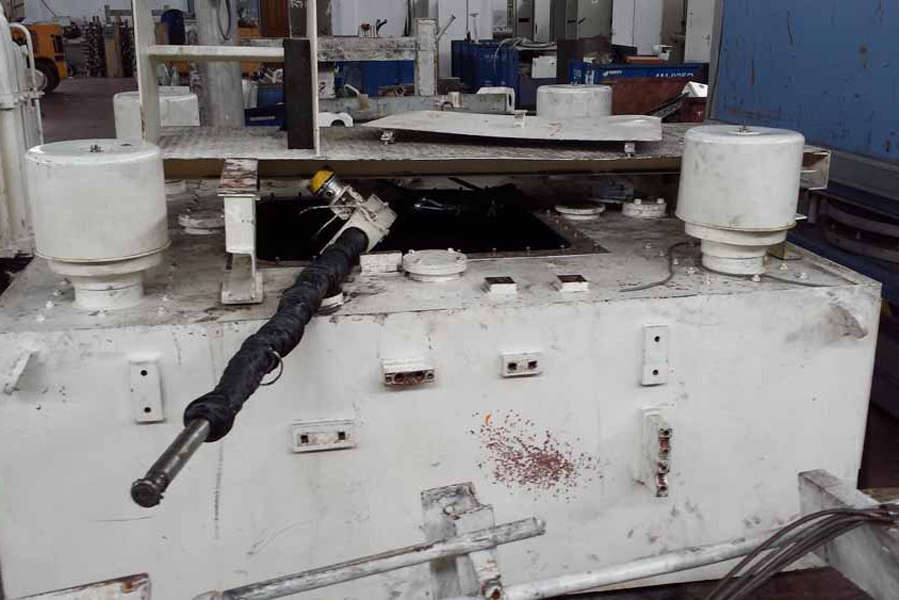

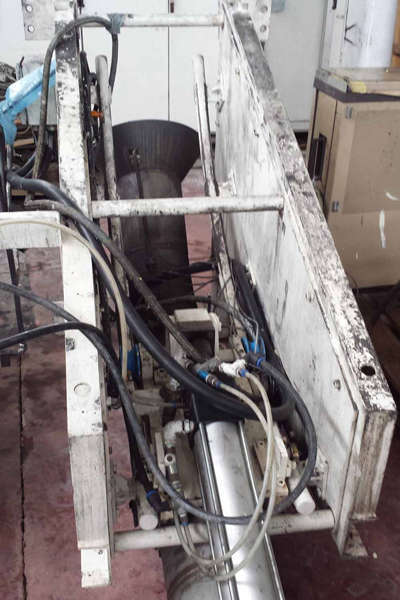

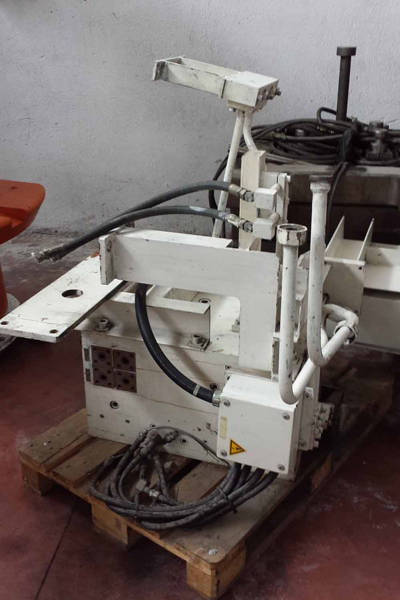

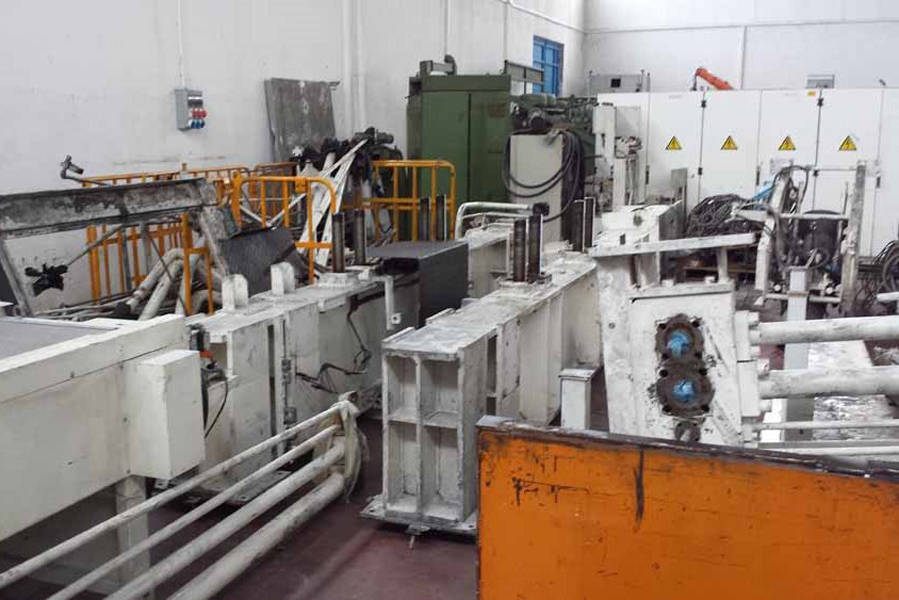

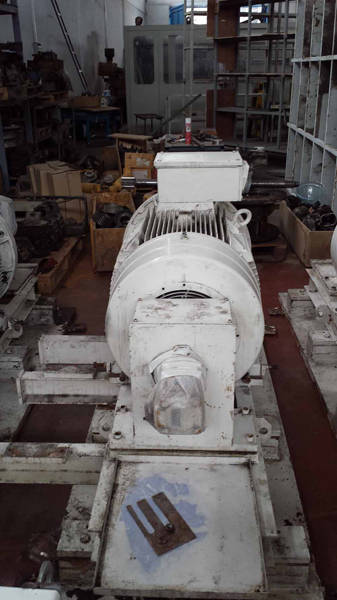

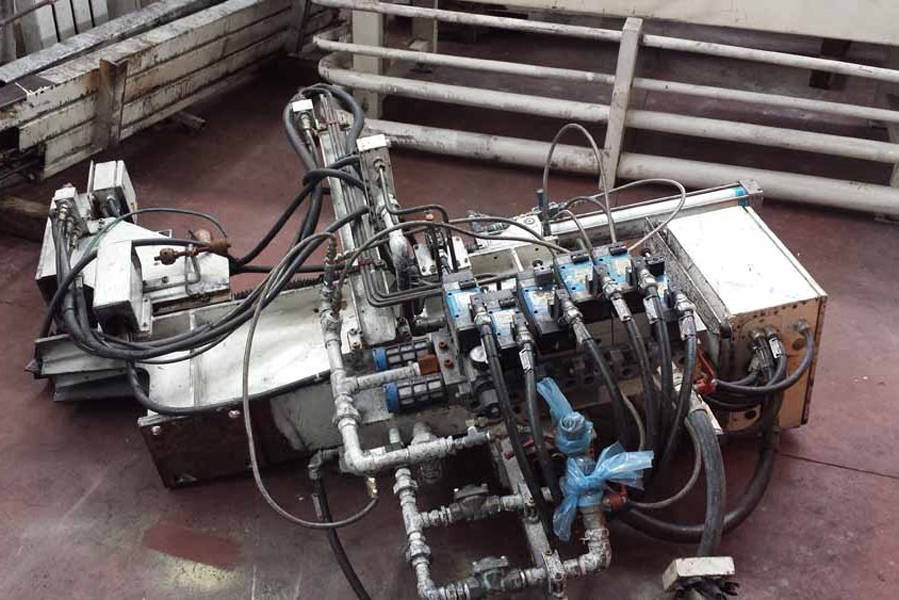

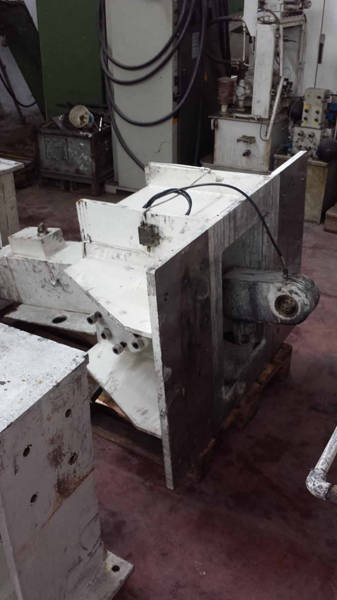

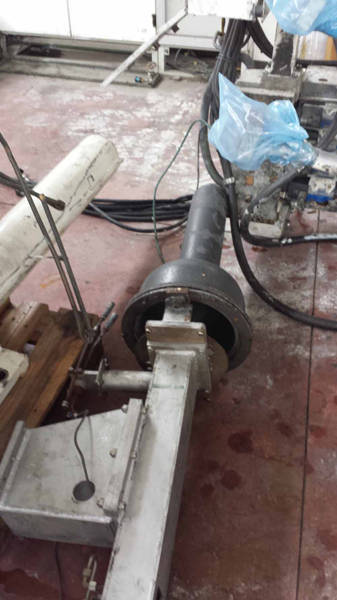

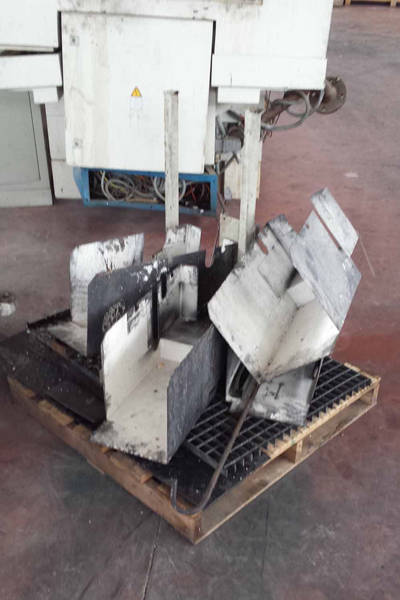

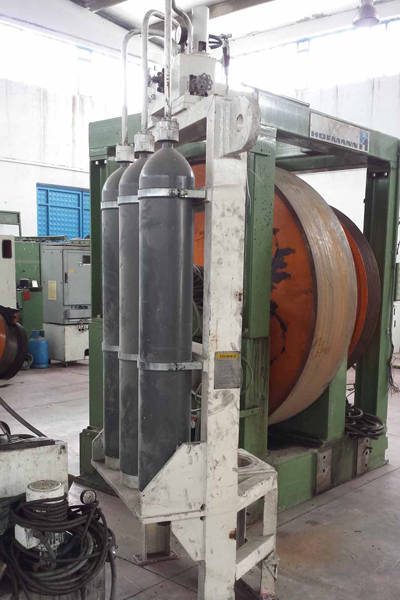

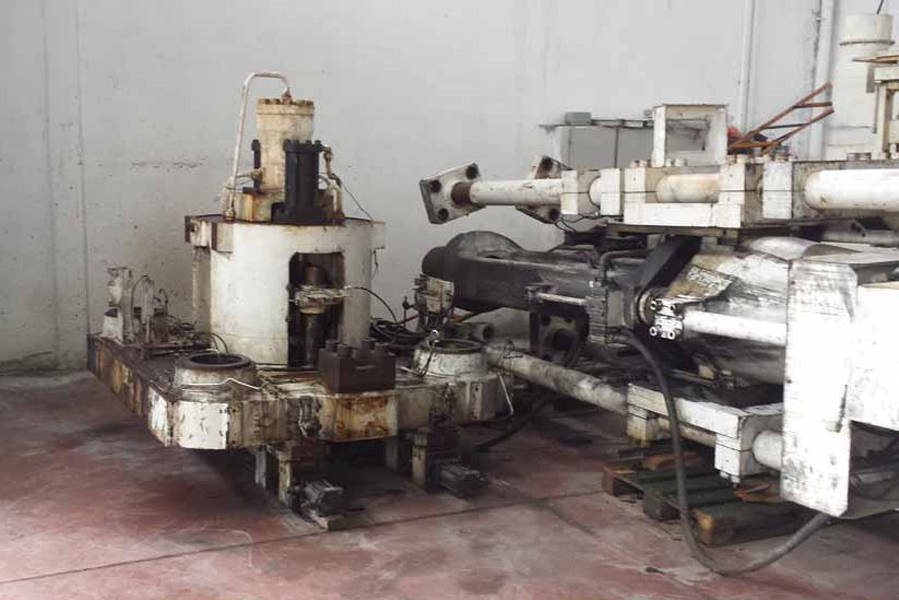

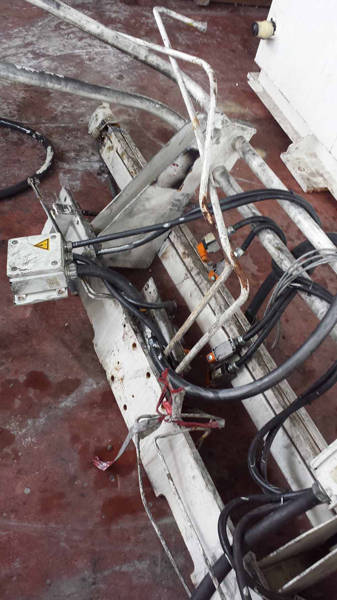

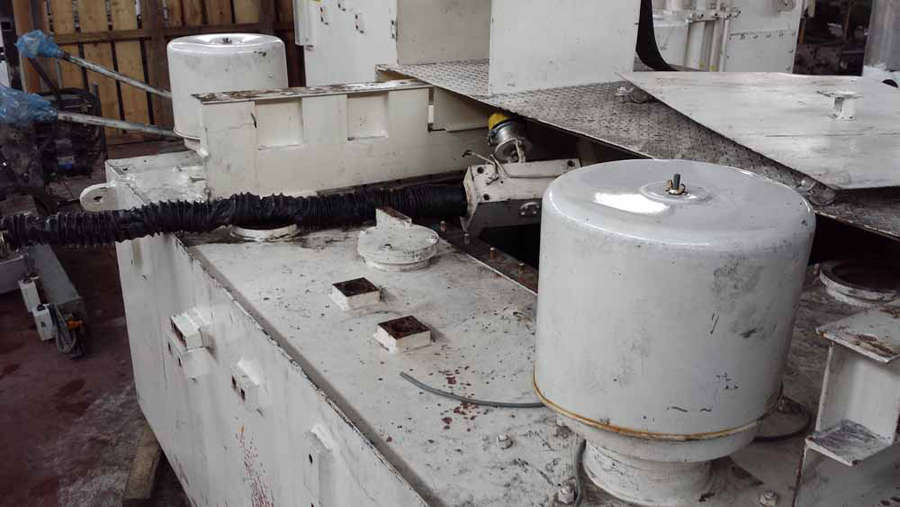

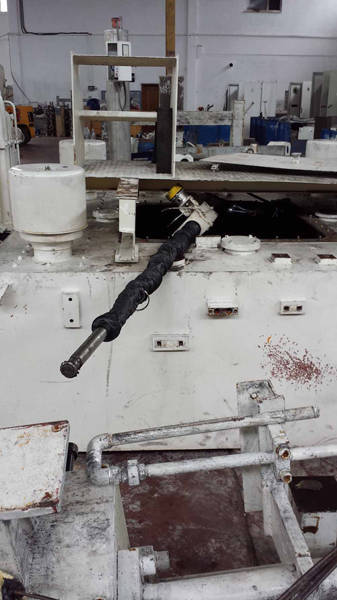

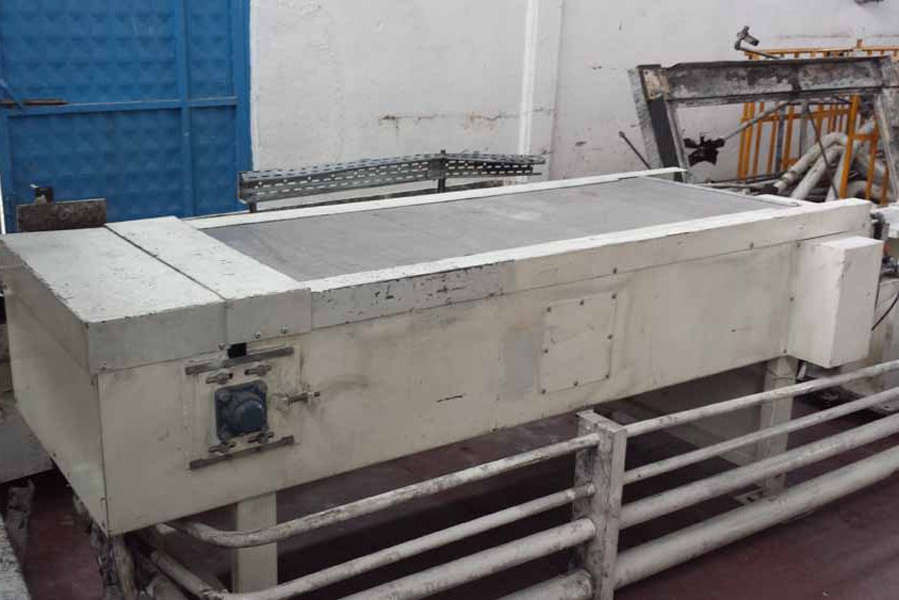

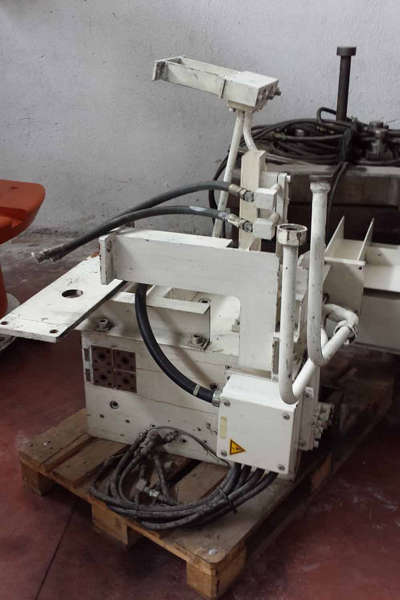

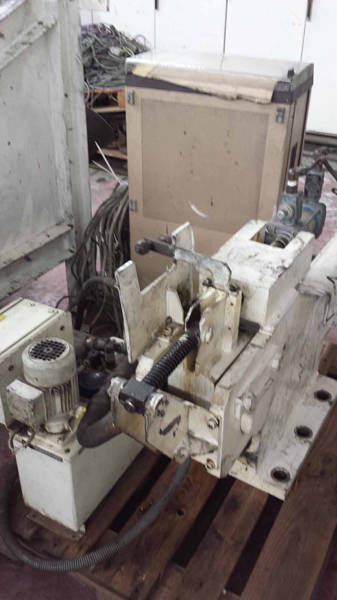

See jumbo large photos of this Ube VSC1250
