Robots Model RV60-60 One (1) Used Reis 60 kg Six Axis Foundry Rated Industrial Robot Inventory #: 3697 Condition: Used Sold Reis - RV60-60 60 kg Six Axis Foundry Rated Industrial Robot, Robotstar VI controls Controls used 1
Die Cast Machinery, LLC Inventory number: 3697
We offer for sale, subject to prior sale and the terms listed below:

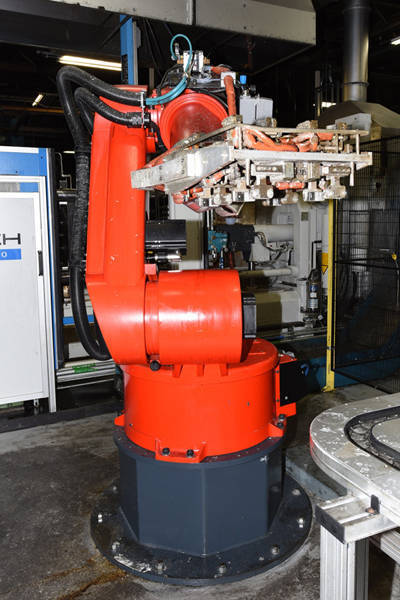

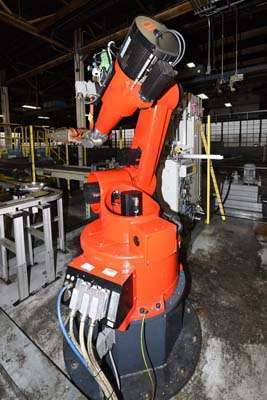

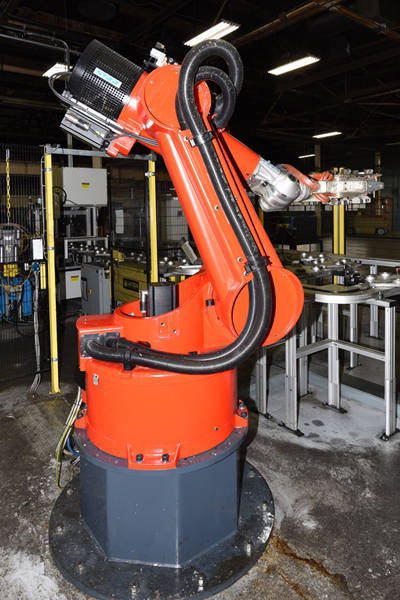

One (1) Used Reis 60 kg Six Axis Foundry Rated Industrial Robot

Model RV60-60

Status: Sold
Specifications: Metric / U.S. Standard
Number of Axis: 6 / 6
Payload Capacity: 60 kg / 132 pounds
Reach: 1.96 meter / 77.2 inches
Axis 1 Rotation Motion: +/- 165 Degrees / +/- 165 Degrees
Axis 2 Arm Motion: +96 to -70 Degrees / +96 to -70 Degrees
Axis 3 Arm Motion: +65 to -60 Degrees / +65 to -60 Degrees
Axis 4 Wrist Motion: +/- 200 Degrees / +/- 200 Degrees
Axis 5 Bend Motion: +/- 120 Degrees / +/- 120 Degrees
Axis 6 Rotation Motion: +/- 400 Degrees / +/- 400 Degrees
Power Requirements: 475/3/60 / 475/3/60
Approximate Machine Weight: 1040 kg / 2,293 pounds
Features & Accessories:
Compact Arm Design
Fast maneuverability
Heavy Payload Capability
Optional Equipment Available with Machine at additional cost: (click on item to view)
Frech DAK 350-40, 350-40 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
Advance Products SL-1200 Servo-Drive Automatic Ladler
Advance Products Model SRL 250 Servo Drive High Speed Linear Die Sprayer
FW Schaefer 400 pound per hour glow-bar type aluminum reverberatory melting & holding furnace
Reis Four Post Guided Planten Trim Press
Robamat Thermocast Model 3212 Dual Zone Hot Oil Die Temperature Control Unit
PDF Documents for this Machine:
Reis - Roboterbaureihe RV - Robot Series RV.pdf
Terms of Sale:
Price: request quotation
Shipping Terms: F.O.B. Location

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Reis Model RV60-60 60 kg Six Axis Foundry Rated Industrial Robot For Sale, Features include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability Robotstar VI controls Controls, Second Hand, DCM-3697

The following technical terms are to assist you with searches: Used | Second Hand | Reis |RV60-60 | 60 kg | Six Axis Foundry Rated Industrial Robot | For Sale | Compact Arm Design | Fast maneuverability | Heavy Payload Capability Robotstar VI controls Controls | DCM-3697
