Used Ex-Cell-O B&T Model: DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Ex-Cell-O B&T

Model: DC-650-A

Size: 650 Ton

Inventory Number: DCM-3726

Used Ex-Cell-O B&T Model: DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

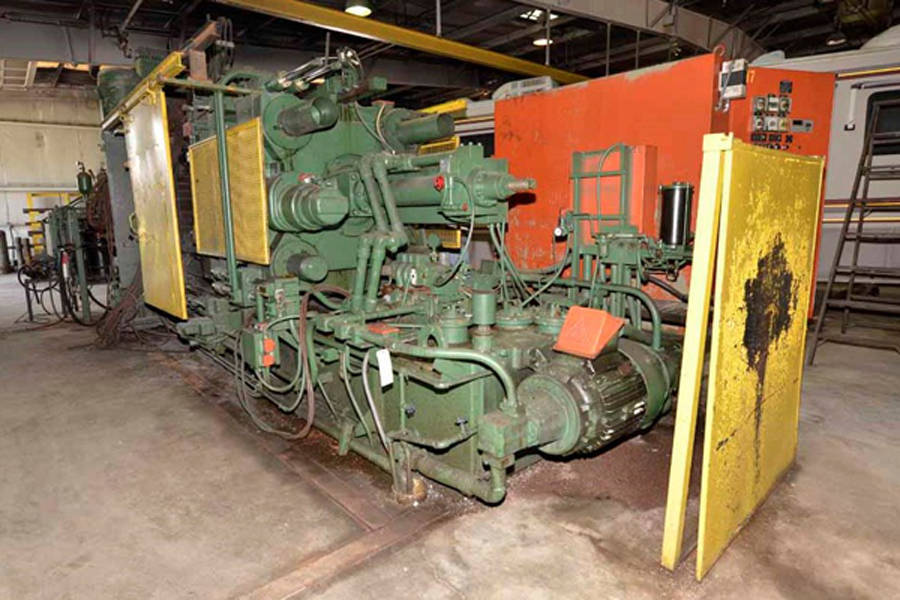

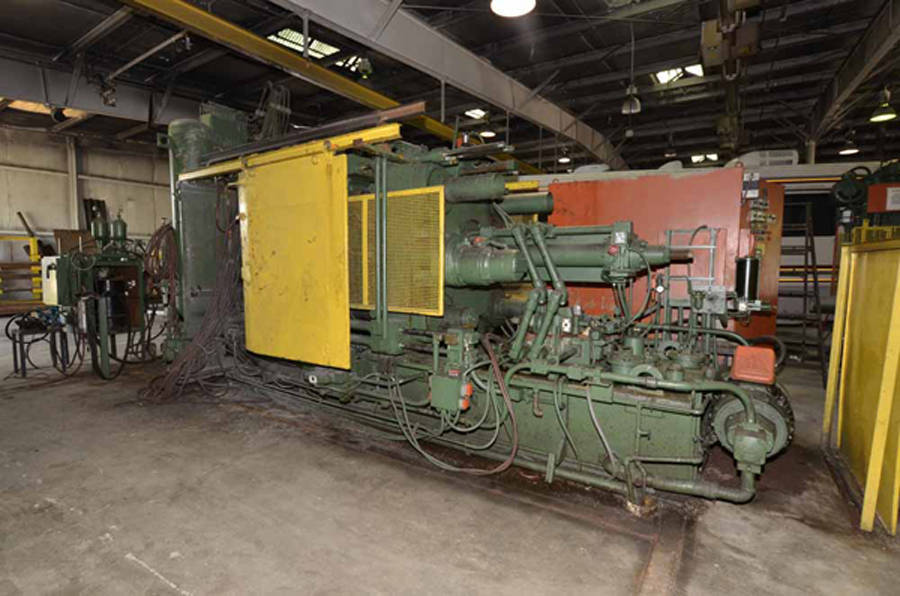

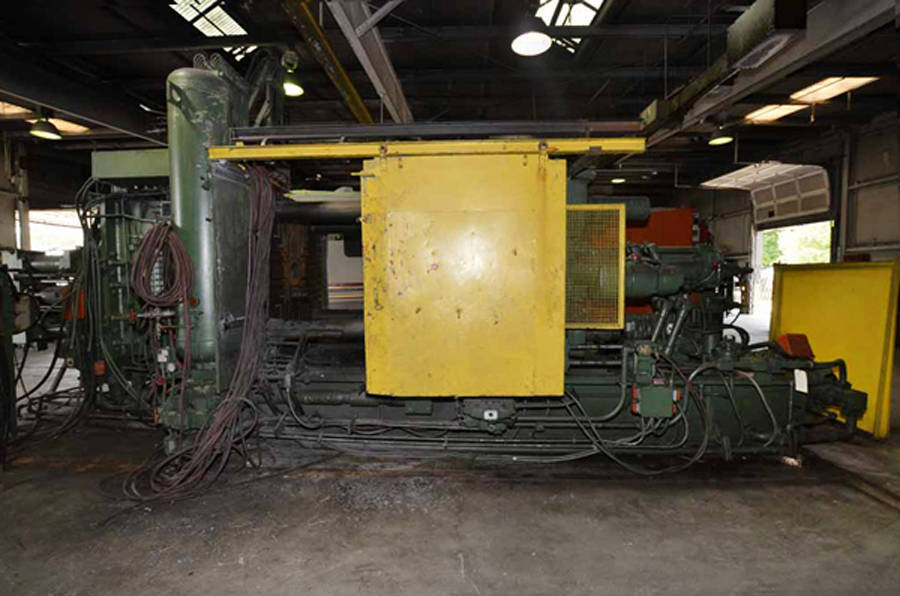

Picture of Ex-Cell-O B&T DC-650-A Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale DCMP-3726

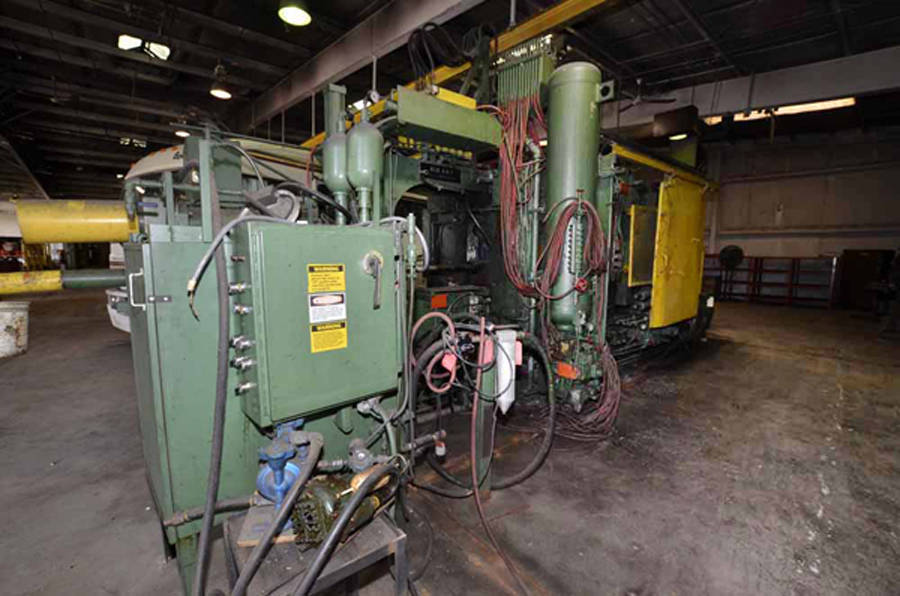

Picture of Ex-Cell-O B&T Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCMP-3726

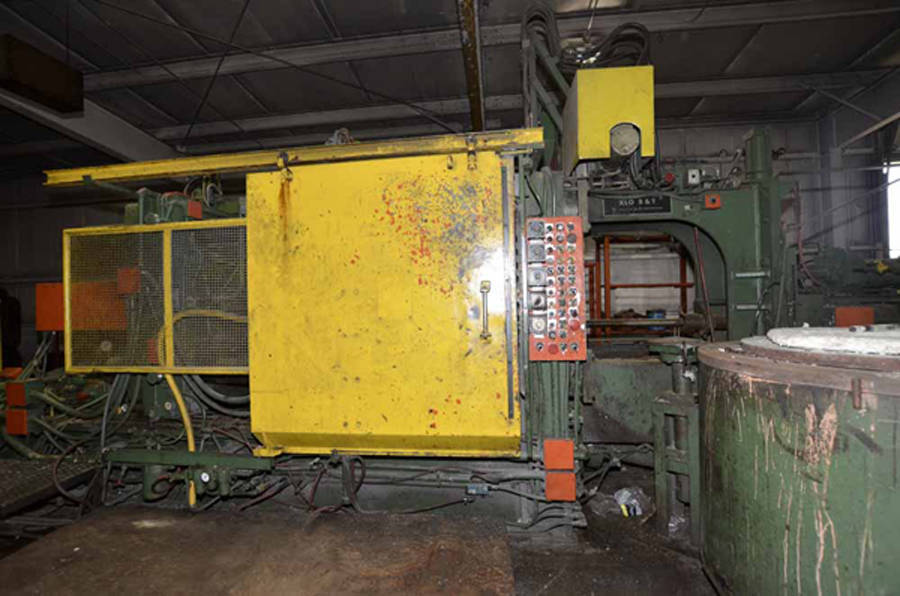

Picture of Model Ex-Cell-O B&T DC-650-A DCMP-3726

Image of Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale DCM-3726

Image of Ex-Cell-O B&T Model DC-650-A Cold Chamber Die Casting Machine For_Sale DCM-3726

Picture of Ex-Cell-O B&T Model DC-650-A Cold Chamber Die Casting Machine For_Sale DCM-3726

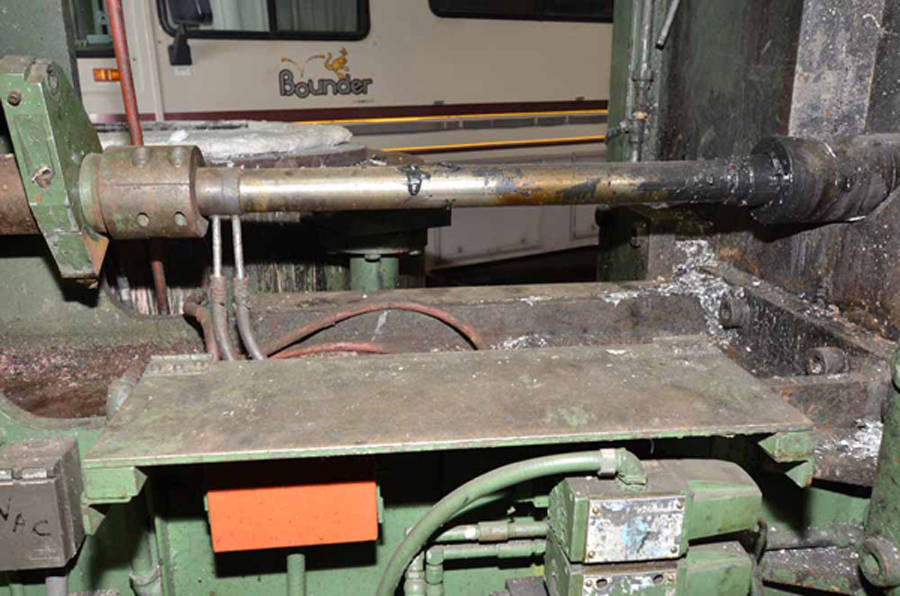

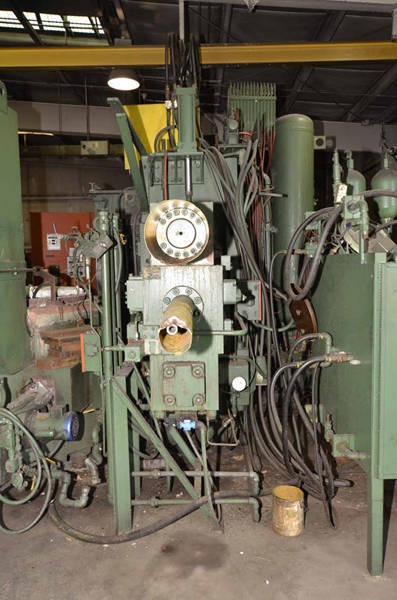

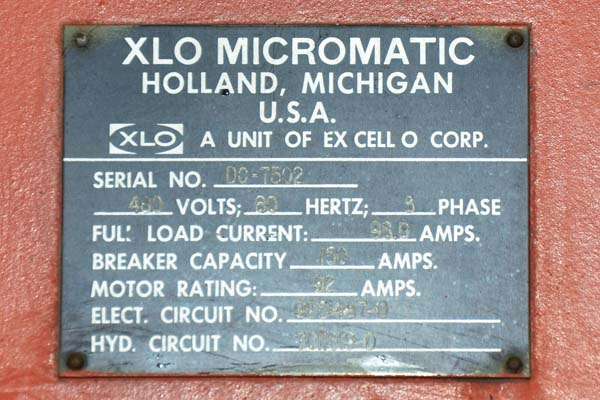

Detailed Pictures of Ex-Cell-O B&T Cold Chamber Die Casting Machine DCMP-3726

Click above for larger image

Features & Accessories:

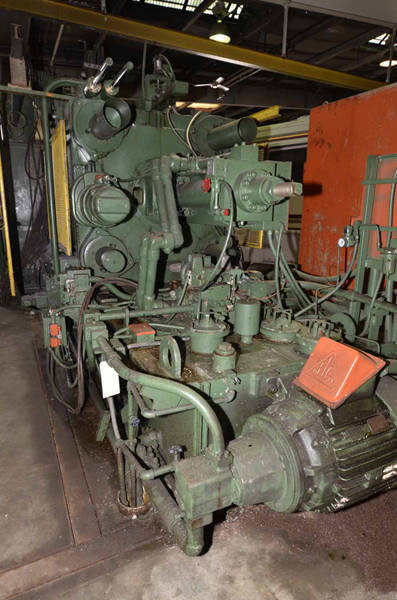

C-Frame Shot End with Hydraulic Shot Position Adjustment
Inserted Shot Positions - Center, -6 & -9 inch

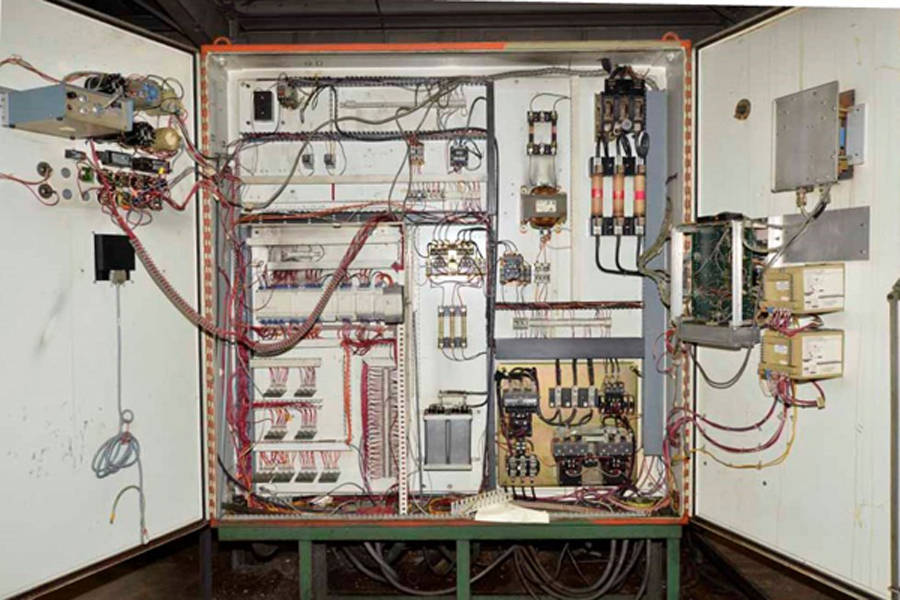

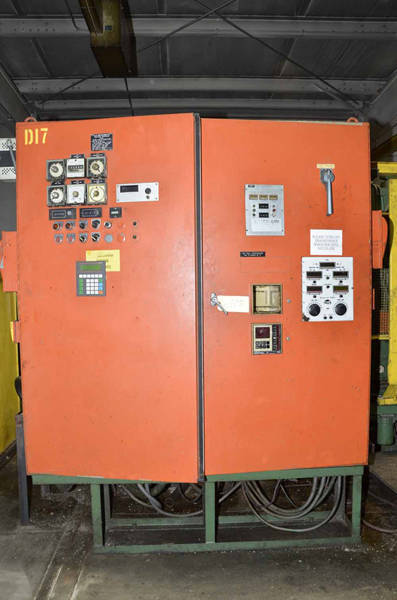

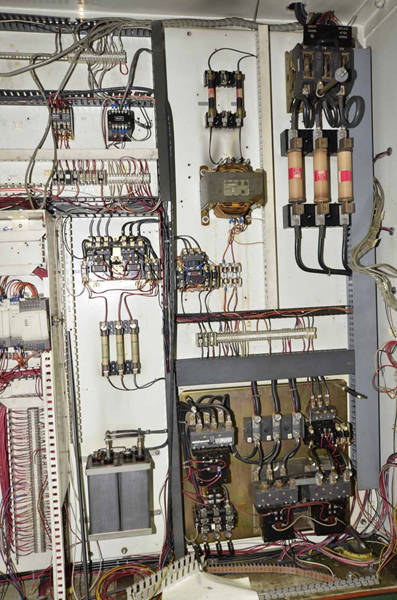

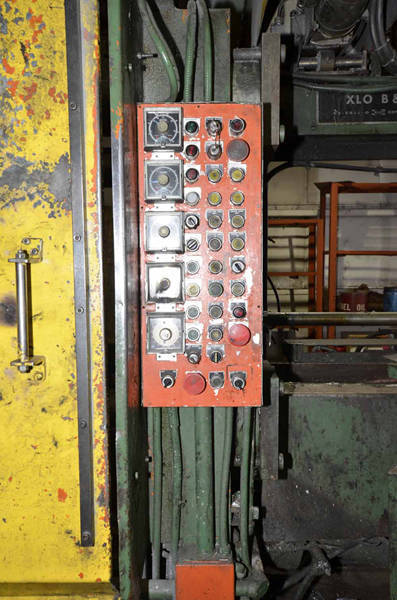

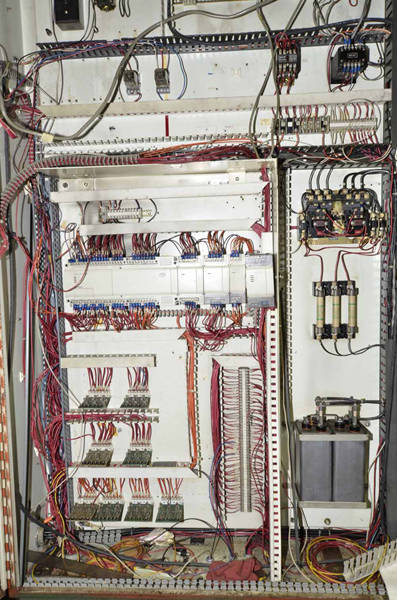

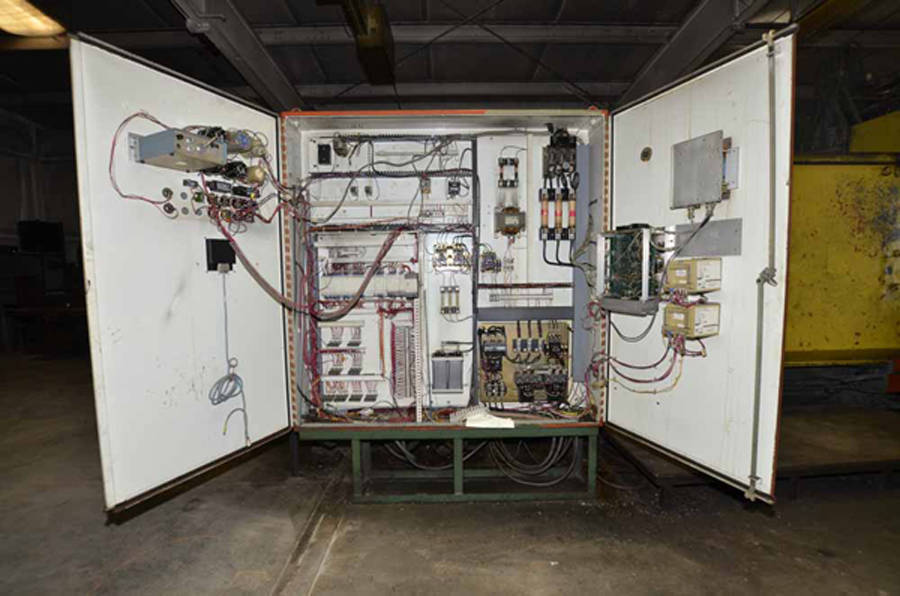

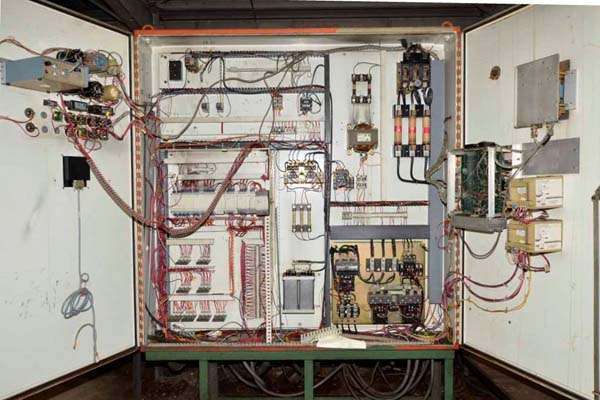

Mitsubishi PLC Controls installed during rebuild
Twin Cylinder Hydraulic Bumper Plate Ejection System

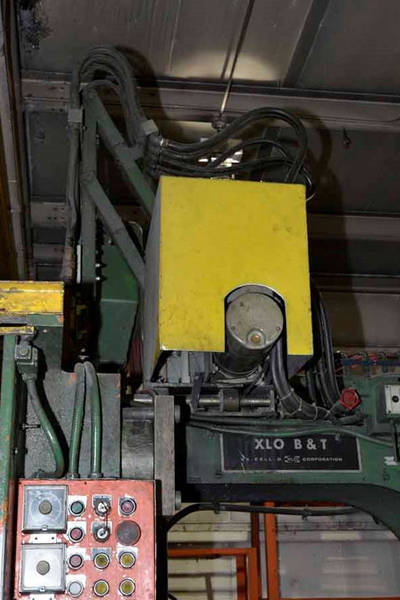

Electric Motorized Die Height Adjustment System
Two (2) auxiliary hydraulic side core circuits on moving platen

Related Categories

Related Brands

Item Specifications for DCM-3726

Specifications
Rated Tonnage:	650 tons 589 tons
Tie Bar Diameter:	6.5 inches 165 mm
Clearance between Tie Bars (H x V):	32 x 32 inches 812 x 812 mm
Front Platen Size (T x H x V):	12 x 54 x 63 inches 304 x 1,371 x 1,600
Moving Platen Size (T x H x V):	12 x 54 x 54 304 x 1,371 x 1,371
Die Thickness (minimum to maximum):	12 - 32 inches 304 - 812
Die Stroke (adjustable):	15 - 21 inches 381 - 533
Shot Position Standard:	Center, -6 & -9 inches Center, -152, 228 mm
Shot Cylinder Stroke:	18.5 - 23.5 inches 469 - 596 mm
Motor Size:	75 HP 56 kw
Machine Size (L x W x H):	26 x 8 x 10 feet 7.92 x 2.44 x 3.05 meters
Machine Weight:	68,000 pounds 31,820 kg

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Ex-Cell-O B&T Model DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Hydraulic Shot Position Adjustment, Inserted Shot Positions - Center, -6 & -9 inch, Mitsubishi PLC Controls installed during rebuild, Twin Cylinder Hydraulic Bumper Plate Ejection System, Electric Motorized Die Height Adjustment System, Two (2) auxiliary hydraulic side core circuits on moving platen, Mitsubishi MELSEC FX controls, second Hand, DCM-3726

See jumbo large photos of this Ex-Cell-O B&T DC-650-A
