Glow Bar Furnaces Model FWS-1200/HR - Glowbar One (1) Used FW Schaefer 1200 Pounds/Hour Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace Inventory #: 3808 Condition: Used Sold FW Schaefer - FWS-1200/HR - Glowbar 1200 Pounds/Hour Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace, Honeywell Controls used 1
Die Cast Machinery, LLC Inventory number: 3808
We offer for sale, subject to prior sale and the terms listed below:

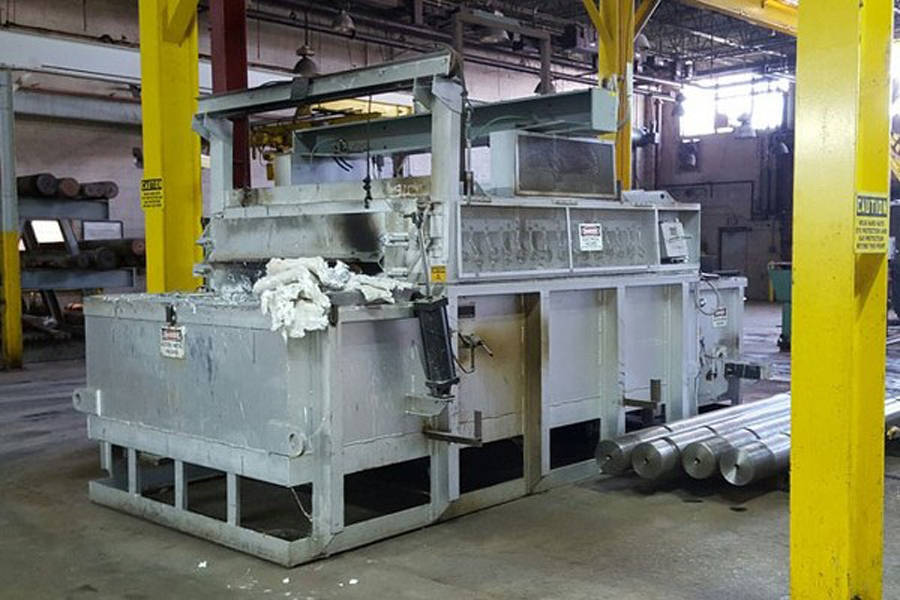

One (1) Used FW Schaefer 1200 Pounds/Hour Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace

Model FWS-1200/HR - Glowbar

Status: Sold
Specifications: Metric / U.S. Standard
Melt Rate: 545 Kg per hour / 1,200 Pounds Per hour
Bath Capacity: 6341 Kg / 13,980 Pounds
Furnace Type: Stationary Glow-Bar / Stationary Glow-Bar
Energy Source Electric / Electric
Power Requirements: 480/3/60/325 KW / 480/3/60/325 KW
Number of Taps: 2 / 2
Distance floor to top of Well: 1,346 mm / 53 inches
Charge Well Size: 609 x 1,524 mm / 24 x 60 inches
Dip-Out Well Size: 787 x 609 mm / 31 x 24 inches
Overall Dimensions (L x W x H): 5.62 x 3.15 x 2.77 meters / 221 x 124 x 109 inches
Features & Accessories:
Glow-Bar Design For Clean Metal Applications
Pneumatic Clean-out Door

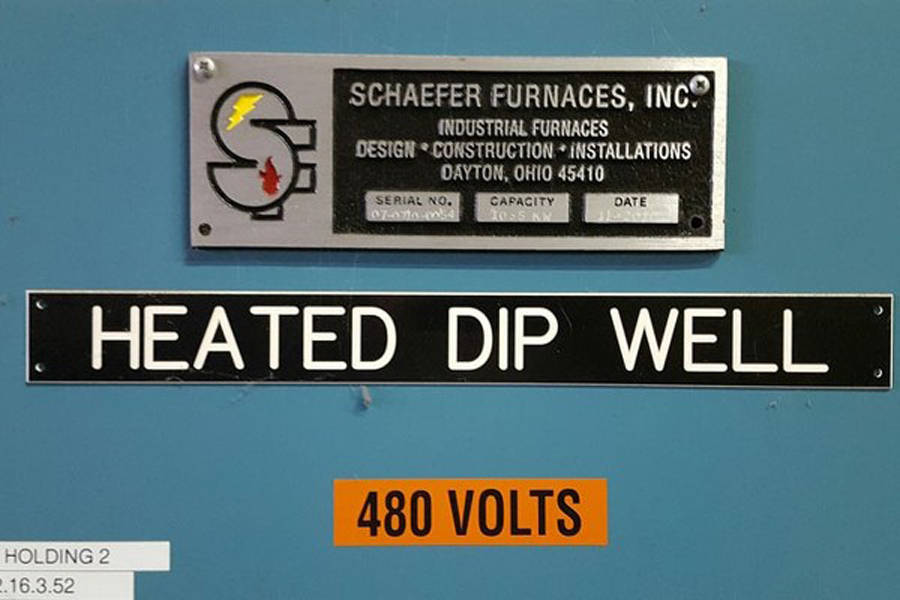

Dedicated Dip Out Well with Independent Immersion Heater and cover
Integral Degassing Well between furnace and Dip-out well
Integral Filter Well
Ideal for Ultra Clean Metal Applications such as Electric Motor Rotor, Automotive Aluminum Wheels, Automotive Steering, Brake and Suspensions Components
PDF Documents for this Machine:
FW Schaefer FWS-1200 Glowbar Furnace Electrical and Schematic Drawings.pdf
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, FW Schaefer Model FWS-1200/HR - Glowbar 1200 Pounds/Hour Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace For Sale, Features include: Glow-Bar Design For Clean Metal Applications, Pneumatic Clean-out Door, Dedicated Dip Out Well with Independent Immersion Heater and cover, Integral Degassing Well between furnace and Dip-out well, Integral Filter Well, Ideal for Ultra Clean Metal Applications such as Electric Motor Rotor, Automotive Aluminum Wheels, Automotive Steering, Brake and Suspensions Components, Honeywell Controls, Second Hand, DCM-3808

The following technical terms are to assist you with searches: Used | Second Hand | FW Schaefer |FWS-1200/HR - Glowbar | 1200 Pounds/Hour | Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace | For Sale | Glow-Bar Design For Clean Metal Applications | Pneumatic Clean-out Door | Dedicated Dip Out Well with Independent Immersion Heater and cover | Integral Degassing Well between furnace and Dip-out well | Integral Filter Well | Ideal for Ultra Clean Metal Applications such as Electric Motor Rotor, Automotive Aluminum Wheels, Automotive Steering, Brake and Suspensions Components | Honeywell Controls | DCM-3808
