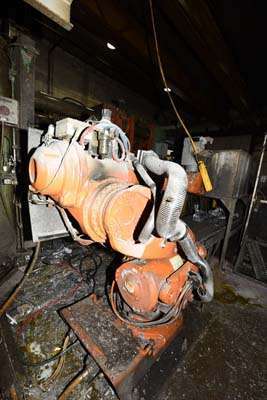

Used ABB Model: IRB 6600 175 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: ABB
Model: IRB 6600
Size: 175 Kilogram
Inventory Number: DCM-3858
Used ABB Model: IRB 6600 175 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings.
Features & Accessories:
- Compact Arm Design
- Fast maneuverability
- Heavy Payload Capability
- Renowned ABB Parts and Service
Item Specifications for DCM-3858
| Specifications | |
|---|---|
| Number of Axis: |
6
|
| Payload Capacity: |
385 pounds
|
| Reach: |
100 inches
|
| Axis 1 Rotation Motion: |
+/- 180 Degrees
|
| Axis 2 Arm Motion: |
+80 to -65 Degrees
|
| Axis 3 Arm Motion: |
+60 to -180 Degrees
|
| Axis 4 Wrist Motion: |
+/- 300 Degrees
|
| Axis 5 Bend Motion: |
+/- 120 Degrees
|
| Axis 6 Rotation Motion: |
+/- 300 Degrees
|
| Power Requirements: |
475/3/60
|
| Approximate Machine Weight: |
3,747 pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, ABB Model IRB 6600 175 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings For_Sale, Features Include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability, Renowned ABB Parts and Service, S4C controls, second Hand, DCM-3858
