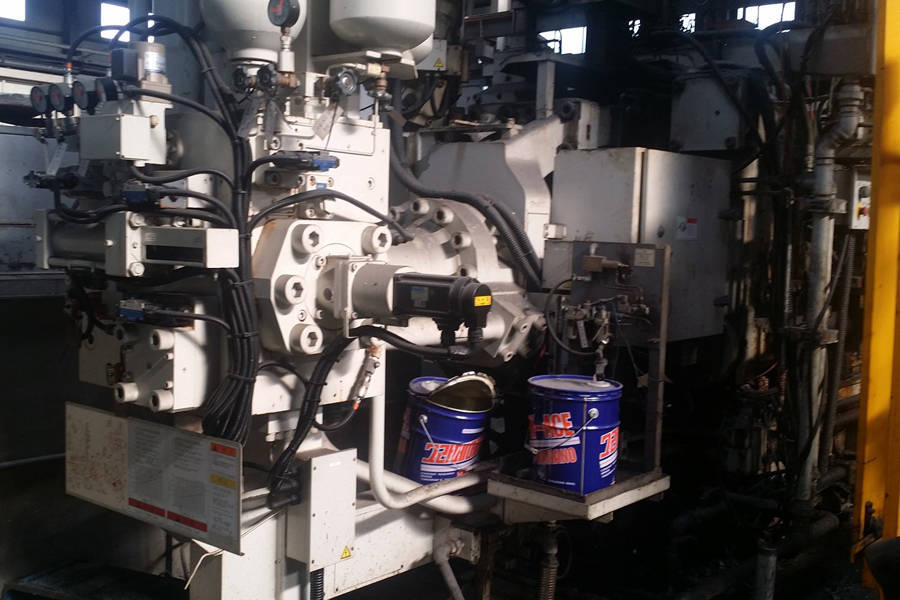

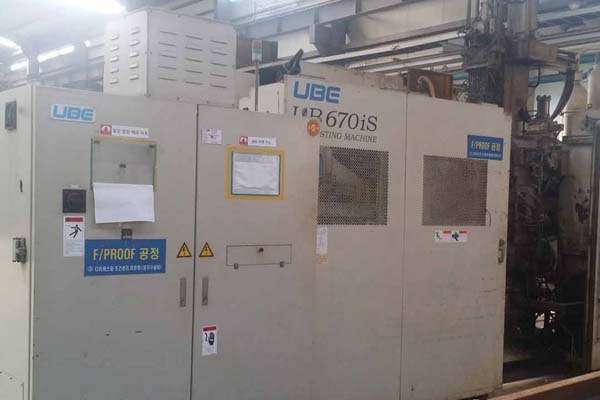

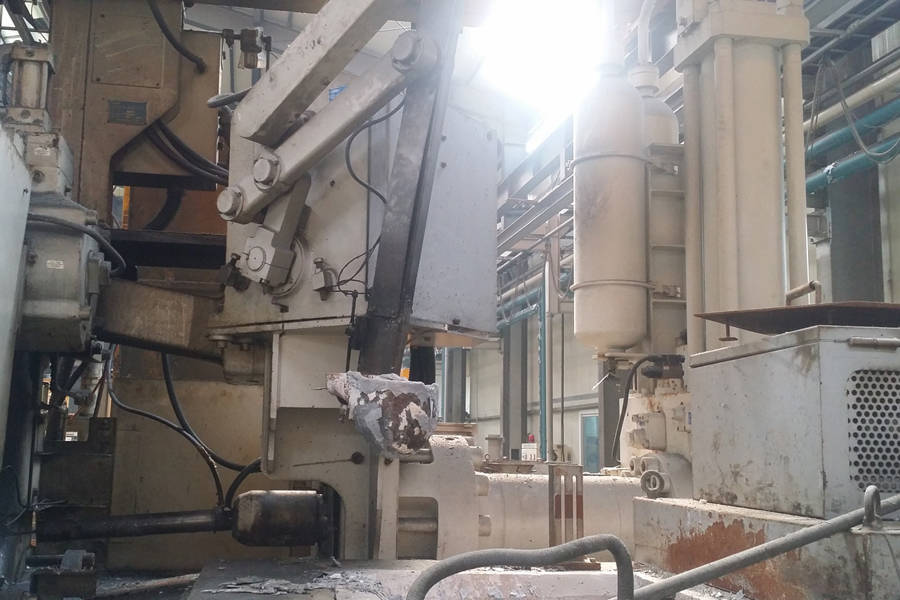

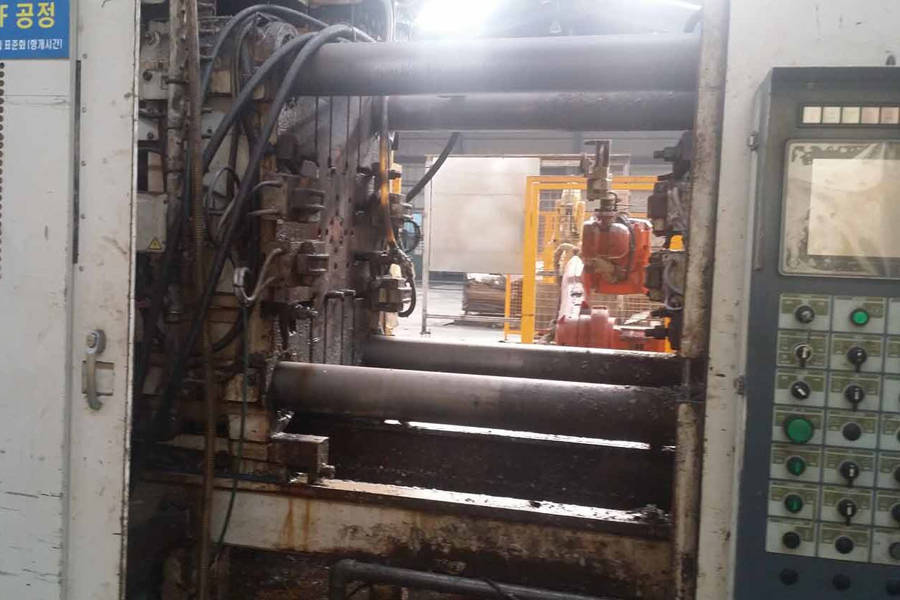

Used Ube Model: UB670iS2 683 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Ube

Model: UB670iS2

Size: 683 Metric Ton

Inventory Number: DCM-4032

Used Ube Model: UB670iS2 683 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Features & Accessories:

  • Automatic Ladle
  • Automatic Die Sprayer System

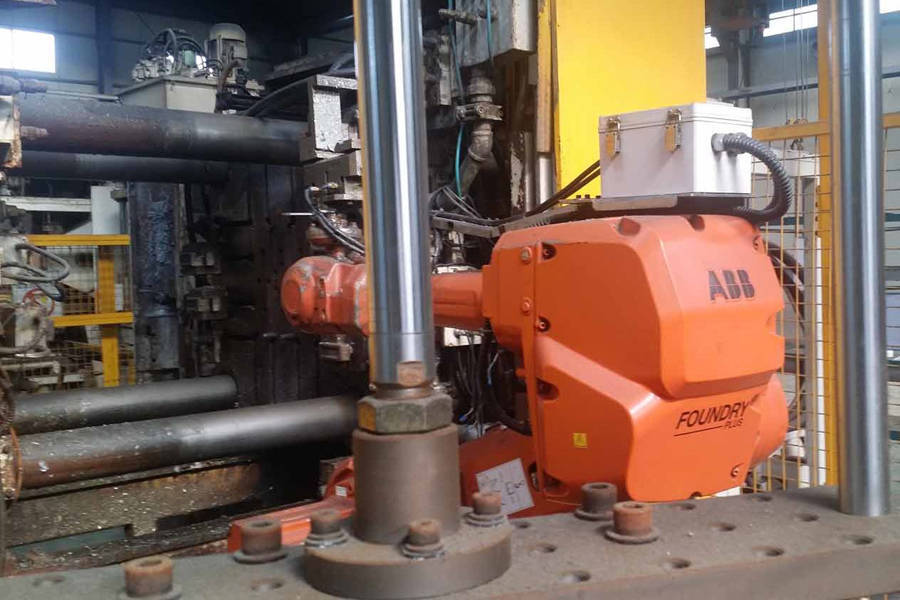

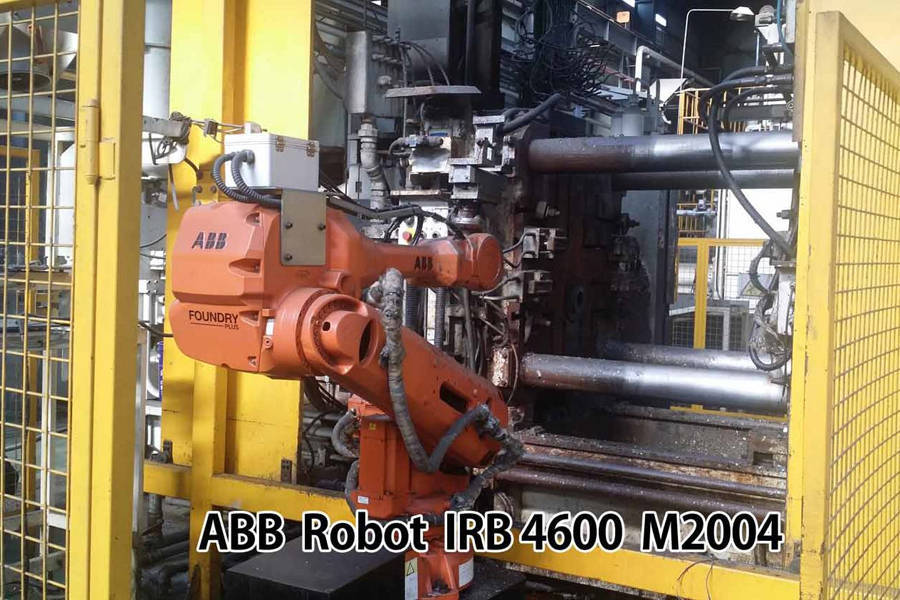

  • ABB IRB 4600 Industrial Robot

Item Specifications for DCM-4032

Clamping Force:
753 tons
Platen Size:
47.2 x 57.2 inches
Distance Between Tie Bars:
33.46 x 33.46 inches
Die Stroke:
25.9 inches
Die Thickness (min - max):
11.8 - 35.4 inches
Ejection Force:
34 tons
Ejection Stroke:
0 - 4.92 inches
Shot Force (max - min):
47 - 33 tons
Shot Stroke:
26.4 inches
Plunger Tip Diameter (min - max):
2.95, 3.34, 3.74 inches
Shot Positions:
center to -6.8 inches

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.


Used, Ube Model UB670iS2 683 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Automatic Ladle, Automatic Die Sprayer System, ABB IRB 4600 Industrial Robot CastNavi, New Human Machine Interface controls, second Hand, DCM-4032

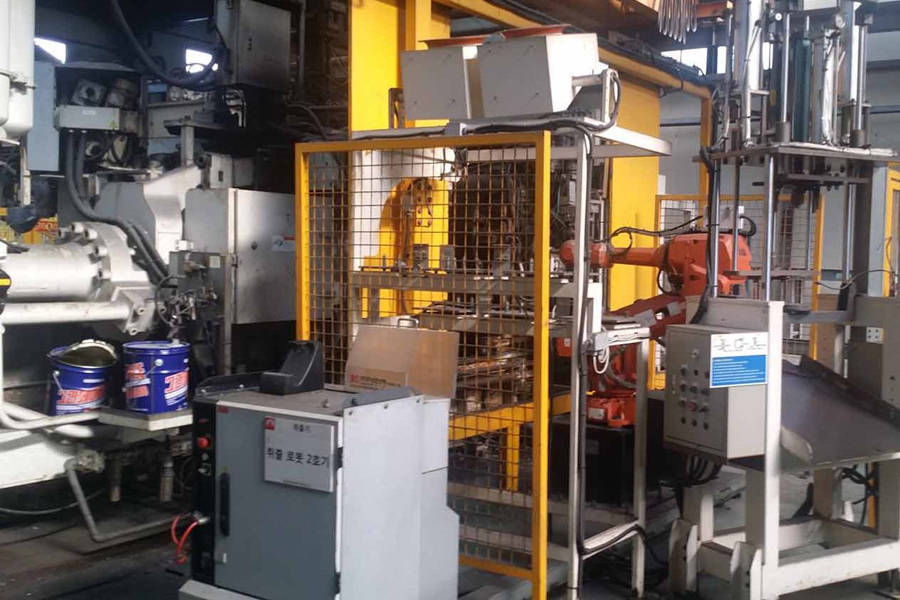

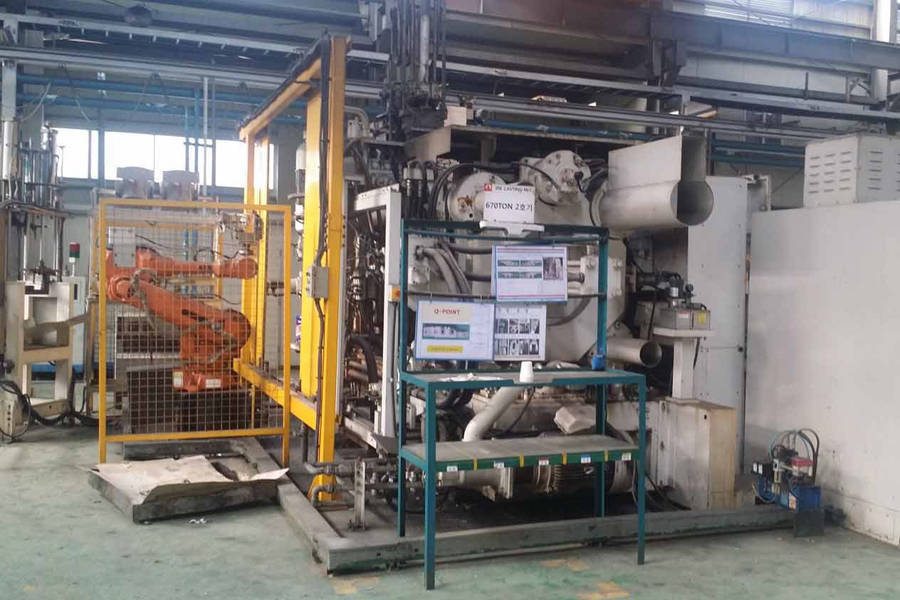

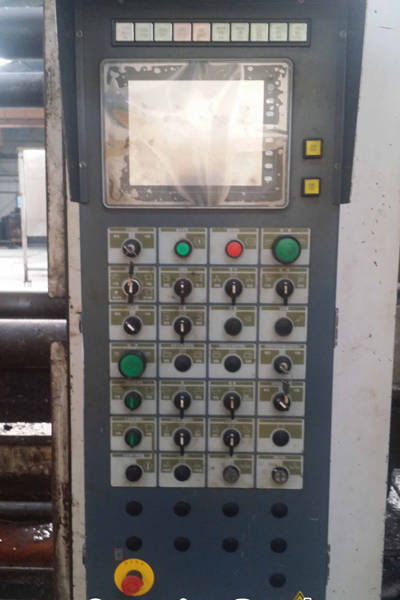

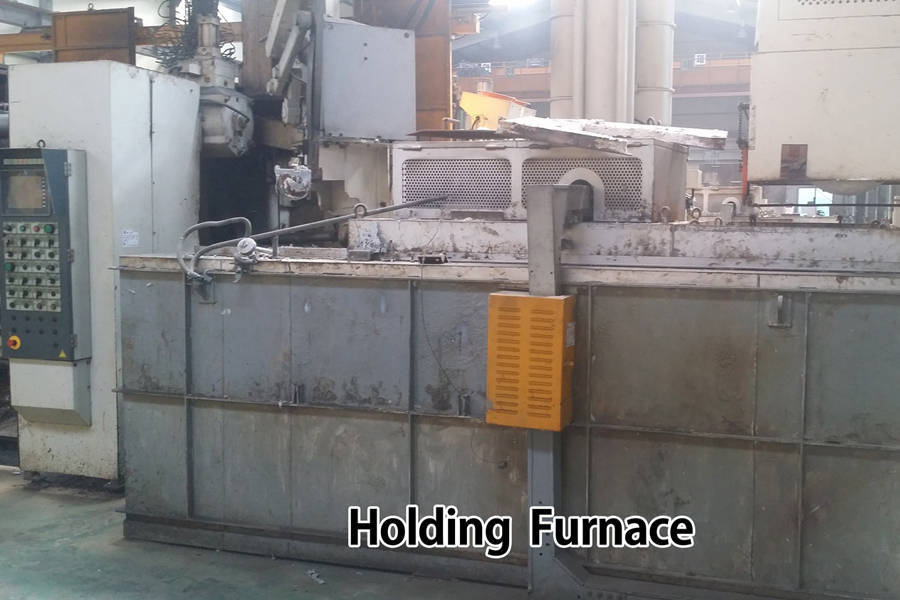

See jumbo large photos of this Ube UB670iS2
