Cold Chamber Die Casting Machines Model 633 CCA One (1) Used Prince 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 3716 Condition: Used Sold Prince - 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/20 Controls used 1
Die Cast Machinery, LLC Inventory number: 3716
We offer for sale, subject to prior sale and the terms listed below:

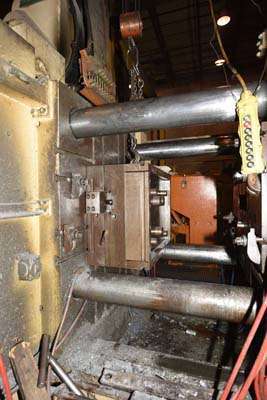

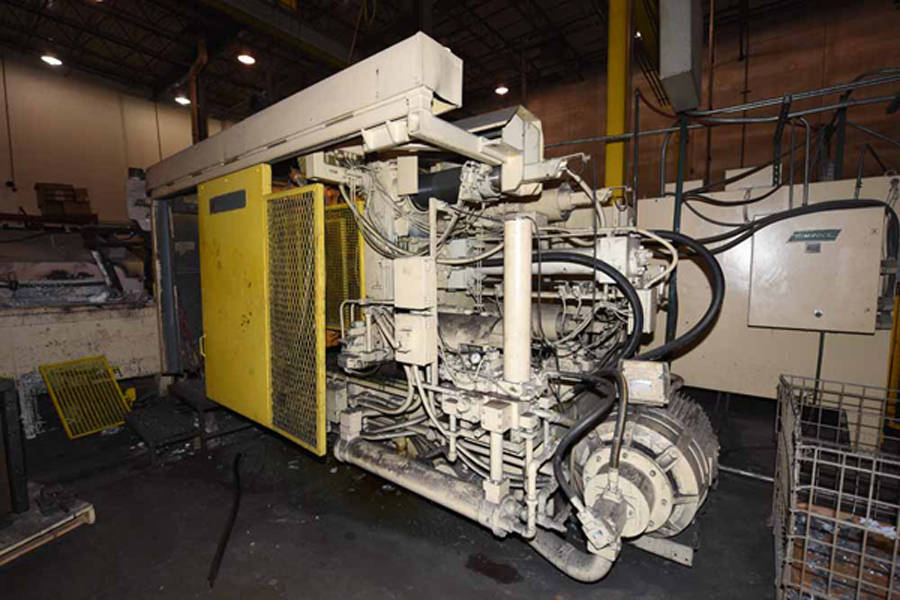

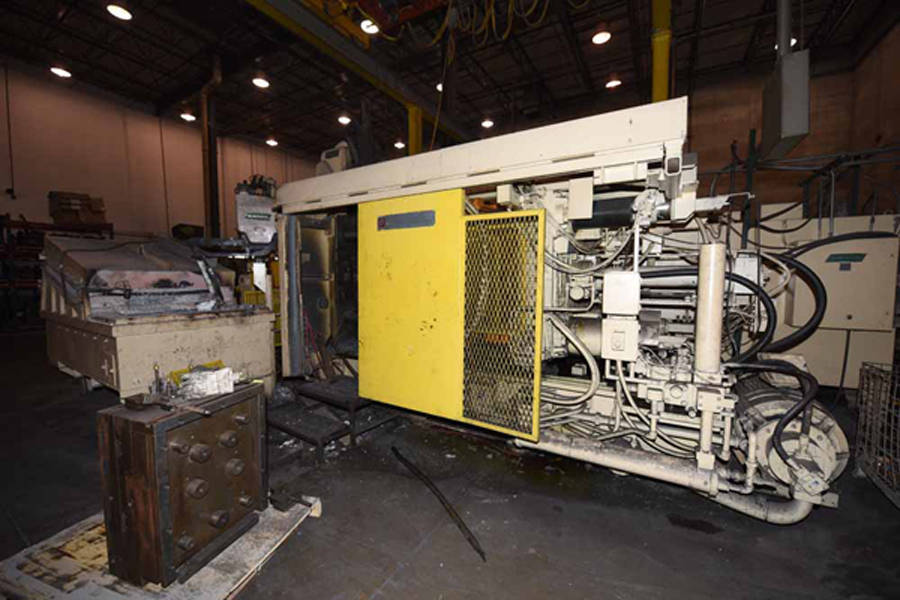

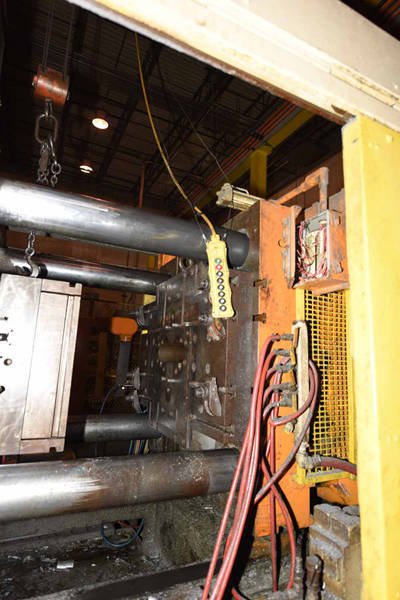

One (1) Used Prince 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model 633 CCA

Status: Sold
Specifications: Metric / U.S. Standard
Rated Tonnage: 636 tons / 700 tons
Tie Bar Diameter: 171 mm / 6.75 inches
Clearance between Tie Bars: 831 x 831 mm / 32.75 x 32.75 inches
Front Platen Size (T x W x H): 298 x 1384 x 1562 mm / 11.75 x 54.50 x 61.50 inches
Moving Platen Size (T x W x H): 273 x 1384 x 1384 mm / 10.75 x 54.50 x 54.50 inches
Die Thickness (minimum to maximum): 457 - 965 mm / 18 - 38 inches
Die Stroke: 508 mm / 20 inches
Shot Position Standard: Center & -152 / Inserted center & -6
Shot Cylinder Stroke: 482 - 609 mm / 19 - 24 inches
Motor Size: 44.76 Kw / 60 HP
Machine Size (L x W x H): 7.92 x 2.44 x 3.05 meters / 26 x 8 x 10 feet
Machine Weight: 31,820 kg / 70,000 pounds
Features & Accessories:

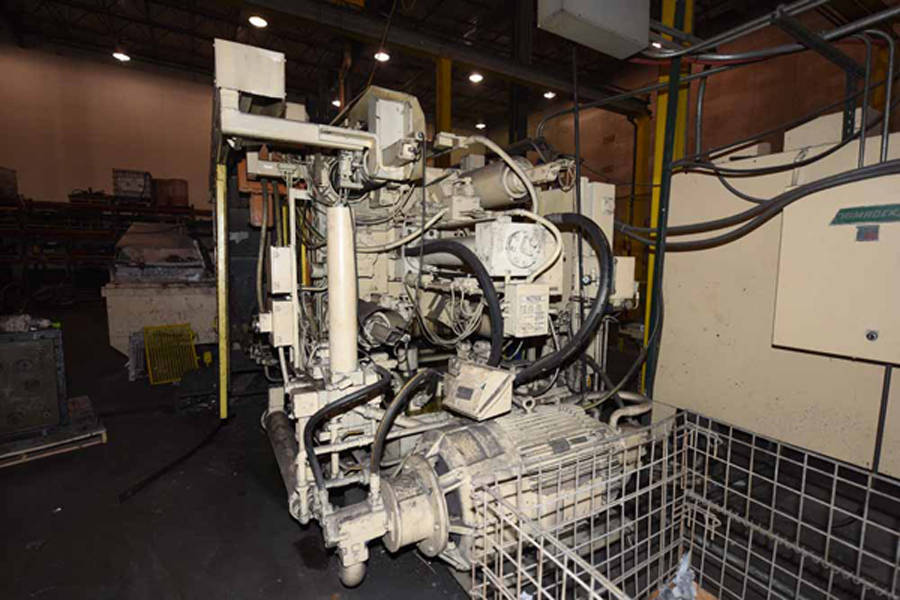

C-Frame Shot End with Hydraulic Shot Position Adjustment and Prince Binary II shot control

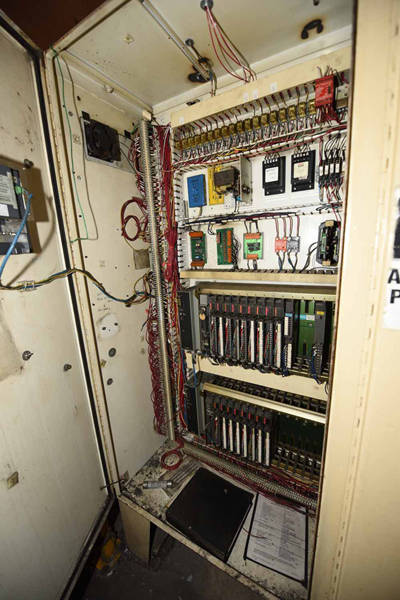

Allen Bradley PLC 5/20 Controls
Twin Cylinder Hydraulic Bumper Plate Ejection System
Fully Automatic Top Helper Side Tie Bar Pulling System including power rear split-ring
Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System
Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen
Optional Equipment Available with Machine at additional cost: (click on item to view)

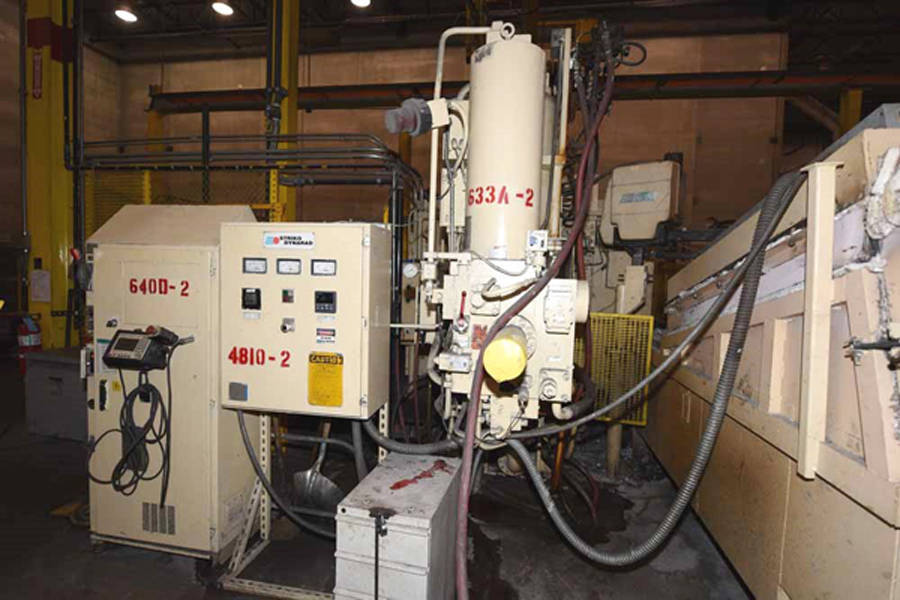

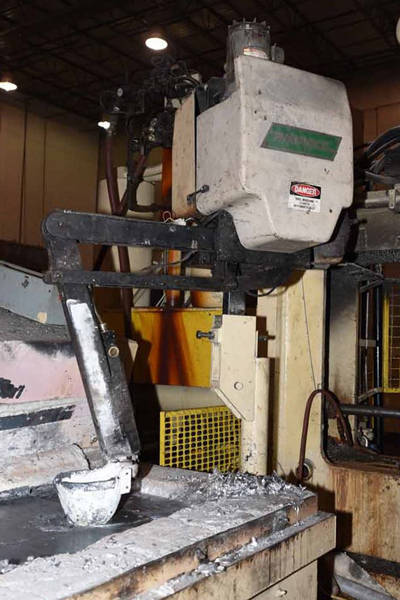

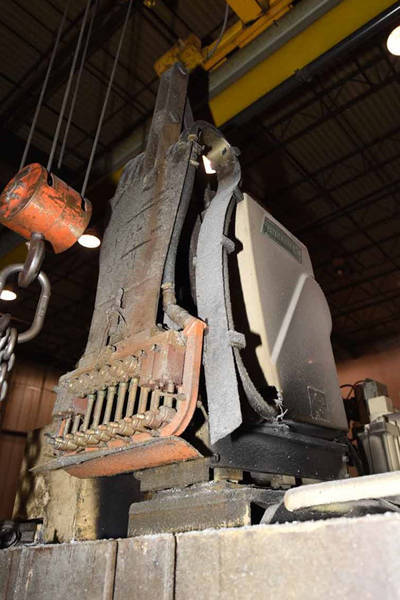

Rimrock Combination 305 Auto-Ladle and 410 Automatic Die Sprayer

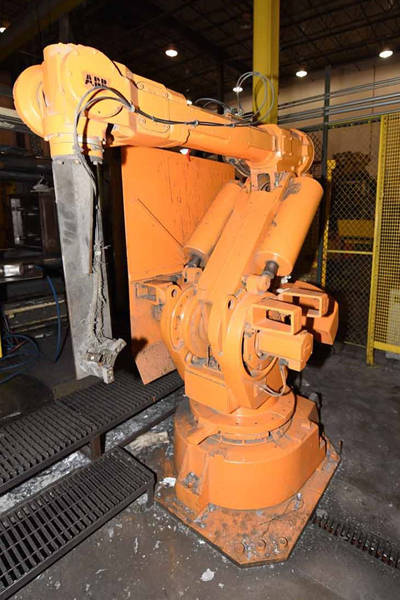

ABB IRB 6400 2.4-120 Robot Extractor

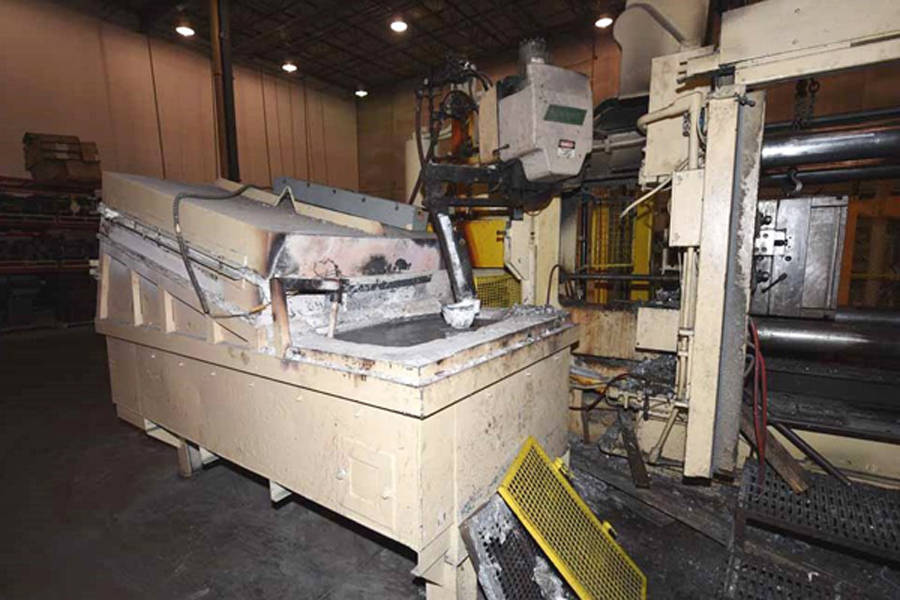

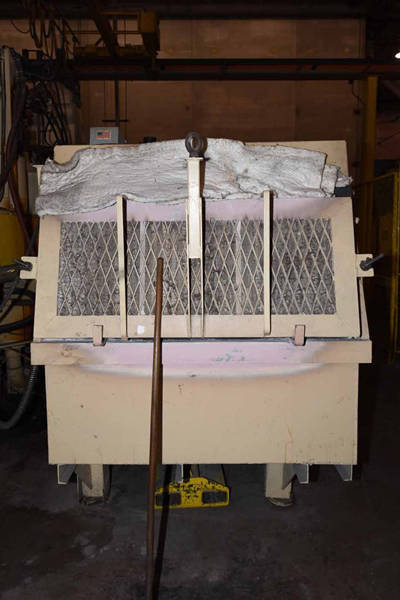

Custom Built 2,600 pound aluminum holding furnace

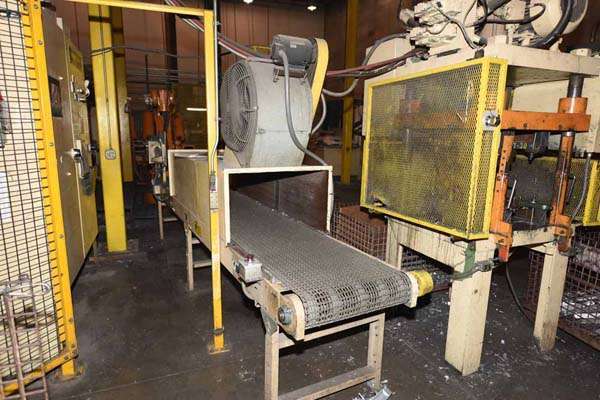

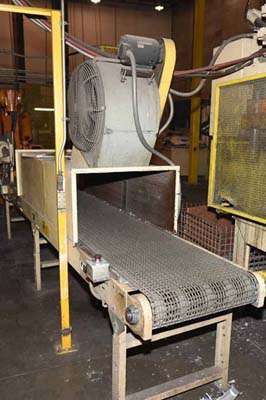

Custom Built Steel Mesh Conveyor with forced air cooling tunnel, 24 x 169 inches

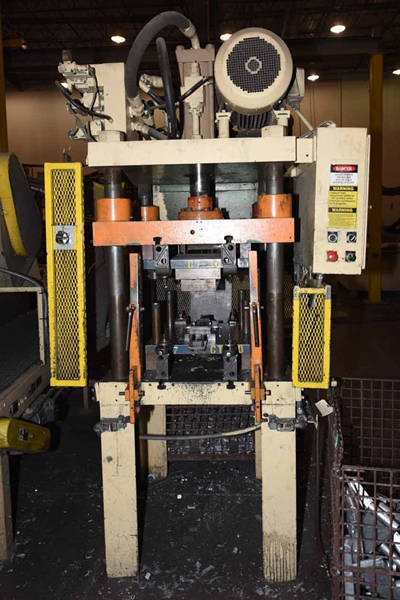

Die Cast Press 40 ton vertical four post trim press
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America



Description: Used, Prince Model 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: C-Frame Shot End with Hydraulic Shot Position Adjustment and Prince Binary II shot control, Allen Bradley PLC 5/20 Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, Fully Automatic Top Helper Side Tie Bar Pulling System including power rear split-ring, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Allen Bradley PLC 5/20 Controls, Second Hand, DCM-3716
