Vertical Trim Presses Model T-50 One (1) Used Prince Trim Press 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press Inventory #: 4060 Condition: Used Sold Prince Trim Press - T-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley SLC 5/05 Controls used 1
Die Cast Machinery, LLC Inventory number: 4060
We offer for sale, subject to prior sale and the terms listed below:

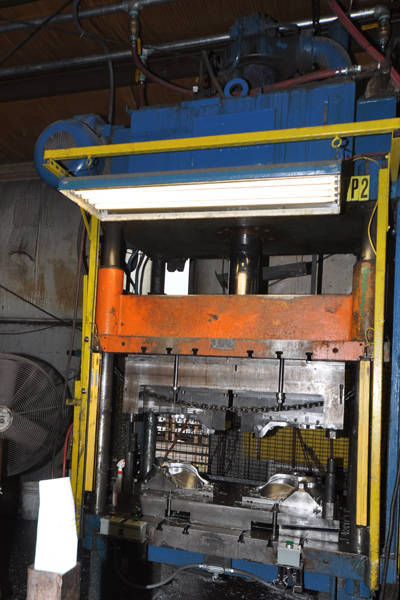

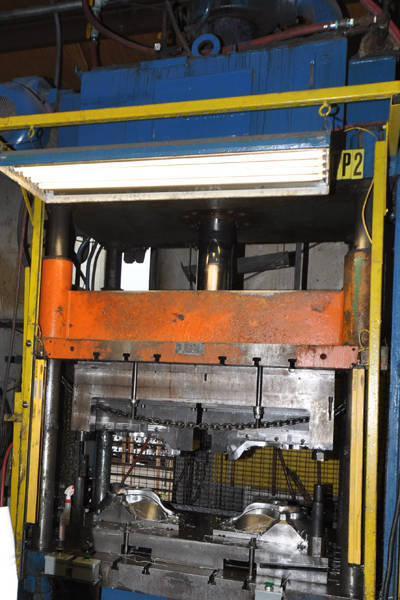

One (1) Used Prince Trim Press 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

Model T-50

Status: Sold
Specifications: Metric / U.S. Standard
Pressing Tonnage: 45.45 tons / 50 tons
Daylight: 914 mm / 36 inches
Stroke: 609 mm / 24 inches
Shut Height: 304 mm / 12 inches
Clearance between Tie bars (Left to Right): 1371 mm / 54 inches
Clearance between Tie bars (Front to Back): 812 mm / 32 inches
Bed Size (left to right): 1,676 mm / 66 inches
Bed Size (front to back) 1,176 mm / 44 inches
Cut-out in Base Platen: 457 x 254 mm / 18 x 10 inches
Column Diameter: 1,016mm / 4 inches
Travel Speeds (approach/pressing/return): 22.86/4.31/22.89 meters per minute / 900/170/900 inches per minute
Approximate Weight: 7,272 KG / 16,000 Pounds
Features & Accessories:
T-Slotted Platens - Top and Bottom

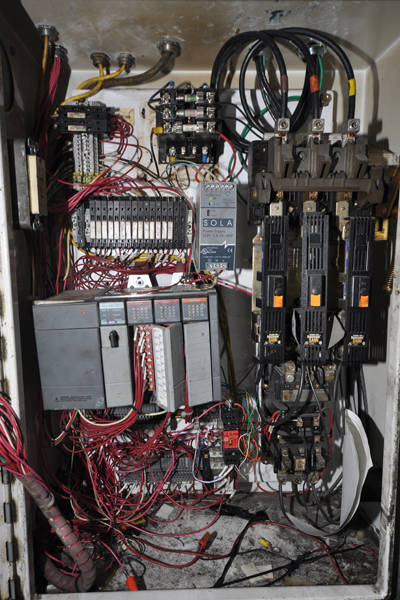

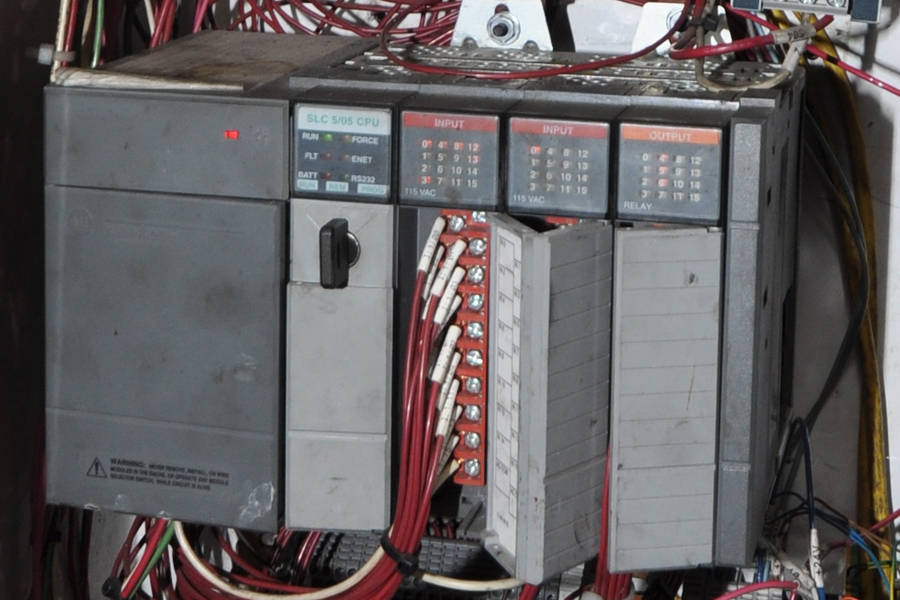

Allen Bradley SLC 5/05 PLC Controls

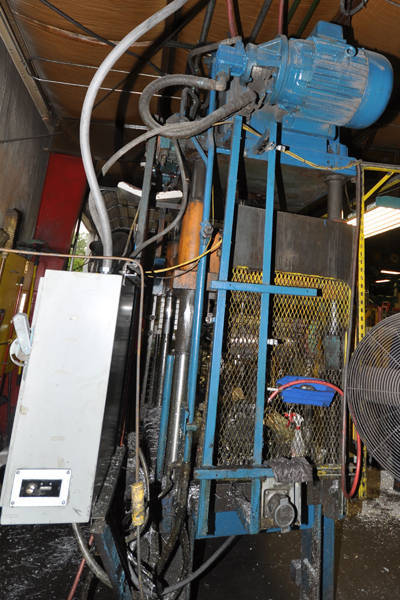

Top Mounted Hydraulics
Air Safety Ratchet Device

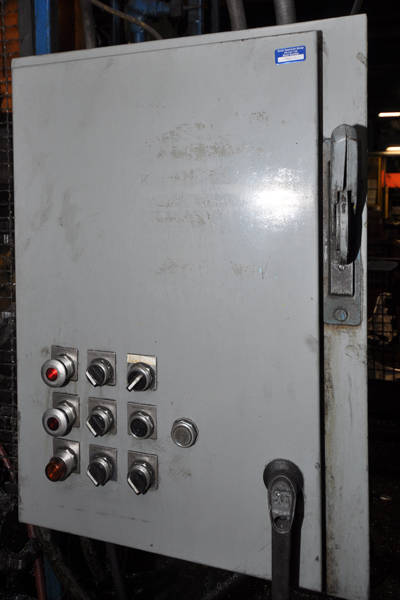

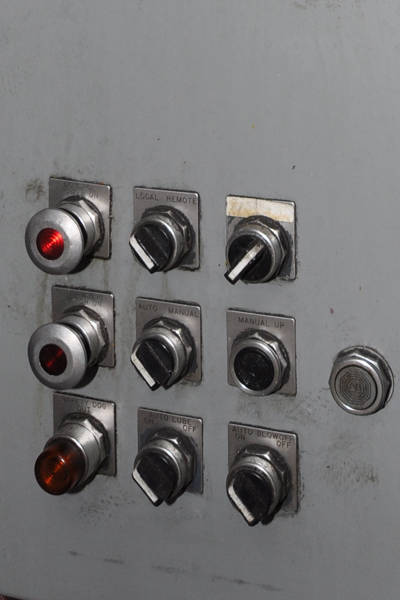

Dual Palm-Button Operation
Automatic Lubrication System
Terms of Sale:
Price: request quotation
Shipping Terms: F.O.B. Location

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description: Used, Prince Trim Press Model T-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For Sale, Features include: T-Slotted Platens - Top and Bottom, Allen Bradley SLC 5/05 PLC Controls, Top Mounted Hydraulics, Air Safety Ratchet Device, Dual Palm-Button Operation, Automatic Lubrication System, Allen Bradley SLC 5/05 Controls, Second Hand, DCM-4060
