Italpresse IP-750-SC Cold Chamber Die Casting Machine

Print PDF!

Status: Available

We offer for sale, subject to prior sale and the terms listed below:

Manufacturer: Italpresse

Size: 750 Metric Ton

Inventory item: DCM-4380

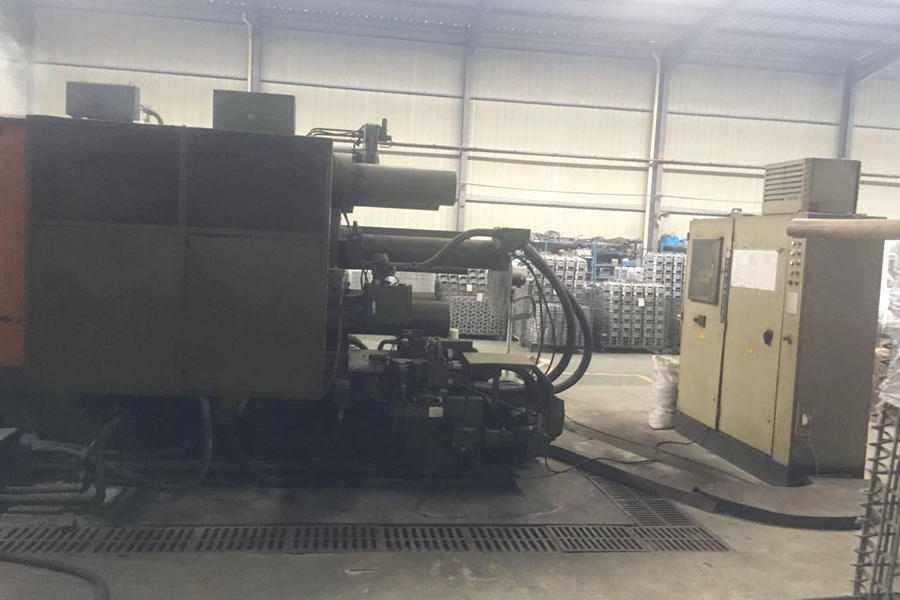

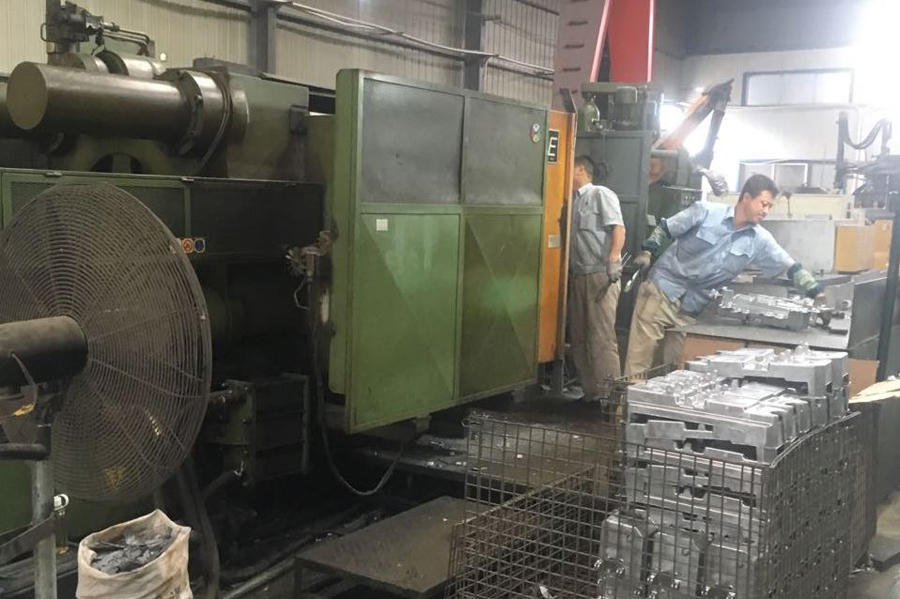

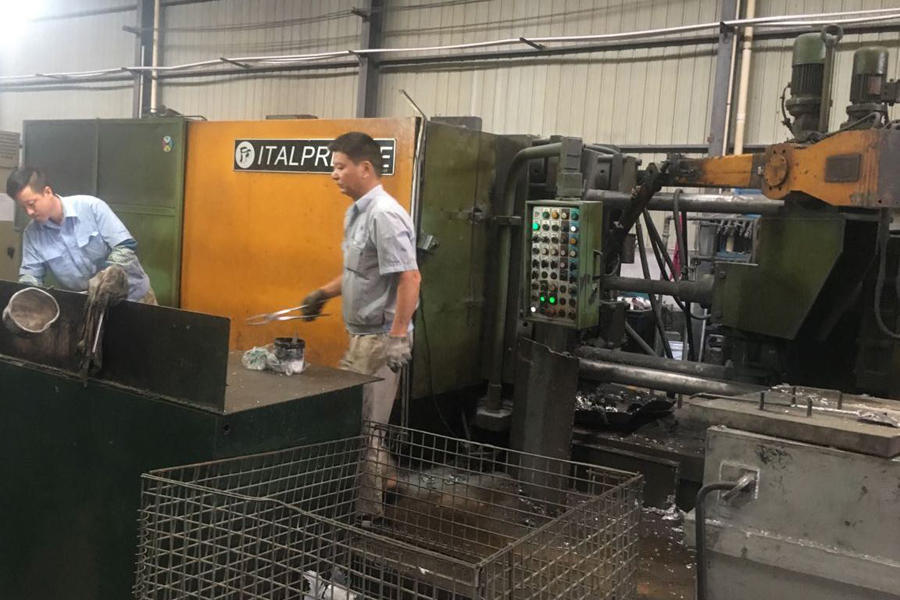

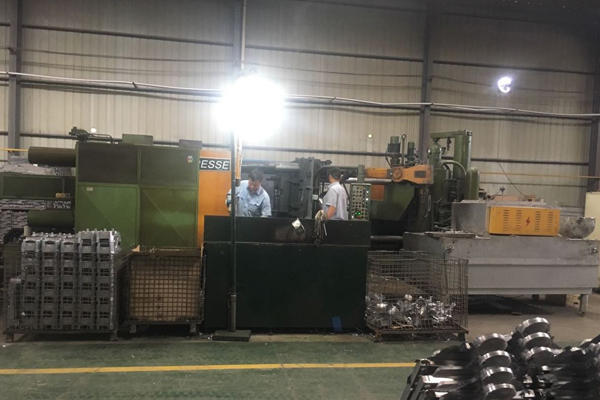

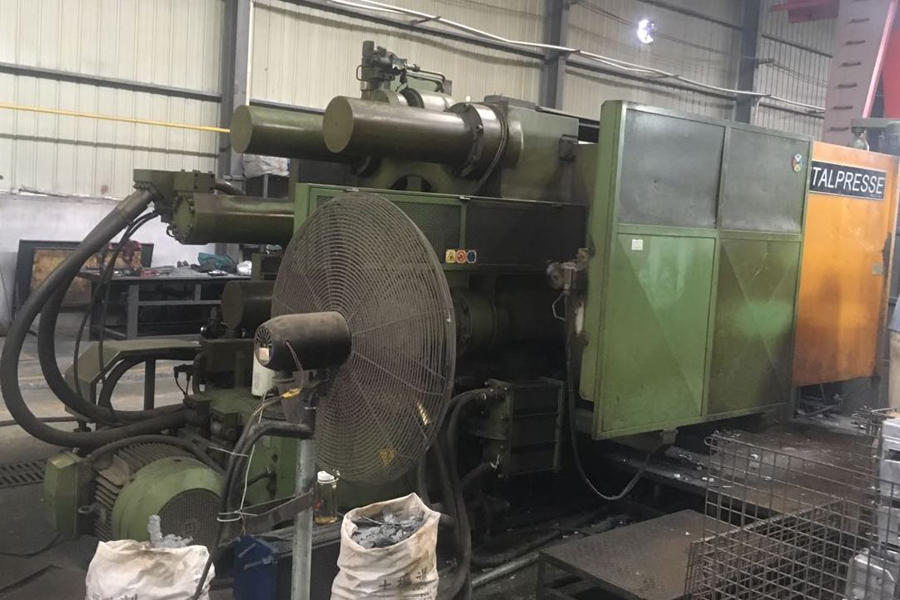

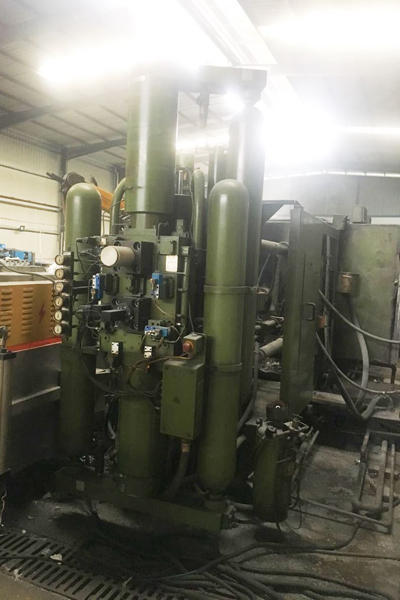

Italpresse IP-750-SC Cold Chamber Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Click above for larger image

Features & Accessories:

  • Equipped with ladle

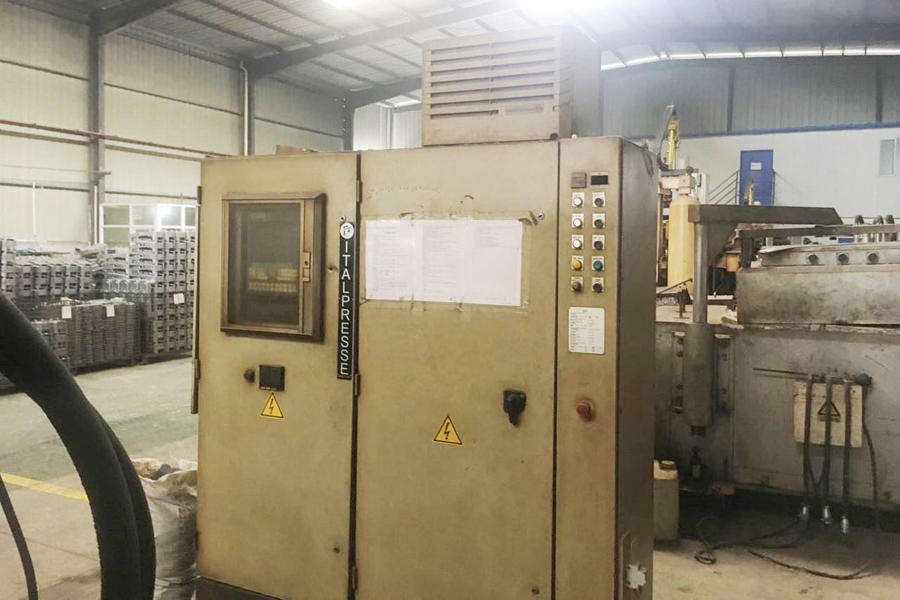

  • Italpresse SC Shot Control using Siemens S-5 PLC Controls
  • Inserted Shot Position (allows for multiple shot positions)
  • Hydraulic Bumper Plate Ejection System
  • Automatic Central Lubrication System

Item Specifications for DCM-4380

Locking Force:
826 tons
Tie Bar Diameter:
6.49 inches
Clearance Between Tie Bars:
30.51 x 30.51 inches
Die Thickness (minimum - maximum):
15.15 - 37.00 inches
Die Stroke (maximum):
29.52 inches
Moving Platen Size:
49.40 x 49.40 inches
Shot Positions:
Inserted, multi-positions
Shot Stroke:
22.8 inches
Central Ejection Stroke:
7.08 inches
480/3/60 - 50 HP
Machine Size:
28.2 x 8.5 feet
Machine Weight:
72,600 pounds

Shipping Terms: Ex-works


See jumbo large photos of this Italpresse IP/750-SC
