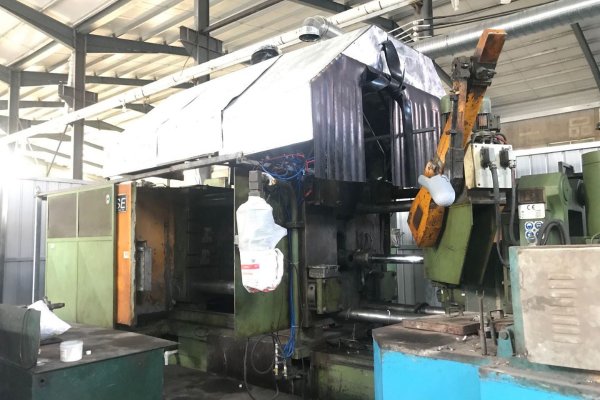

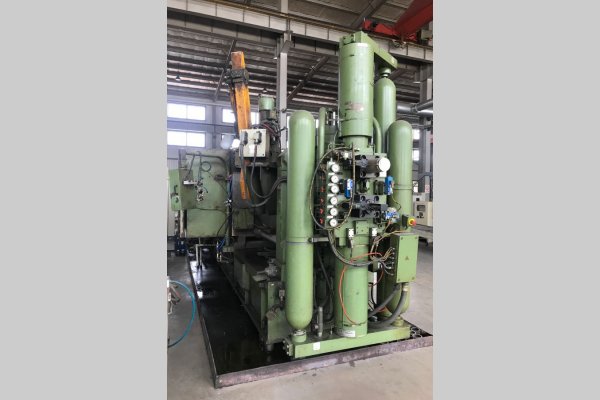

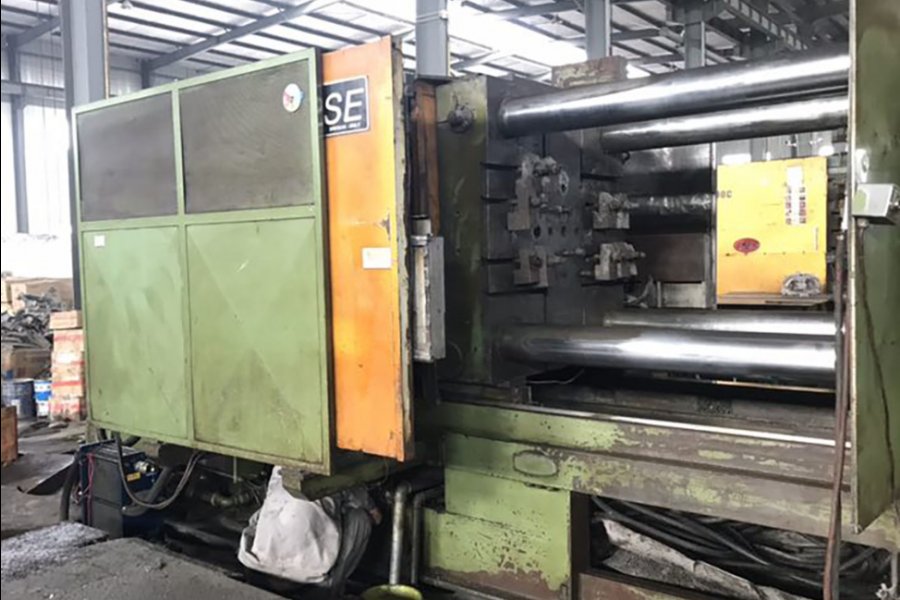

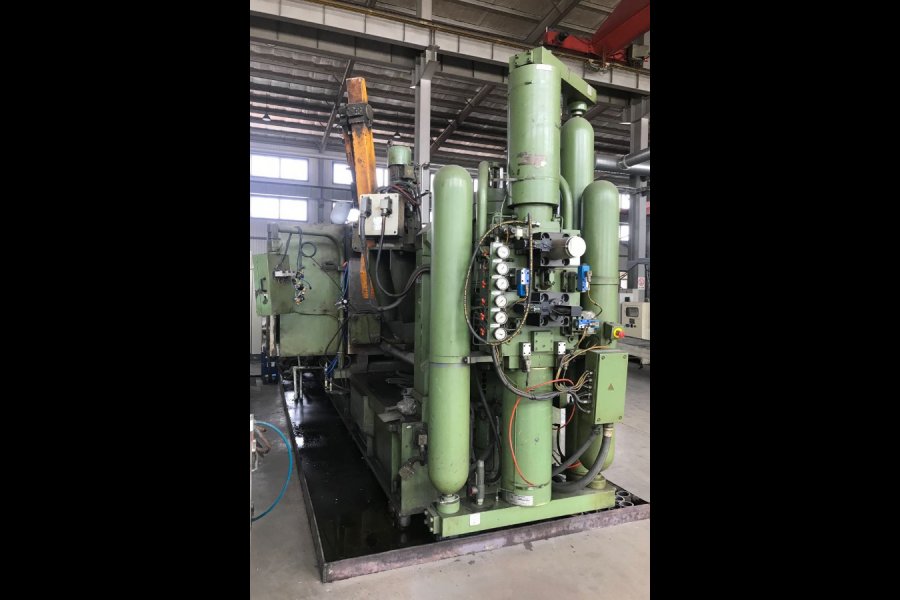

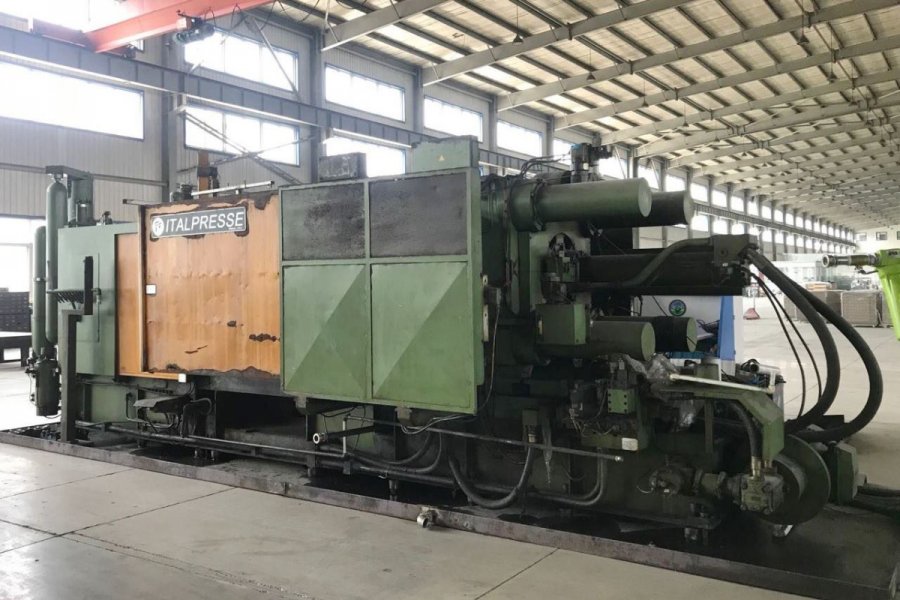

Used Italpresse Model: IP/750-SC 750 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Italpresse

Model: IP/750-SC

Size: 750 Metric Ton

Inventory Number: DCM-5012

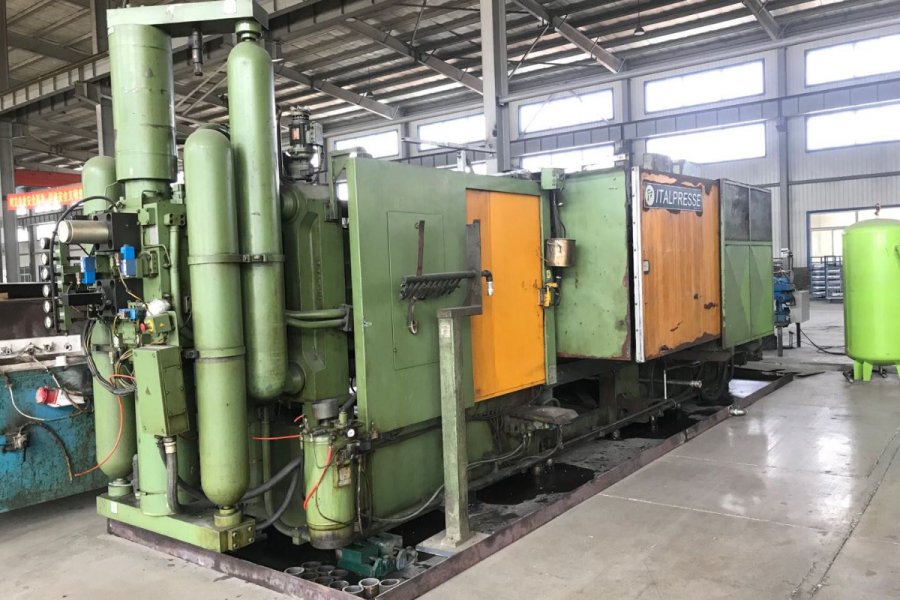

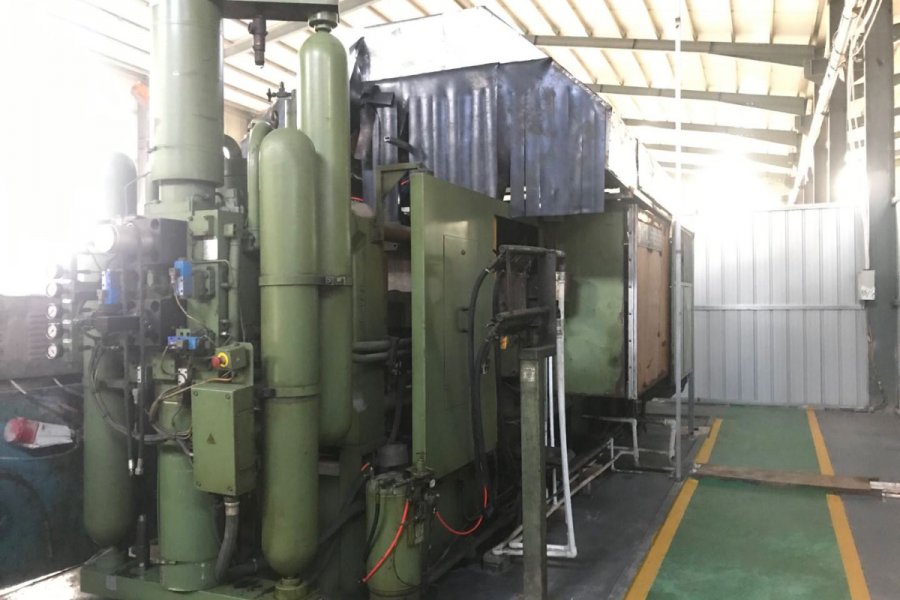

Used Italpresse Model: IP/750-SC 750 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Features & Accessories:

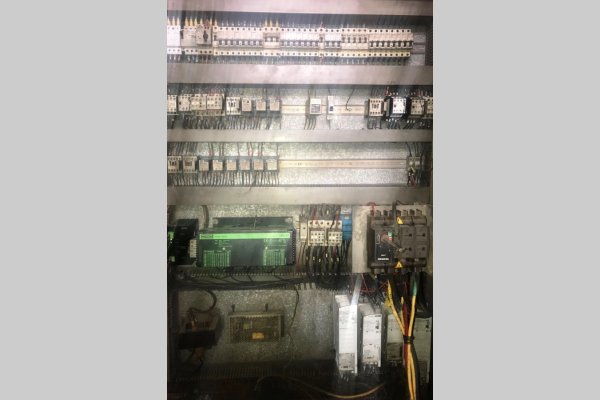

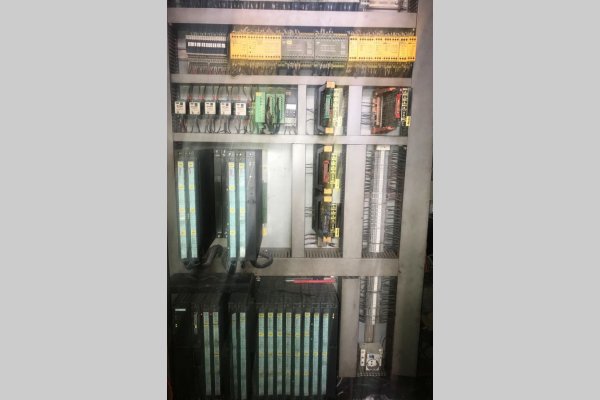

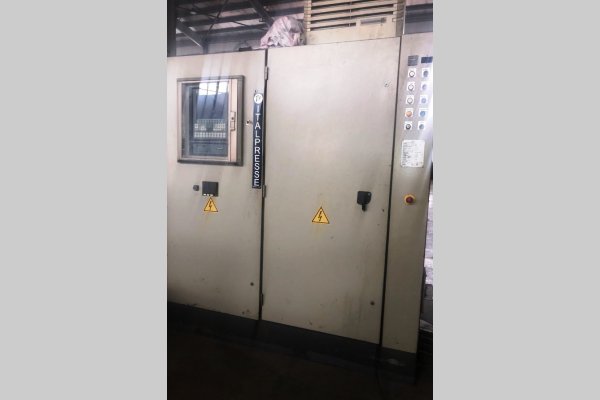

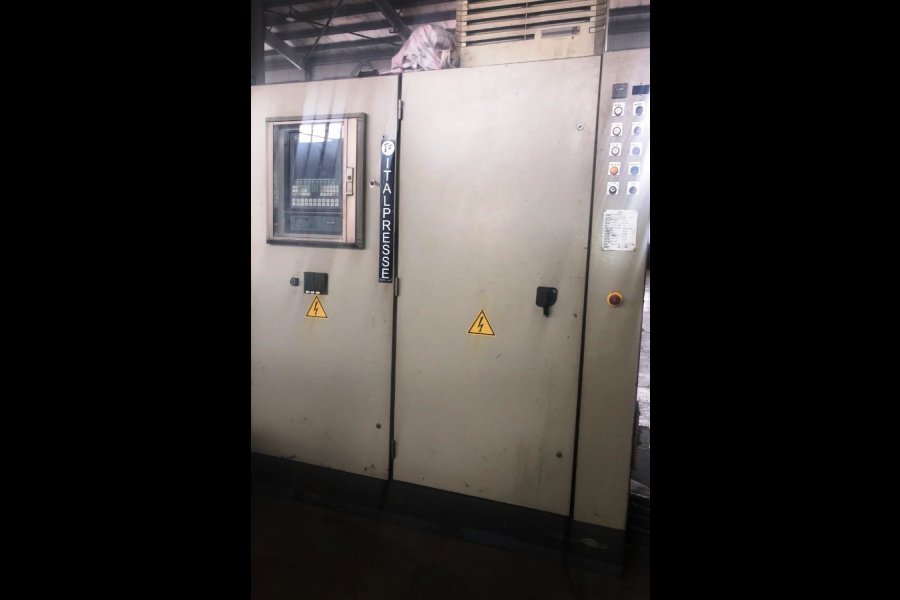

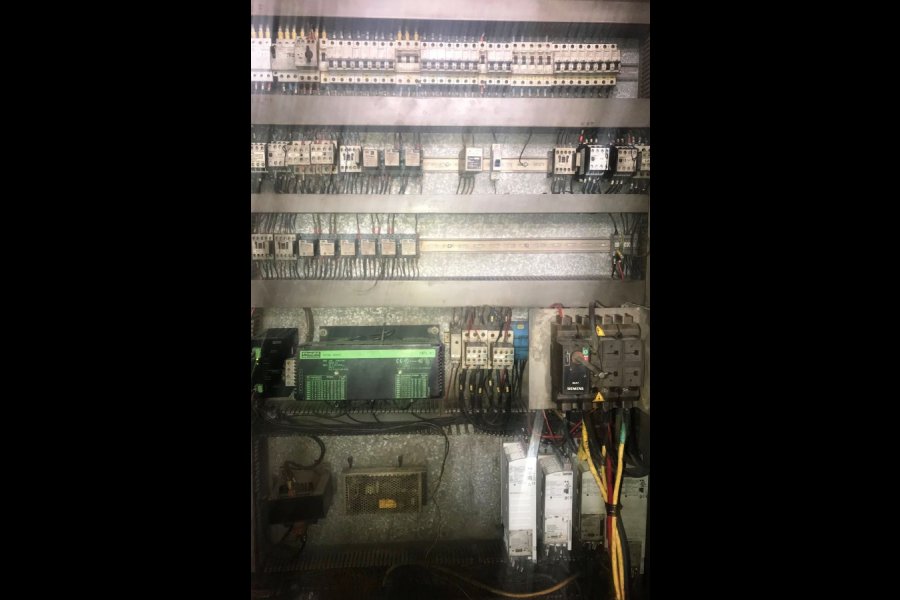

  • Italpresse SC Shot Control using Siemens S-7 PLC Controls
  • Hydraulic Bumper Plate Ejection System
  • Automatic Central Lubrication System
  • Inserted Shot Position (allows for multiple shot positions)

Item Specifications for DCM-5012

Specifications
Locking Force:
825 tons
Tie Bar Diameter:
6.49 inches
Clearance Between Tie Bars:
30.51 x 30.51 inches
Die Thickness (minimum - maximum):
15.15 - 37.00 inches
Die Stroke (maximum):
29.52 inches

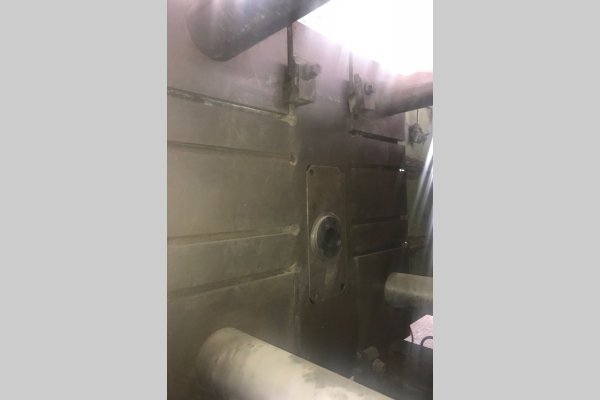

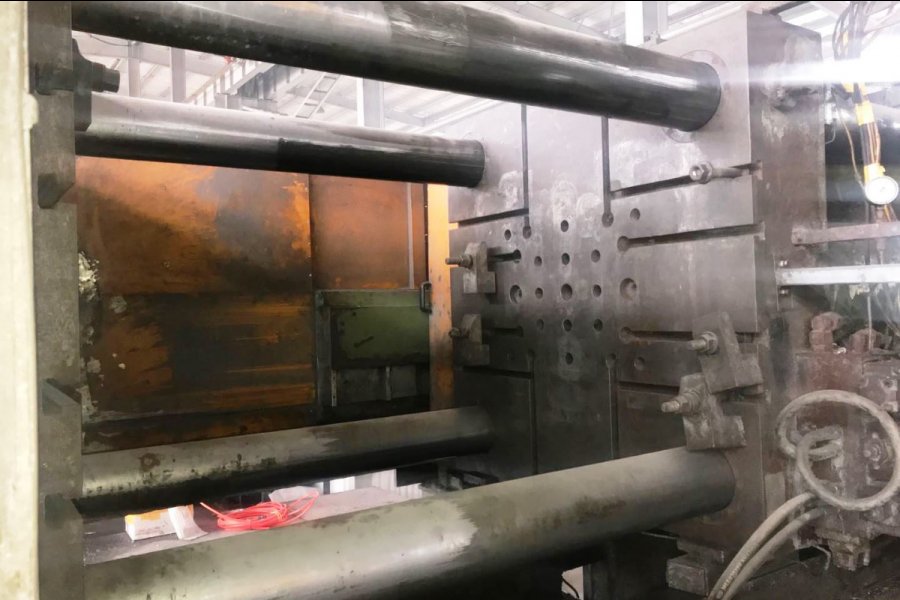

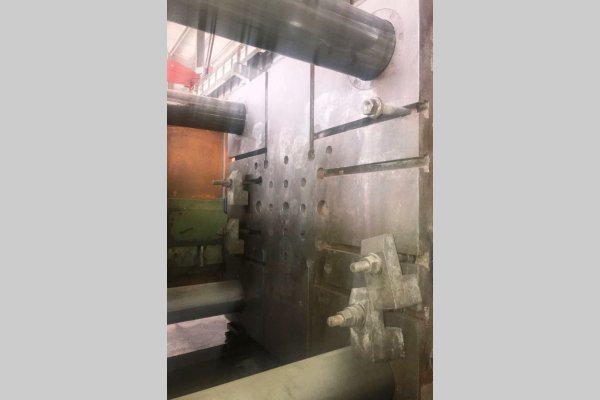

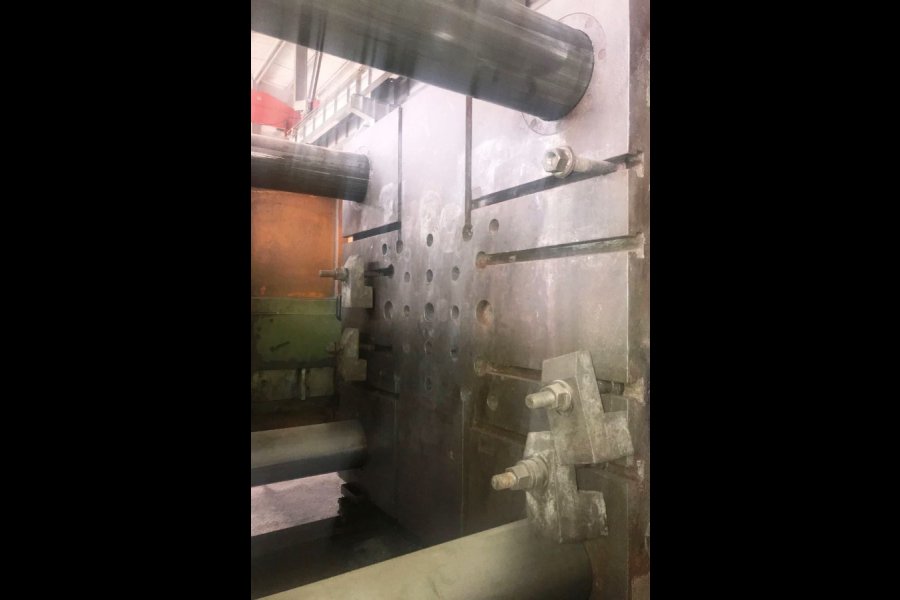

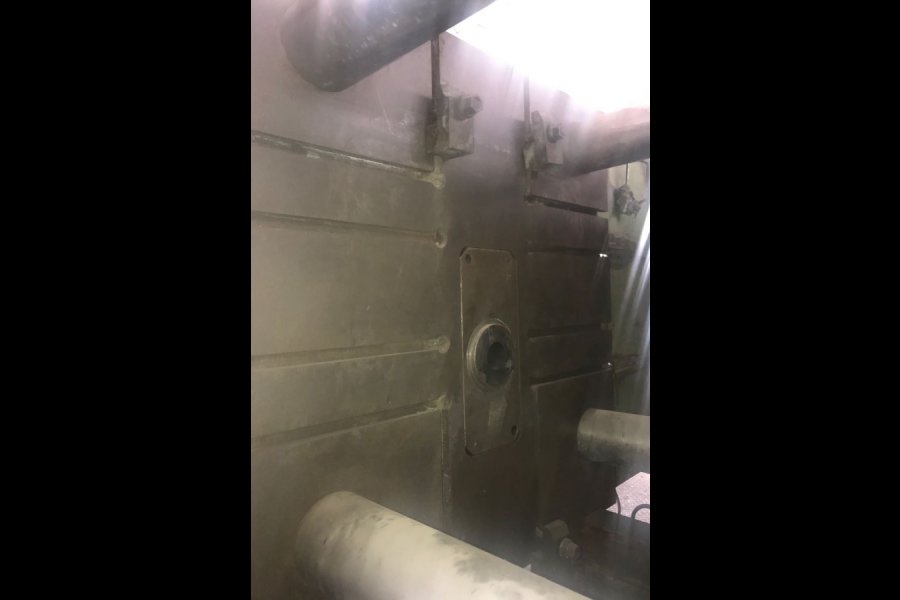

Moving Platen Size:
49.40 x 49.40 inches
Shot Positions:
Inserted, multi-positions
Shot Stroke:
22.8 inches
Central Ejection Stroke:
7.08 inches
Power:
380/3/50 - 50 HP
Machine Size:
28.2 x 8.5 feet
Machine Weight:
72,600 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Italpresse Model IP/750-SC 750 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Italpresse SC Shot Control using Siemens S-7 PLC Controls, Hydraulic Bumper Plate Ejection System, Automatic Central Lubrication System, Inserted Shot Position (allows for multiple shot positions), Siemens S7 controls, second Hand, DCM-5012


See jumbo large photos of this Italpresse IP/750-SC
