Used Fanuc Robotics Model: S-430iW S-430iW_165 KG Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Fanuc Robotics
Model: S-430iW
Size: S-430iW_165 KG
Inventory Number: DCM-4385

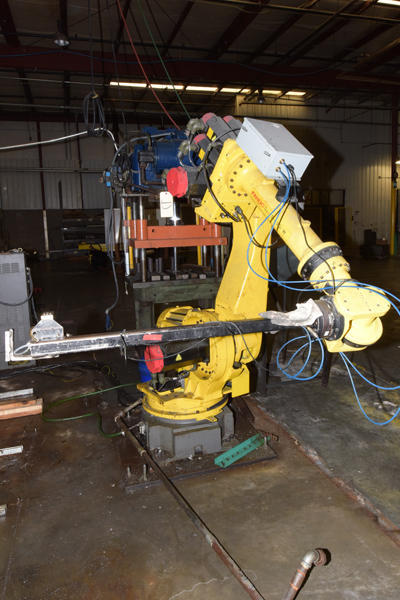

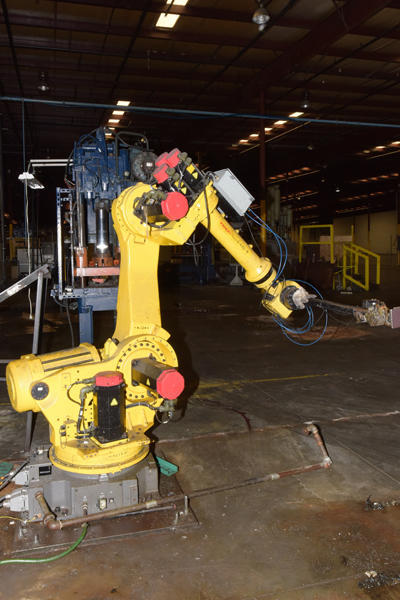

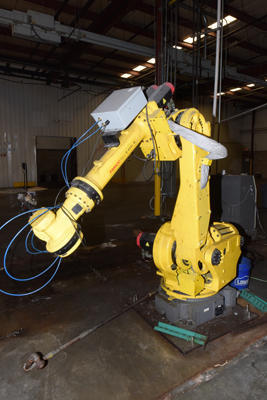

Used Fanuc Robotics Model: S-430iW S-430iW_165 KG Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings.
Features & Accessories:

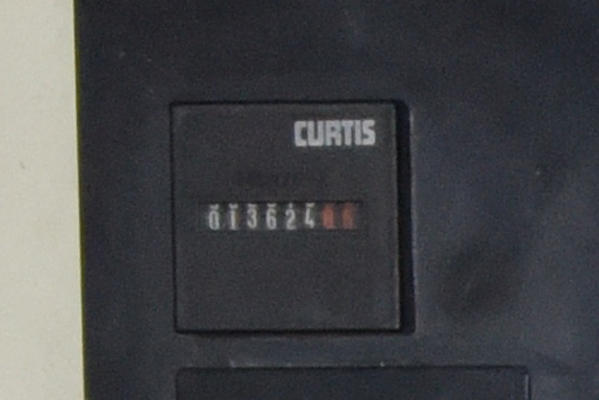

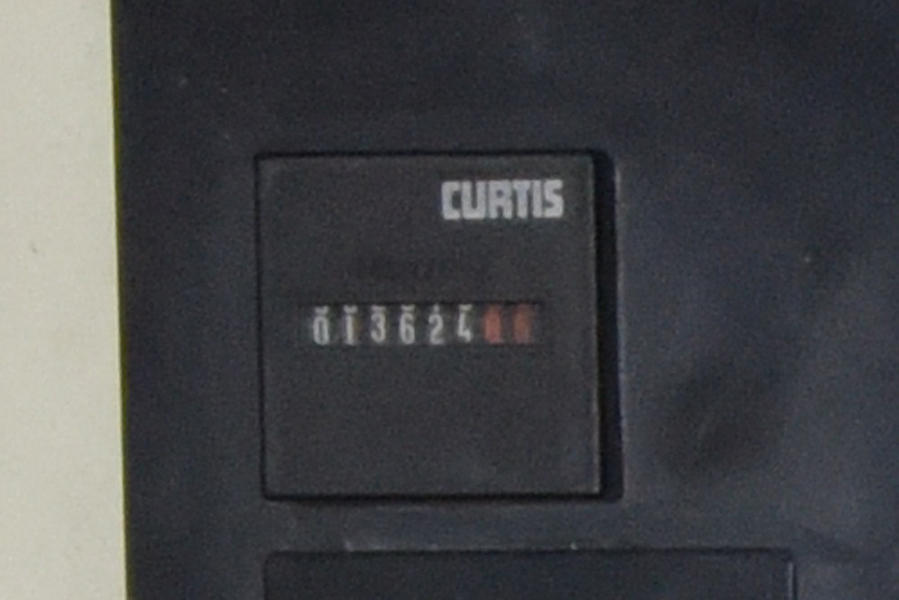

- Only 13,624 Operational Hours

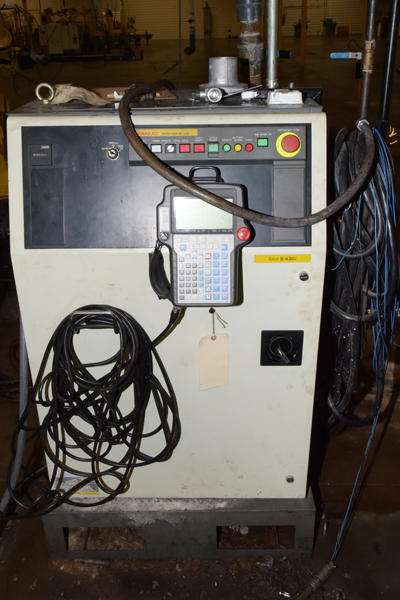

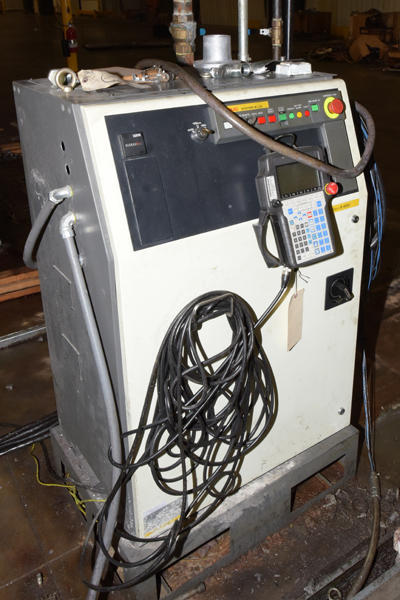

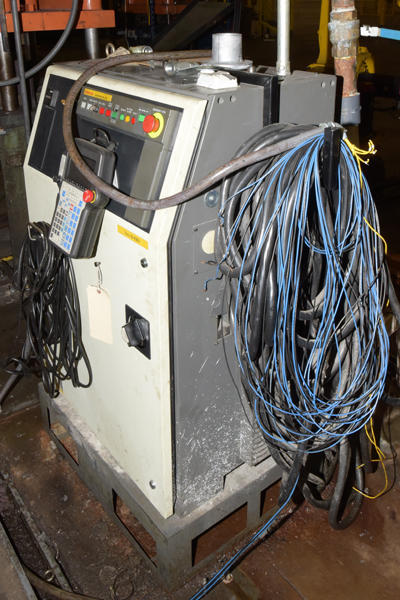

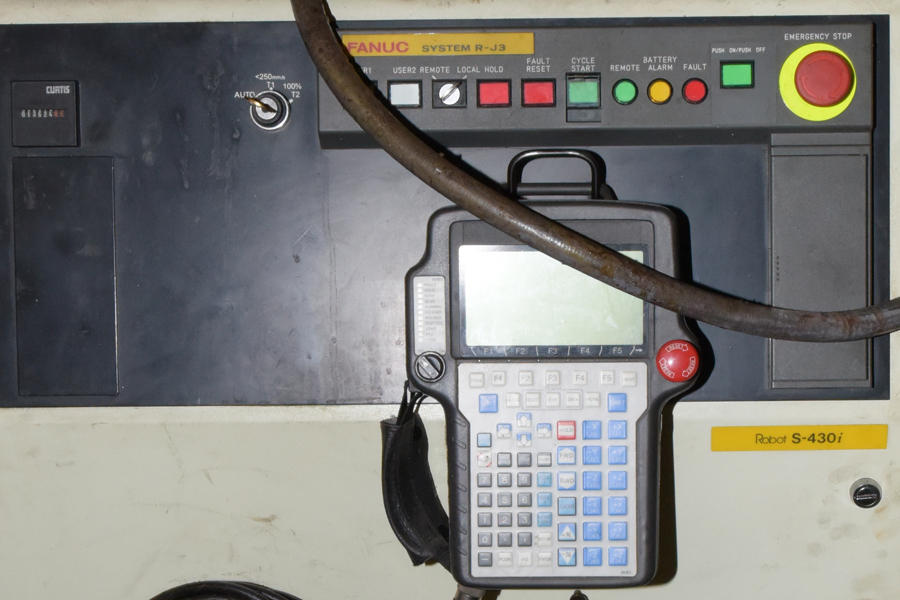

- Well Proven Fanuc RJ3 Controller
- High Positioning Speeds and Accuracy
- Heavy Load Capacity
- Thin Arm Design Facilitates Reaching into Die Areas for part Load and Unload
- Precision gear drives for axes J5 and J6
- Common Applications: CNC load/unload, Trim Press Load/Unload, Palletizing, Part Transfer, Machine Tending, Insert Loading
Item Specifications for DCM-4385
| Specifications | |
|---|---|
| Number of Axis: |
6
|
| Payload Capacity: |
363 pounds
|
| Control: |
RJ3
|
| Repeatability: |
+/- .0012 inches
|
| Horizontal Reach: |
104.05 inches
|
| Axis 1/J-1 Robot Motion Range/Speed: |
+/- 180 degrees/105 ° second
|
| Axis 2/J-2 Robot Motion Range/Speed: |
+75 degrees, -59 degrees/105 ° second
|
| Axis 3/J-3 Robot Motion Range/Speed: |
+229 degrees, -133 degrees/105 ° second
|
| Axis 4/J-4 Robot Motion Range/Speed: |
+/- 360 degrees/130 ° second
|
| Axis 5/J-5 Robot Motion Range/Speed: |
+/- 125 degrees/130 ° second
|
| Axis 6/J-6 Robot Motion Range/Speed: |
+/- 360 degrees/210 ° second
|
| Weight: |
2,860 pounds
|
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Fanuc Robotics Model S-430iW S-430iW_165 KG Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings For_Sale, Features Include: Well Proven Fanuc RJ3 Controller, High Positioning Speeds and Accuracy, Heavy Load Capacity, Thin Arm Design Facilitates Reaching into Die Areas for part Load and Unload, Precision gear drives for axes J5 and J6, Common Applications: CNC load/unload, Trim Press Load/Unload, Palletizing, Part Transfer, Machine Tending, Insert Loading, RJ3 controls, second Hand, DCM-4385
See jumbo large photos of this Fanuc Robotics S-430iW
