World Leader in Used Die Casting Machinery!

Sorry, this machine is sold.
Click here to view other available machines

Used ABB Model: IRB 6400 120 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: ABB

Model: IRB 6400

Size: 120 Kilogram

Inventory Number: DCM-4486

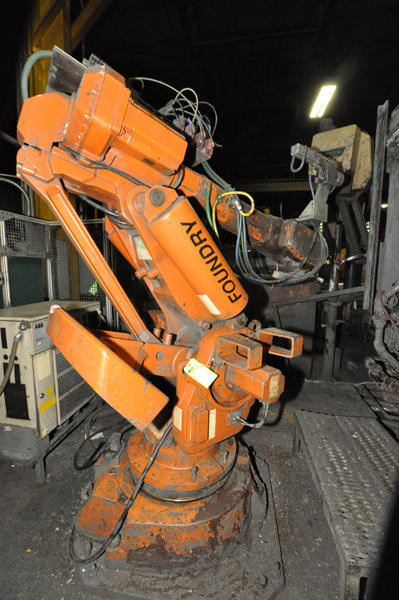

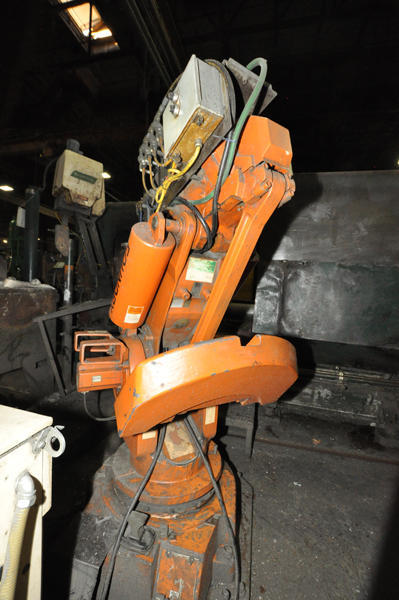

Used ABB Model: IRB 6400 120 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings.

Click above for larger image

Features & Accessories:

  • Compact Arm Design
  • Fast maneuverability
  • Heavy Payload Capability
  • Renowned ABB Parts and Service
  • Foundry Rated

Item Specifications for DCM-4486

Specifications
Number of Axis:
6
Payload Capacity:
264 pounds
Reach:
94.48 inches
Axis 1 Rotation Motion:
+180 to -180 Degrees
Axis 2 Arm Motion:
+70 to -70 Degrees
Axis 3 Arm Motion:
+105 to -28 Degrees
Axis 4 Wrist Motion:
+300 to -300 Degrees
Axis 5 Bend Motion:
+120 to -120 Degrees
Axis 6 Turn Motion:
+300 to -300 Degrees
Power:
480/3/60
Approximate Machine Weight:
4,202 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

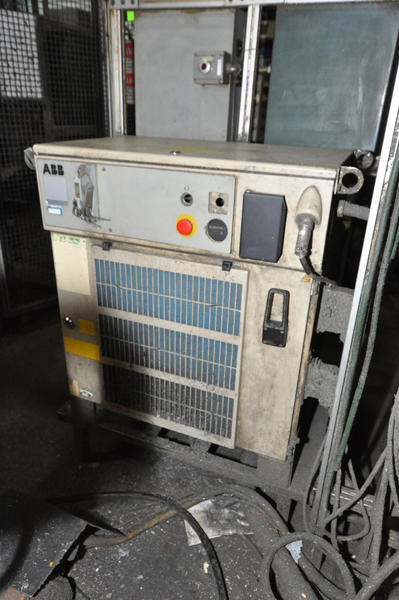

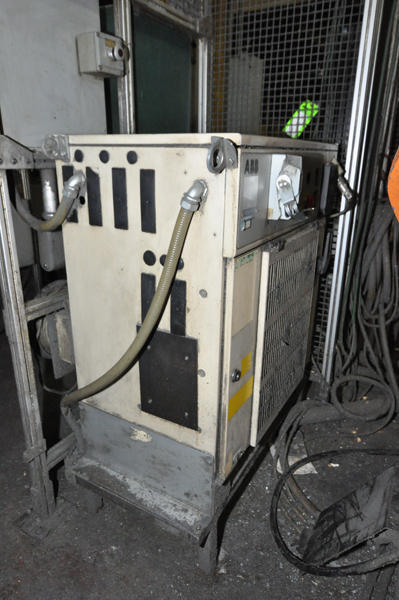

Used, ABB Model IRB 6400 120 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings For_Sale, Features Include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability, Renowned ABB Parts and Service, Foundry Rated ABB M98 controls, second Hand, DCM-4486


See jumbo large photos of this ABB IRB 6400
