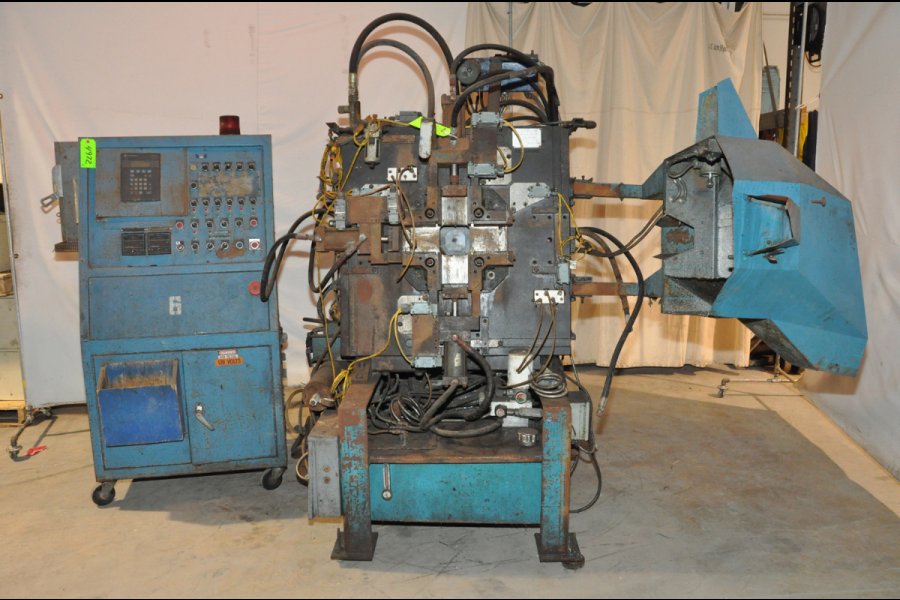

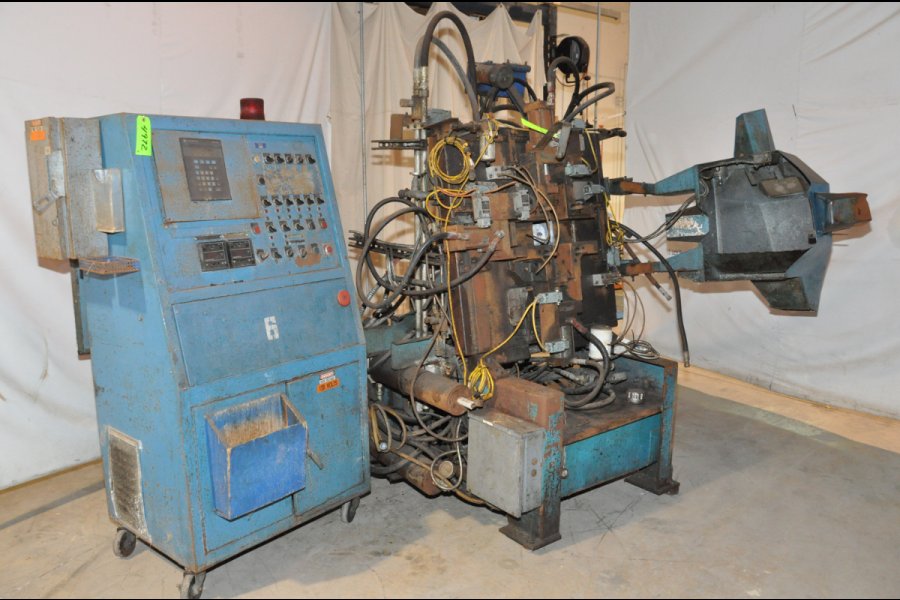

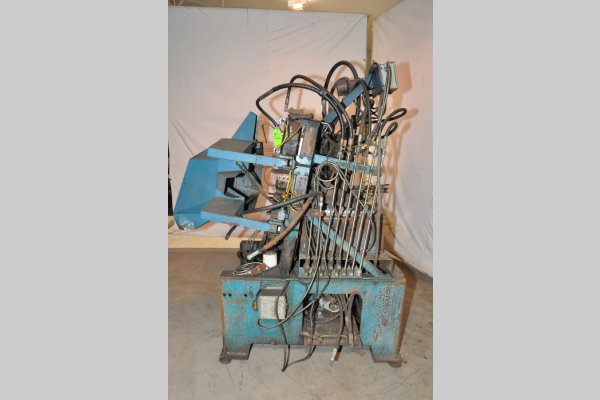

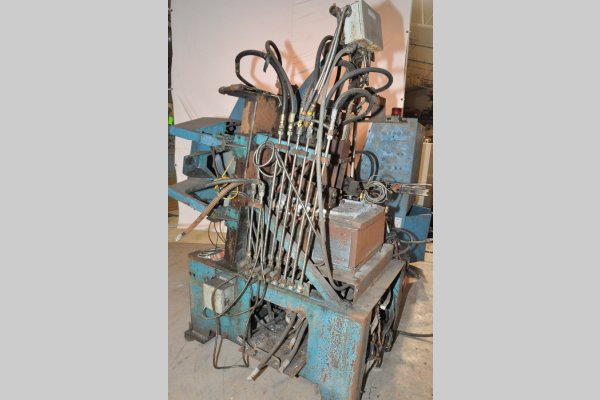

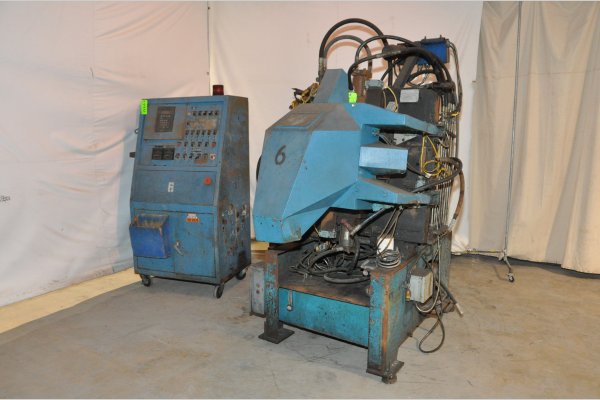

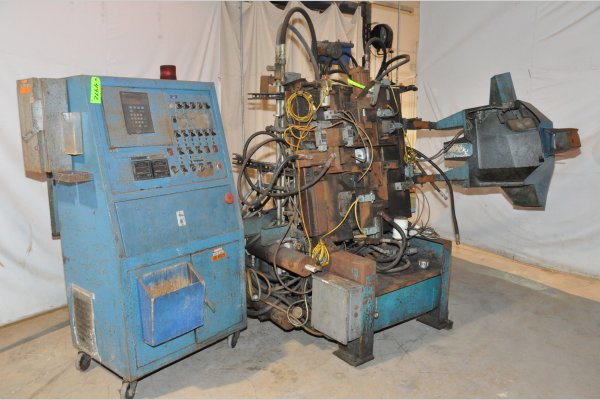

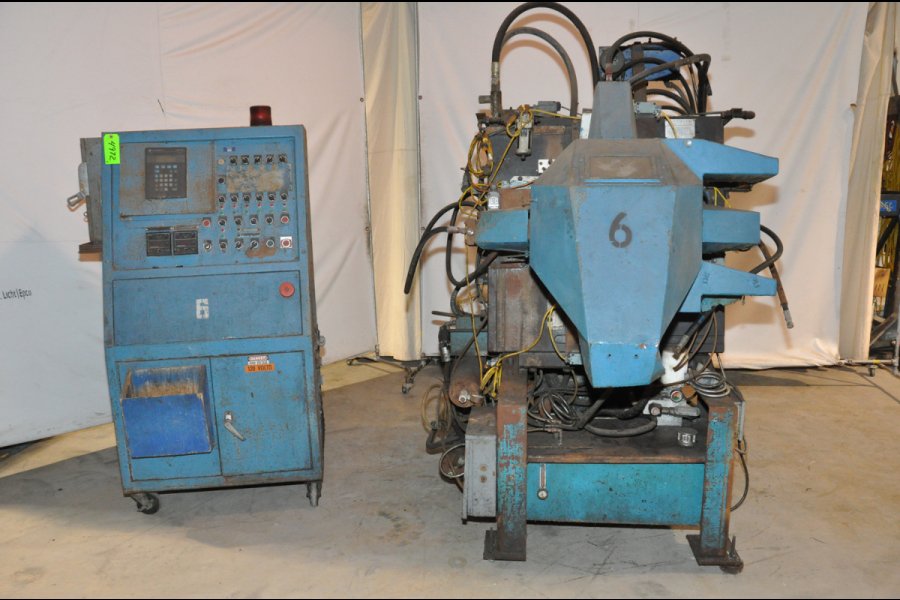

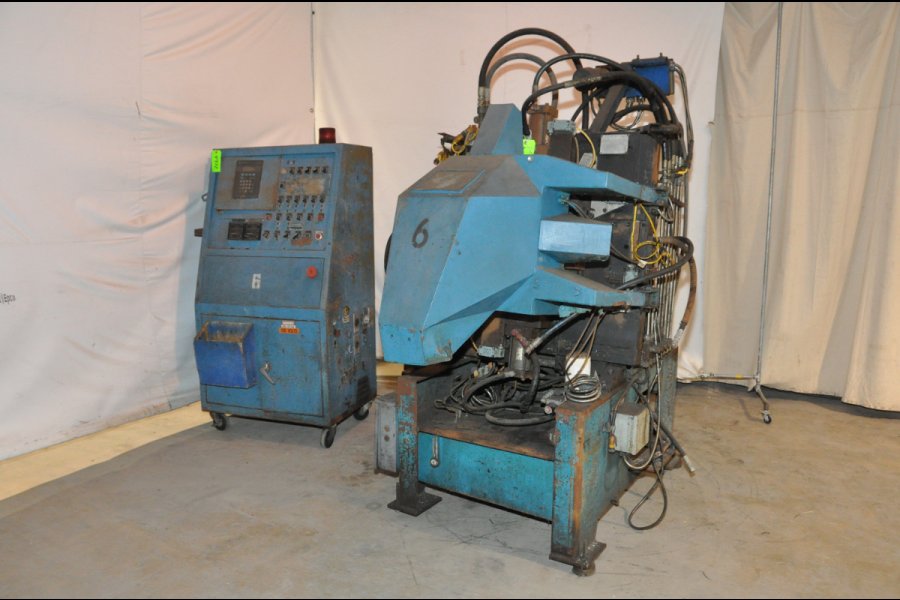

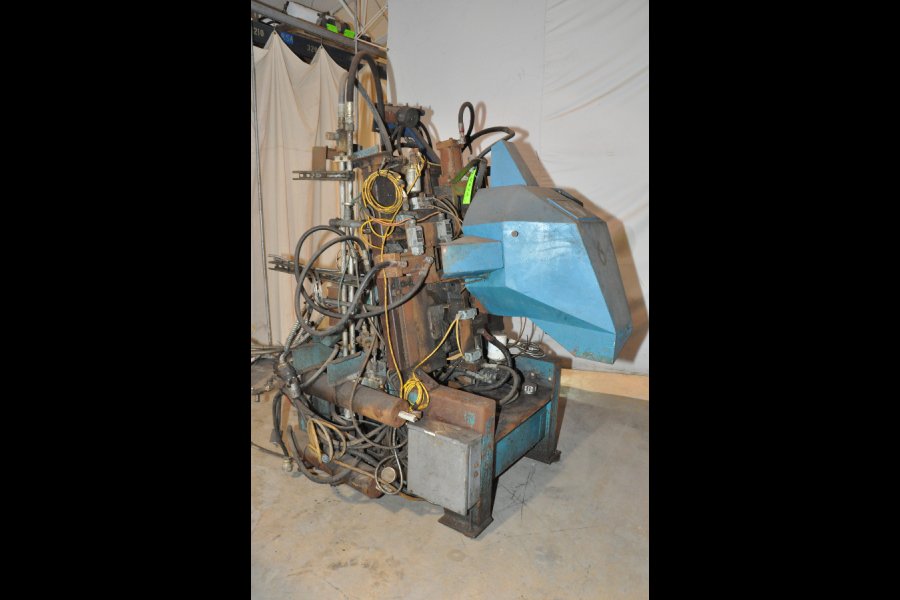

Used Techmire Model: 44H CSS-01 24 US Tons Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Techmire
Model: 44H CSS-01
Size: 24 US Tons
Inventory Number: DCM-4972

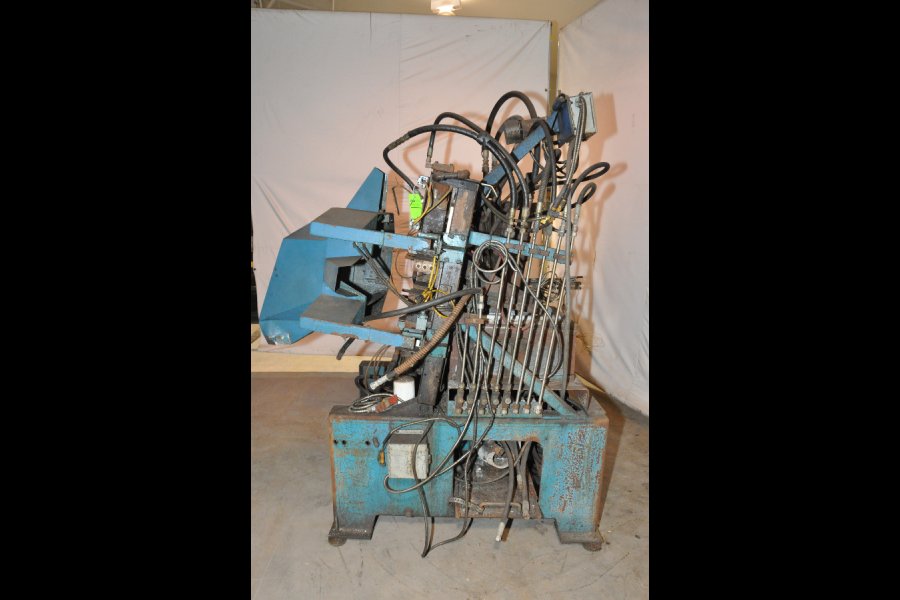

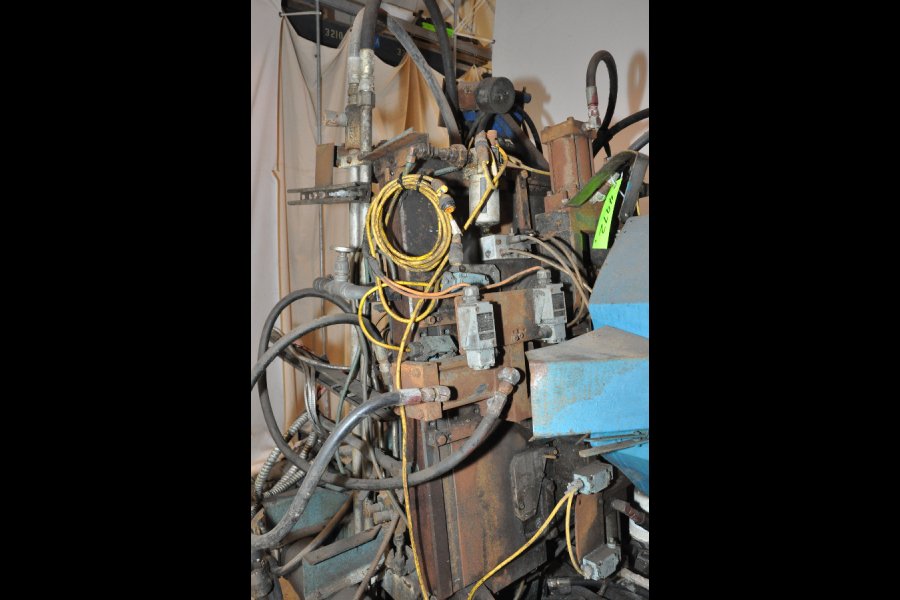

Used Techmire Model: 44H CSS-01 24 US Tons Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine.
View Available Hot Chamber Multi-Slide
Features & Accessories:

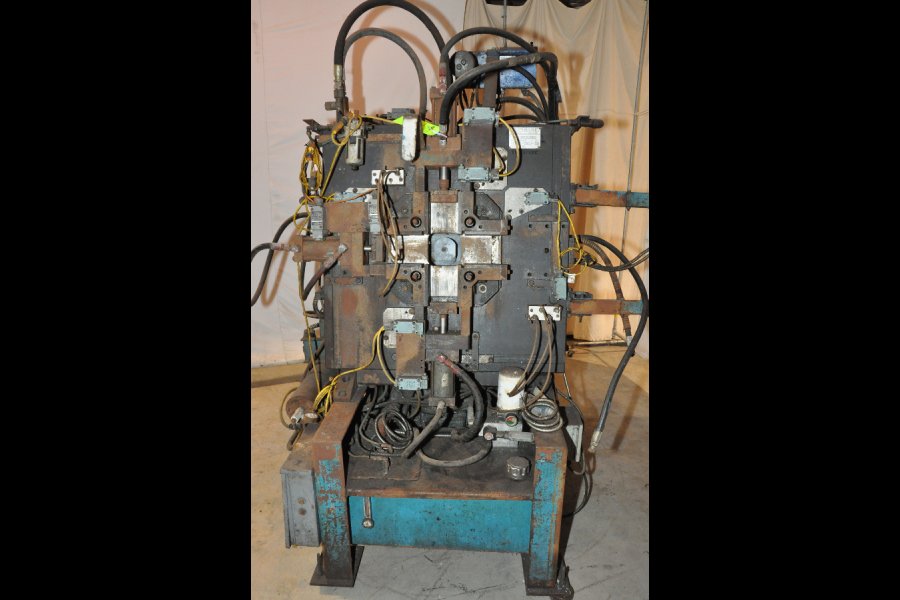

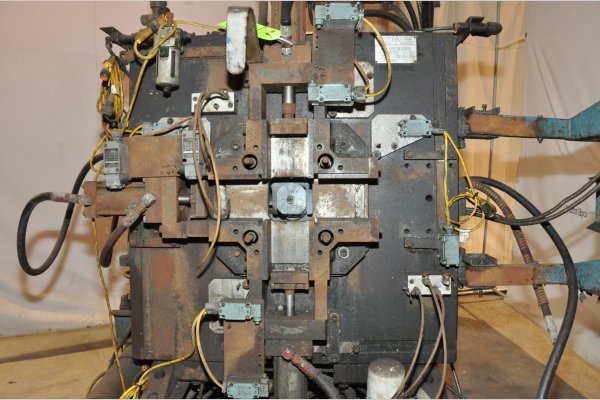

- Techmire 44H machines with three installed slide movements - 4x4 Hot Chamber Miniature Zinc Die Casting Machine
- Machine was upgraded to Hydrauilc Direct Close (no toggle linkage)

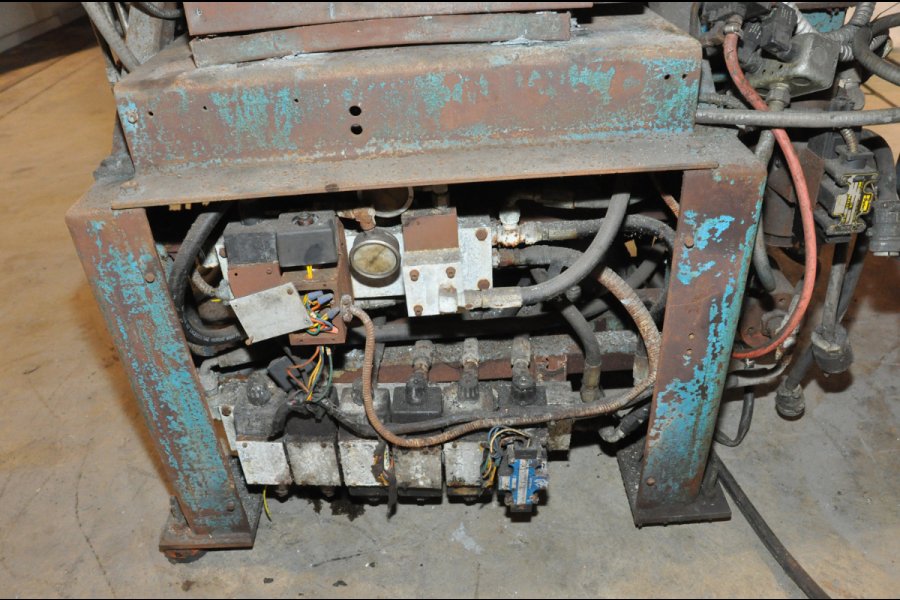

- Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator)

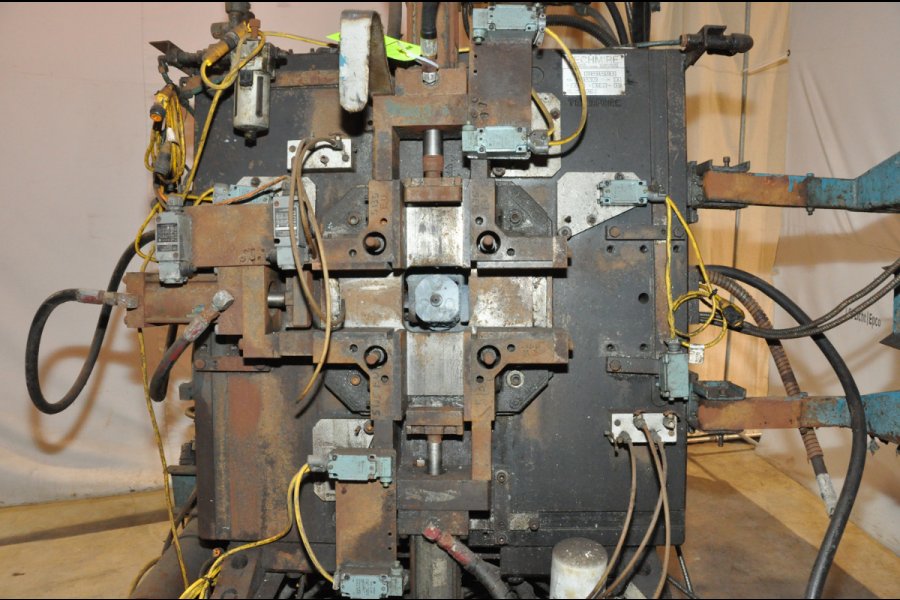

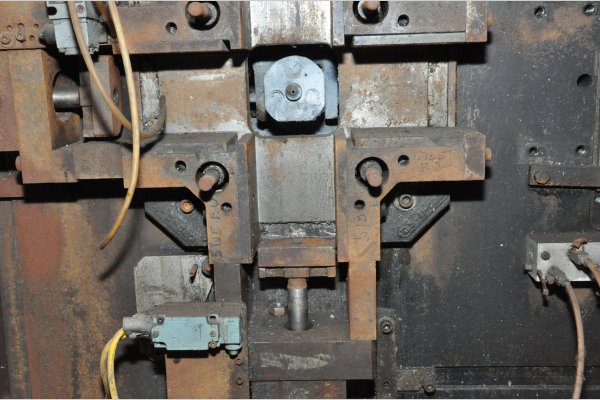

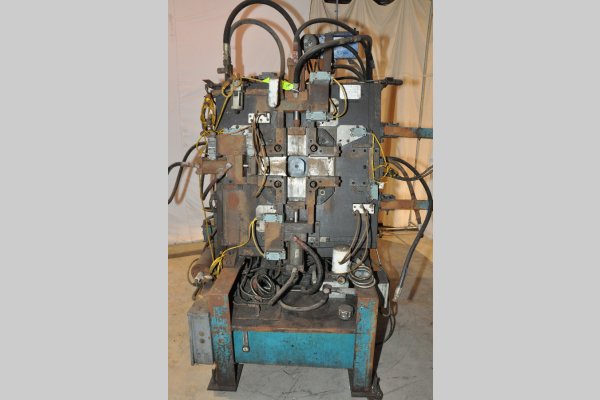

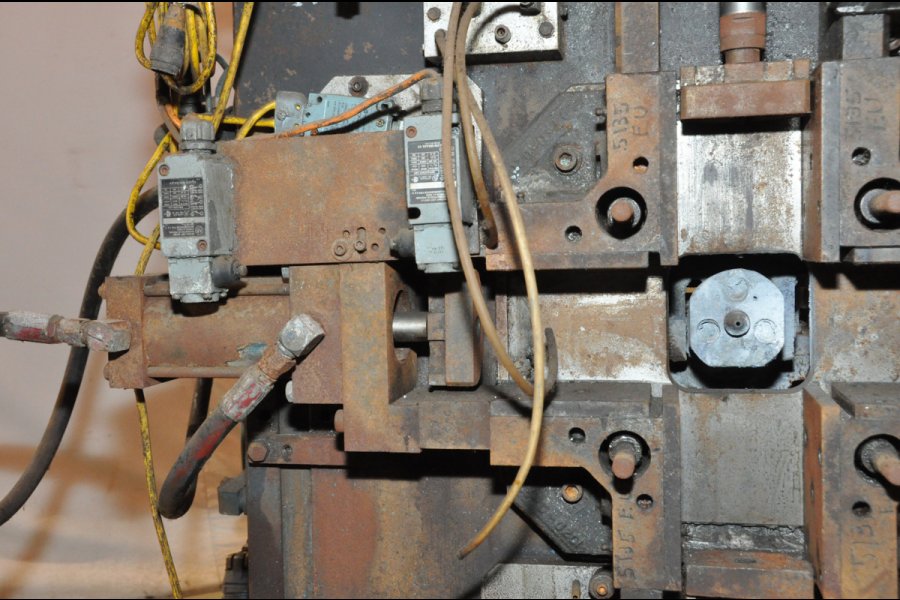

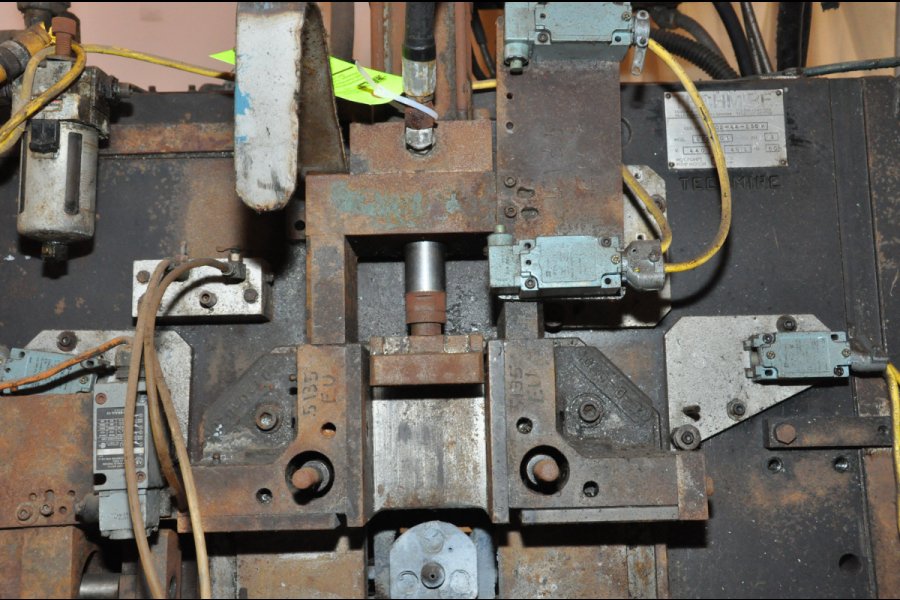

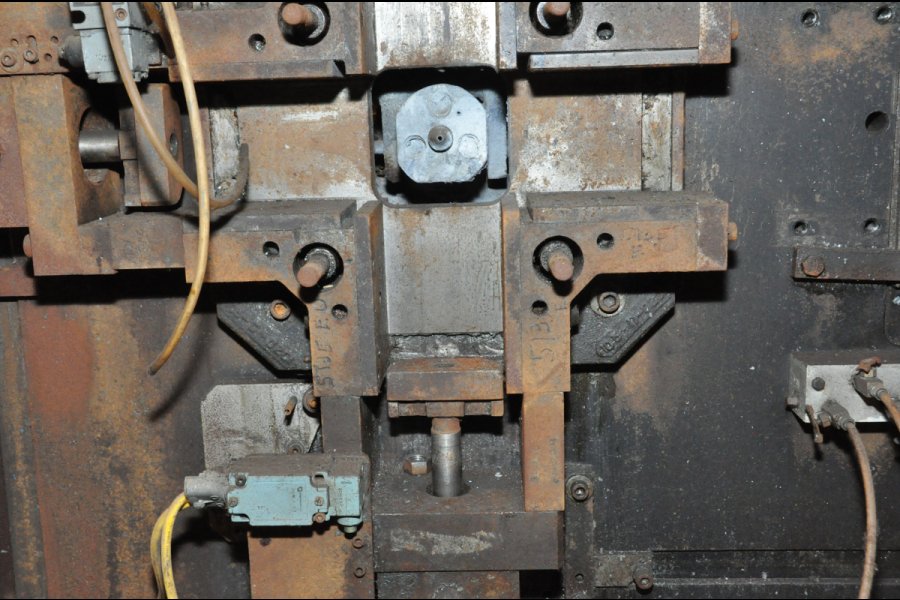

- Currently Configured with Three (3) Slides, Expandable to Six (6) Slides
- Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot
- Techmire 44 (aka: 4x4 or 44 or 4 x 4) Die Casting Machines are Manufactured in Montreal, Quebec Canada
Notice: Undefined index: feature7 in /home/diecastm/public_html/modules/machineshow-seo2018.php on line 455
Item Specifications for DCM-4972
| Specifications | |
|---|---|
| Clamping Force: |
24 U.S. Tons
|
| Die Motions - Current/Maximum: |
3 currently, maximum of 6 motions
|
| Standard Die Size: |
4 x 4 inches
|
| Die Stroke - Total Die Opening: |
2 inches, 4 inches
|
| Injection Plunger Diameter: |
1.250 inches
|
| Injection Capacity (Zinc): |
7 ounces
|
| Injection Speed: |
36 inches per second
|
| Metal Pressure (maximum) |
1,500 psi
|
| Machine System Pressure: |
2,000 PSI
|

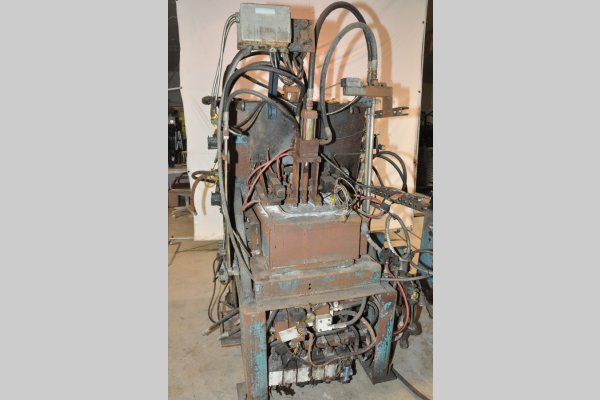

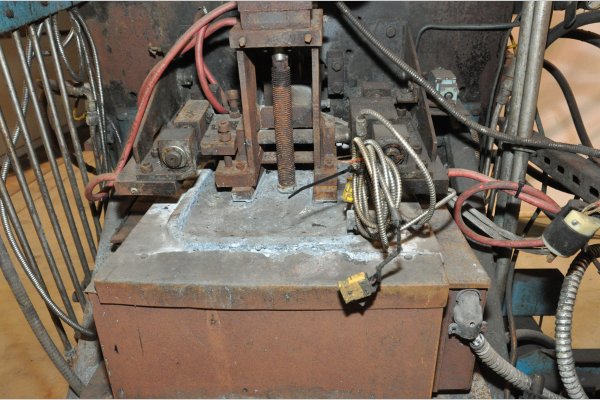

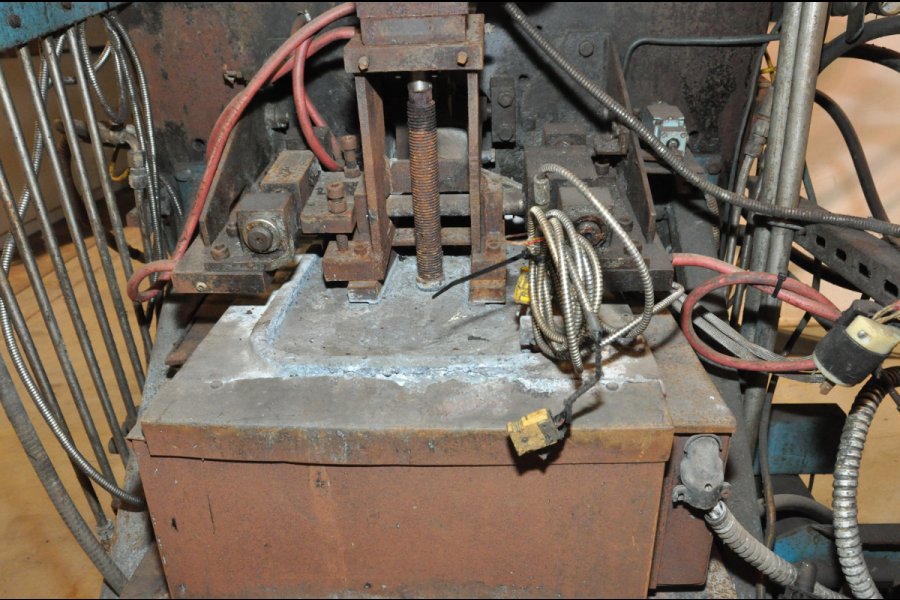

| Melting Pot Capacity: |
5.8 gallons or 345 pounds
|
| Furnace type: |
Electric Resistance Elements
|
| Machine Weight: |
3,800 pounds
|
Shipping Terms: F.O.B. Warehouse
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description

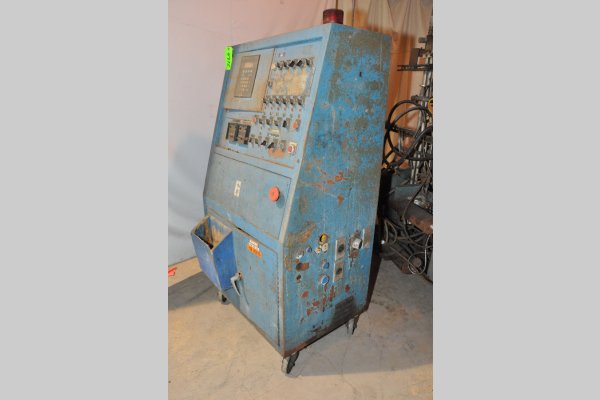

Used, Techmire Model 44H CSS-01 24 US Tons Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Techmire 44H machines with three installed slide movements - 4x4 Hot Chamber Miniature Zinc Die Casting Machine, Machine was upgraded to Hydrauilc Direct Close (no toggle linkage), Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator), Currently Configured with Three (3) Slides, Expandable to Six (6) Slides, Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot, Techmire 44 (aka: 4x4 or 44 or 4 x 4) Die Casting Machines are Manufactured in Montreal, Quebec Canada, controls, second Hand, DCM-4972
See jumbo large photos of this Techmire 44H CSS-01
