Used Techmire Model: 44H 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine


Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

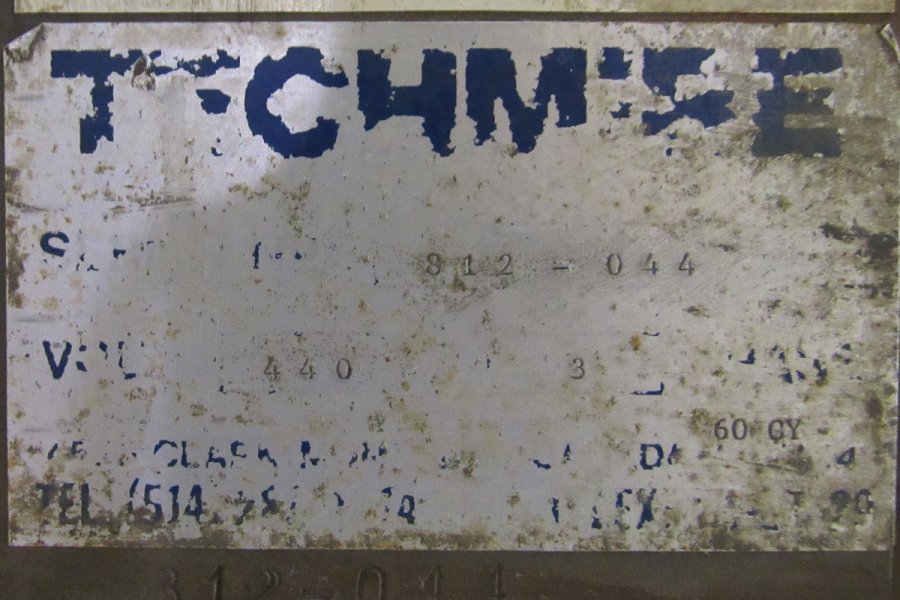

Manufacturer: Techmire

Model: 44H

Size: 18 Metric Ton

Inventory Number: DCM-4978

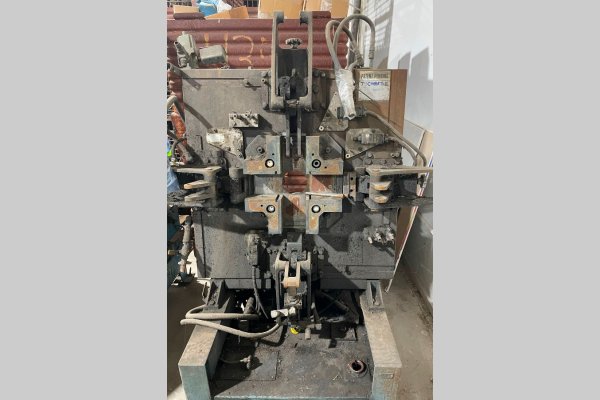

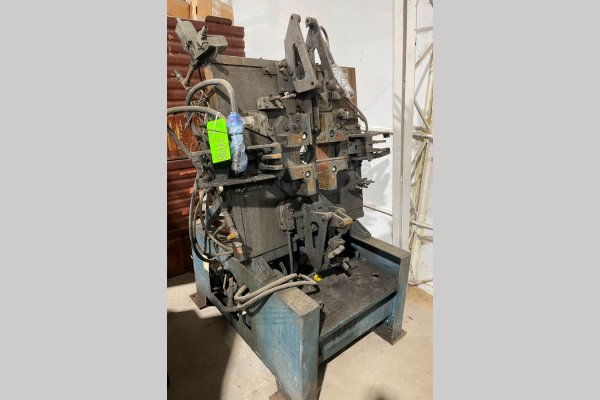

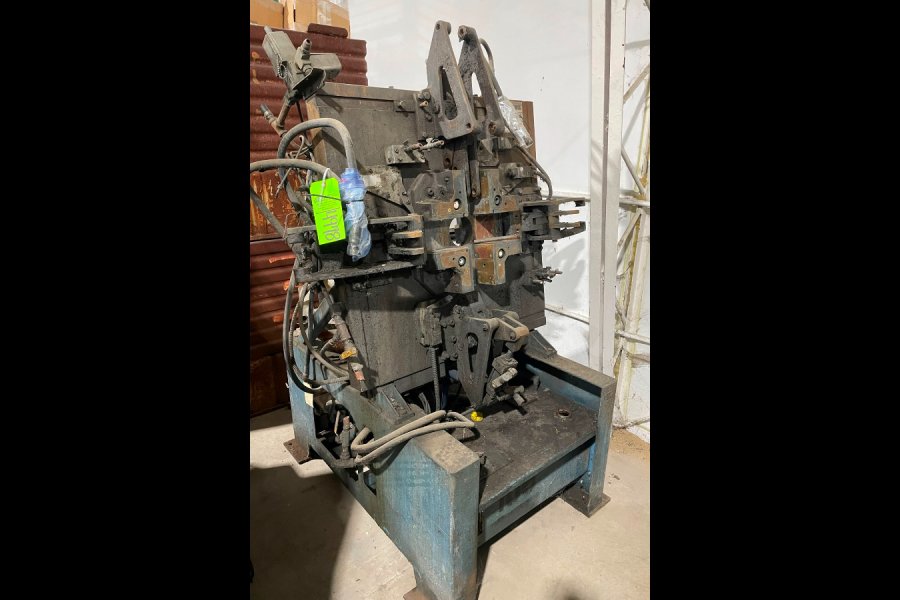

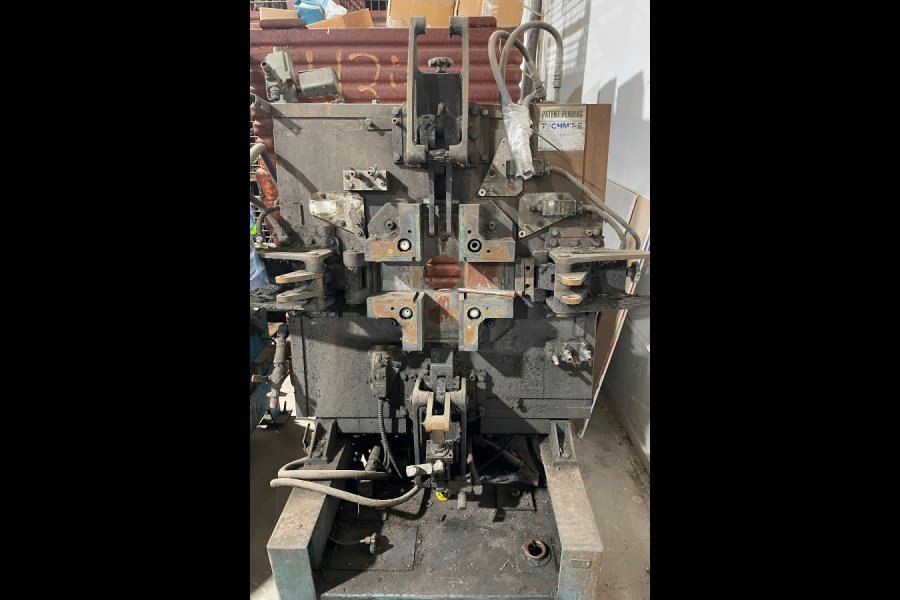

Used Techmire Model: 44H 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine.

View Available Hot Chamber Multi-Slide

Click above for larger image

Features & Accessories:

  • Techmire 44 Machine with four installed slide movements - 4x4 Hot Chamber Zinc Die Casting Machine
  • Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator)
  • Currently Configured with Four Slides, Expandable to Six Slide Operation
  • Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot
  • Techmire Electric Resistance Element Melting & Holding Furnace
  • Techmire 44 ( aka 4x4 or 44 or 4 x 4 or 44 NT) Die Casting Machines are Manufactured in Montreal, Quebec Canada

Item Specifications for DCM-4978

Specifications
Standard Die Size:
4 x 4 inch
Standard Die Stroke of Each Die Slide:
2 inches
Maximum Ejector Stroke:
1.75 inches
Standard Total Die Opening:
4 inches
Injection Plunger Diameter:
1.625 inches
Injection Cylinder Diameter:
3.25 inches
Injection Plunger Stroke:
2.38 inches
Dry Shot Speed at 900 psi:
55 inches/sec
Clamping Force:
19.8 Tons
Metal Pressure (maximum theoretical):
3,519 psi
Injection Capacity (maximum theoretical):
17.5 ounces
Melting Pot Capacity (zinc)
398 pounds holding - 187 per hour melting

Shipping Terms: F.O.B. Warehouse

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Techmire Model 44H 18 Metric Ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Techmire 44 Machine with four installed slide movements - 4x4 Hot Chamber Zinc Die Casting Machine, Equipped with Optional Techmire Booster Cylinder (Hydraulic Piston Accumulator), Currently Configured with Four Slides, Expandable to Six Slide Operation, Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot, Techmire Electric Resistance Element Melting & Holding Furnace, Techmire 44 ( aka 4x4 or 44 or 4 x 4 or 44 NT) Die Casting Machines are Manufactured in Montreal, Quebec Canada, Techmire controls, second Hand, DCM-4978


See jumbo large photos of this Techmire 44H
