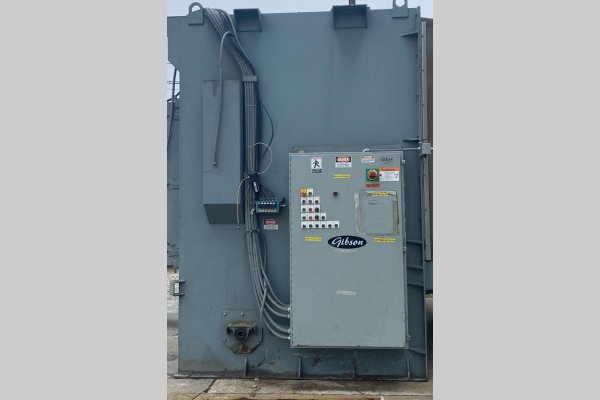

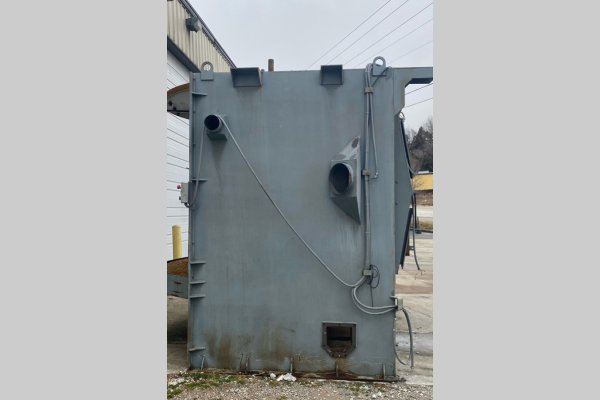

Used Gibson Model: 48x84-SH 48 x 84 inch Indexing Two Chamber Spinner Hanger Abrasive Shot Blast & Peening Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Gibson
Model: 48x84-SH
Size: 48 x 84 inch
Inventory Number: DCM-5433
Used Gibson Model: 48x84-SH 48 x 84 inch Indexing Two Chamber Spinner Hanger Abrasive Shot Blast & Peening Machine.
Features & Accessories:
- New in 2014 - Removed from Service in 2017 - Very Low Hour Machine
- Four (4) Blast Wheels allow for optimal blast pattern and production rate

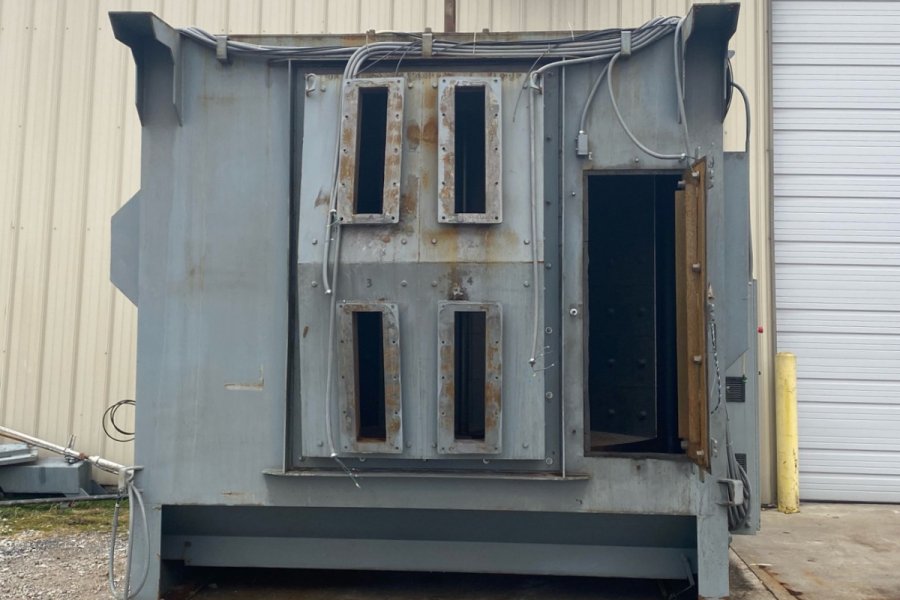

- Two Chamber Design Allows for unlading & loading while machine is blasting is second chamber increasing productivity
- Manganese Steel Wear-Plates in Blast Chambers
- High Hook Weight Capacity
- Adjustable Abrasive Valve/Flow Rates to optimize Finish

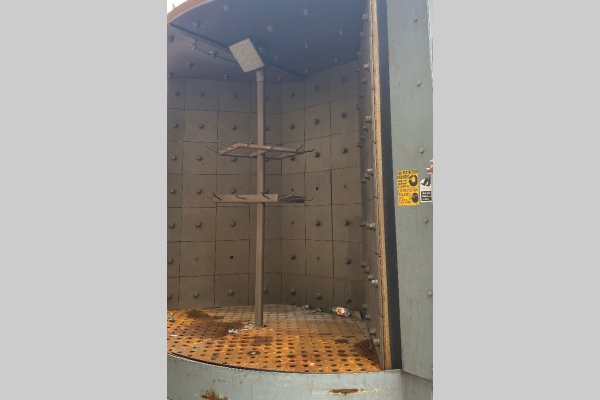

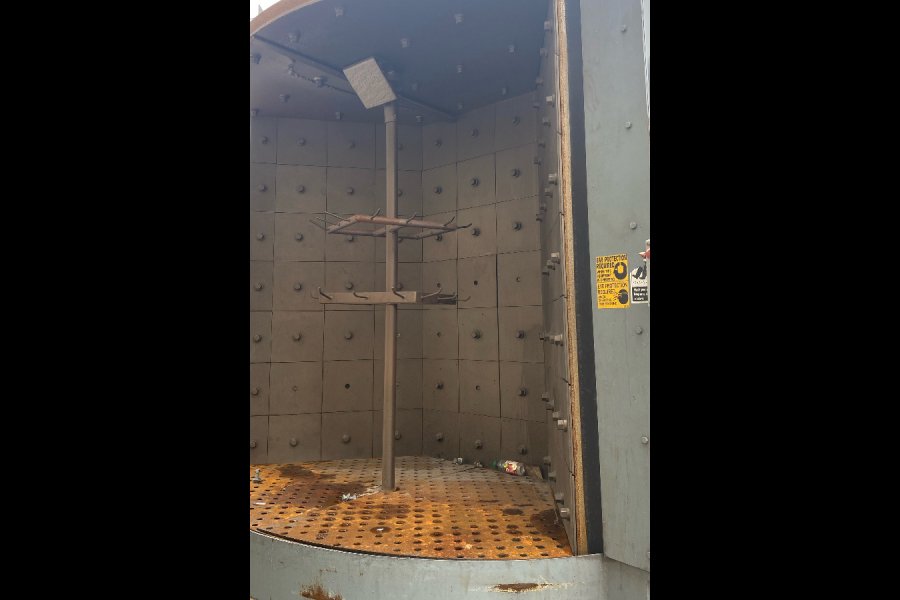

- Spinner-Hanger Design Allows for 360 Degree Blasting of Parts
Item Specifications for DCM-5433
| Specifications | |
|---|---|
| Number of Blast Wheels & Power: |
Four (4) @ 10 HP each
|
| Number of Blast Chambers: |
2 (two) 180 degree indexing
|
| Blast Wheel Slinger RPM: |
Four (4) @ 3,450 RPM
|
| Workload Capacity (Hangers): |
1,500 pounds
|
| Hanger Rotational Speed: |
10.4 RPM
|
| Work Envelope max (optimal): |
48 x 84 (36 x 60 inches)
|
| Chamber Indexing Speed: |
3.6 RPM
|
| Required Ventilation: |
6,700 CFM
|
| Electrical Requirements w/o Dust Collector: |
67 amps @ 480/3/60
|
| Abrasive Charge Required: |
9,000 pounds
|
| Machine Dimensions (width x depth x height): |
218 x 152 x 217 inches
|
| Machine Weight: |
24,500 pounds
|
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description

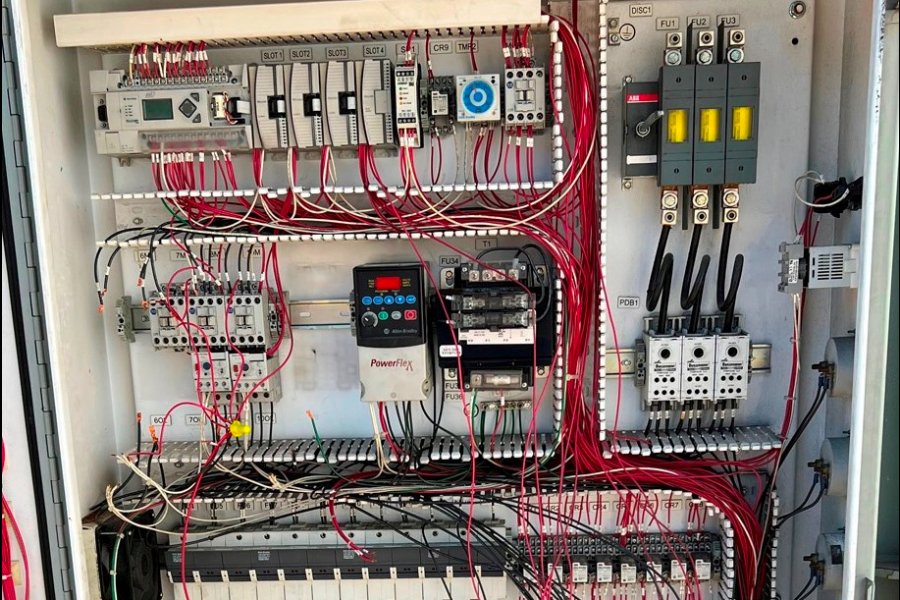

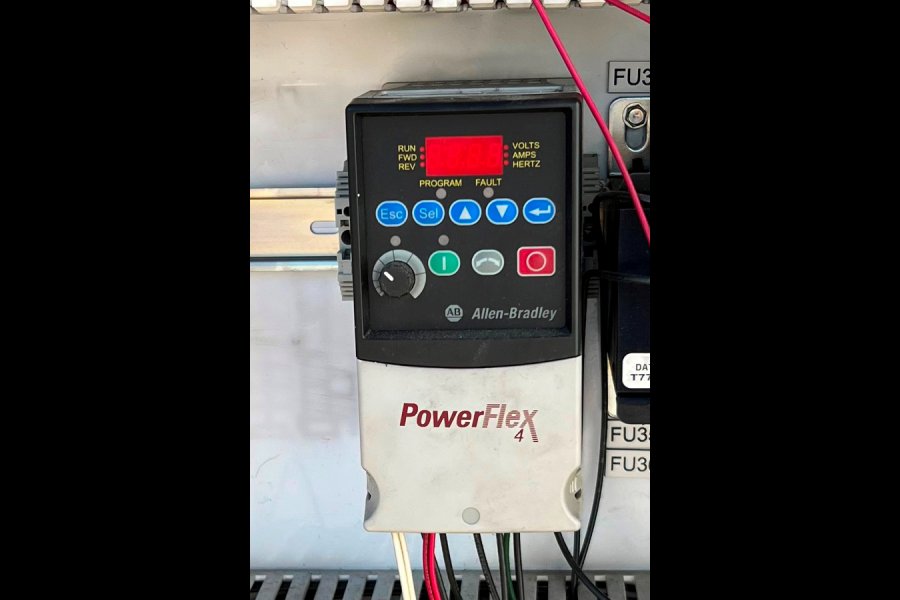

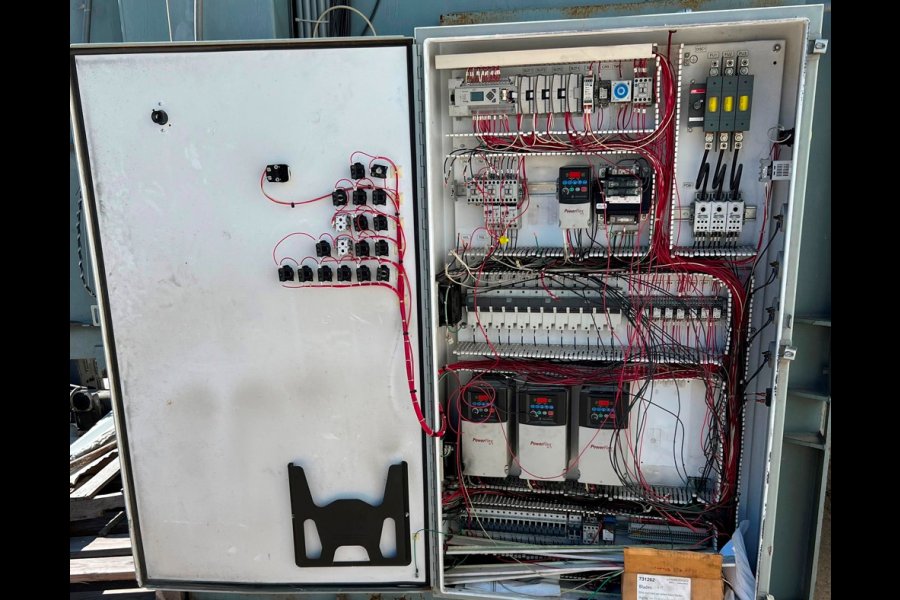

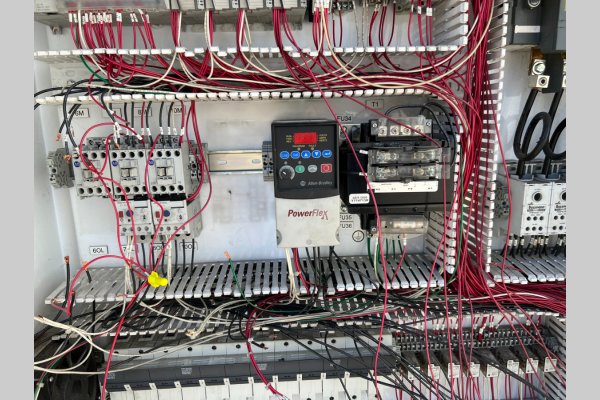

Used, Gibson Model 48x84-SH 48 x 84 inch Indexing Two Chamber Spinner Hanger Abrasive Shot Blast & Peening Machine For_Sale, Features Include: Four (4) Blast Wheels allow for optimal blast pattern and production rate, Two Chamber Design Allows for unlading & loading while machine is blasting is second chamber increasing productivity, Manganese Steel Wear-Plates in Blast Chambers, High Hook Weight Capacity, Adjustable Abrasive Valve/Flow Rates to optimize Finish, Spinner-Hanger Design Allows for 360 Degree Blasting of Parts, Gibson controls, second Hand, DCM-5433
See jumbo large photos of this Gibson 48x84-SH
