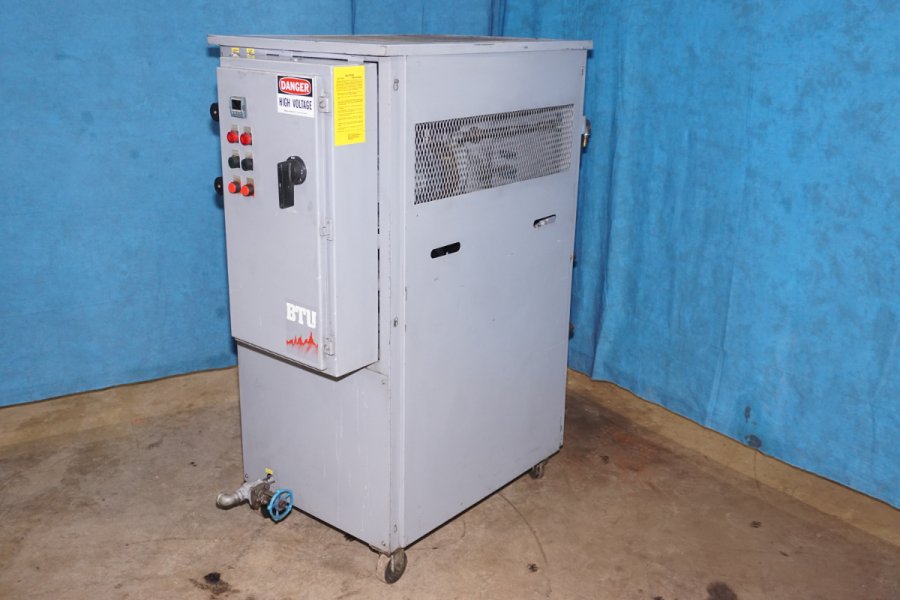

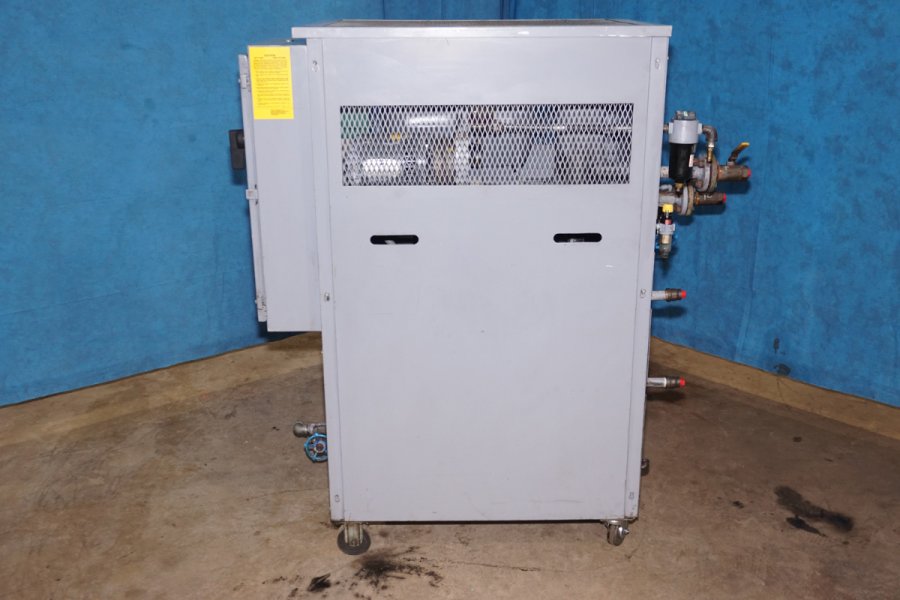

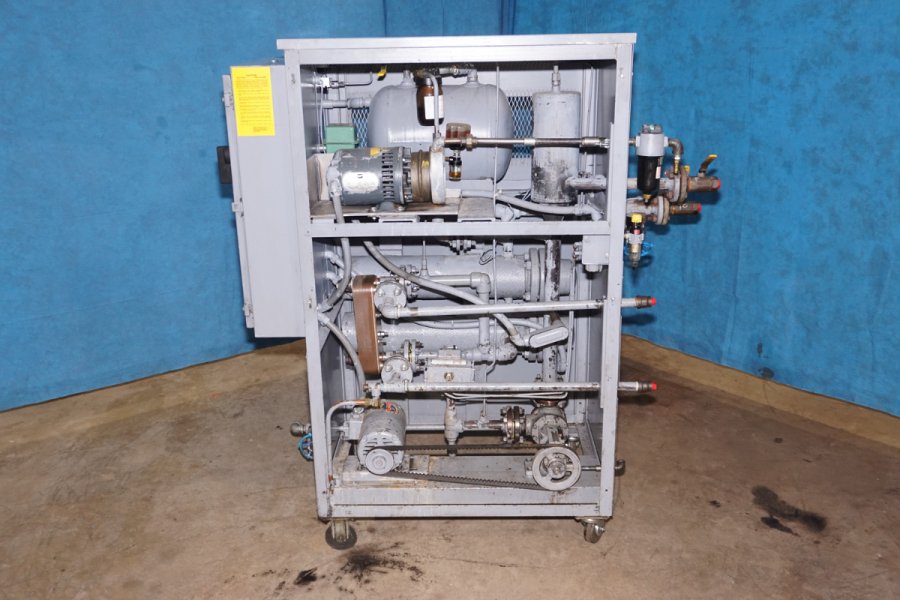

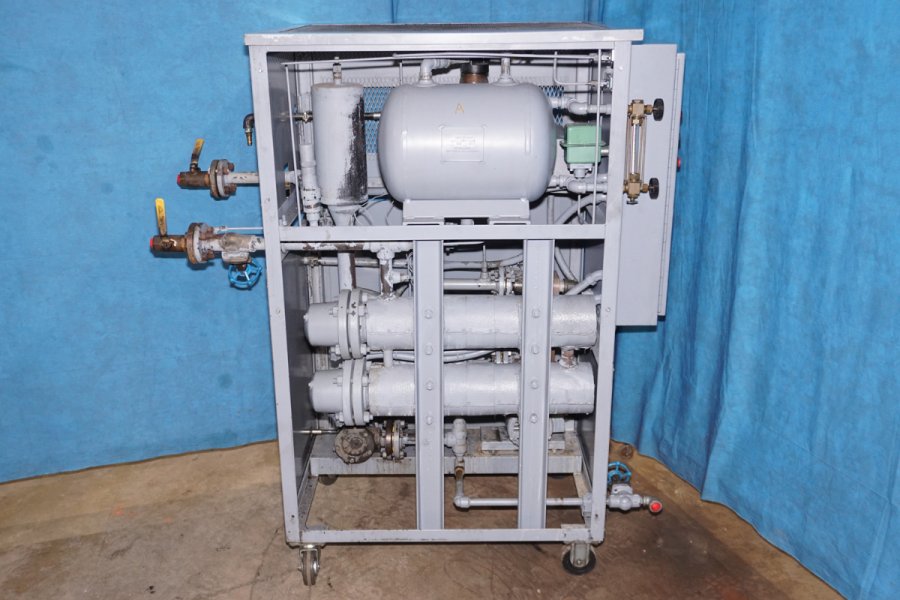

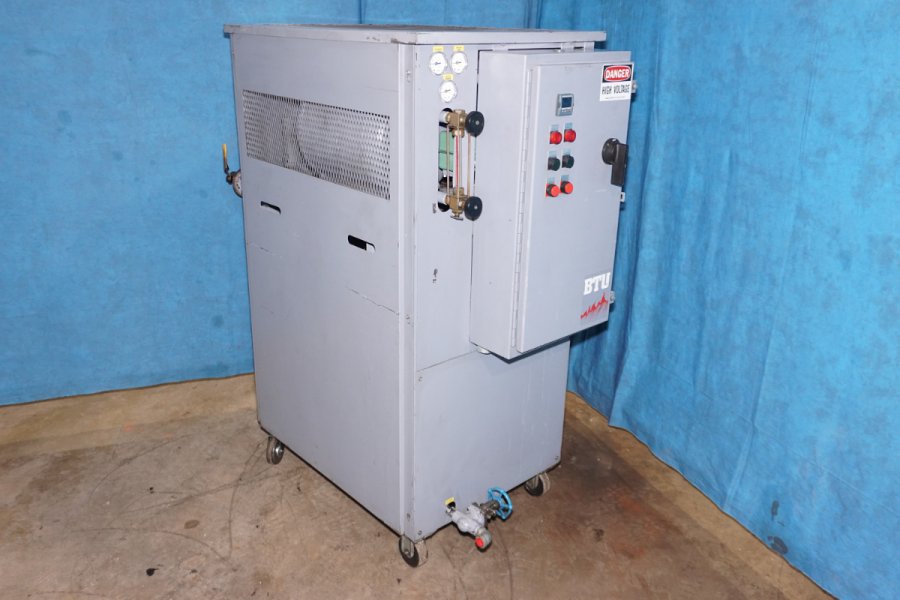

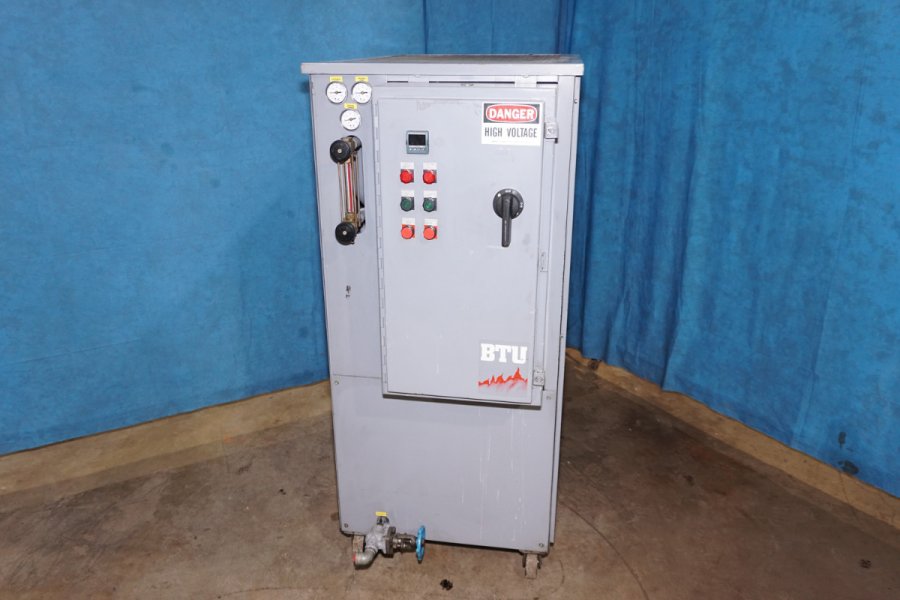

Used Budzar Industries Model: 1NP-1815-GOLSP 18 KW Negative Pressure Hot Oil Temperature Control Unit with Water Cooling Circuit
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Budzar Industries
Model: 1NP-1815-GOLSP
Size: 18 KW
Inventory Number: DCM-5444
Used Budzar Industries Model: 1NP-1815-GOLSP 18 KW Negative Pressure Hot Oil Temperature Control Unit with Water Cooling Circuit.
View Available Hot Oil Units
Features & Accessories:
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Can be used as a standard Hot Oil Temperature Control Unit or as an 18 kw Negative Pressure Mold Temperature Control Unit - Negative Pressure units are commonly used when molds, dies or tooling are cracked.
- High Capacity/High Efficiency Plate Type Heat Exchanger with Water Cooling Circuit for Rapid Cool-Down of Process Temperature

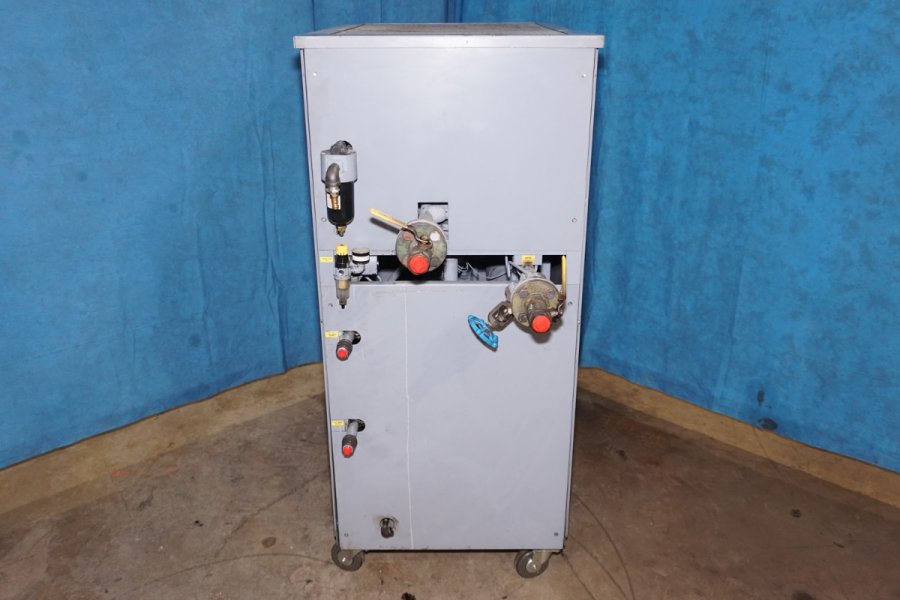

- Portable Design - Unit mounted on four casters for easy positioning
- Long-Life Viking Pump

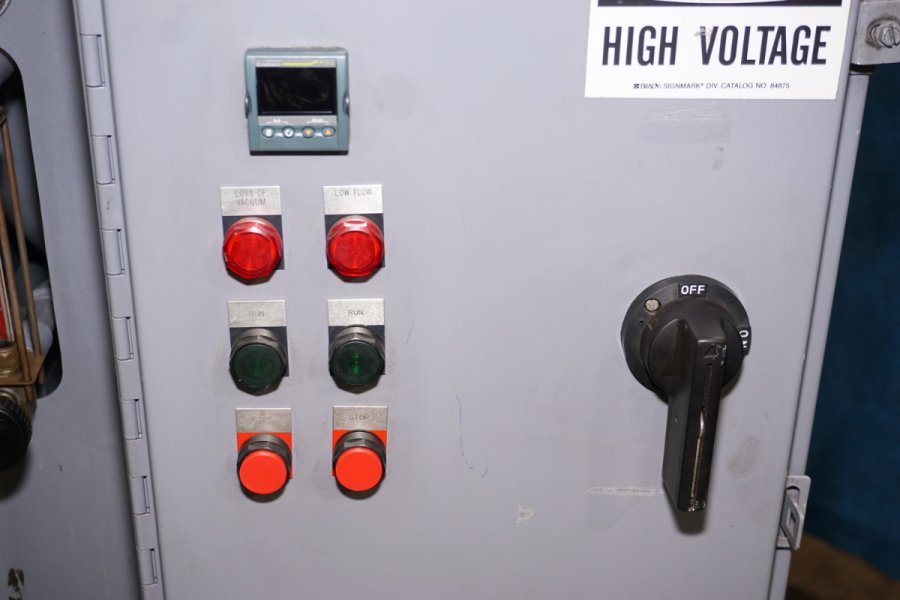

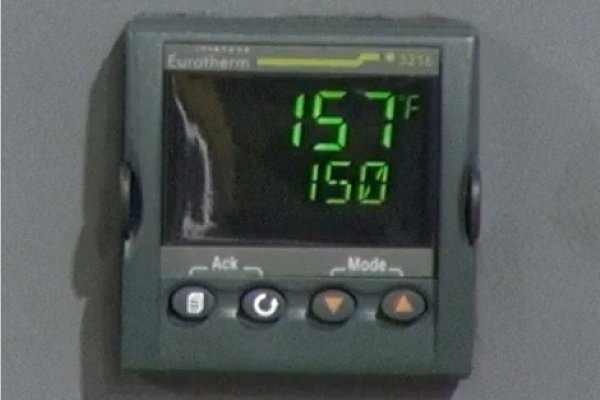

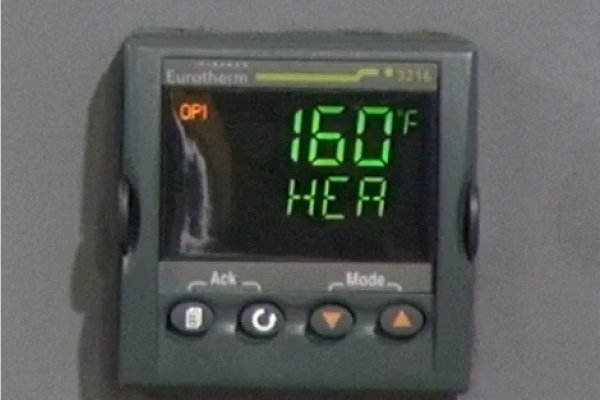

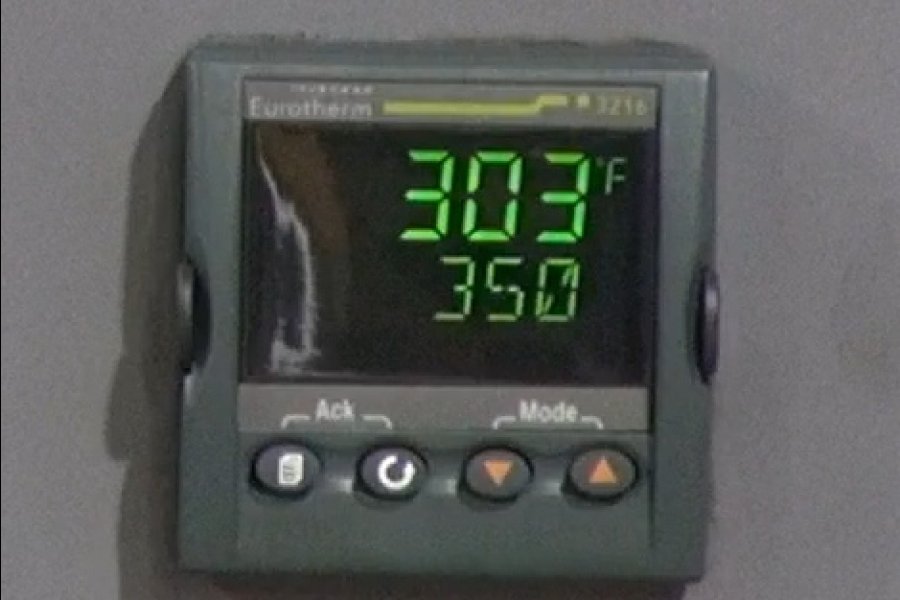

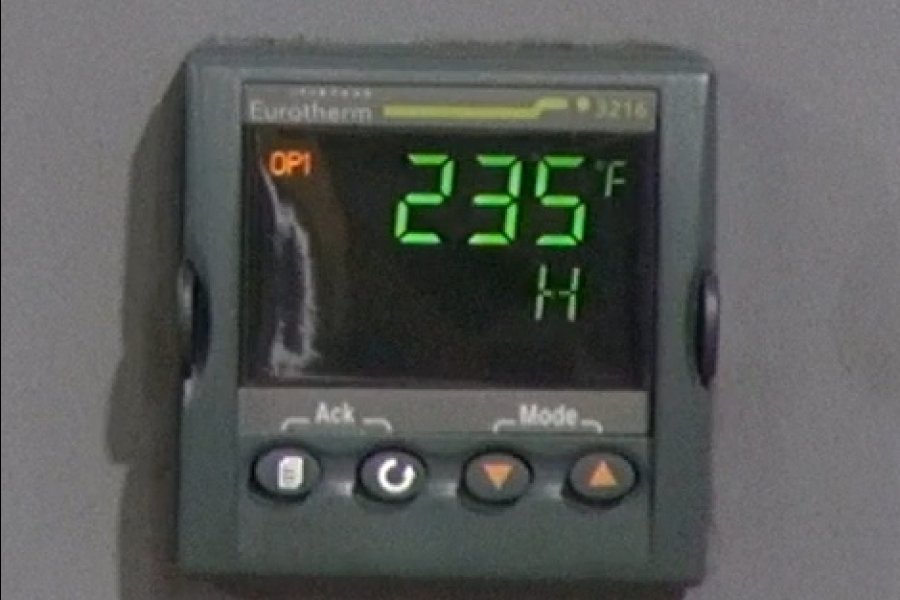

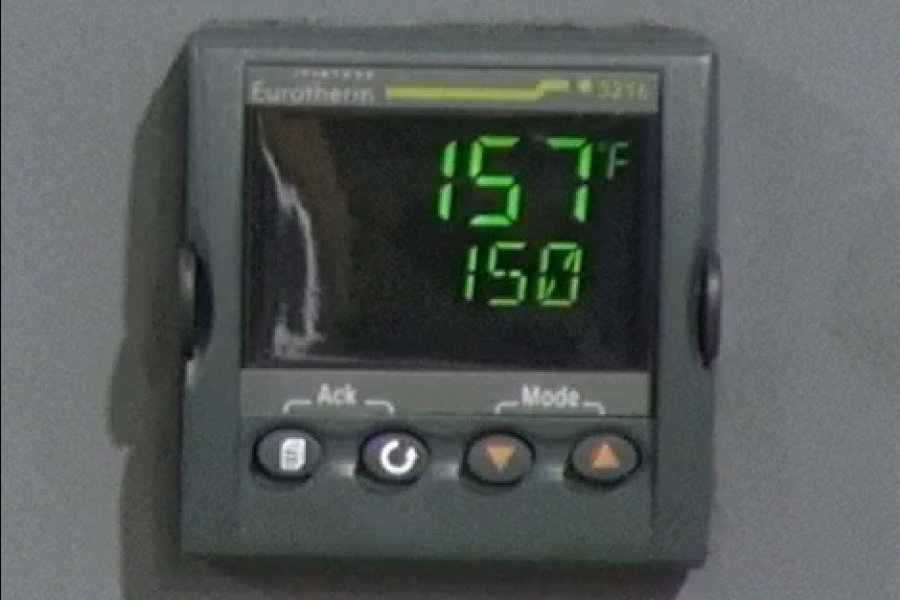

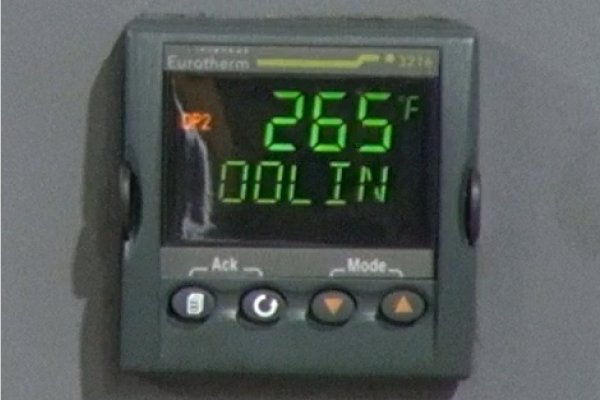

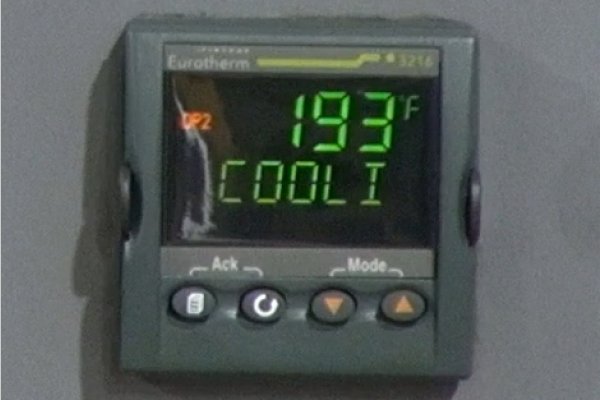

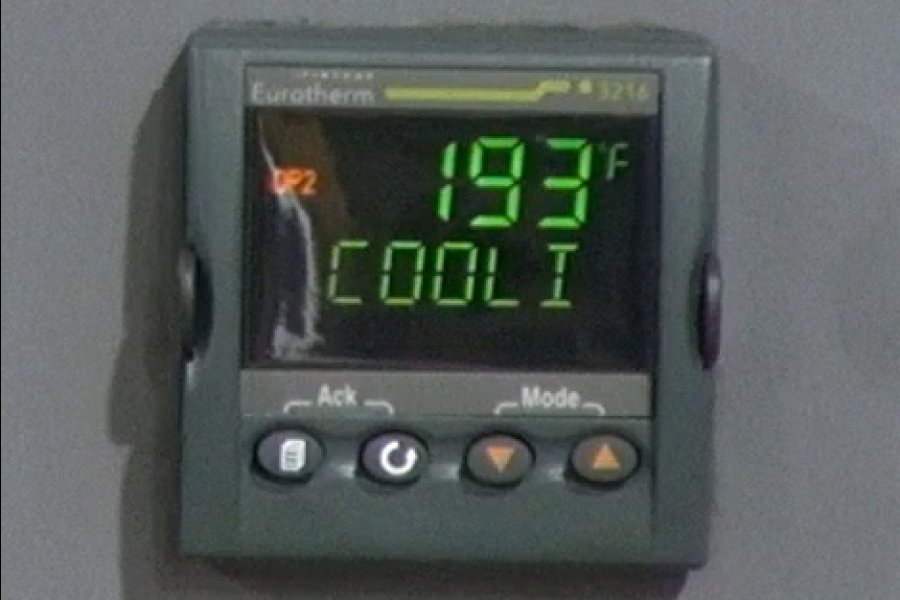

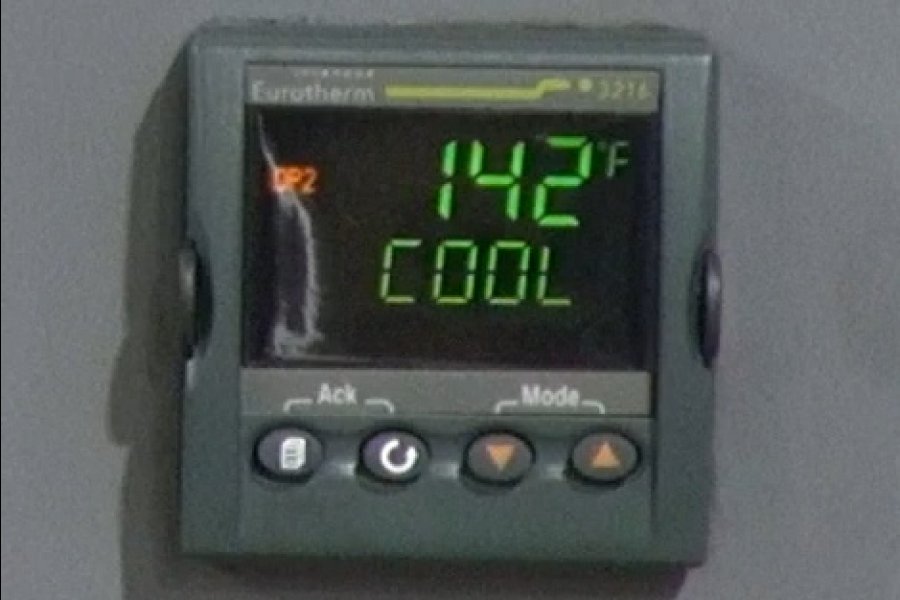

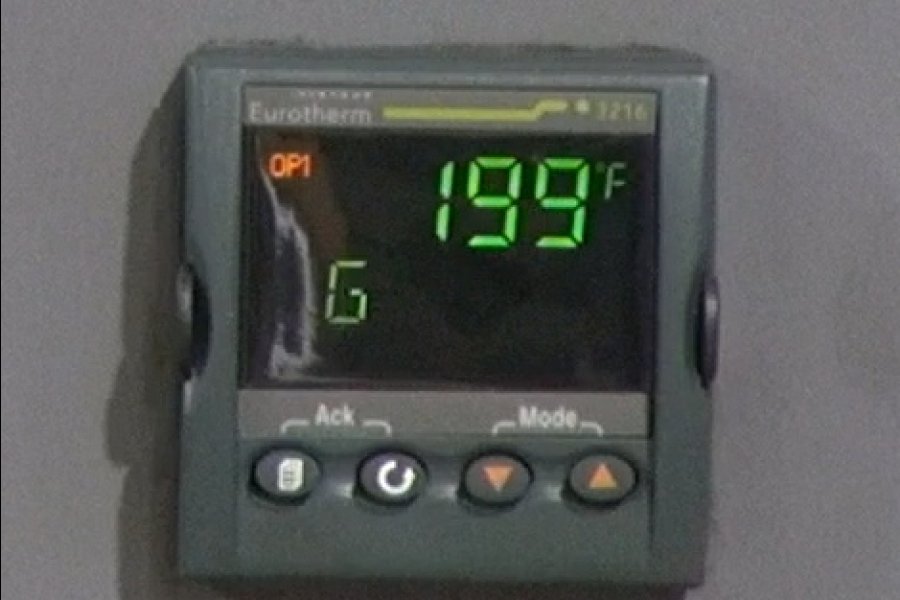

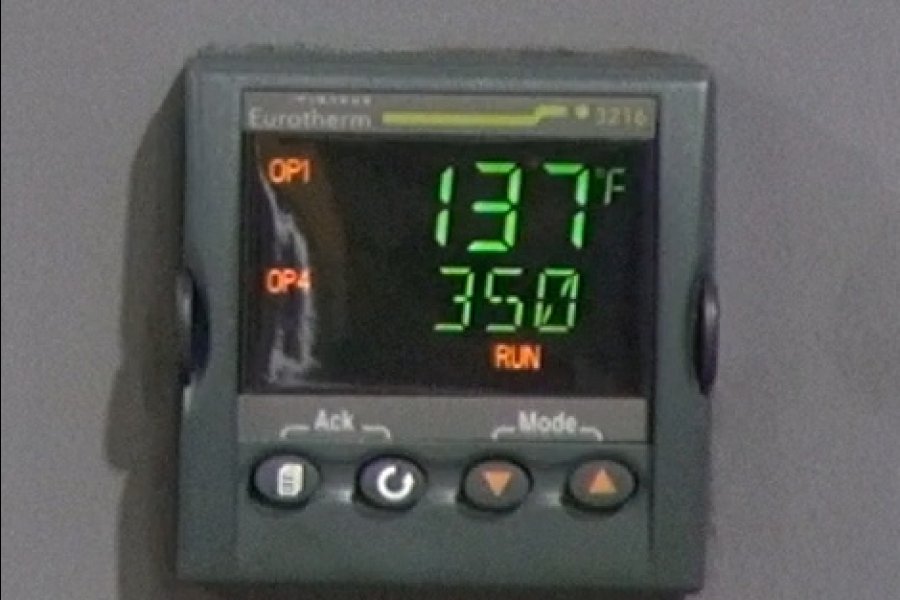

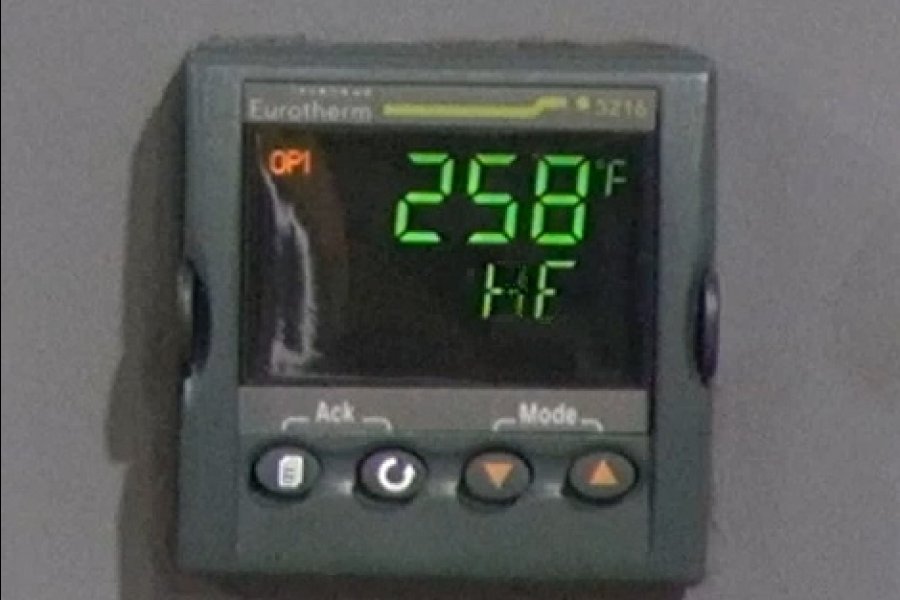

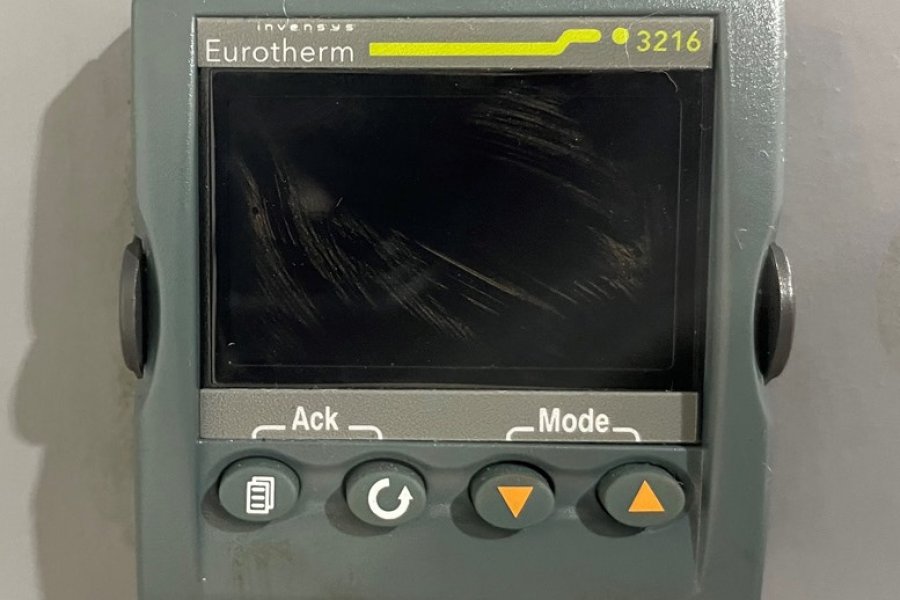

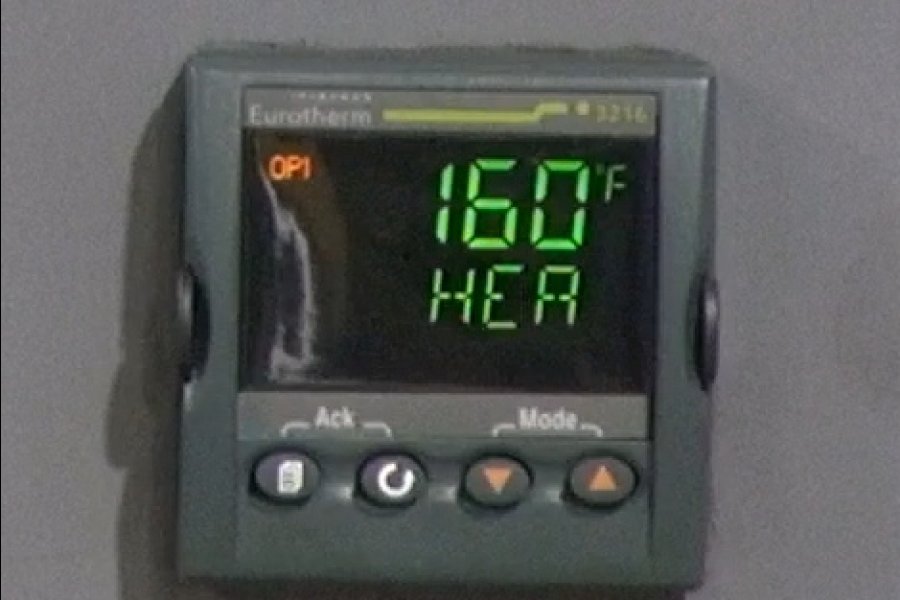

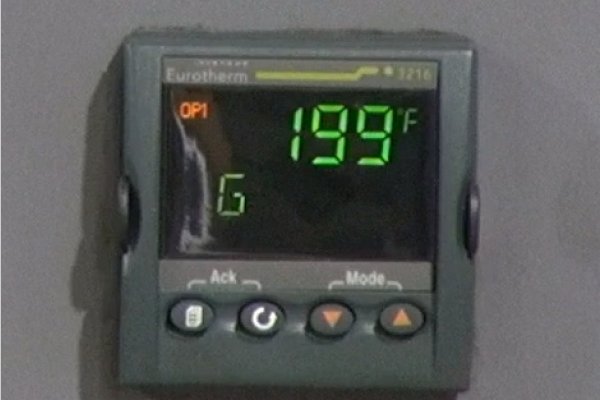

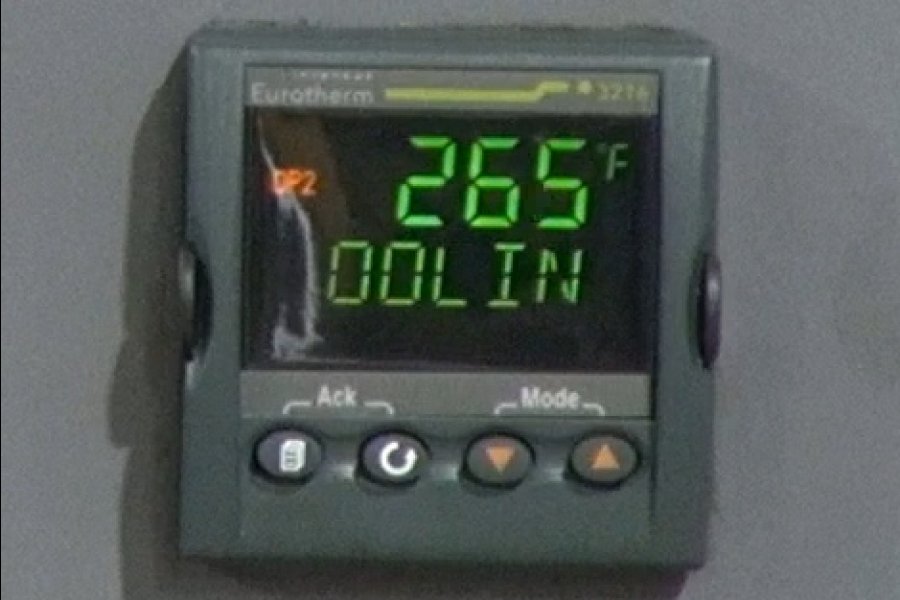

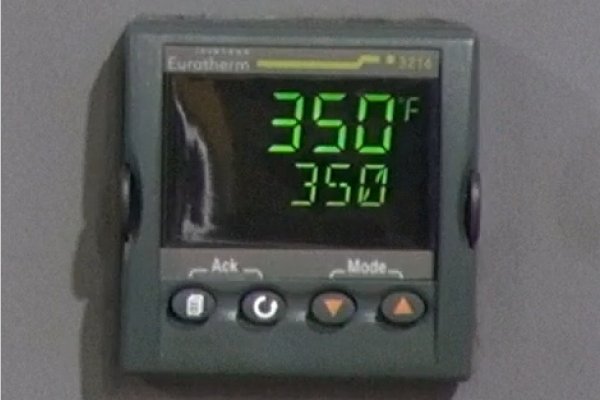

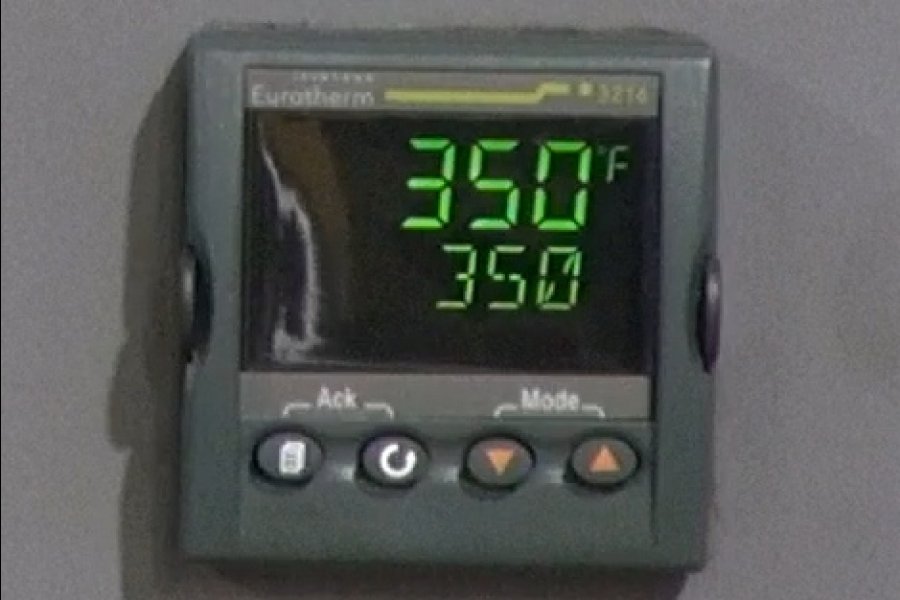

- Equipped with Eurotherm 3216 Digital Temperature Controller
Item Specifications for DCM-5444
| Specifications | |
|---|---|
| Main Heater Power: |
18 kW
|
| Pump Motor Size: |
1 HP @ 1,725 RPM
|
| Flow Rate: |
15 GPM
|
| Connection size/type: |
1 Inch NPT (national pipe thread)
|
| Maximum Operating Temperature: |
350 degrees Fahrenheit
|
| Full Load Amps @ 460/3/60: |
26 amps
|
| Overall Size (L x W x H): |
62 x 27 x 60 Inches
|
| Shipping Weight: |
922 lbs
|
| Negative Pressure Capability: |
Yes
|
| Negative Pressure Capability (approximate): |
28 hg column
|
Shipping Terms: F.O.B. Warehouse
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Budzar Industries Model 1NP-1815-GOLSP 18 KW Negative Pressure Hot Oil Temperature Control Unit with Water Cooling Circuit For_Sale, Features Include: Can be used as a standard Hot Oil Temperature Control Unit or as an 18 kw Negative Pressure Mold Temperature Control Unit - Negative Pressure units are commonly used when molds, dies or tooling are cracked., High Capacity/High Efficiency Plate Type Heat Exchanger with Water Cooling Circuit for Rapid Cool-Down of Process Temperature, Portable Design - Unit mounted on four casters for easy positioning, Long-Life Viking Pump, Equipped with Eurotherm 3216 Digital Temperature Controller Eurotherm 3216 controls, second Hand, DCM-5444

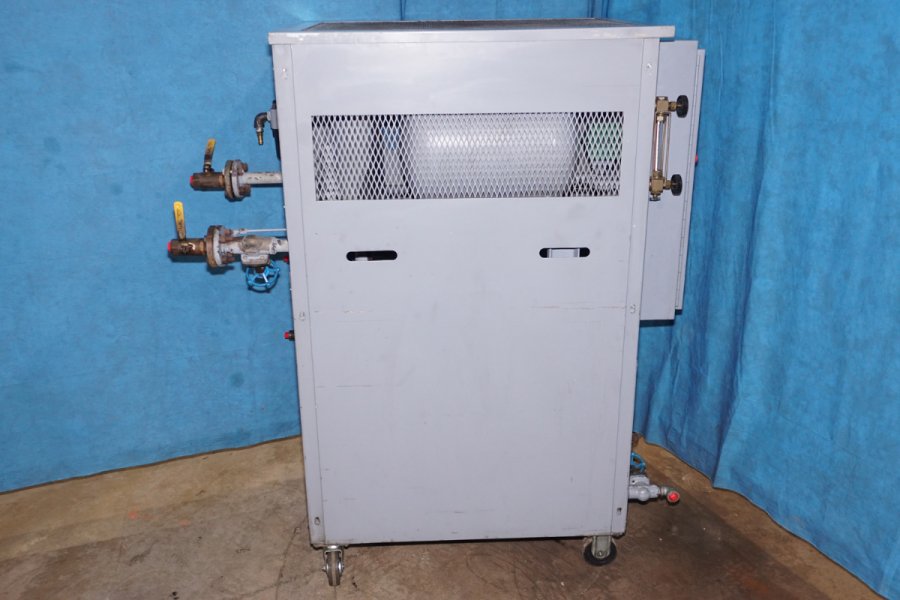

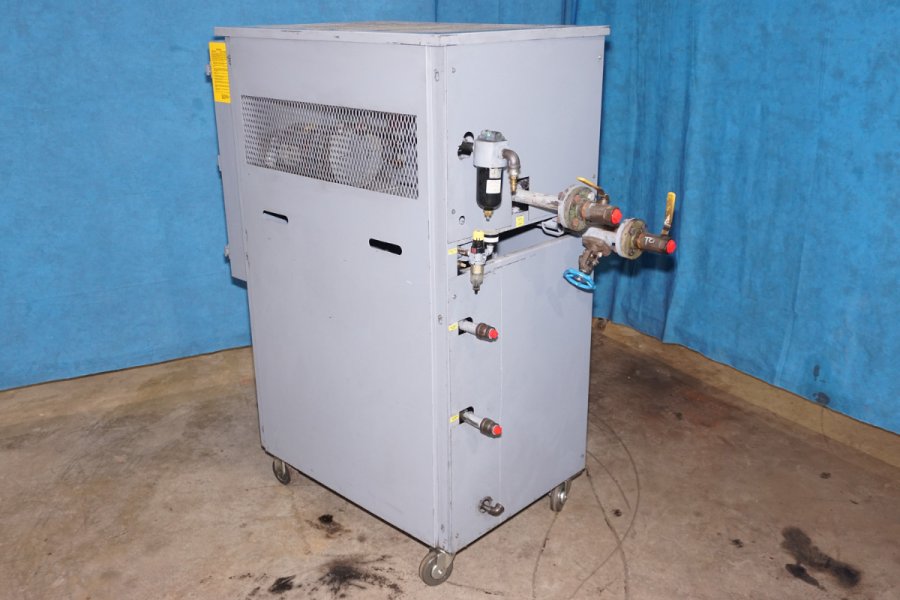

See jumbo large photos of this Budzar Industries 1NP-1815-GOLSP
