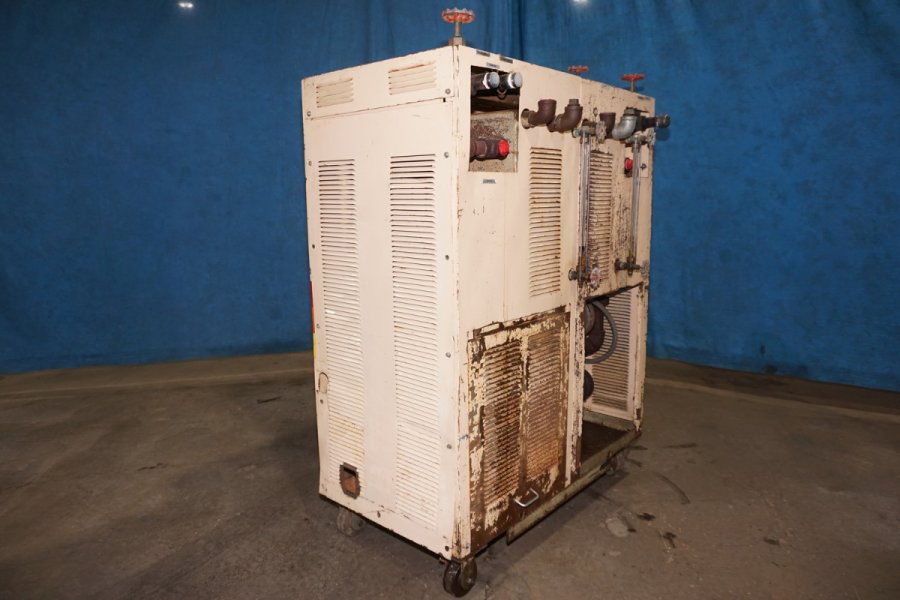

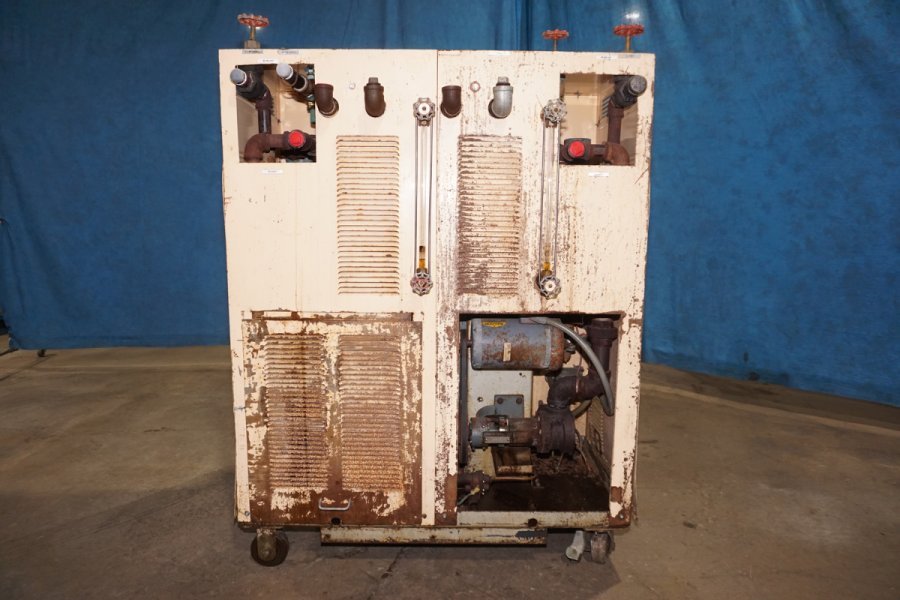

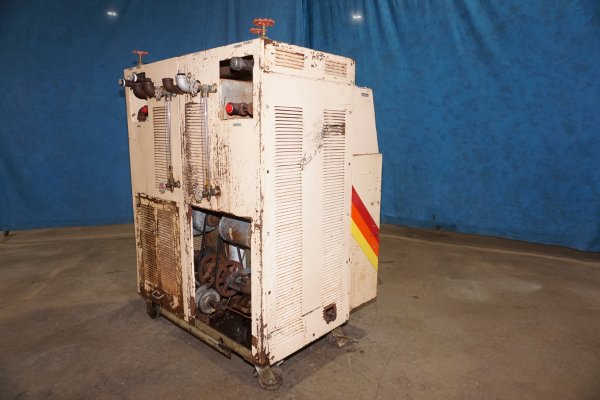

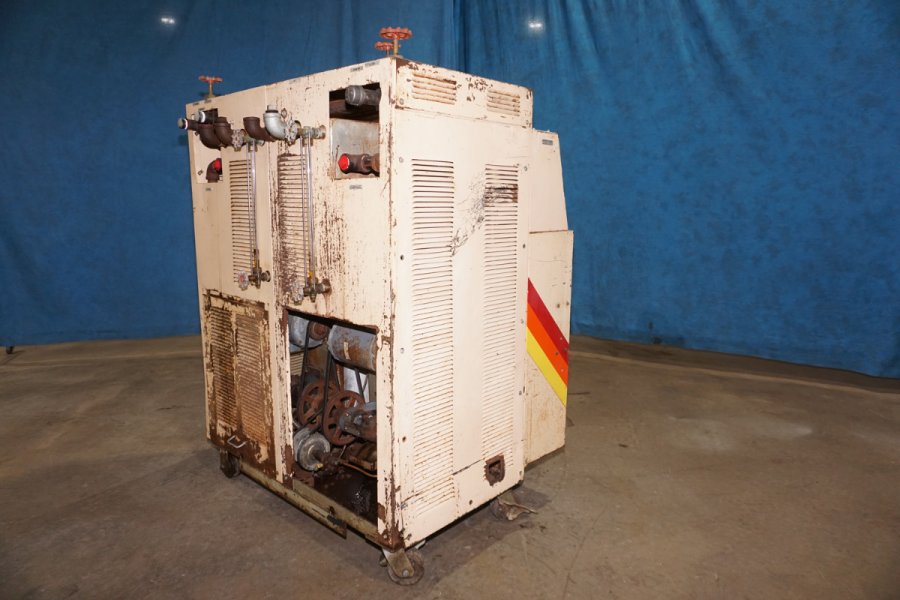

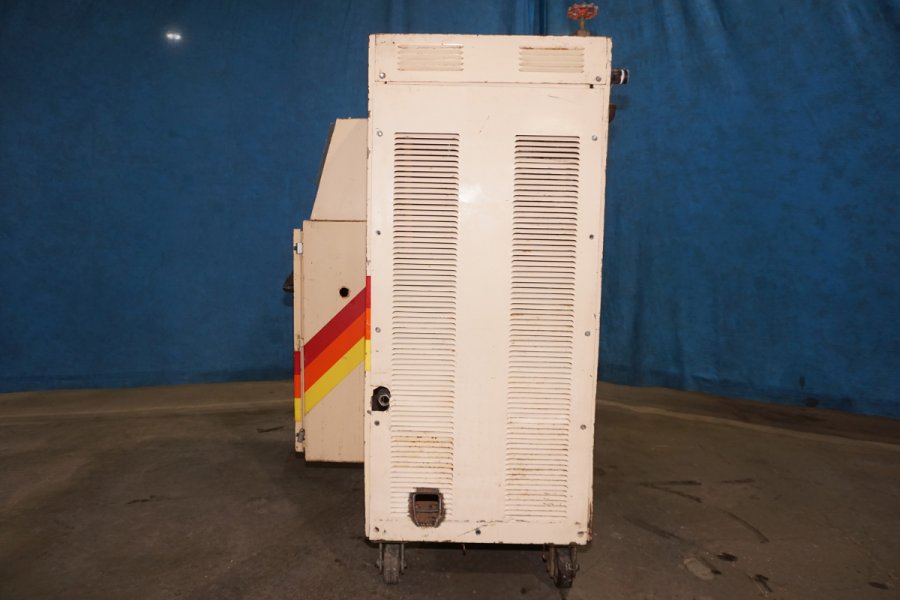

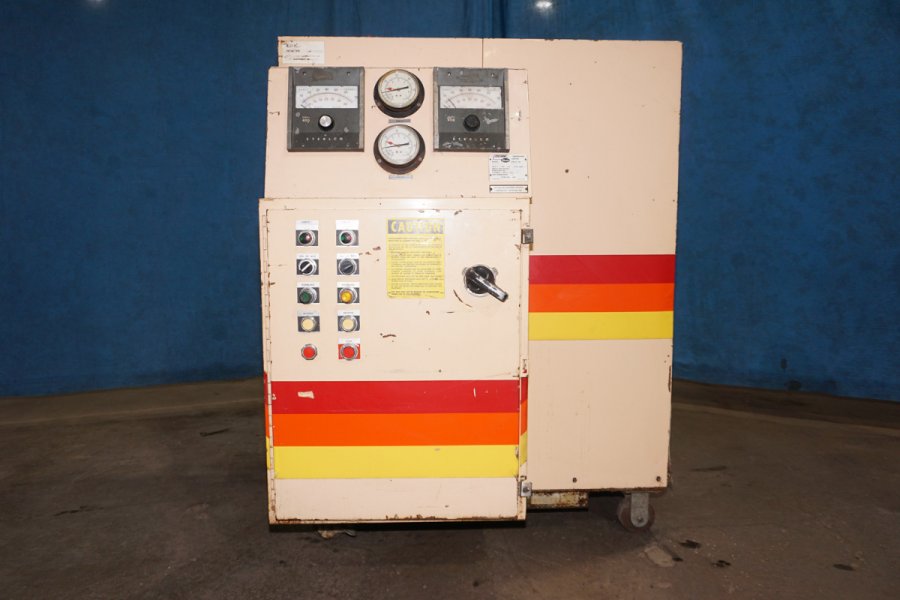

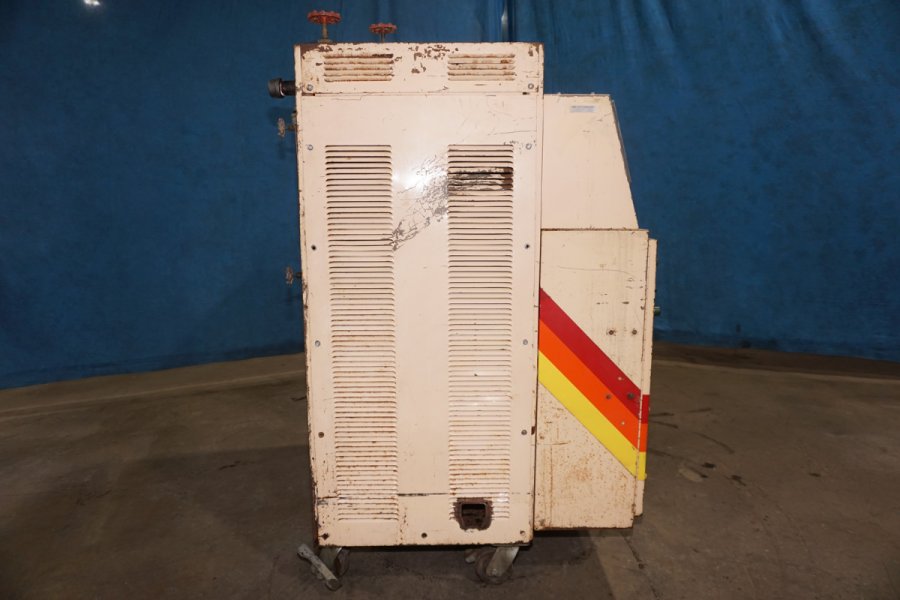

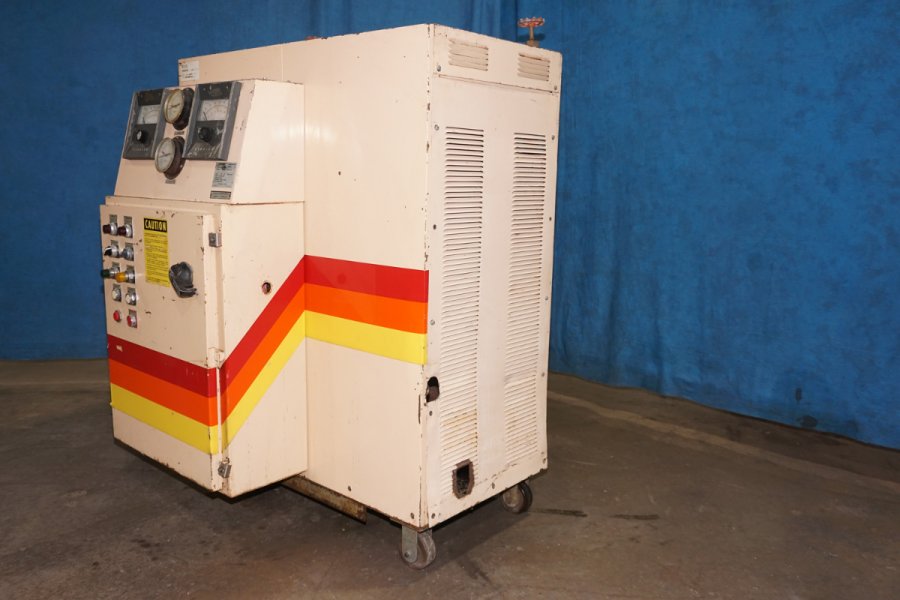

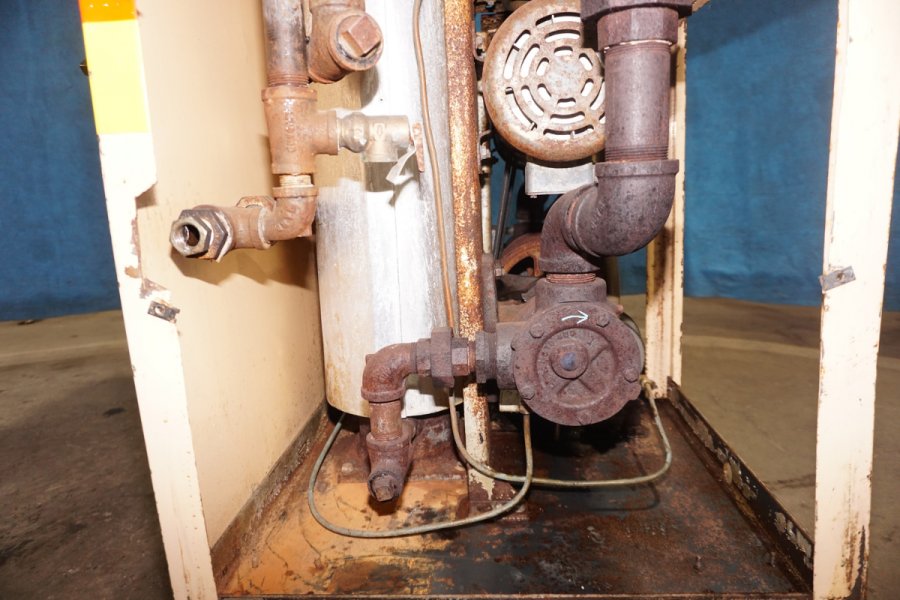

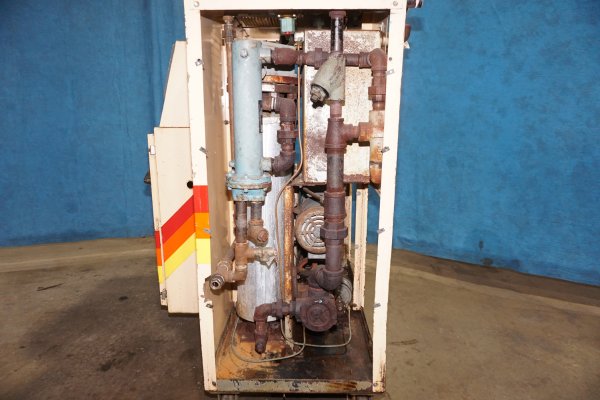

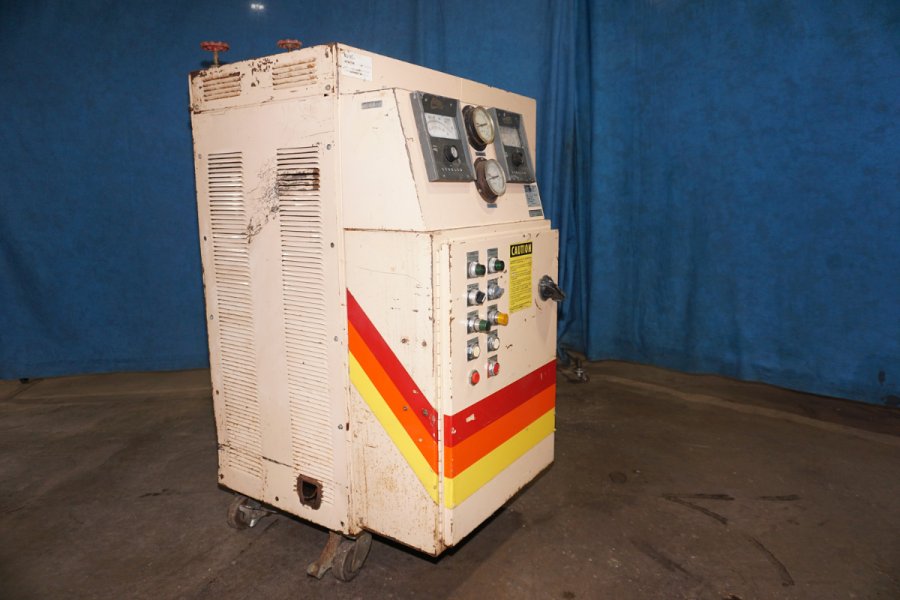

Used Sterlco Model: F6026-D-X 24 kw (12 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:

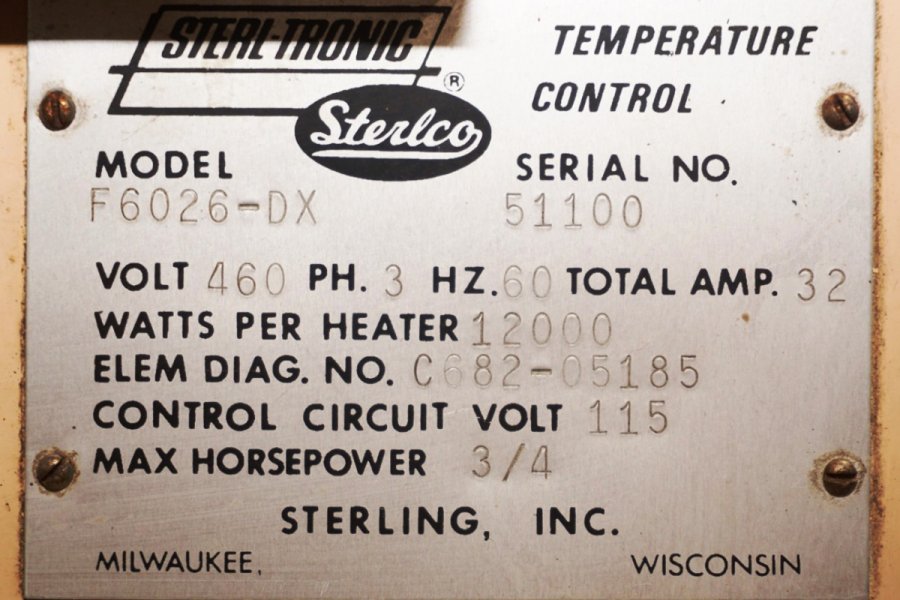

Manufacturer: Sterlco
Model: F6026-D-X
Size: 24 kw (12 kw per zone)
Inventory Number: DCM-5584
Used Sterlco Model: F6026-D-X 24 kw (12 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit.
View Available Hot Oil Units
Features & Accessories:

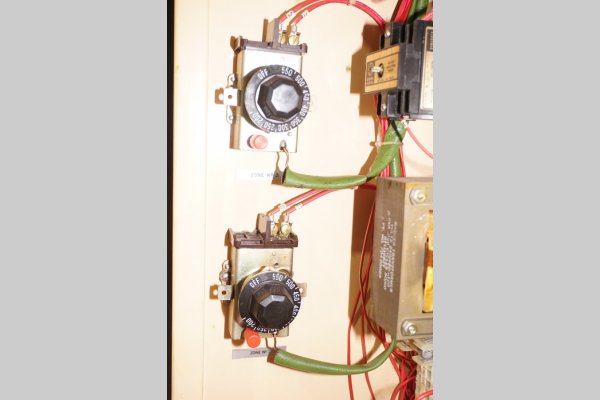

- Alarms for low fluid pressure, pump rotation, over temperature
- Set points for Process, High Alarm, Low Alarm
- Displays for Process Temperature
- Unit on casters for easy movement

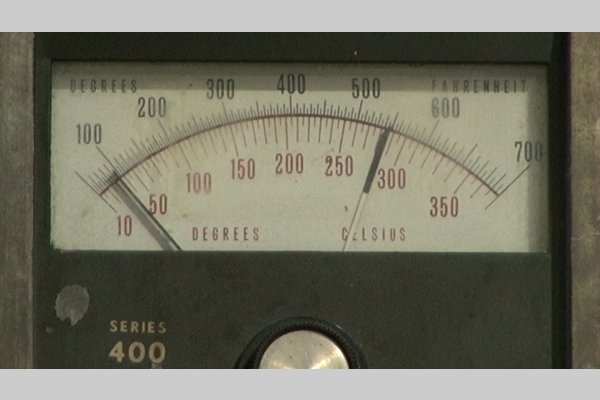

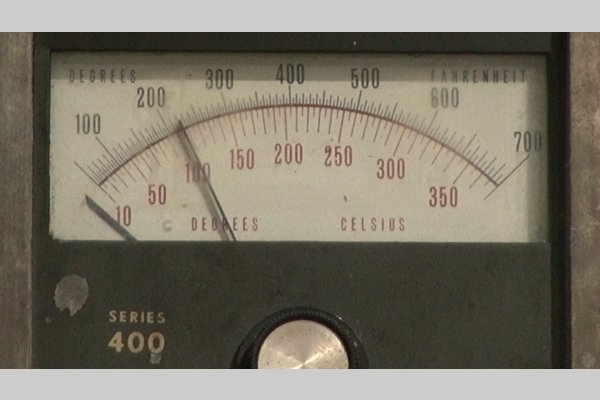

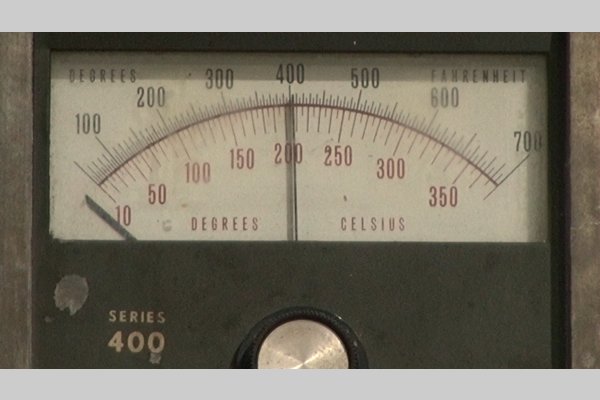

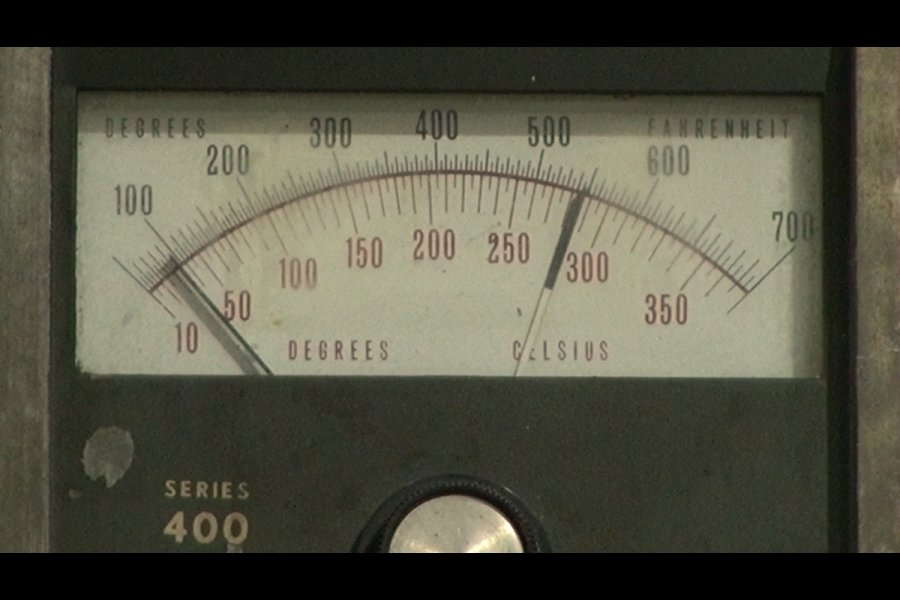

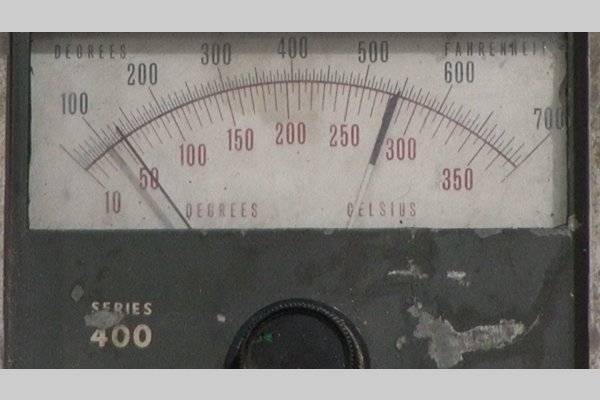

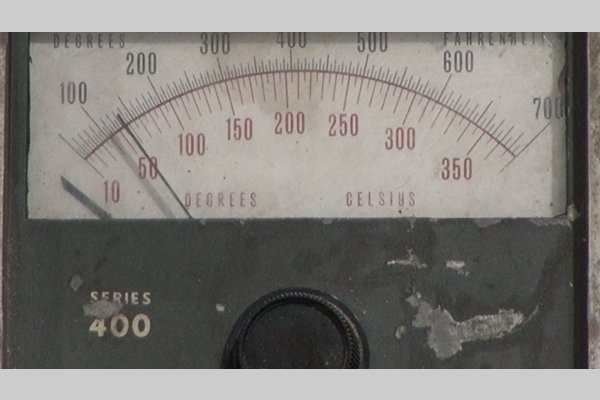

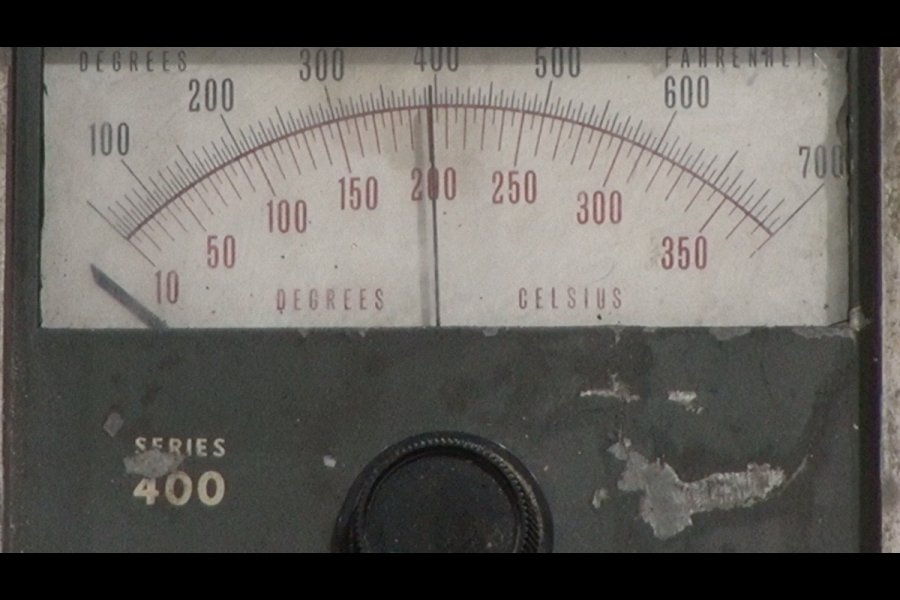

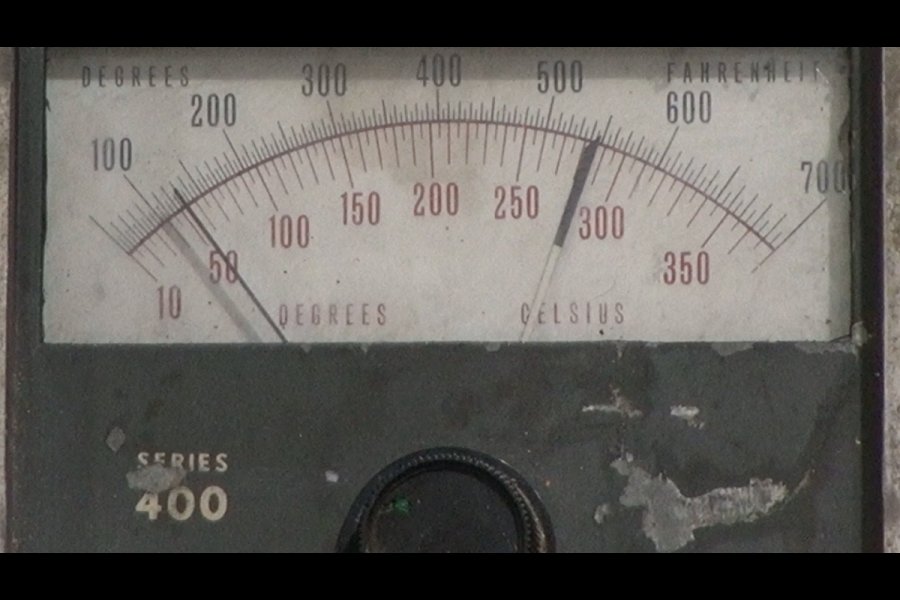

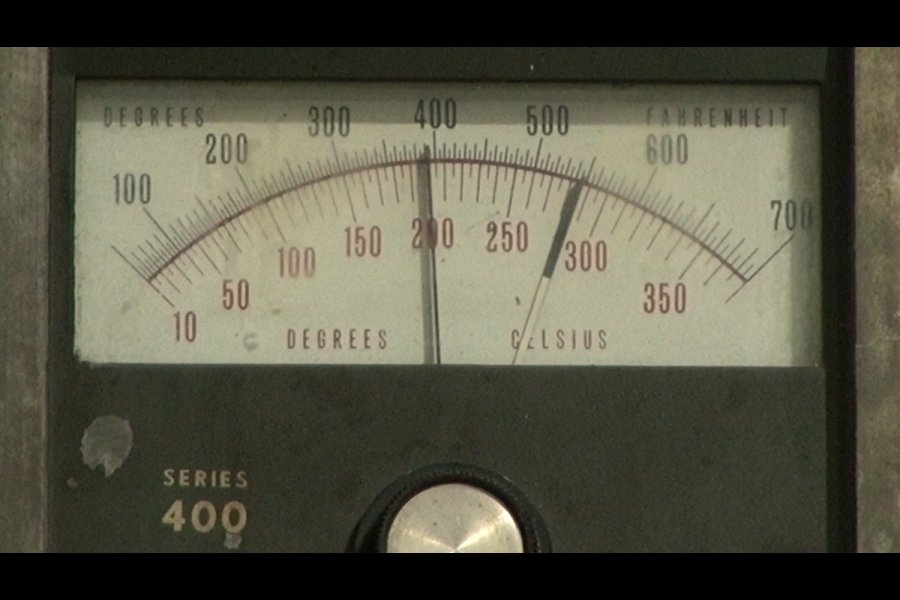

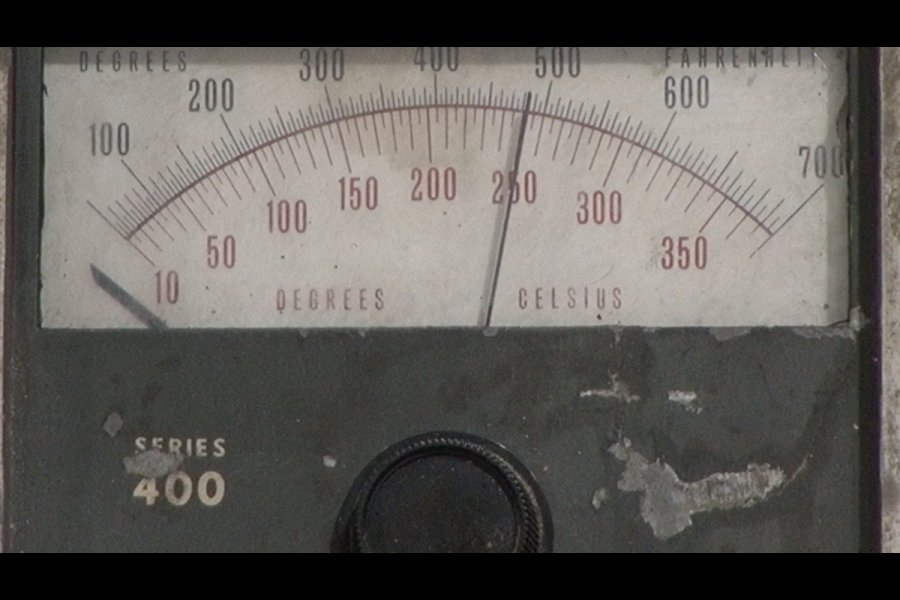

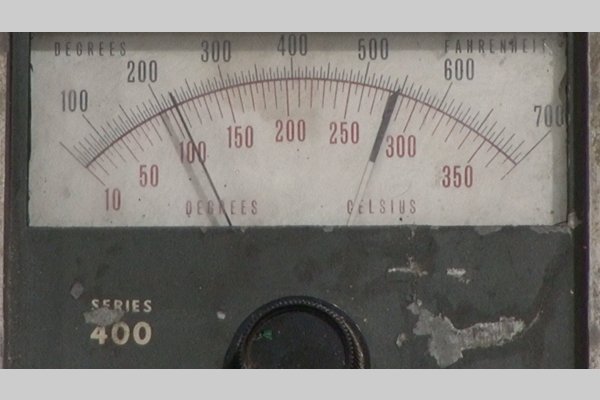

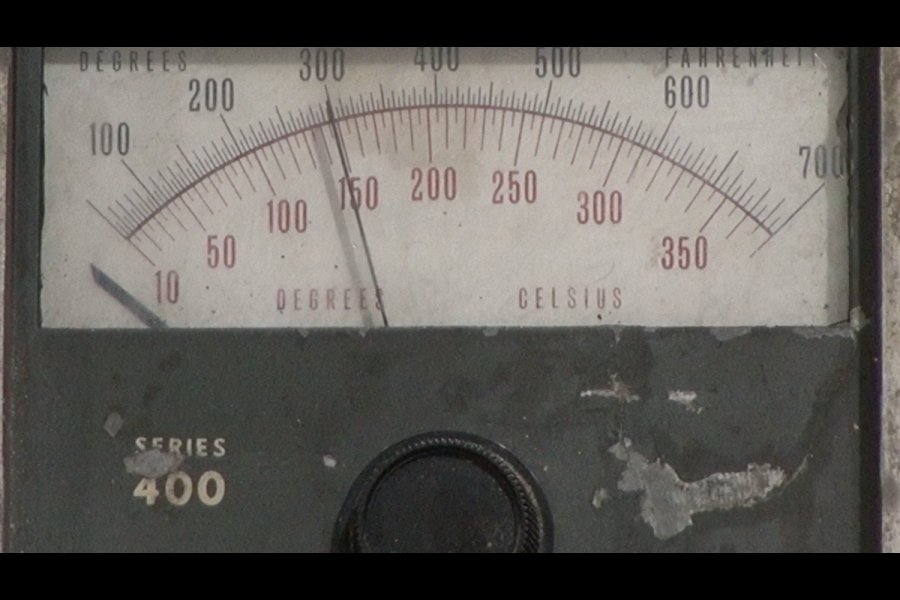

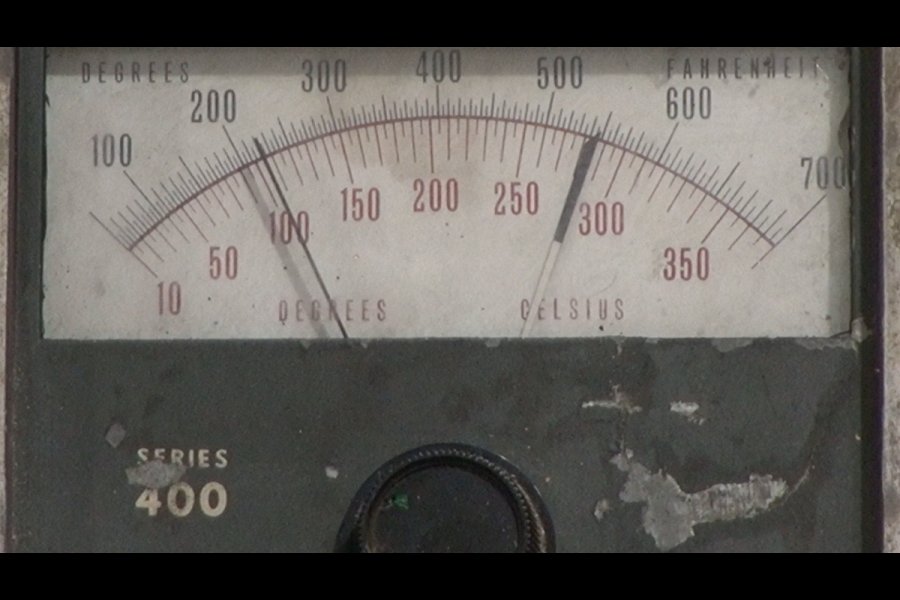

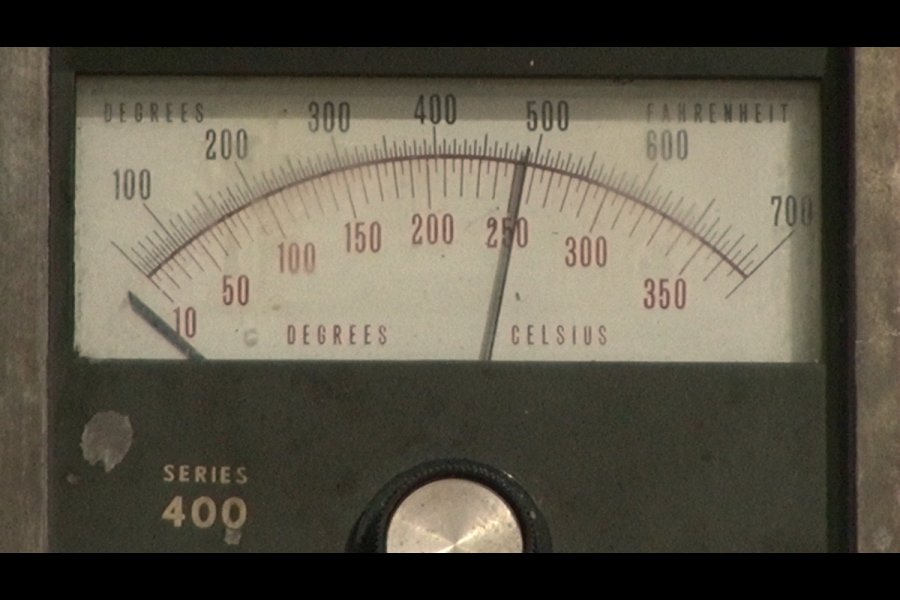

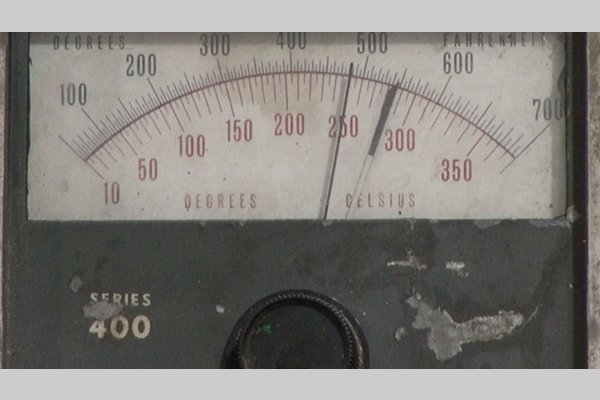

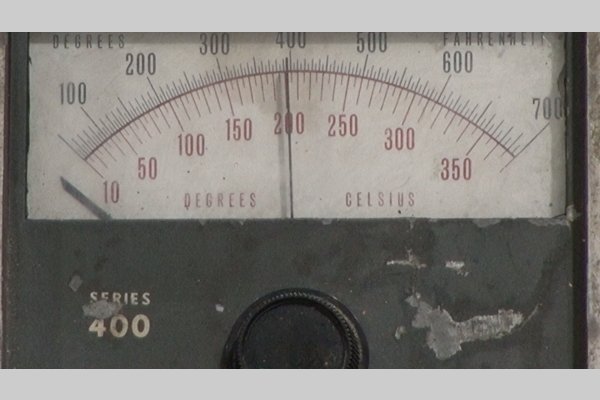

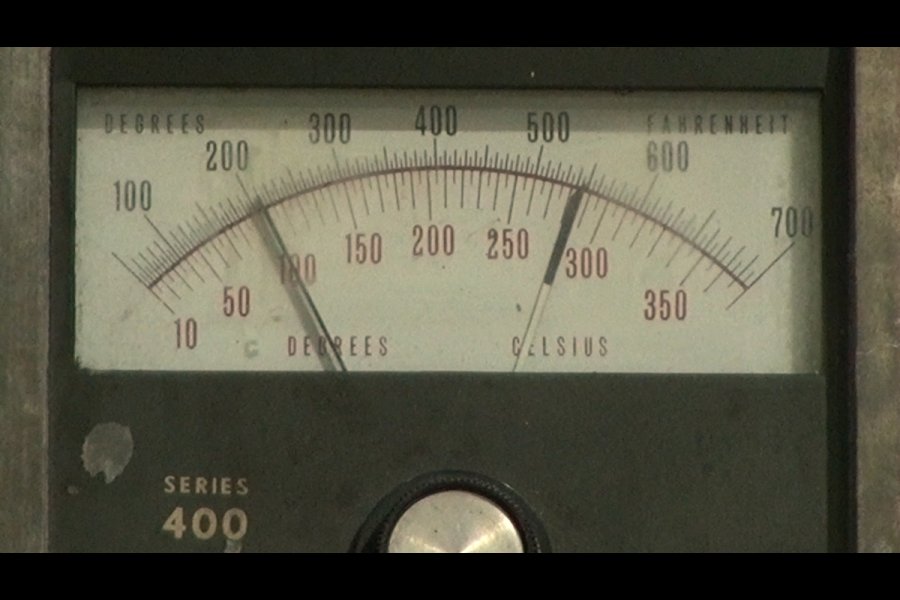

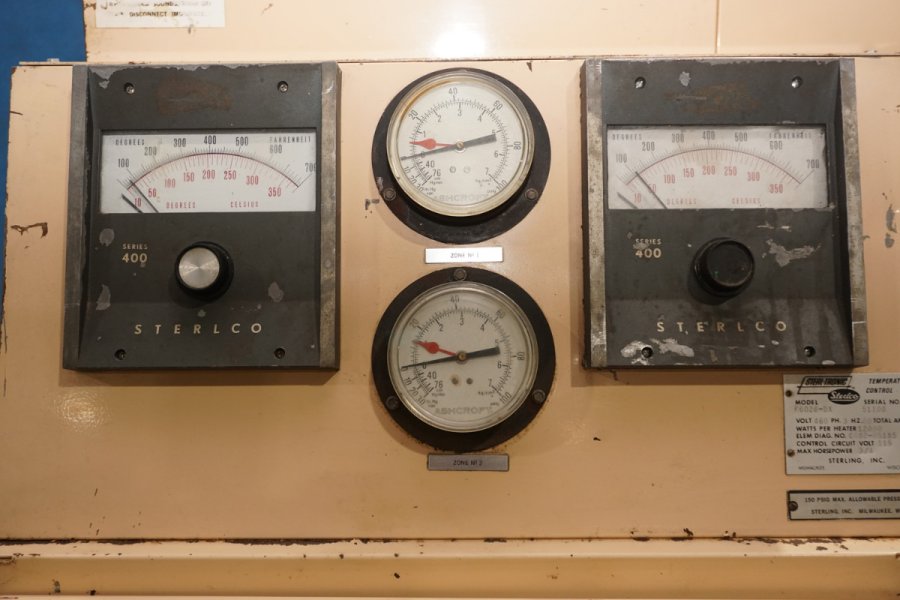

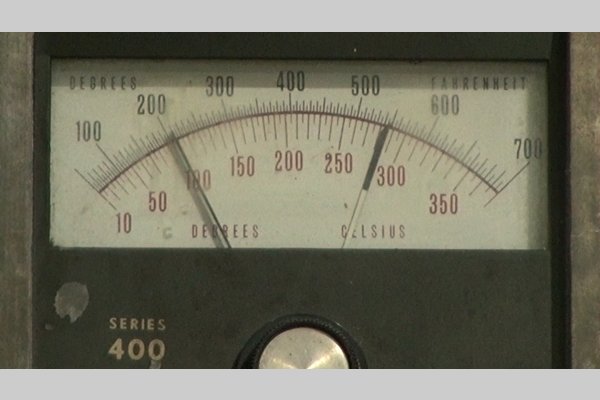

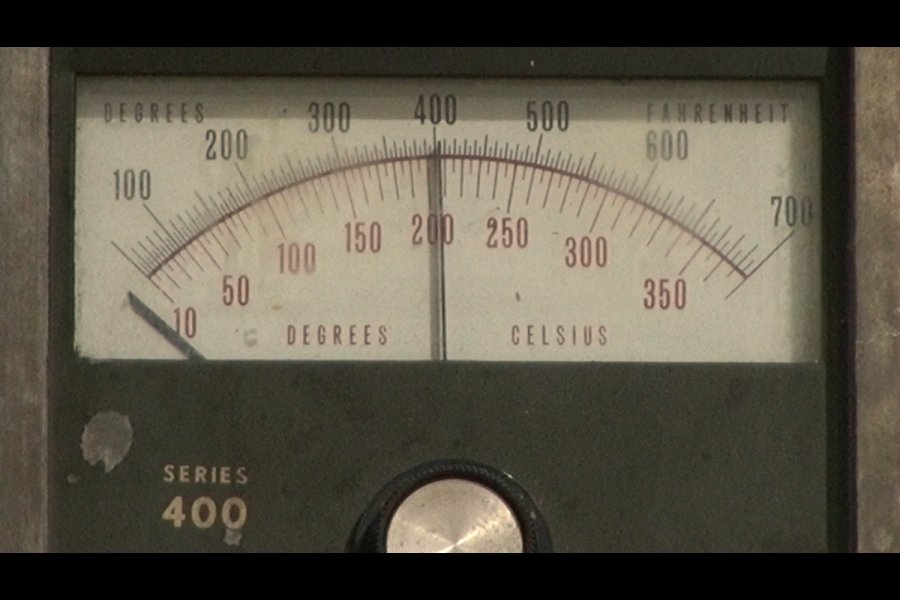

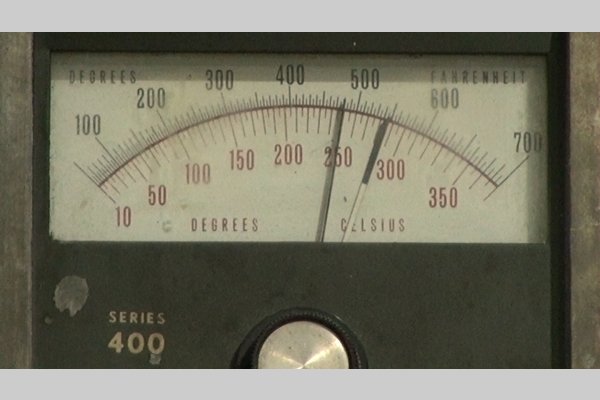

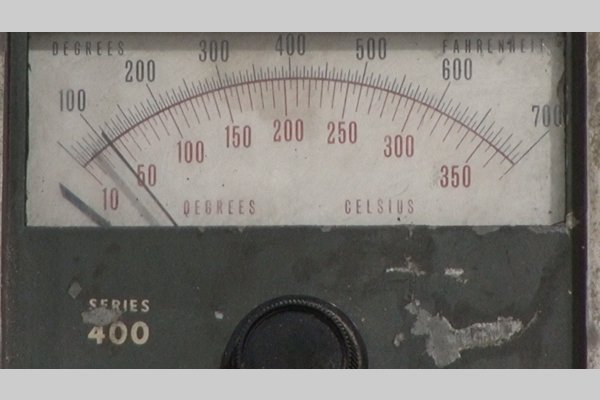

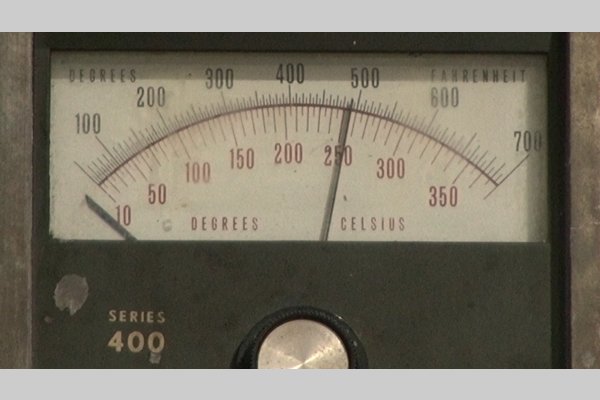

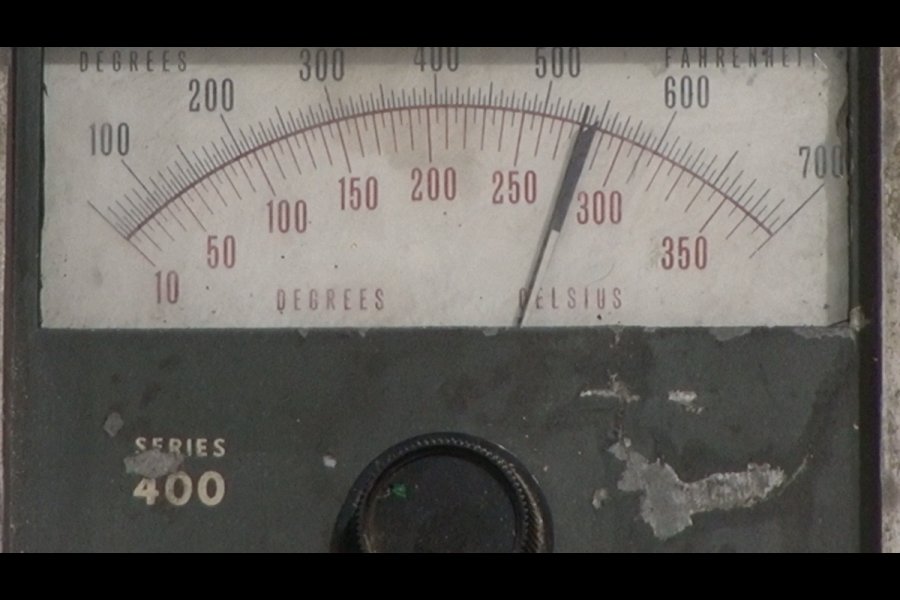

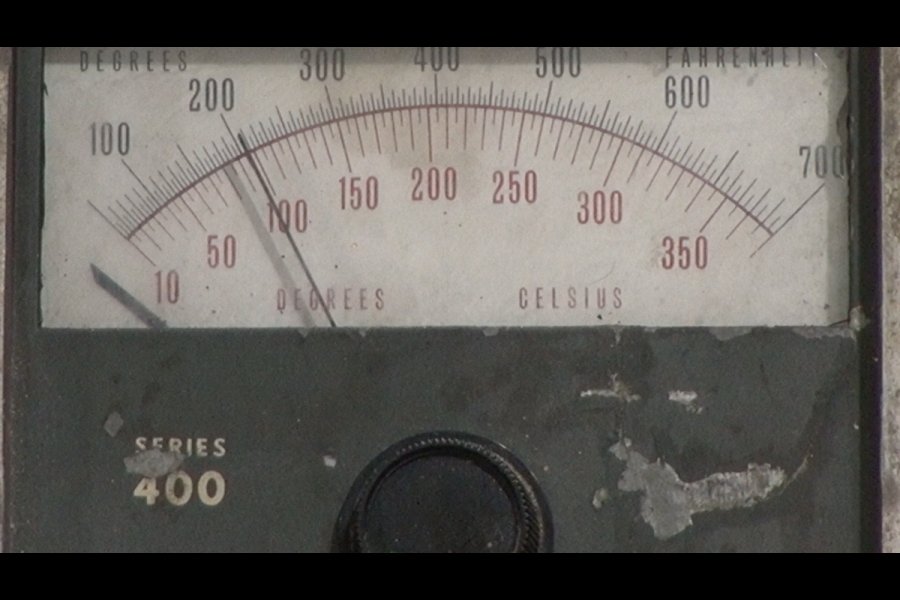

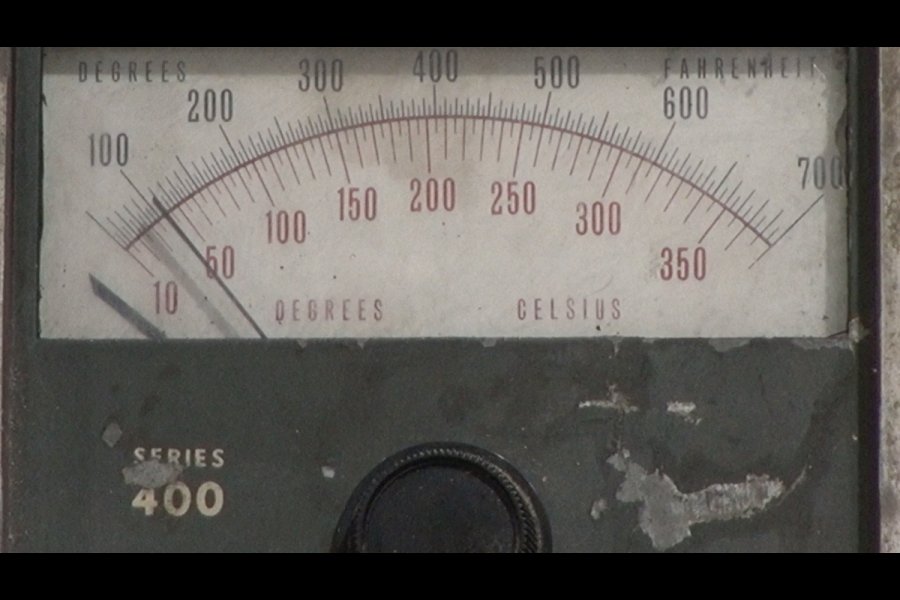

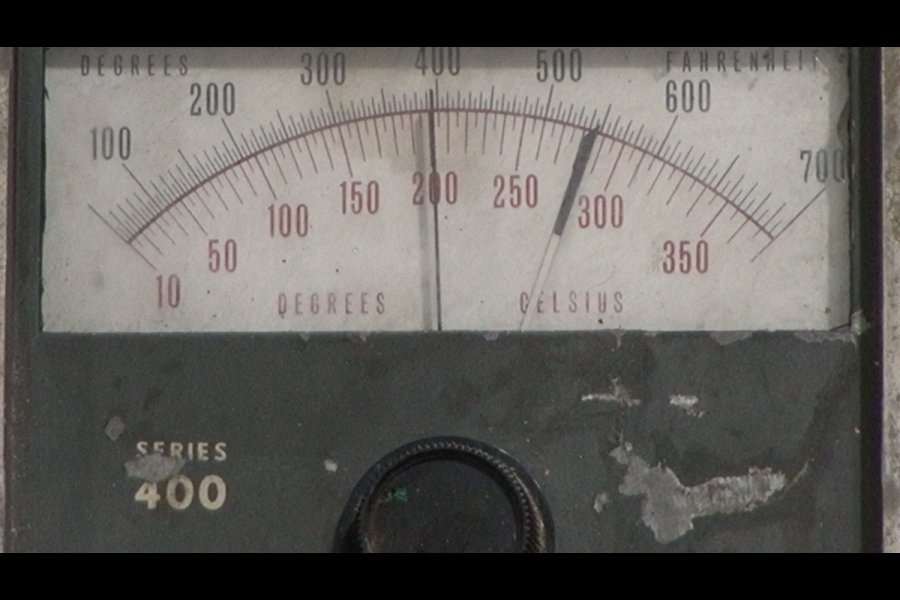

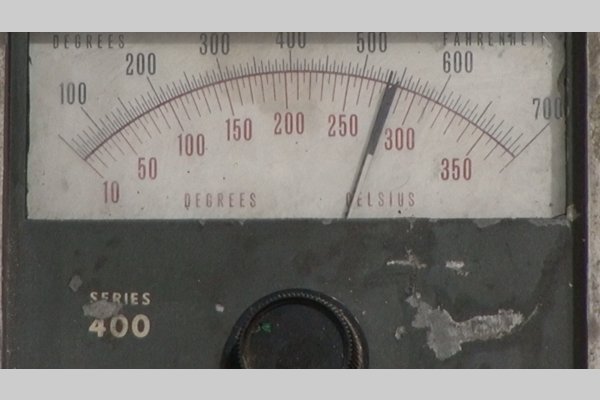

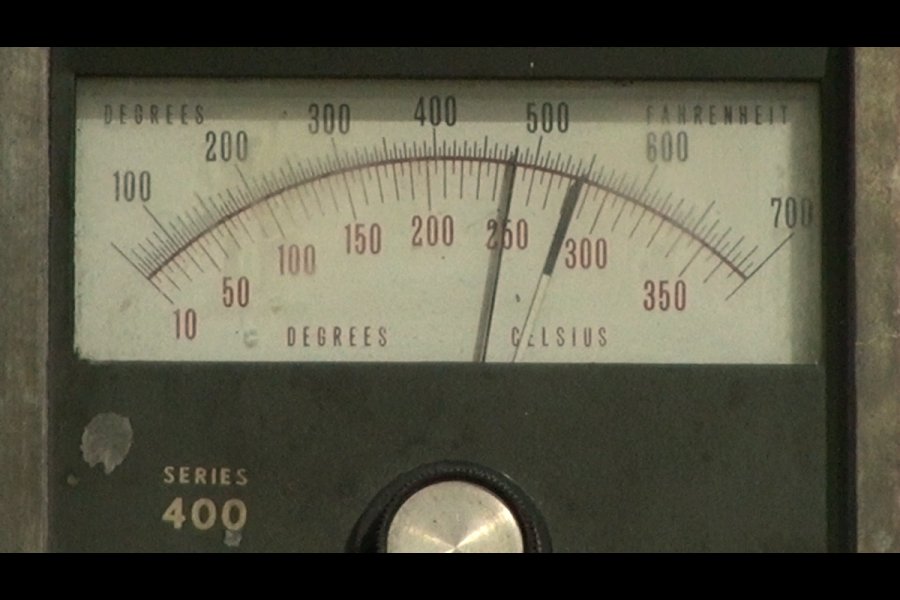

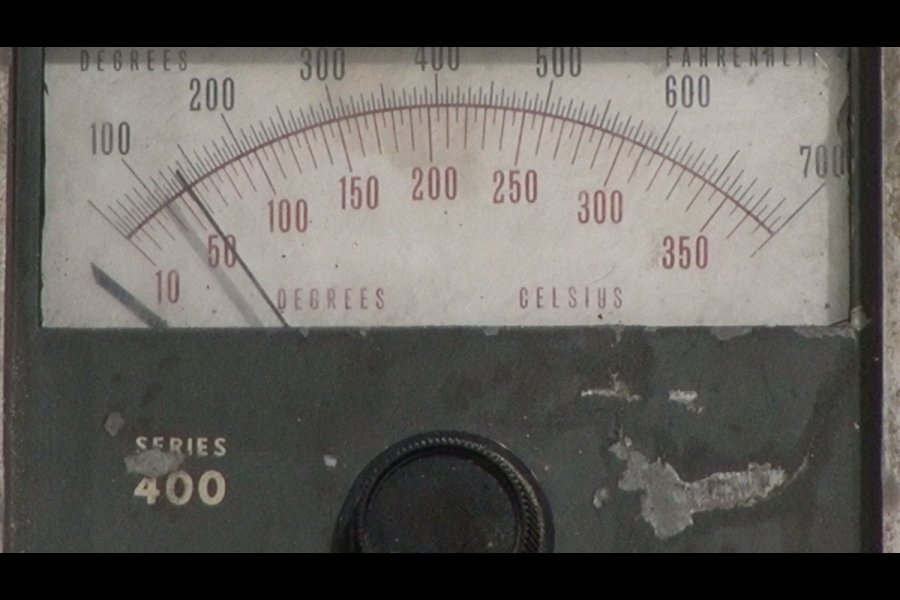

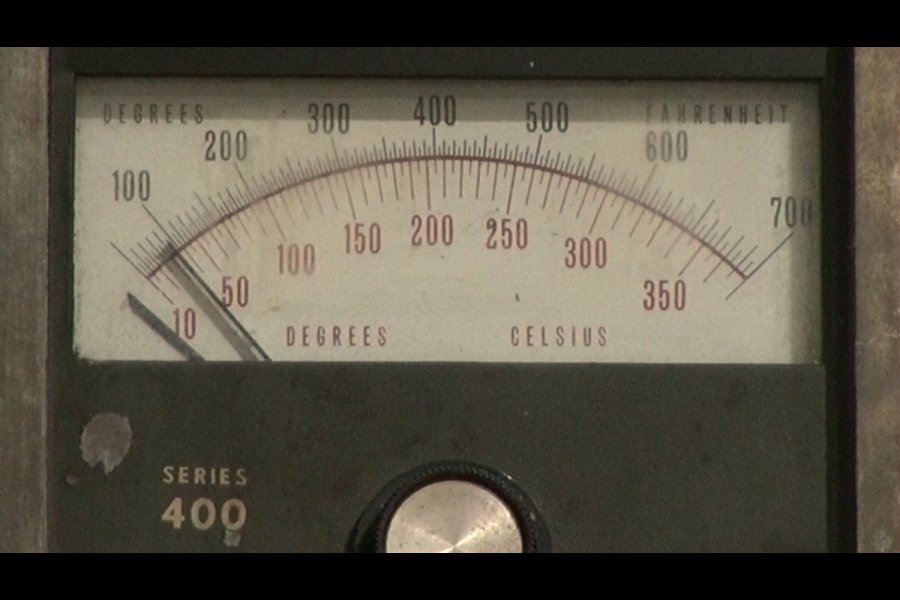

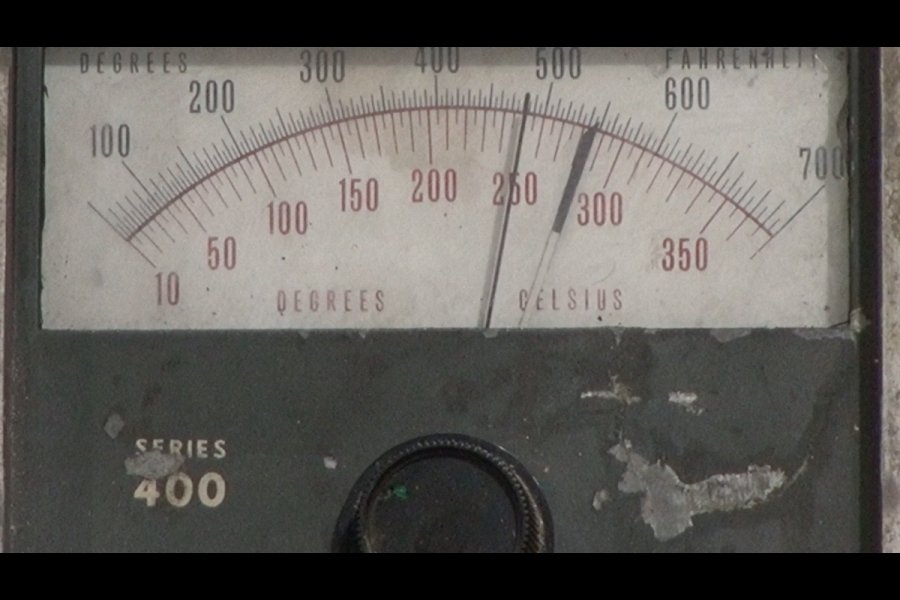

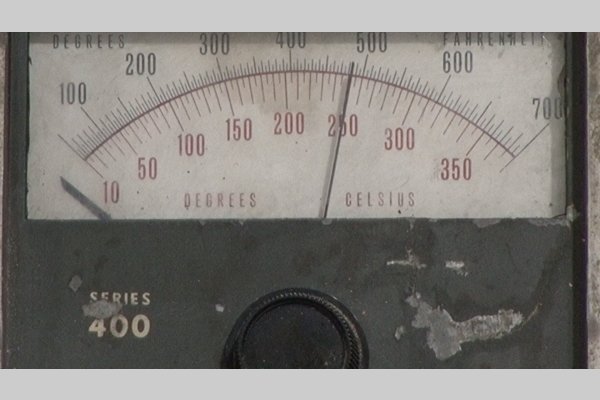

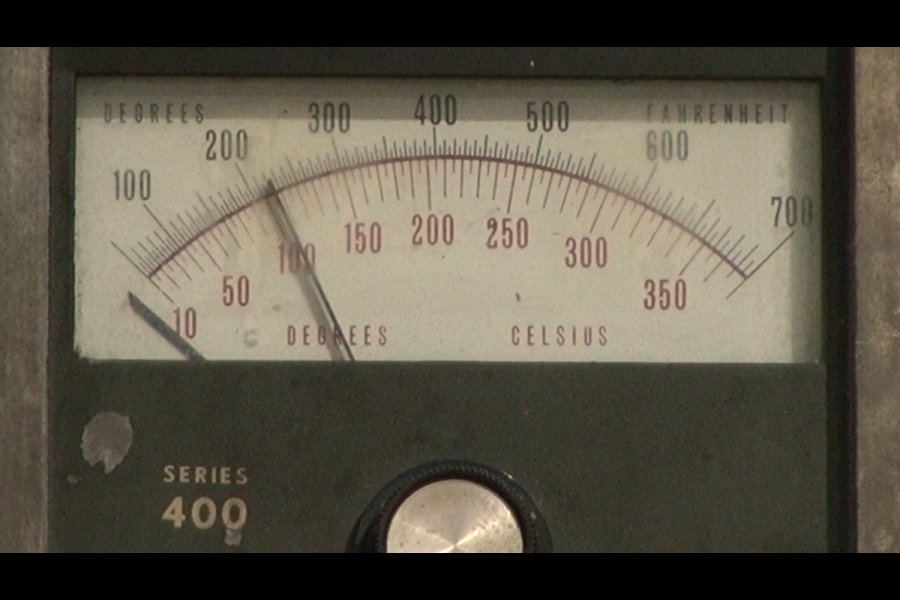

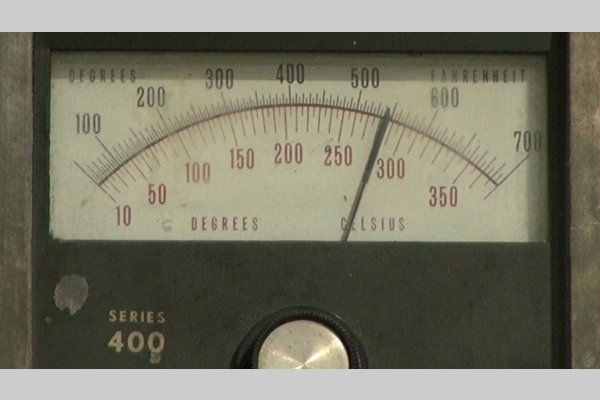

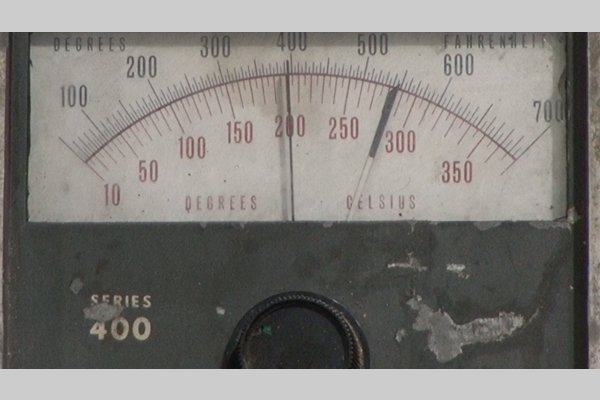

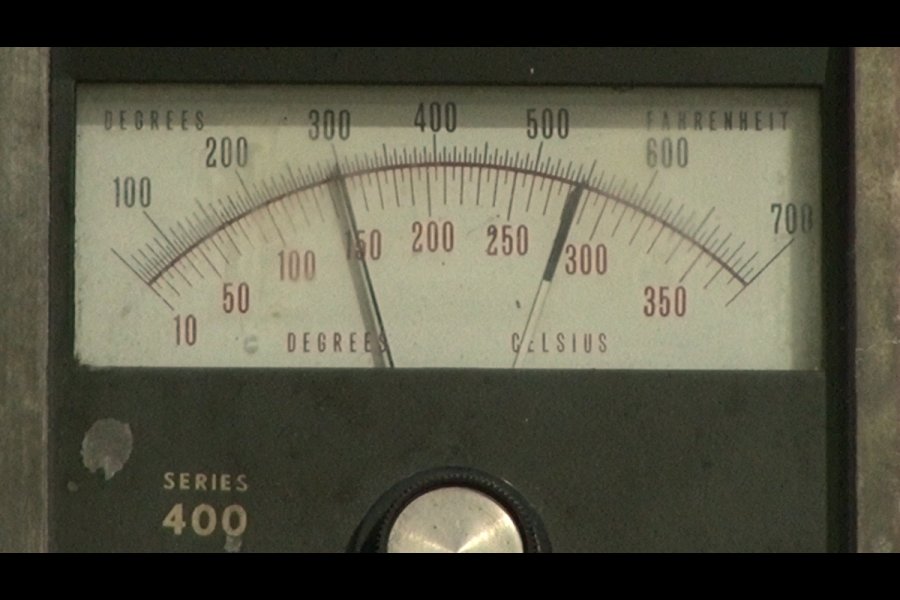

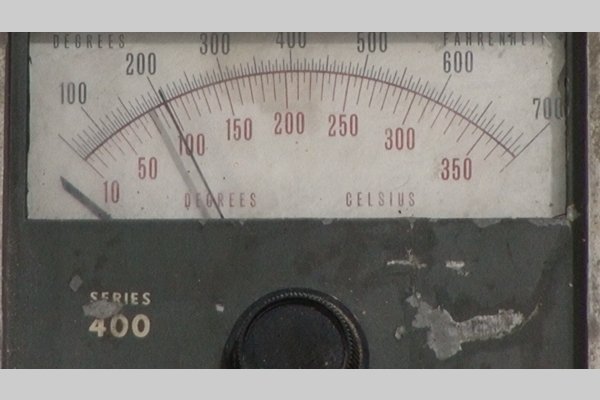

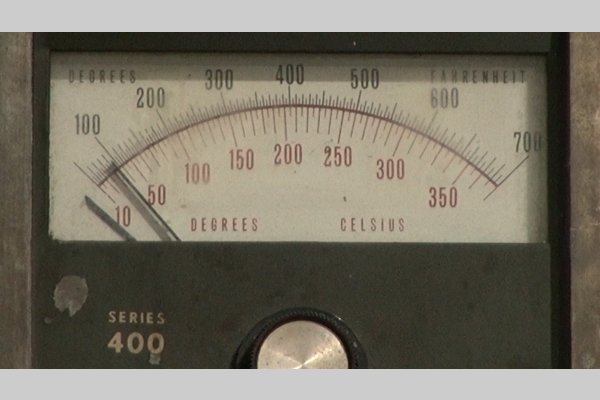

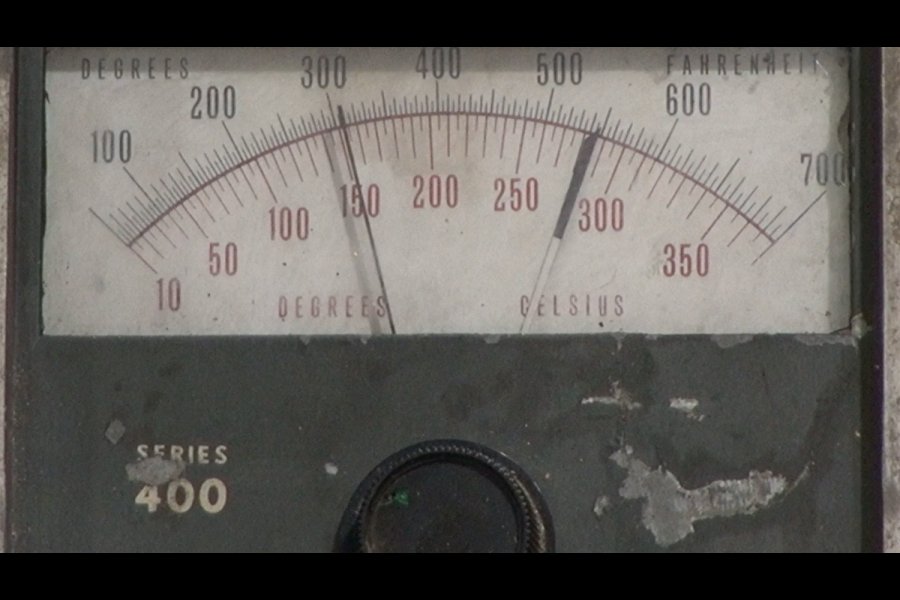

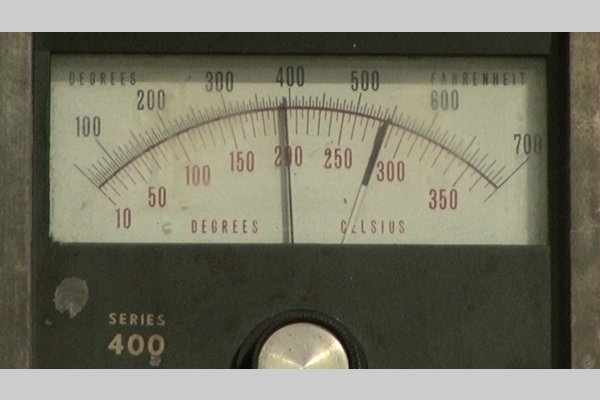

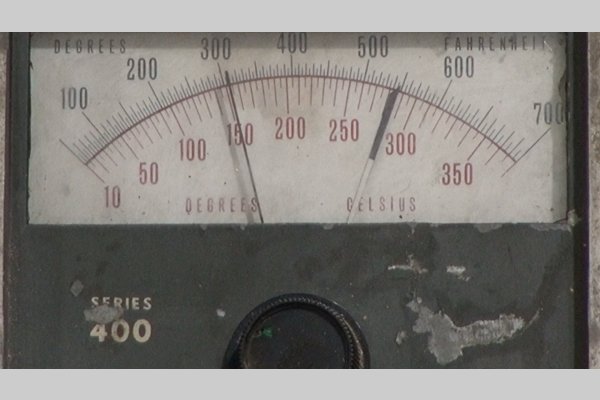

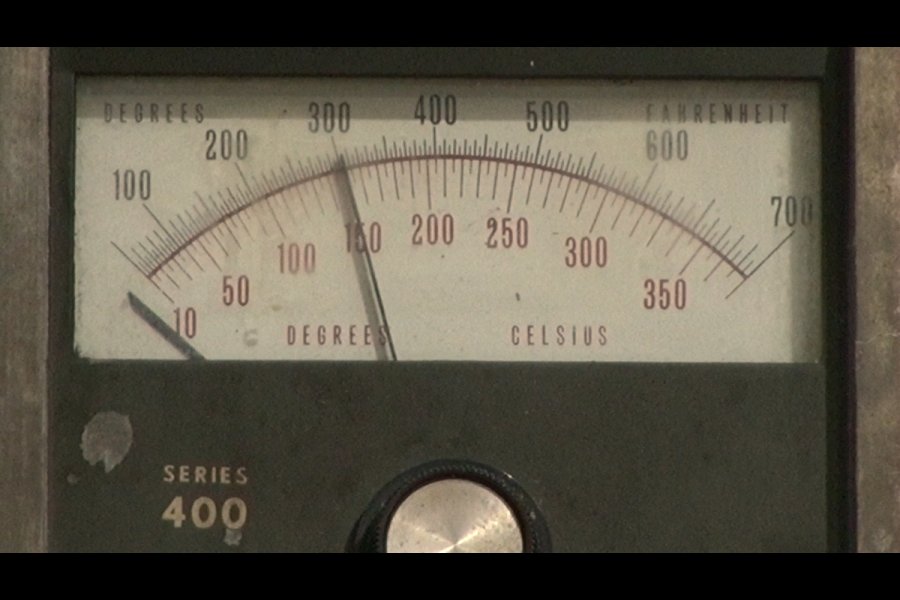

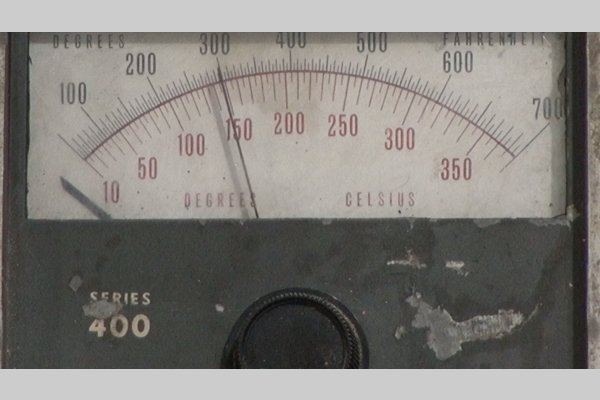

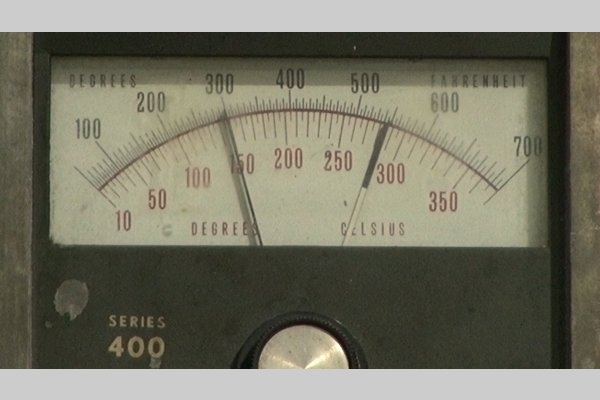

- Sterlco Series 400 Analog Controllers

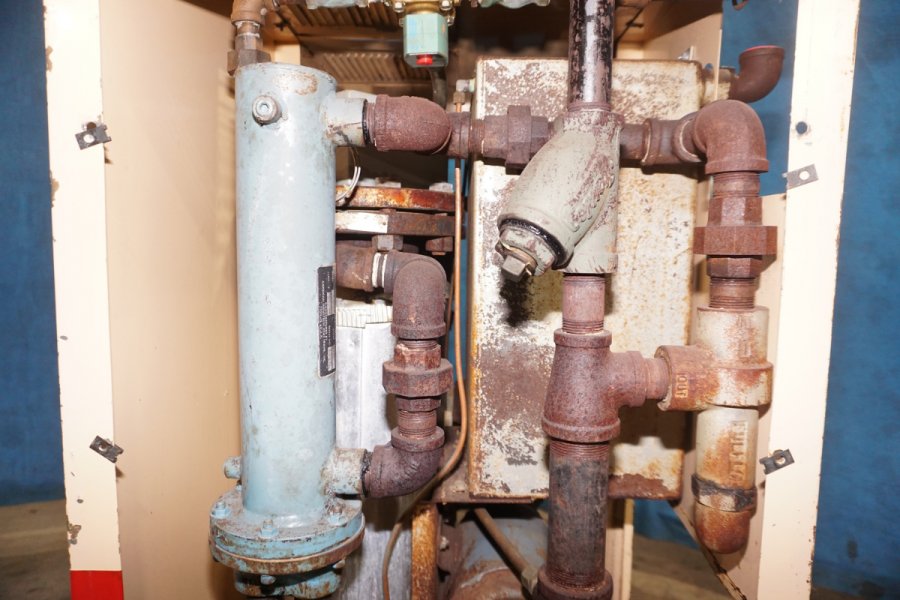

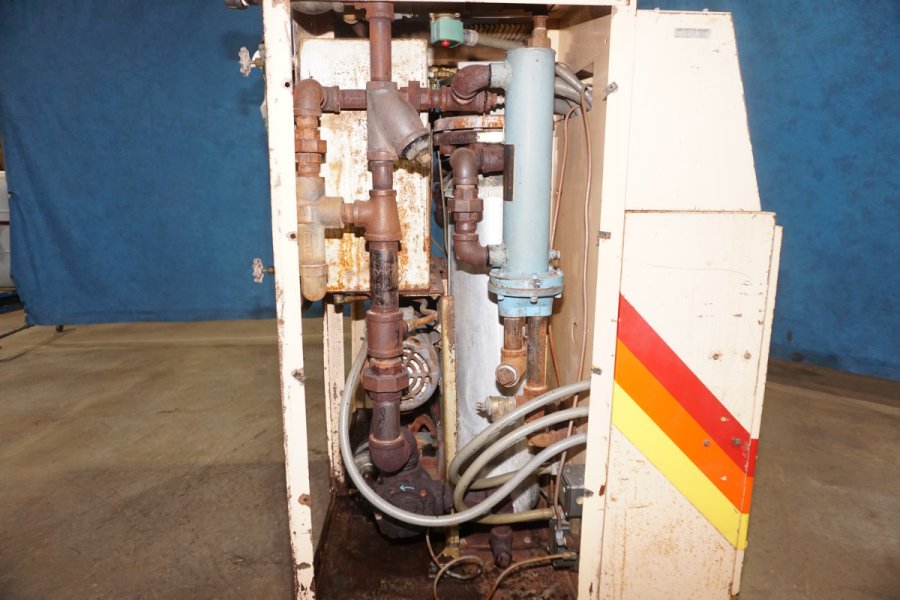

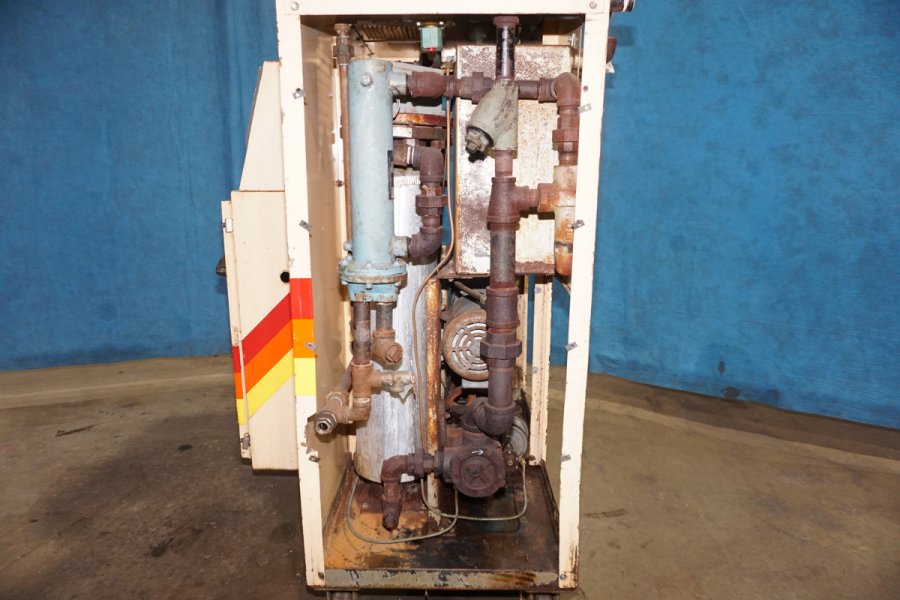

- Water Cooling Circuit
Item Specifications for DCM-5584
| Specifications | |
|---|---|
| Main Heater Power (Zone 1 & 2): |
12 kw
|

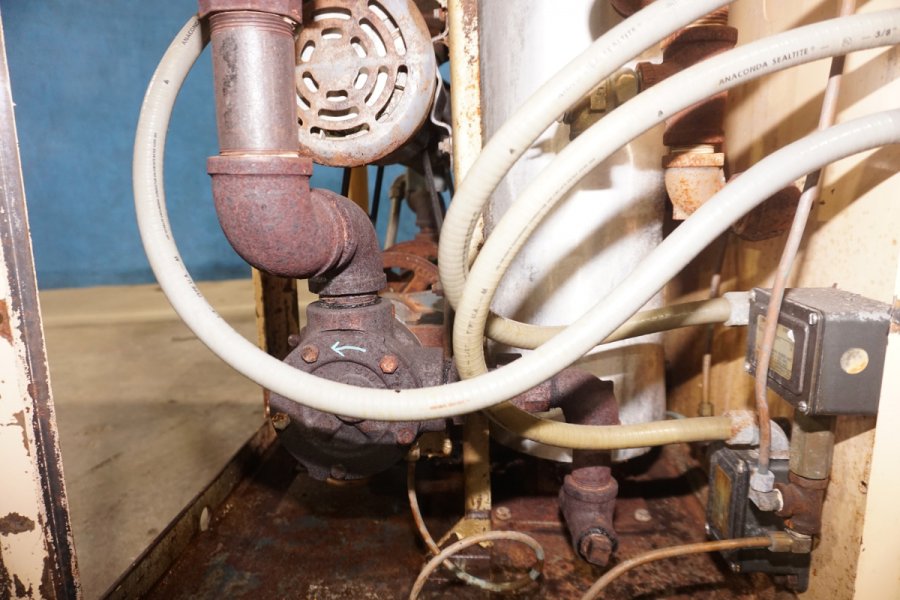

| Pump Motor Size (Zone 1 & 2): |
.75 HP
|
| Flow Rate (Zone 1 & 2): |
24 gallons per minute
|
| Connection size/type (Zone 1 & 2): |
1 inch
|
| Maximum Operating Temperature: |
550 F
|
| Motor: |
1725 RPM
|
| Overall Size (L x W x H): |
40 x 42 x 56 inches
|
| Full Load Amps @ 460/3/60: |
32 amp
|
Document(s) For This Machine
Description
Used, Sterlco Model F6026-D-X 24 kw (12 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Unit on casters for easy movement, Sterlco Series 400 Analog Controllers, Water Cooling Circuit, Sterlco Series 400 Analog controls, second Hand, DCM-5584
