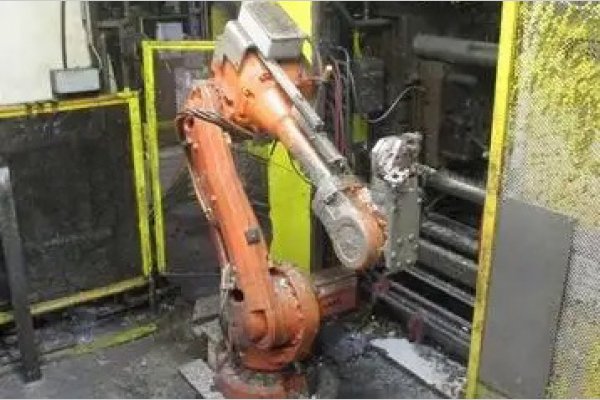

Used ABB Model: IRB 4600F/45 2.05 IRB 4600F/45 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: ABB
Model: IRB 4600F/45 2.05
Size: IRB 4600F/45 Kilogram
Inventory Number: DCM-5588
Used ABB Model: IRB 4600F/45 2.05 IRB 4600F/45 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings.
View Available Foundry Robots
Features & Accessories:
- New in March 2019, Foundry Rated with IRC5 Controls and End-Effector for Gripping Castings
- Compact Arm Design, Low Mass, Fast maneuverability
- Renowned ABB Global Parts and Service
- ABB Foundry Rated
- End-Effector for installed for Gripping Die Casting Biscuits
Item Specifications for DCM-5588
| Specifications | |
|---|---|
| Number of Axis: |
6
|
| Payload Capacity: |
99.2 pounds
|
| Reach: |
80.7 inches
|
| Axis 1 Rotation Motion: |
+180 to -180 Degrees
|
| Axis 2 Arm Motion: |
+150 to -90 Degrees
|
| Axis 3 Arm Motion: |
+75 to -180 Degrees
|
| Axis 4 Rotation Motion: |
+400 to -400 Degrees
|
| Axis 5 Bend Motion: |
+120 to -125 Degrees
|
| Axis 6 Turn Motion: |
+400 to -400 Degrees
|
| Power: |
480/3/60
|
| Approximate Machine Weight: |
981 pounds
|
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, ABB Model IRB 4600F/45 2.05 IRB 4600F/45 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings For_Sale, Features Include: Compact Arm Design, Low Mass, Fast maneuverability, Renowned ABB Global Parts and Service, ABB Foundry Rated, End-Effector for installed for Gripping Die Casting Biscuits, IRC5 Single controls, second Hand, DCM-5588
See jumbo large photos of this ABB IRB 4600F/45 2.05
