Used Toshiba Model: DC 800 C 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Toshiba
Model: DC 800 C
Size: 800 Metric Ton
Inventory Number: DCM-1547
Used Toshiba Model: DC 800 C 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

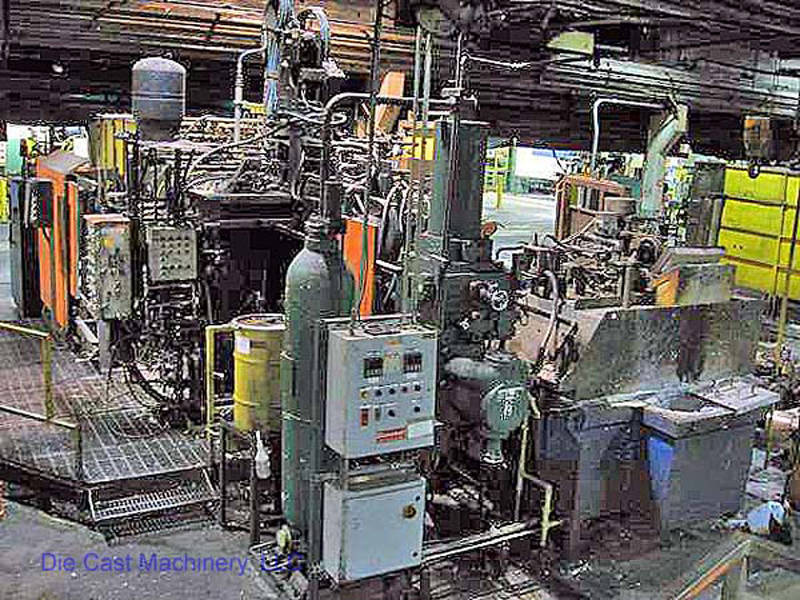

Click above for larger image
Features & Accessories:
- New in 1994
- Allen Bradley PLC 2 controls
- Dual Automatic Tie Bar Pullers
- Two Speed Hydraulic Motorized Die Height Adjustment System
- Two Shot Positions
- Three Core Circuits - Two on Moving Platen, One on Fixed Platen
Item Specifications for DCM-1547
Specifications | |
---|---|
Rated Tonnage: |
880 tons
|
Tie Bar Diameter: |
7.48 inches
|
Clearance between Tie Bars: |
33.46 x 33.46 inches
|
Die Thickness (minimum - maximum): |
15.74 - 37.40 inches
|
Die Stroke: |
30 inches
|
Ejector Platen Force: |
41 tons
|
Main Motors: |
(1) 65 HP
|
Injection Stroke: |
26.77 inches
|
Maximum Injection Force: |
68 tons
|
Machine Weight: |
Machine Weight:
|
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Toshiba Model DC 800 C 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley PLC 2 controls, Dual Automatic Tie Bar Pullers, Two Speed Hydraulic Motorized Die Height Adjustment System, Two Shot Positions, Three Core Circuits - Two on Moving Platen, One on Fixed Platen Allen Bradley PLC 2 controls, second Hand, DCM-1547
See jumbo large photos of this Toshiba DC 800 C
