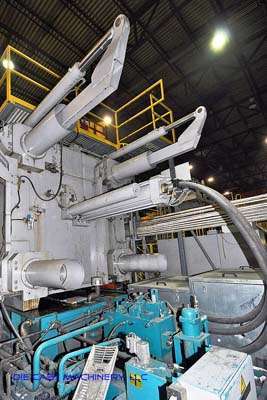

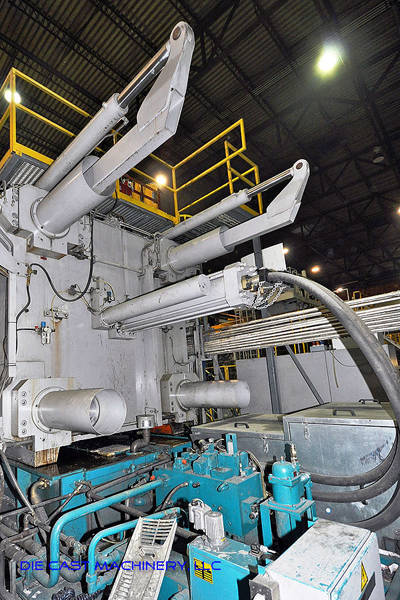

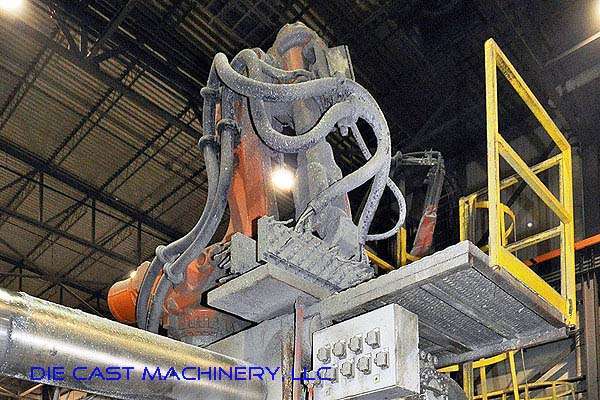

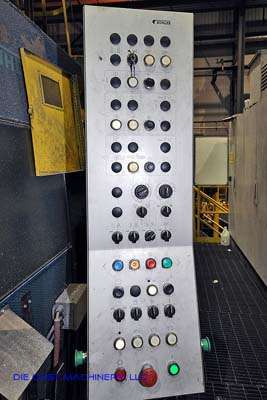

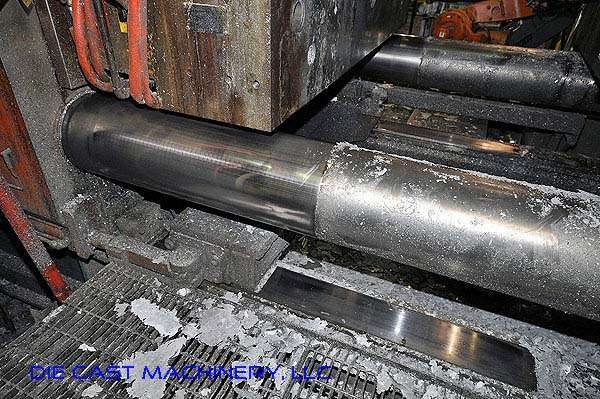

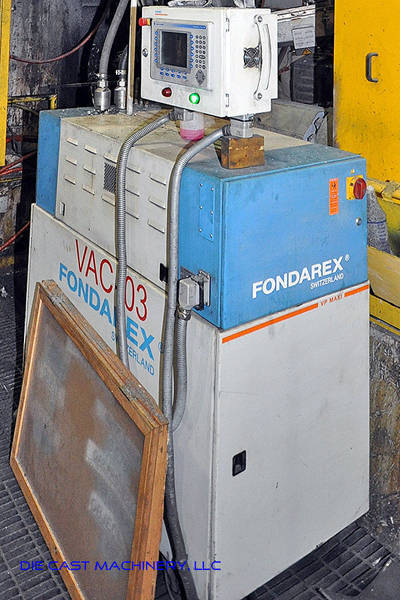

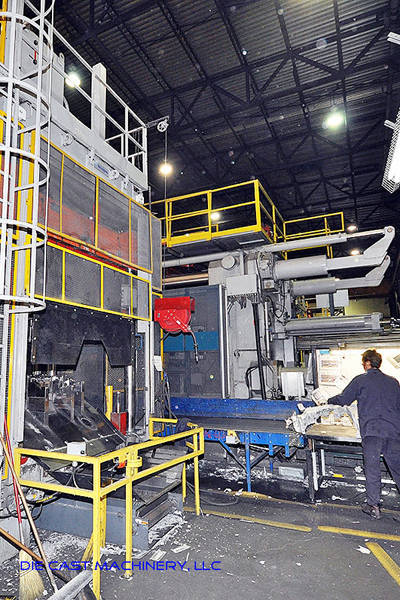

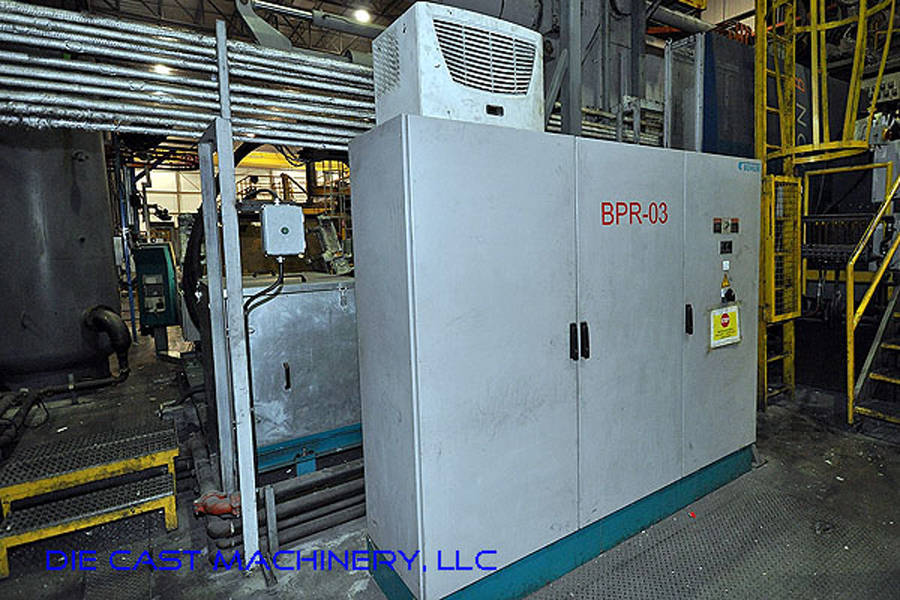

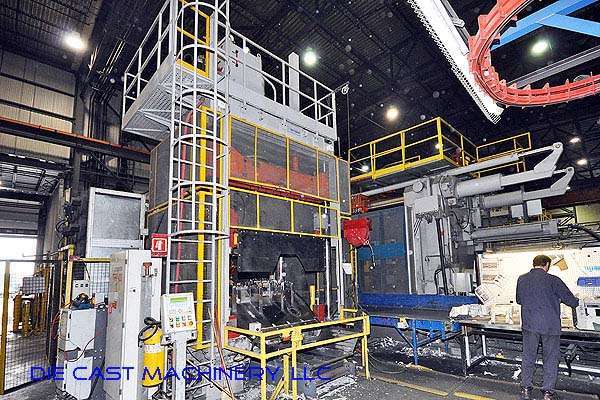

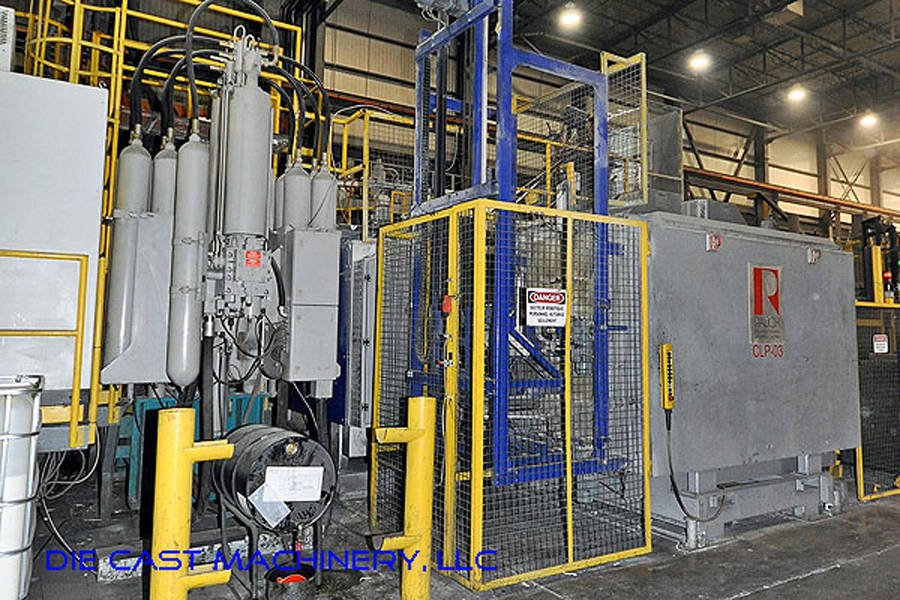

Used Buhler Model: Evolution B 320 DL 3500 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Buhler

Model: Evolution B 320 DL

Size: 3500 Metric Ton

Inventory Number: DCM-2004

Used Buhler Model: Evolution B 320 DL 3500 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine.

Features & Accessories:

Item Specifications for DCM-2004

Specifications
Injection Force, Dynamic
88.8 tons
Injection Force, Intensified
229.7 tons
Plunger Diameter (minimum - maximum)
4.72 - 7.09 inches
Plunger Stroke
55.1 inches
Ejector Force
76.8 tons
Ejector Stroke
11.0 inches
Specific Injection Pressure Minimum to Maximum
11,603 to 26,078 PSI
Maximum Locking Force
3,616 tons
Platen Size
108.4 x 108.4 inches
Tie Bar Spacing
71.0 x 71.0 inches
Die Height (minimum - maximum)
42.1 - 80.1 inches
Die Opening Stroke
54.1 inches

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Buhler Model Evolution B 320 DL 3500 Metric Ton Horizontal Clamp Vertical Shot (HVSC) Cold Chamber Aluminum Squeeze Cast/Semi-Solid Die Casting Machine For_Sale, Features Include: controls, second Hand, DCM-2004

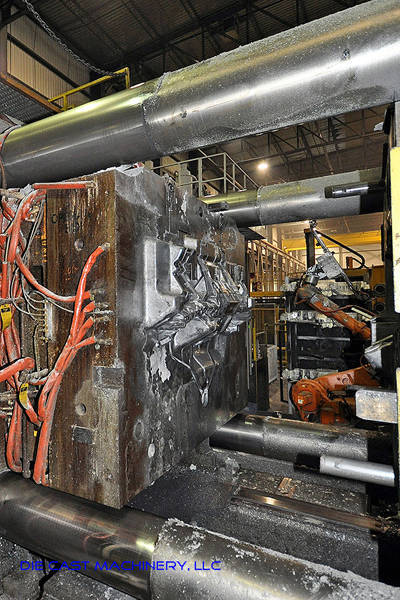

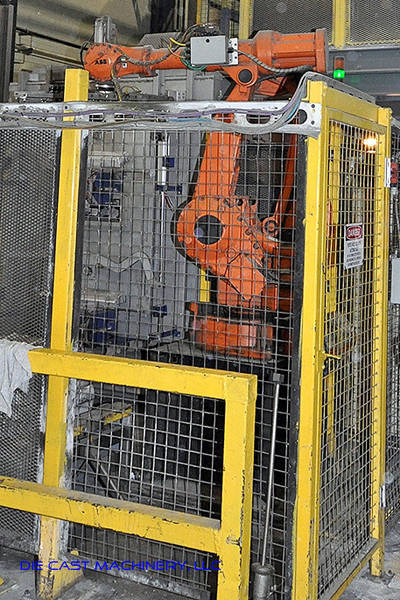

See jumbo large photos of this Buhler Evolution B 320 DL
