Used Weingarten 6600 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

Used Weingarten 6600 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine. Inventory item: DCM-2151.

Manufacturer: Weingarten

Model: GDK600

Features & Accessories:

  • Allen Bradley Controls

Item Specifications for DCM-2151

Specifications
Clamping Force
741 tons
Platen Size (horizontal x vertical)
49.6 x 49.6 inches
Distance Between Tie Bars (horizontal x vertical)
29.9 x 29.9 inches
Tie Bar Diameter
5.9 inches
Closing Stroke (maximum)
30.1 inches
Die Height (maximum - minimum)
33.4 - 13.7 inches
Injection Force (maximum)
70 tons
Injection Positions
-1.5, -6.6, and -11.8 inches
Machine Weight
30 tons

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Weingarten Model GDK600 6600 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Allen Bradley Controls Allen Bradley Controls, Second Hand, DCM-2151

The following technical terms are to assist you with searches: Used | Second Hand | Weingarten |GDK600 | 6600 kN | Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine | For Sale | Allen Bradley Controls Allen Bradley Controls | DCM-2151

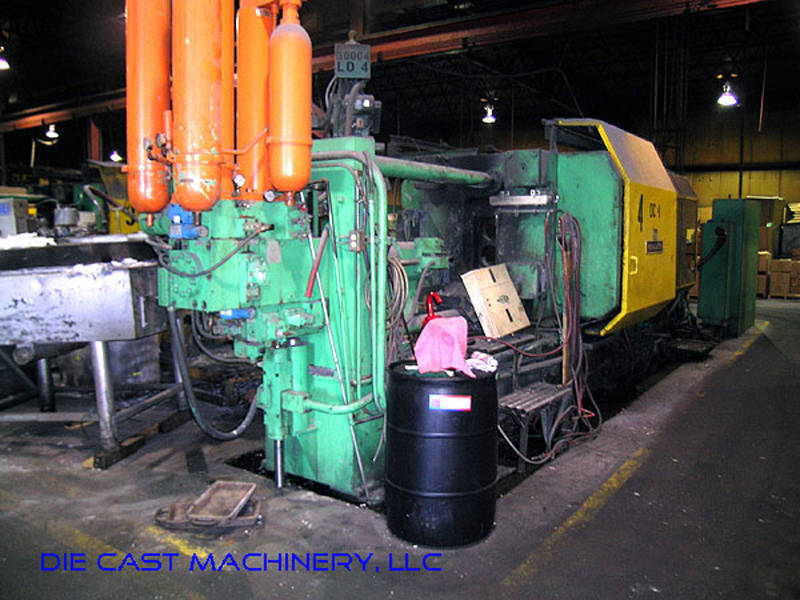

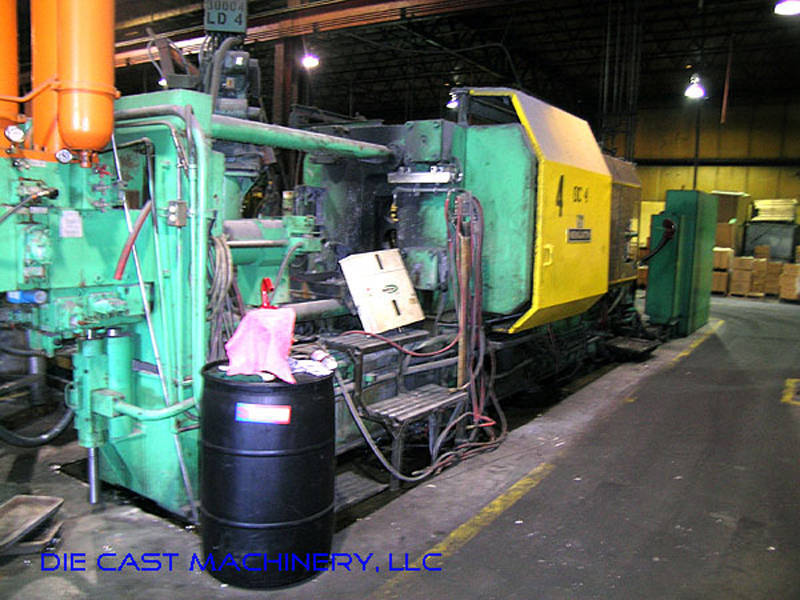

See photos of this Weingarten GDK600
