Trim Presses Corsteel 35 ton Hydraulic Trim Press - New in 1983 For Sale: One - Used - Second Hand - Corsteel 35 Ton Four Post Vertical Trim Press Inventory #: 2193 Condition: Used Sold 35 ton, 4-Post Hydraulic Trim Press used 1
Die Cast Machinery, LLC Inventory number: 2193
We offer for sale, subject to prior sale and the terms listed below:

For Sale: One - Used - Second Hand - Corsteel 35 Ton Four Post Vertical Trim Press

Corsteel 35 ton Hydraulic Trim Press - New in 1983

Status: Sold
Features & Accessories:
One (1) Core/Punch Circuit
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

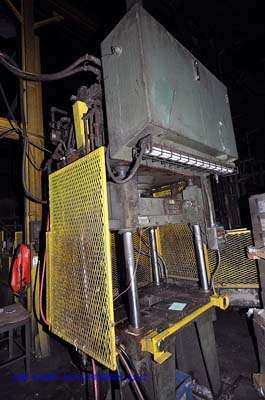

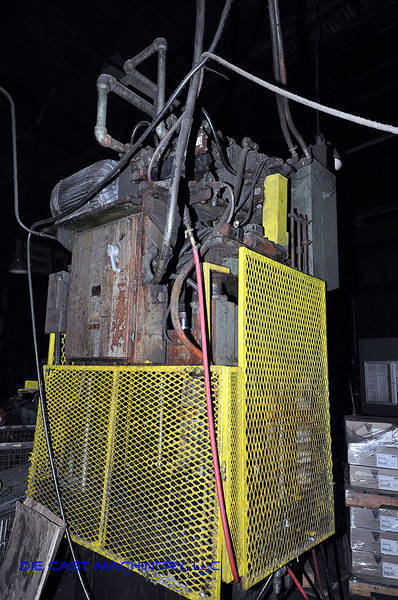

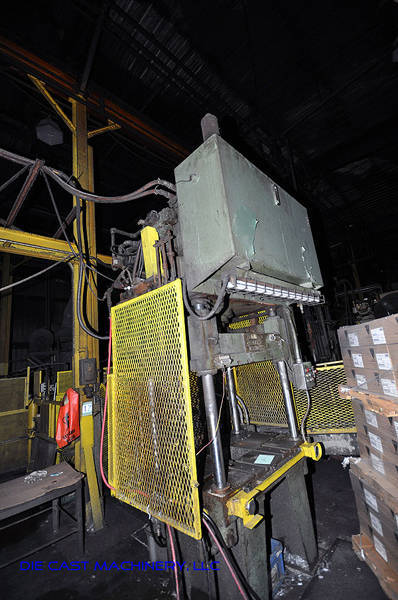

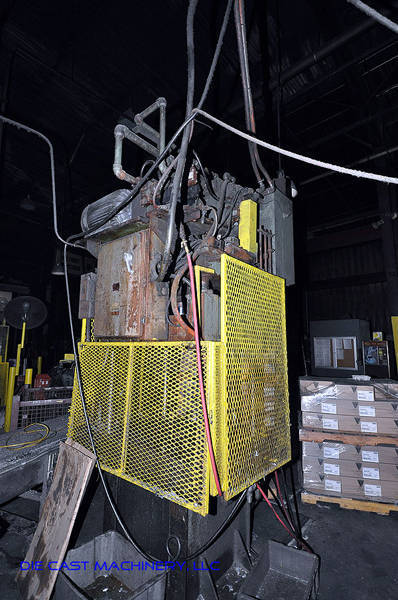

Description: One Used (second hand) Corsteel Model CHI-35 Vertical four post Hydraulic Die Cast Trimming Press, New in 1983, Rated at 35 tons, Serial Number 1074-8483, Equipped with Relay Controls, one (1) side core/punch circuit, Air Safety Ratchet Device, Dual Palm-Button Operation, Mechanical Ejection, Manual Lubrication System, T-Slotted Base Platen, T-Slotted Moving Platen, 38.5 inches (977 mm) left to right by 22.75 inches (577 mm) front to back clearance between tie bars, 48 inches (1219 mm) left to right by 32 inches (812 mm) front to back bed size, 30 inches (762 mm) of daylight, 12 inches (304 mm) of stroke, 18 inches (457 mm) shut height, 10 inches (254 mm) by 10 inches (254 mm) cut-out in base platen, Cell Number 5, DCM Inventory Number 2192.

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
