Used THT 100 Ton Vertical Cold Chamber Aluminum High Pressure Electric Motor Rotor Die Casting Machine


Print PDF!

Status: Available

We offer for sale, subject to prior sale and the terms listed below:

Used THT 100 Ton Vertical Cold Chamber Aluminum High Pressure Electric Motor Rotor Die Casting Machine. Inventory item: DCM-2694.

Manufacturer: THT

Model: 100 RC

Features & Accessories:

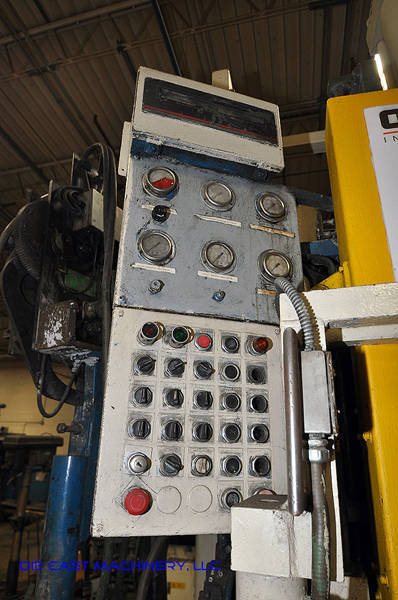

  • Allen Bradley SLC 5/03 Programmable Controls
  • Flexible Part Size Capability
  • Vertical Clamp - Vertical Shot

Item Specifications for DCM-2694

Specifications
Shot Cylinder Bore:
12 inches
Clamp Cylinder Bore:
12 inches
Shot Force at 124 bar:
100 Tons
Clamp Force at 124 bar:
100 Tons
Shot Sleeve Diameter:
7.5, 9, 11 inches
Shot Stroke:
0 - 5.90 inches
Clamp Cylinder Stroke:
0 - 23.62 inches
Maximum Shot Weight (independent of biscuit):
35.27 pounds

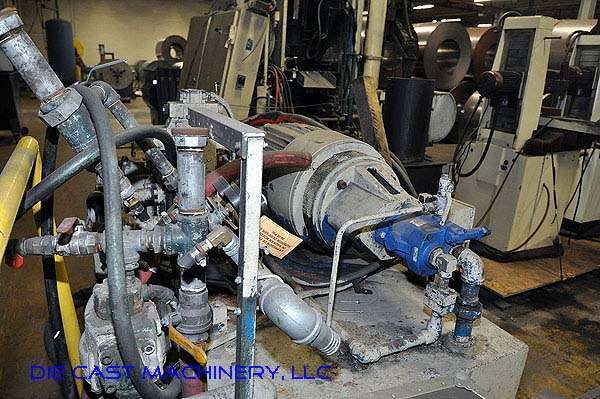

Hydraulic Pump Motor (gen1 power unit):
25 HP at 1000 RPM 380/3/50 HZ
Machine Power Requirements:
70 Amps at 380/3/50 HZ
Cooling Water Requirements:
40 LPM at 4 bar, water temperature 25 deg C

Shipping Terms: F.O.B. Warehouse

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, THT Model 100 RC 100 Ton Vertical Cold Chamber Aluminum High Pressure Electric Motor Rotor Die Casting Machine For Sale, Features include: Allen Bradley SLC 5/03 Programmable Controls, Flexible Part Size Capability, Vertical Clamp - Vertical Shot Allen Bradley SLC 5/03 Controls, Second Hand, DCM-2694

The following technical terms are to assist you with searches: Used | Second Hand | THT |100 RC | 100 Ton | Vertical Cold Chamber Aluminum High Pressure Electric Motor Rotor Die Casting Machine | For Sale | Allen Bradley SLC 5/03 Programmable Controls | Flexible Part Size Capability | Vertical Clamp - Vertical Shot Allen Bradley SLC 5/03 Controls | DCM-2694

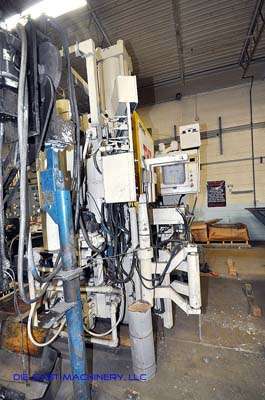

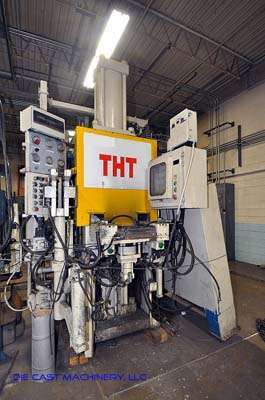

See photos of this THT 100 RC
