Used Toshiba Model: DC250J-S 250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Toshiba

Model: DC250J-S

Size: 250 Metric Ton

Inventory Number: DCM-2906

Used Toshiba Model: DC250J-S 250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

View Available Cold Chamber Die Casting Machines

Features & Accessories:

  • Year New 2002
  • Electric Motorized Die Height Adjustment
  • Core Circuits
  • Hydraulic Ejection

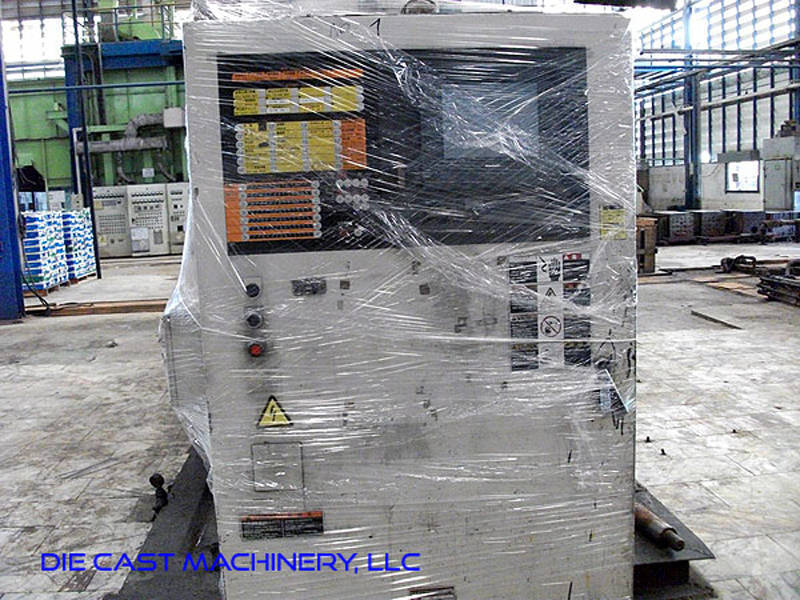

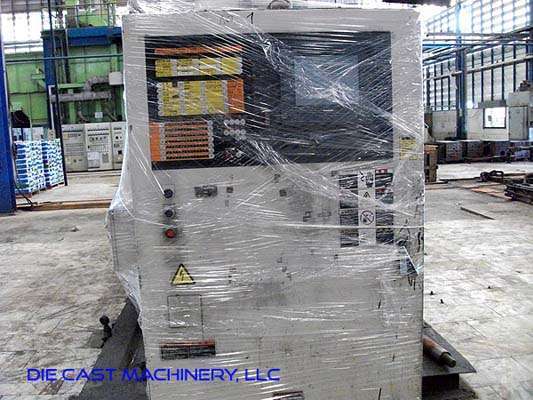

  • Toshiba PLC Controls

Item Specifications for DCM-2906

Locking Force:
281 tons

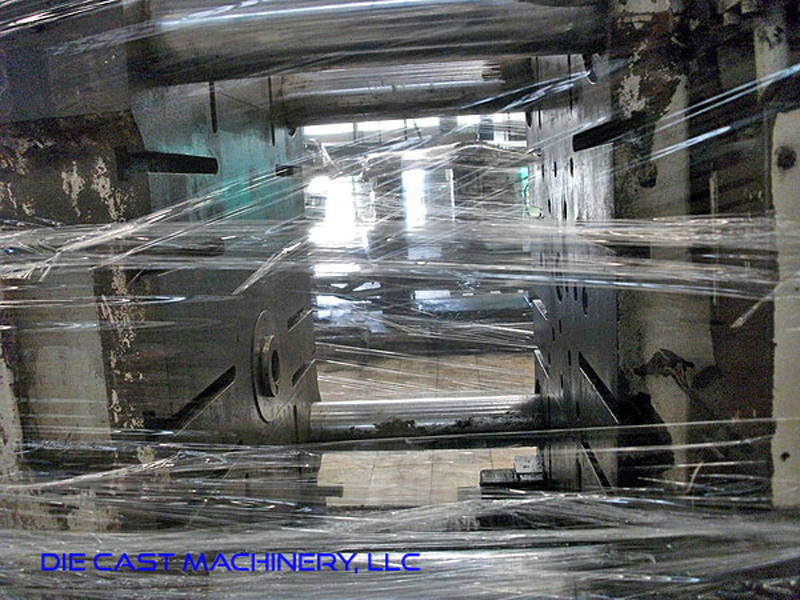

Platen Size:
33.4 x 33.4 inches
Clearance Between Tie Bars:
22.8 x 22.8 inches
Die Stroke (max - min):
14 inches
Die Height (max - min):
11.8 - 27.5 inches
Injection Force:
30 tons
Shot Positions:
-2.9 inches
Ejection Stroke:
.79 - 3.1 inches
Ejection Force:
13.9 tons
Machine Weight:
16.5 tons
Machine Size:
17.8 x 5.5 x 8.6 feet

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.


Used, Toshiba Model DC250J-S 250 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Core Circuits, Hydraulic Ejection, Toshiba PLC Controls, Toshiba PLC controls, second Hand, DCM-2906

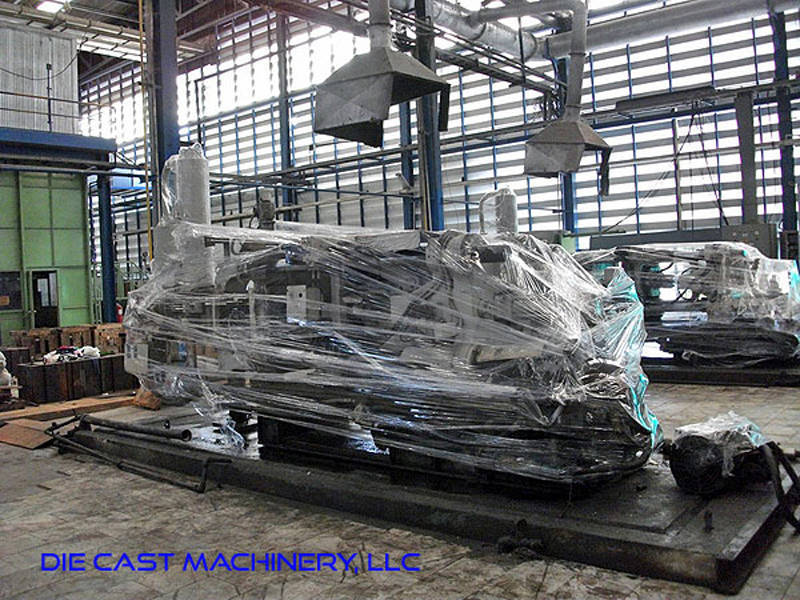

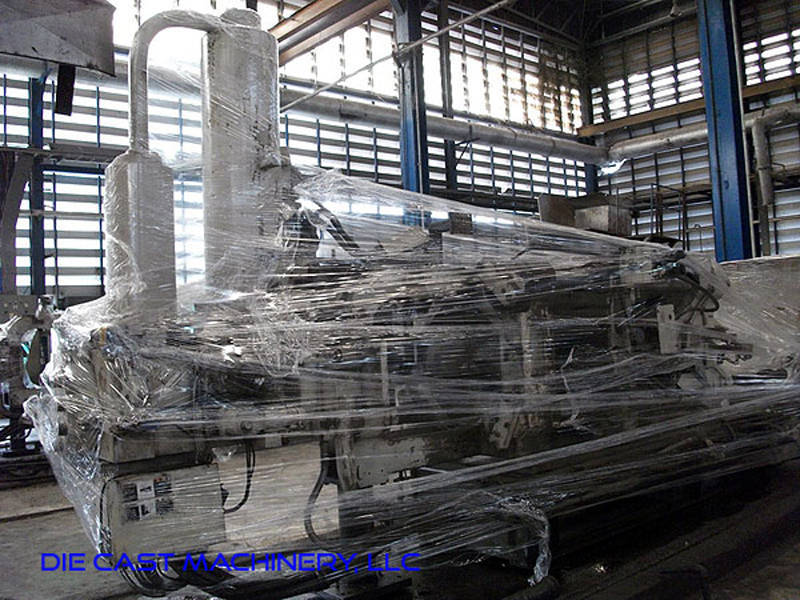

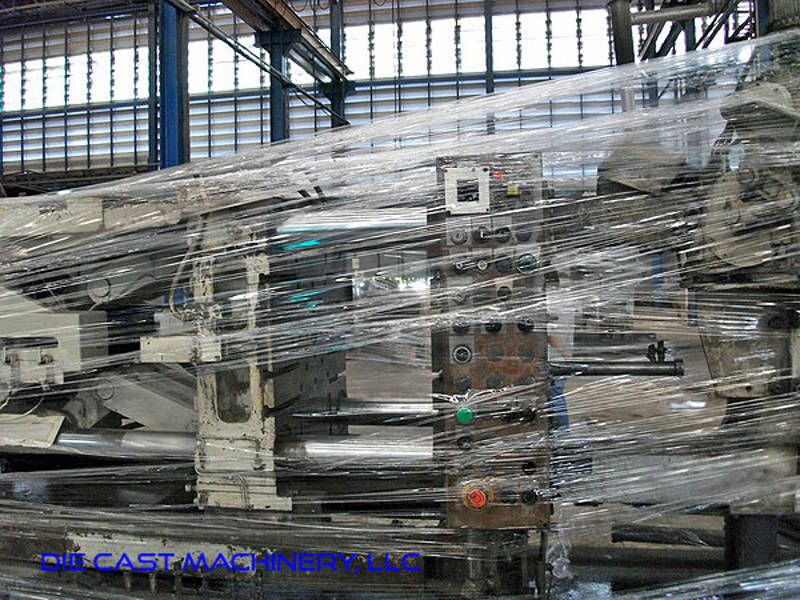

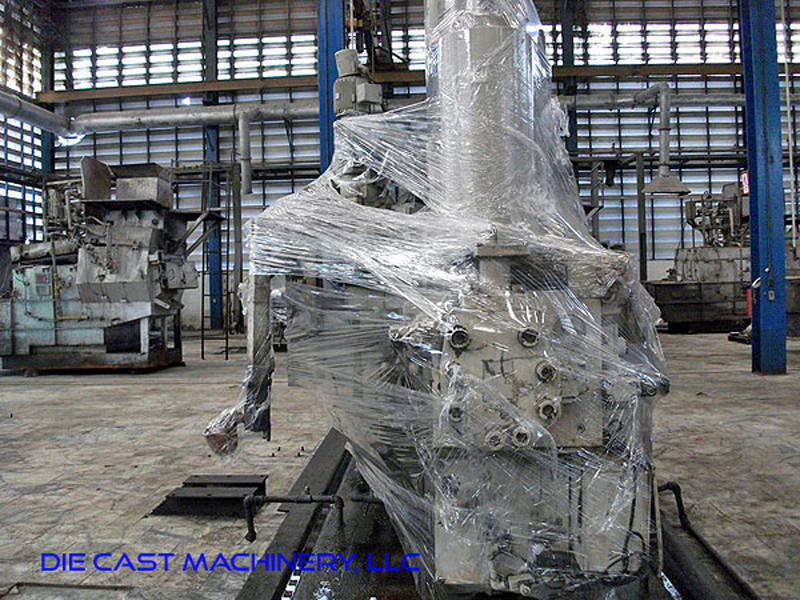

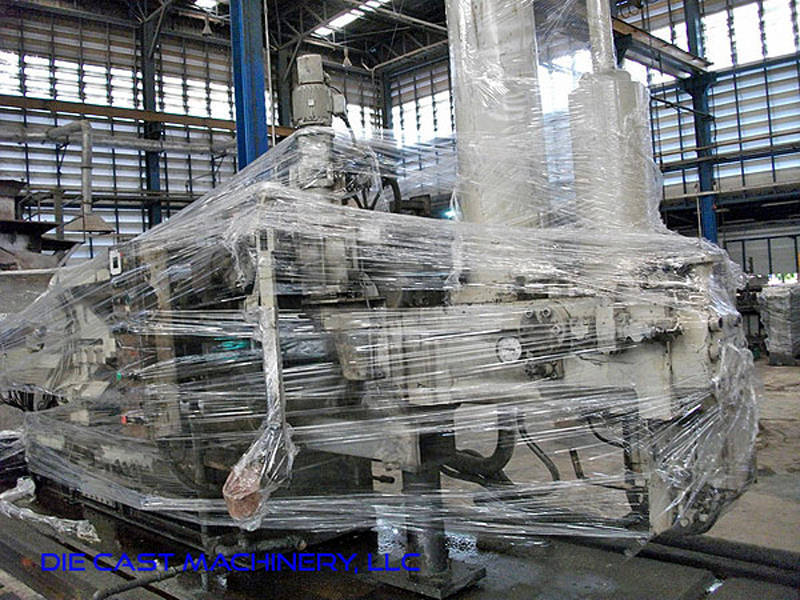

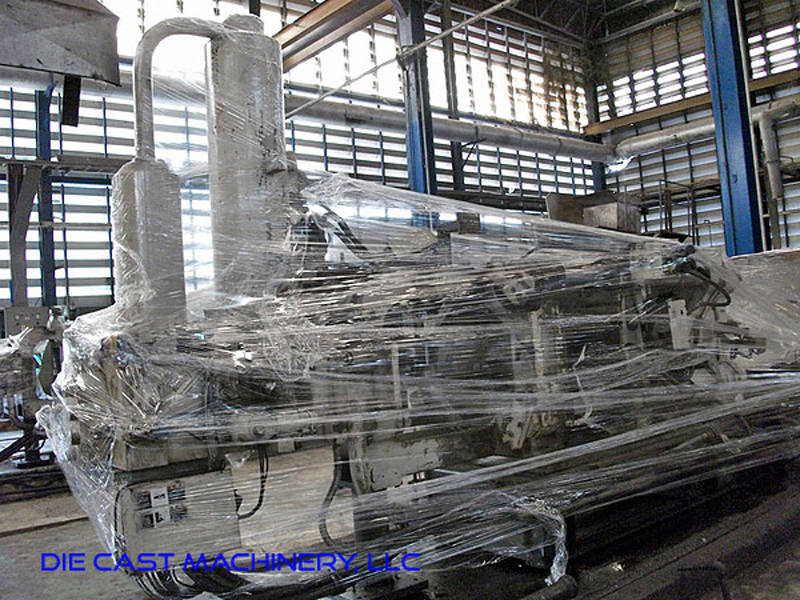

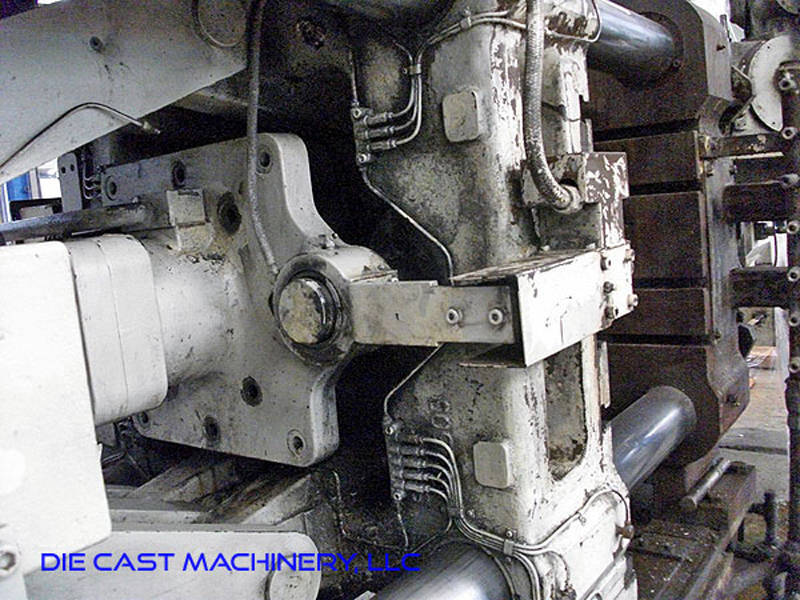

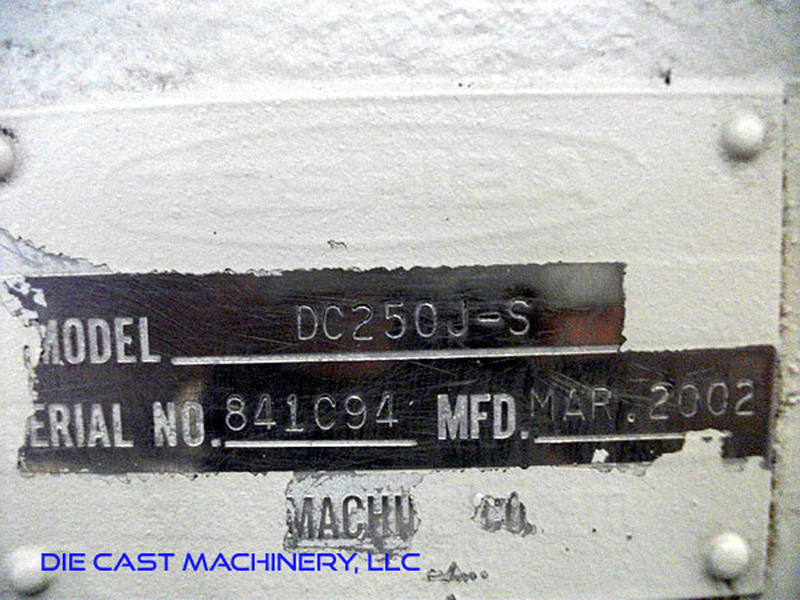

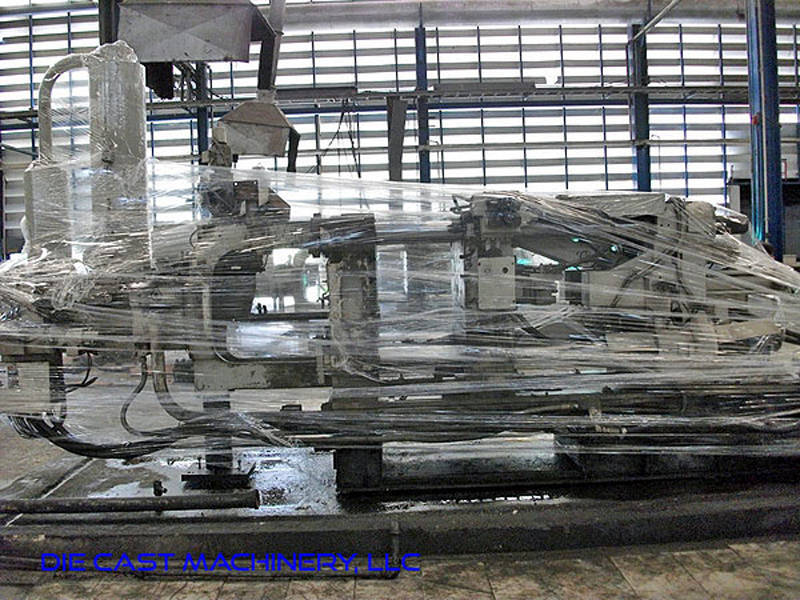

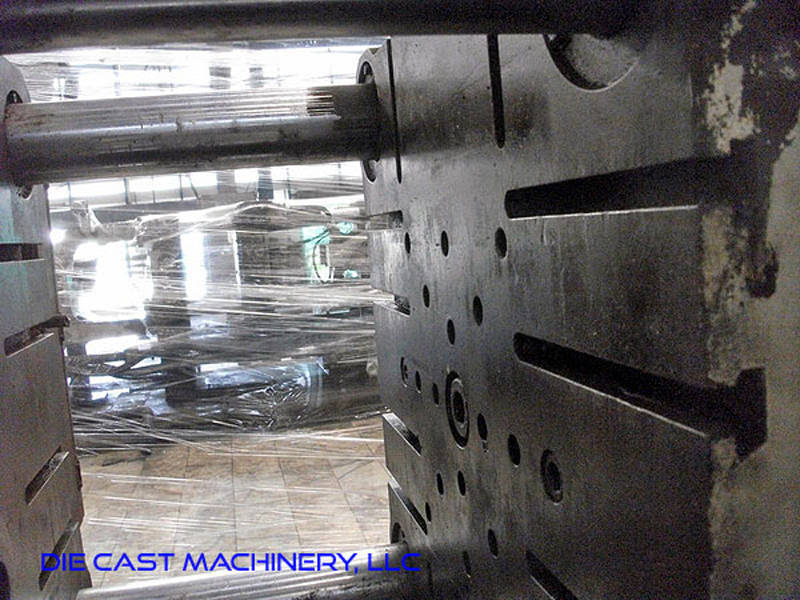

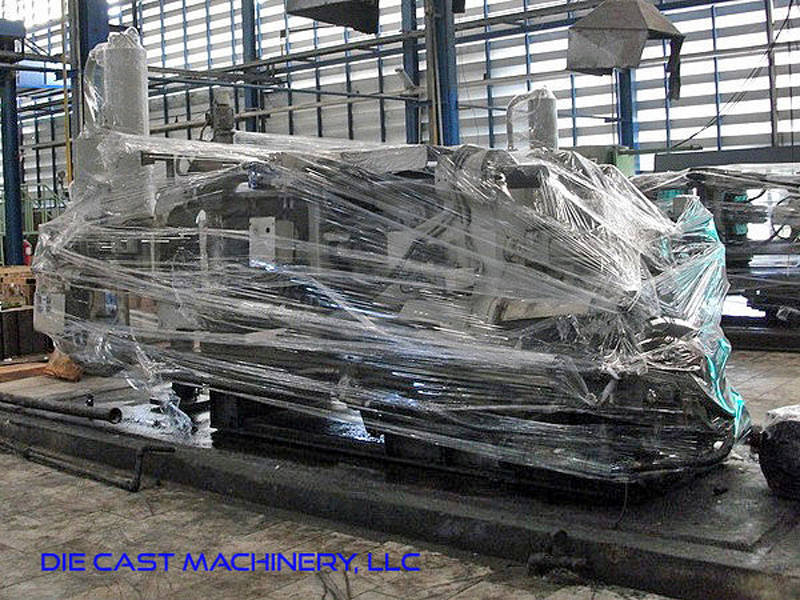

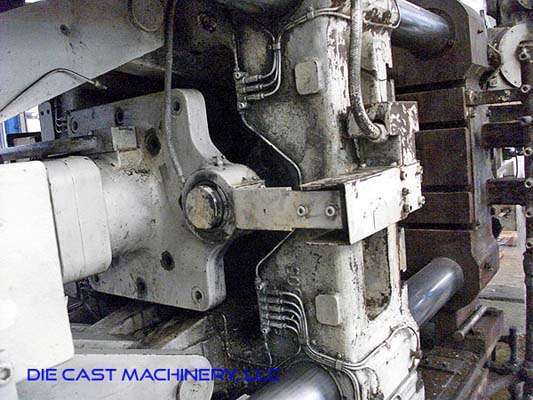

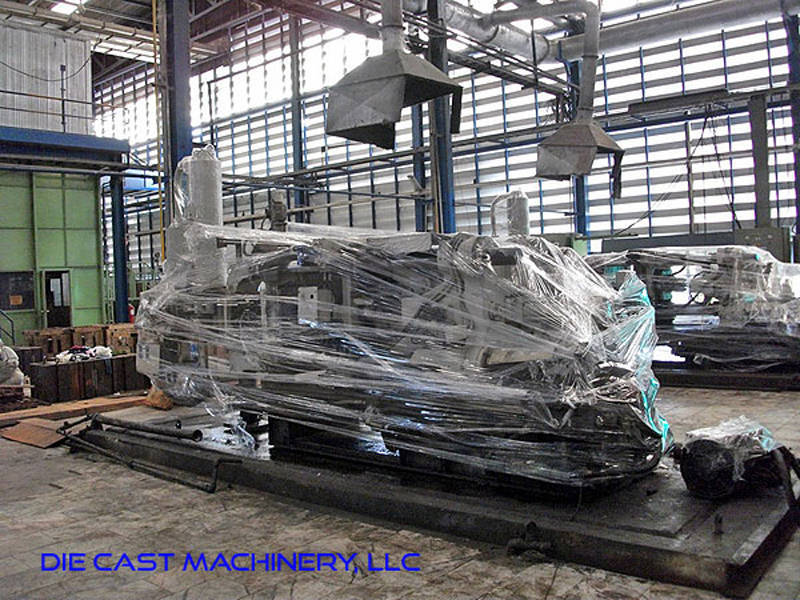

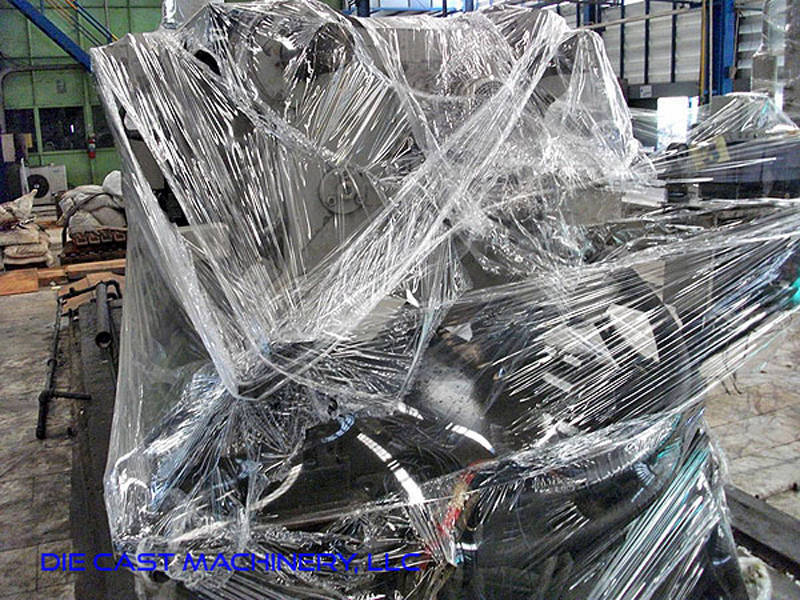

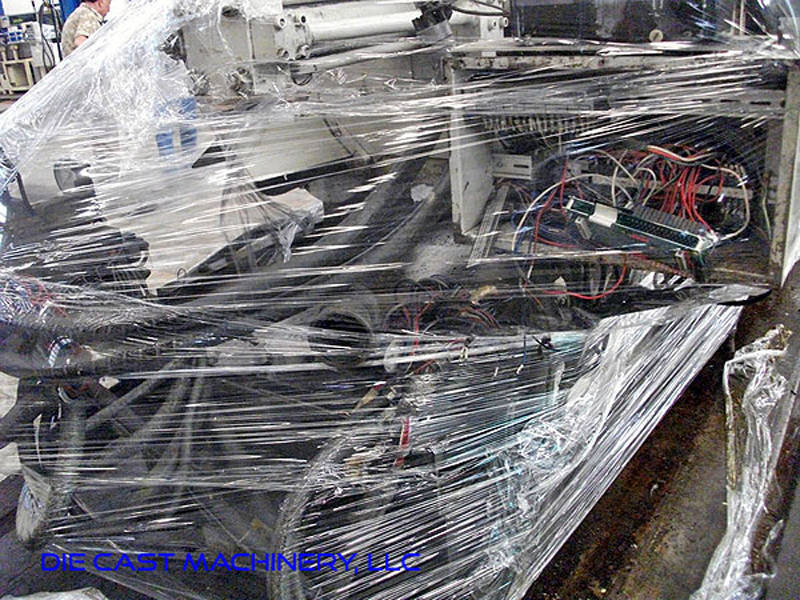

See jumbo large photos of this Toshiba DC250J-S
