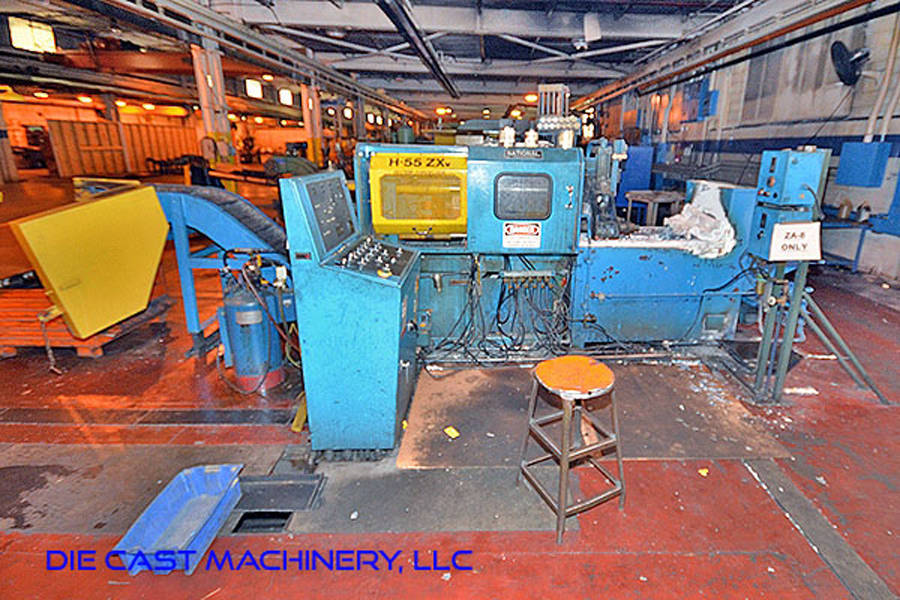

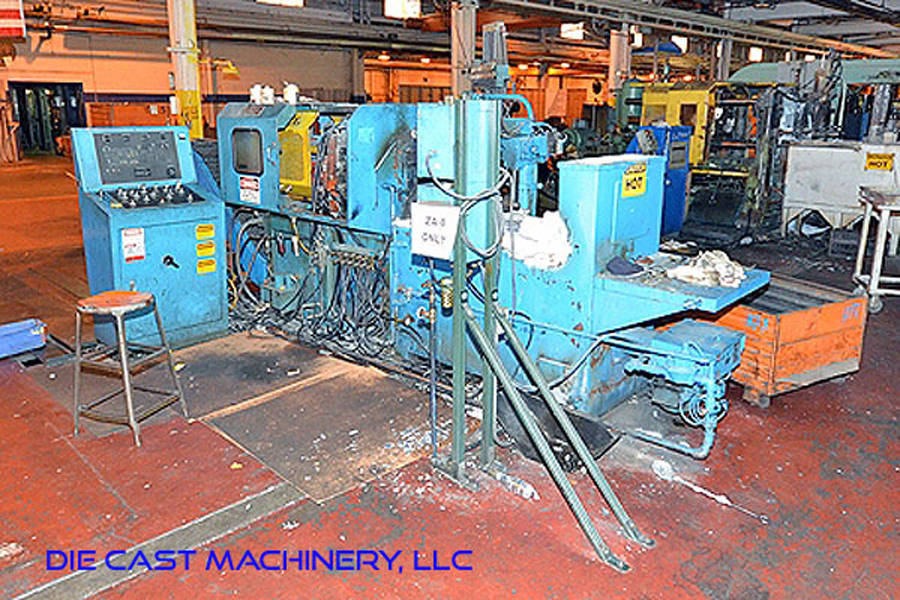

Used National Model: H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

Print PDF

Status: Sold

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: National

Model: H-55-ZX

Size: 65 Ton

Inventory Number: DCM-2944

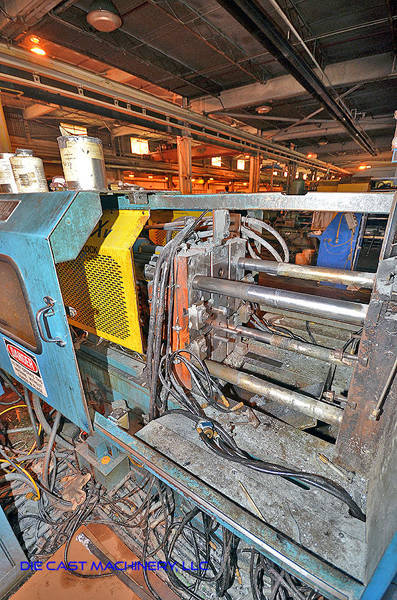

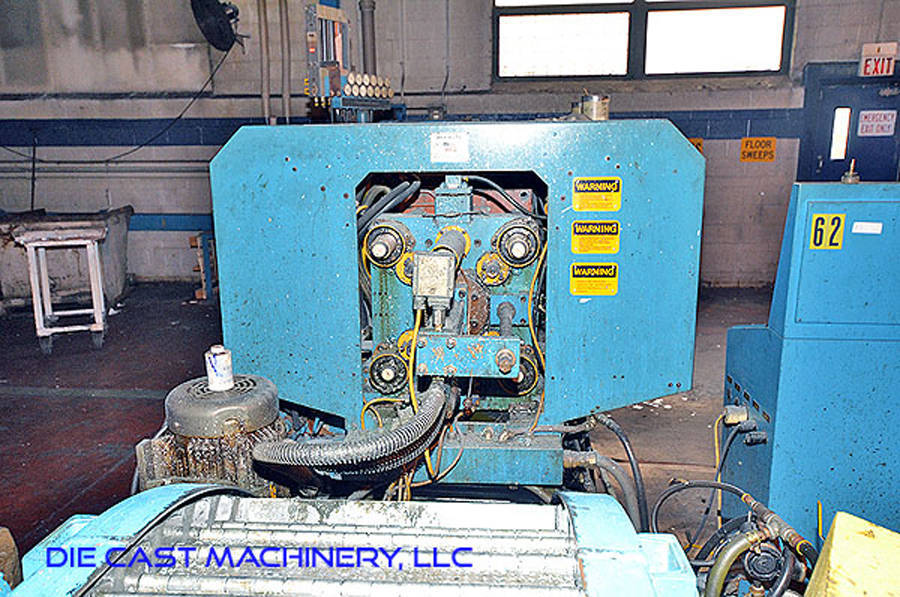

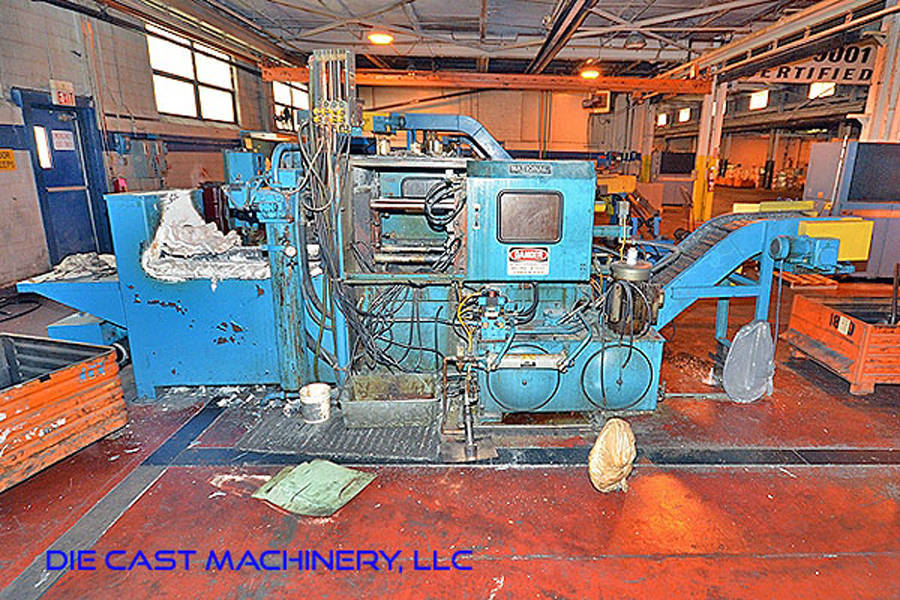

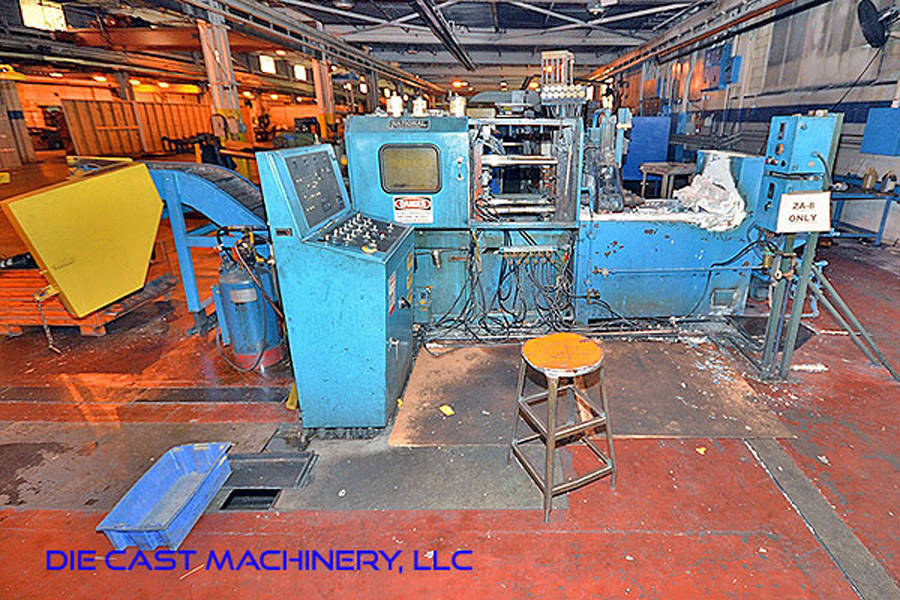

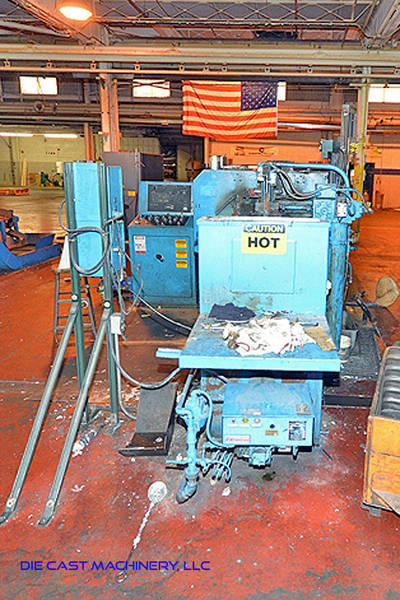

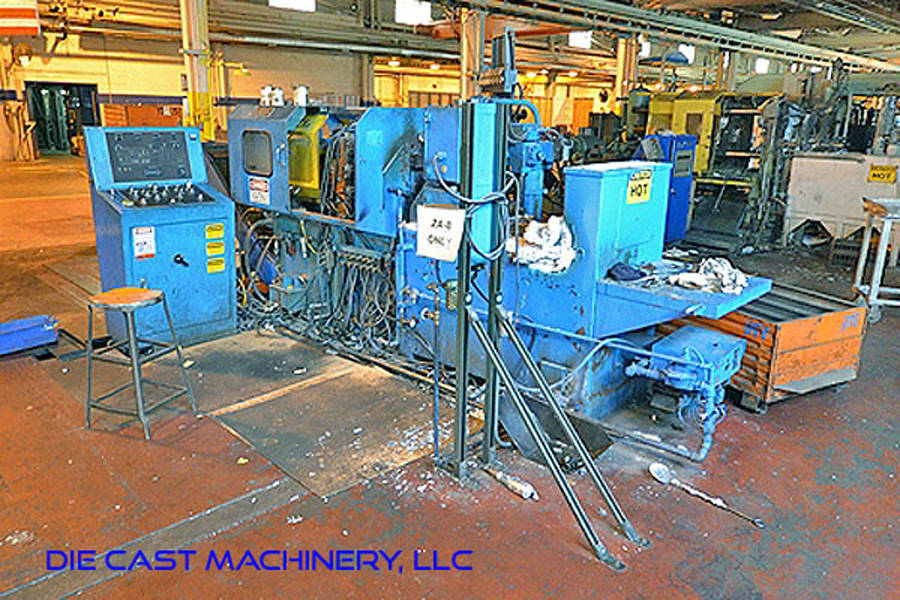

Used National Model: H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine.

View Available Hot Chamber Die Casting Machines

Features & Accessories:

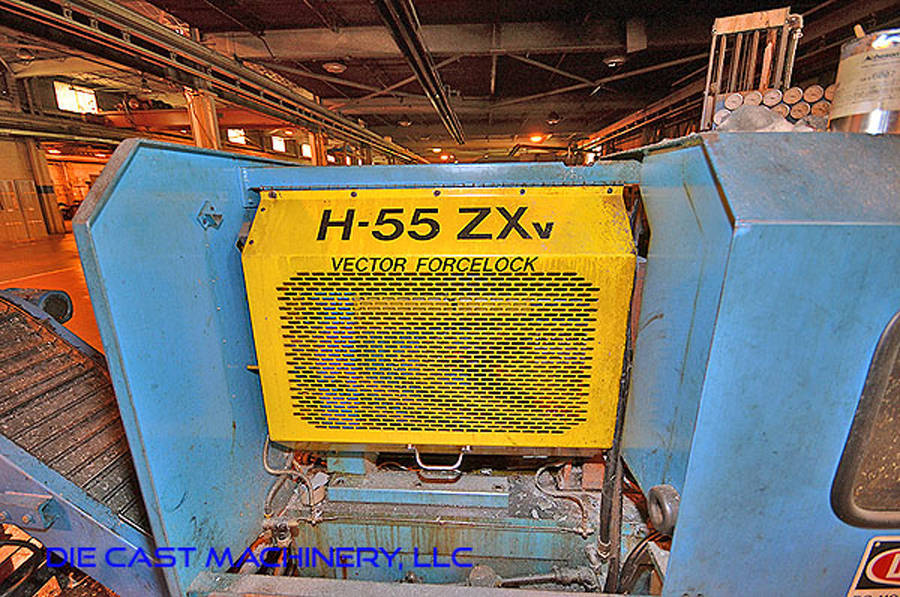

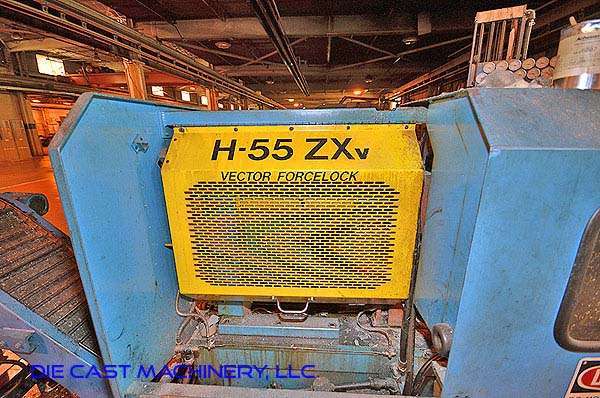

  • Vector-Lock Die Cast Machine

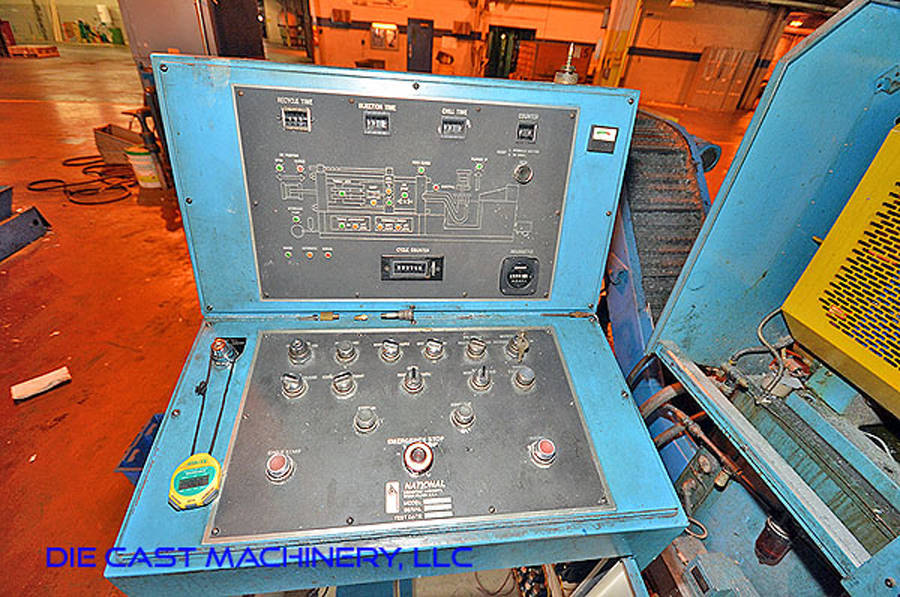

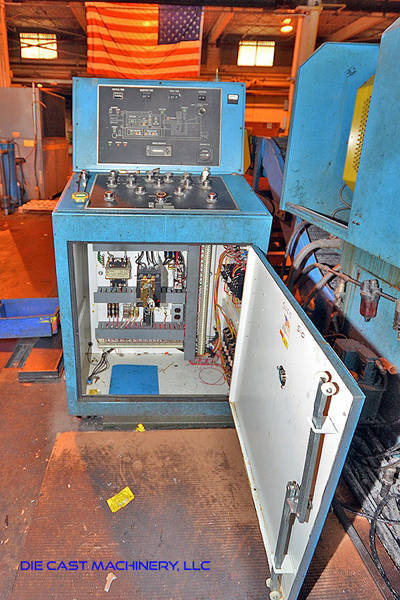

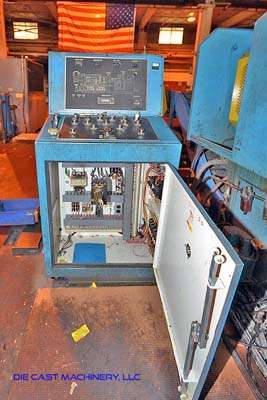

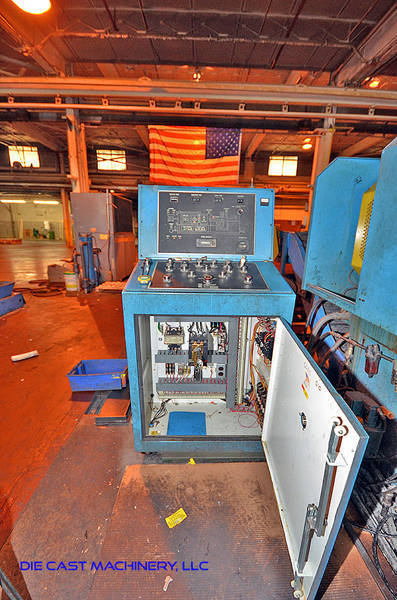

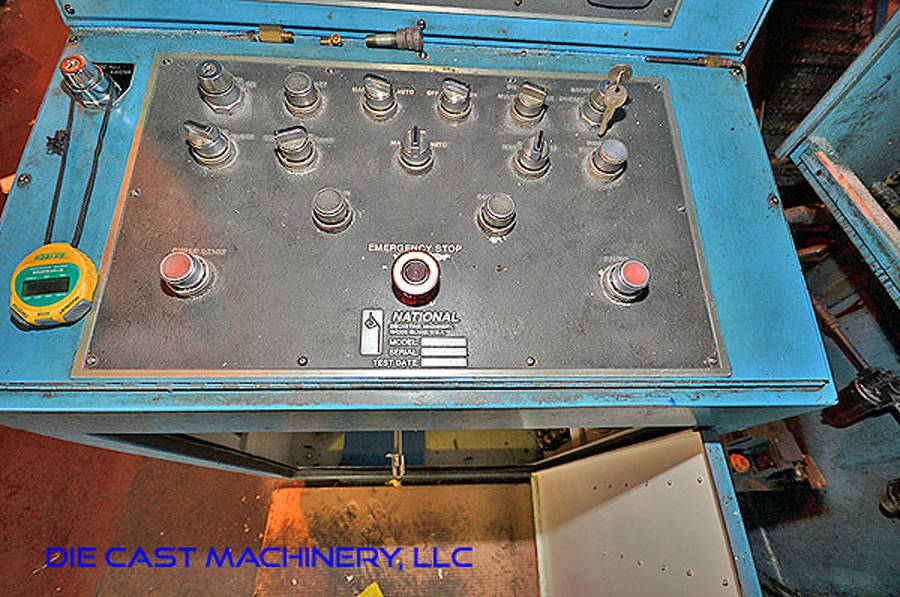

  • Allen-Bradley SLC 5/03 SLC Controls

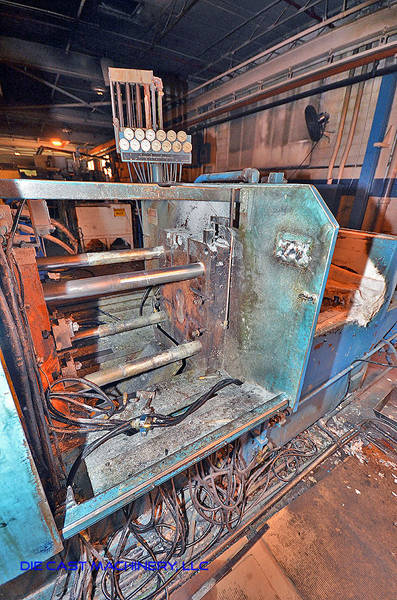

  • Mechanical Dial Tie Bar Strain Gauges
  • Single Point Manual Die Height Adjustment
  • Air Safety Ratchet
  • Hydraulic Bumper Plate Ejection
  • Bijur Automatic Linkage Lubrication System

Item Specifications for DCM-2944

Clamping Force:
64.8 tons
Clamping Cylinder Diameter:
2.5 inches
Tie Bar Centers (V x H):
14.5 x 16.4 inches
Tie Bar Diameter:
2.25 inches
Distance Between Tie Bars (V x H):
12.25 x 12.25
Fixed Platen Dimensions:
22.25 x 19 x 4 inches
Moving Platen Dimension:
21 x 19 x 4 inches
Die Height (minimum - maximum):
5 - 14 inches
Motor Rating:
7.5 HP
Machine Size:
16.6 x 4.3 x 6 feet
Machine Weight:
8,750 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.


Used, National Model H-55-ZX 65 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Allen-Bradley SLC 5/03 SLC Controls, Mechanical Dial Tie Bar Strain Gauges, Single Point Manual Die Height Adjustment, Air Safety Ratchet, Hydraulic Bumper Plate Ejection, Bijur Automatic Linkage Lubrication System, Allen Bradley SLC 5/03 SLC controls, second Hand, DCM-2944

See jumbo large photos of this National H-55-ZX
