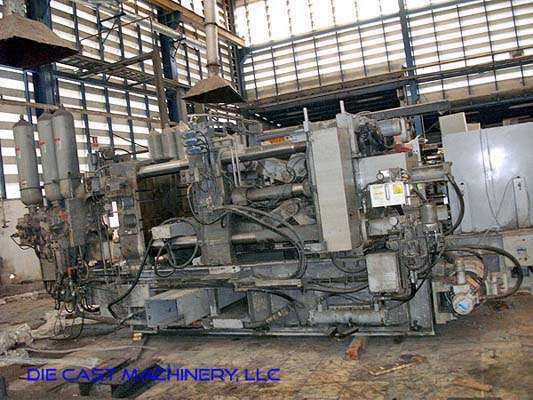

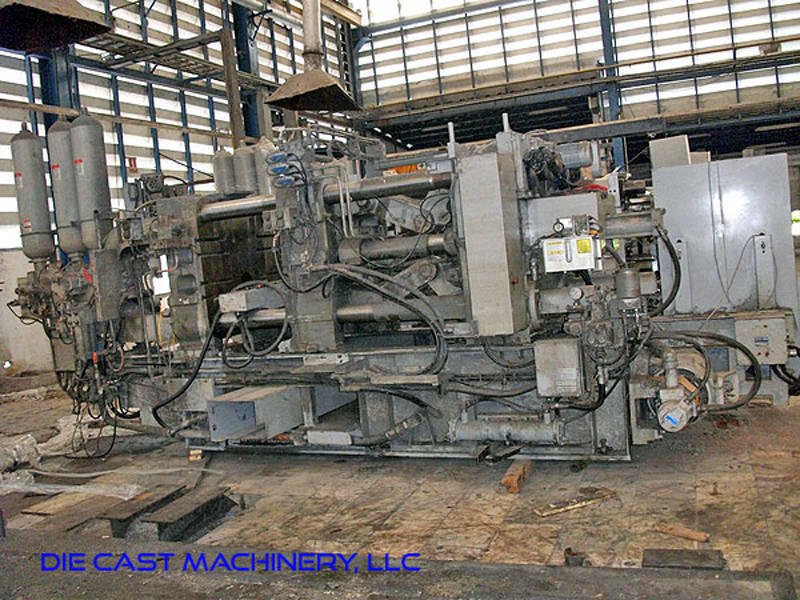

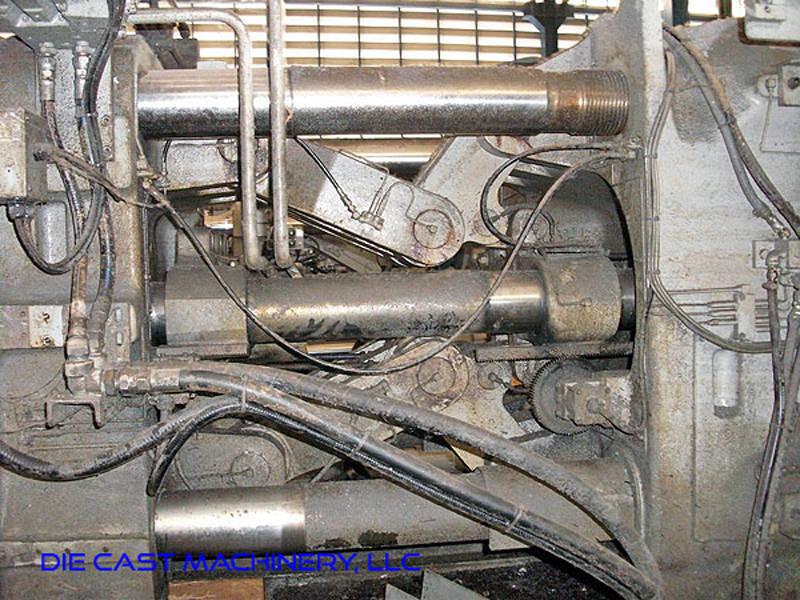

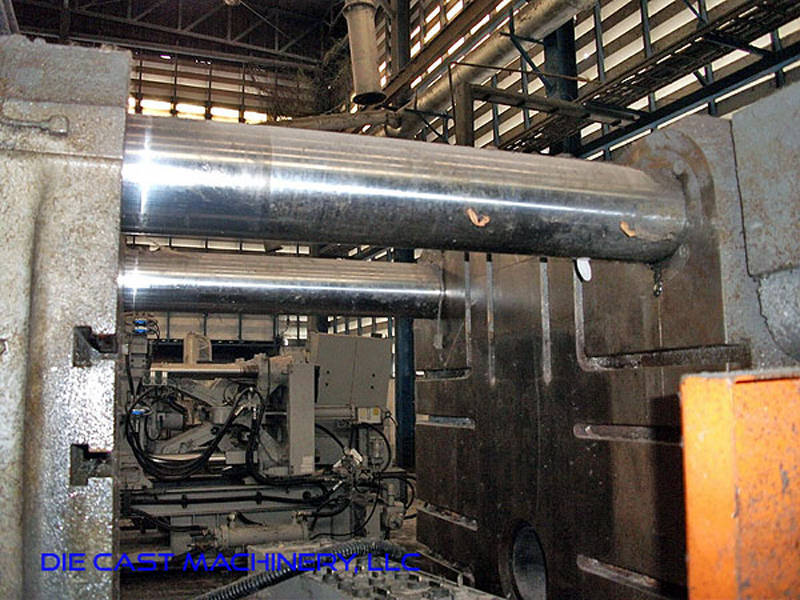

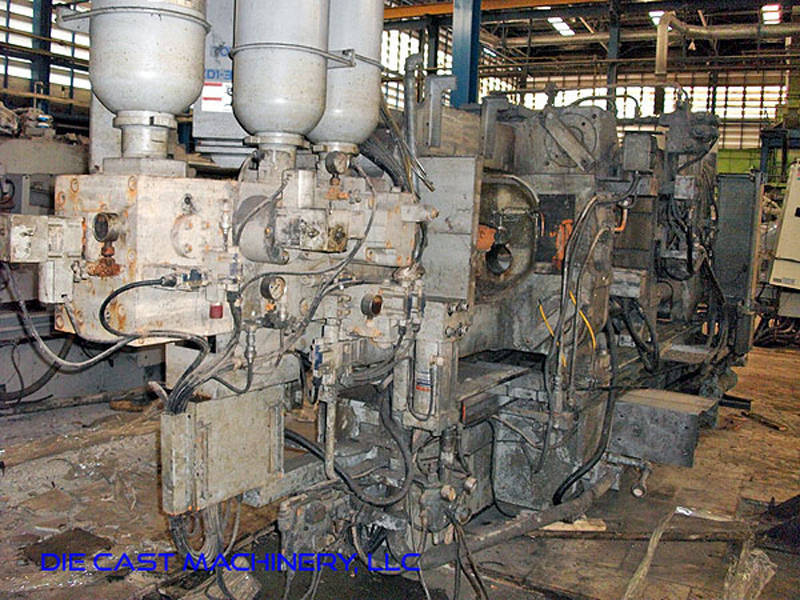

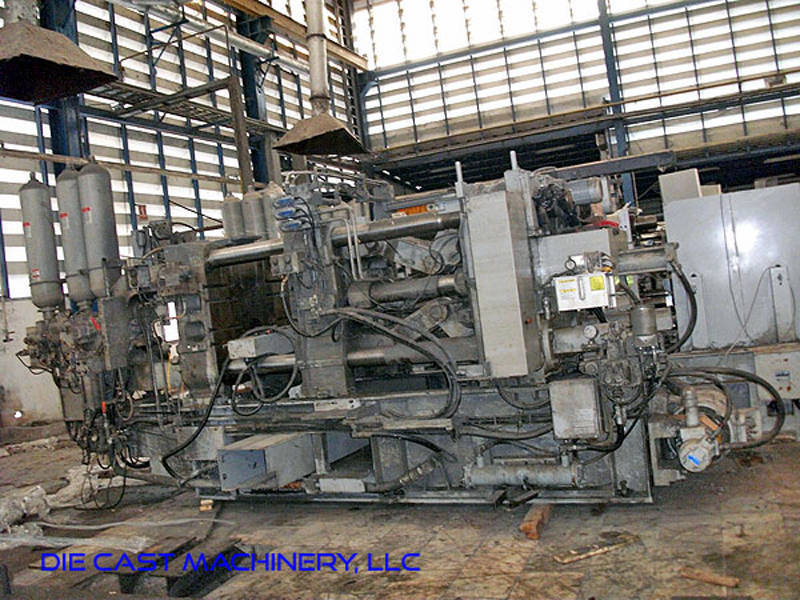

Used Toyo Machinery Model: BD-350V4-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Toyo Machinery

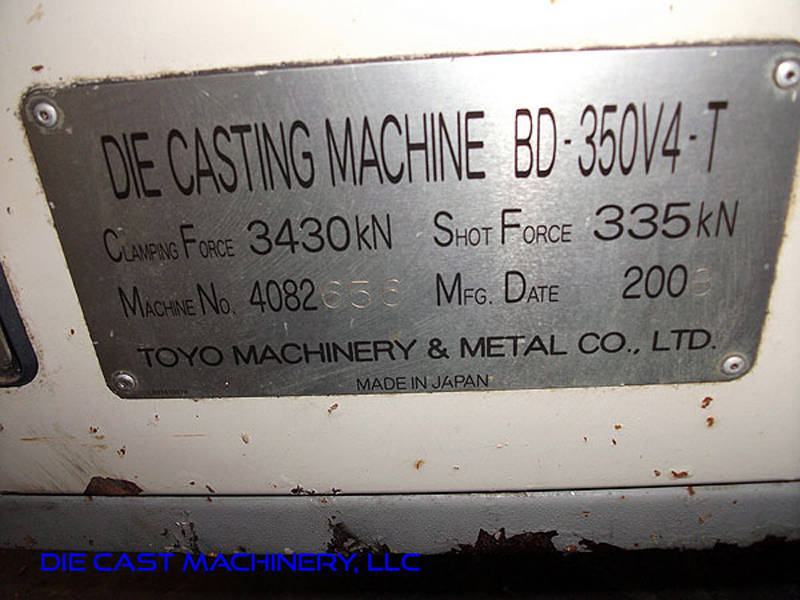

Model: BD-350V4-T
Size: 350 Metric Ton
Inventory Number: DCM-2986
Used Toyo Machinery Model: BD-350V4-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:
- Year New 2008
- Hydraulic Bumper Plate Ejection System

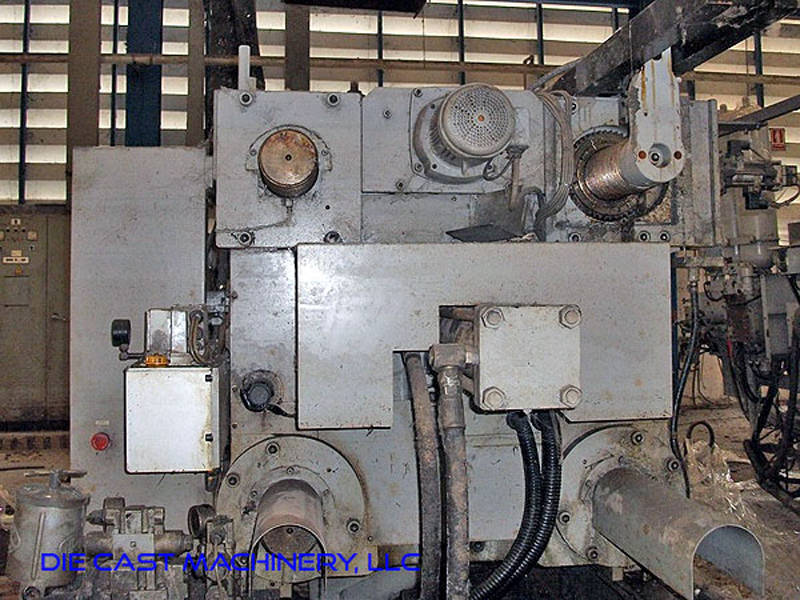

- Electric Motorized Die Height Adjustment

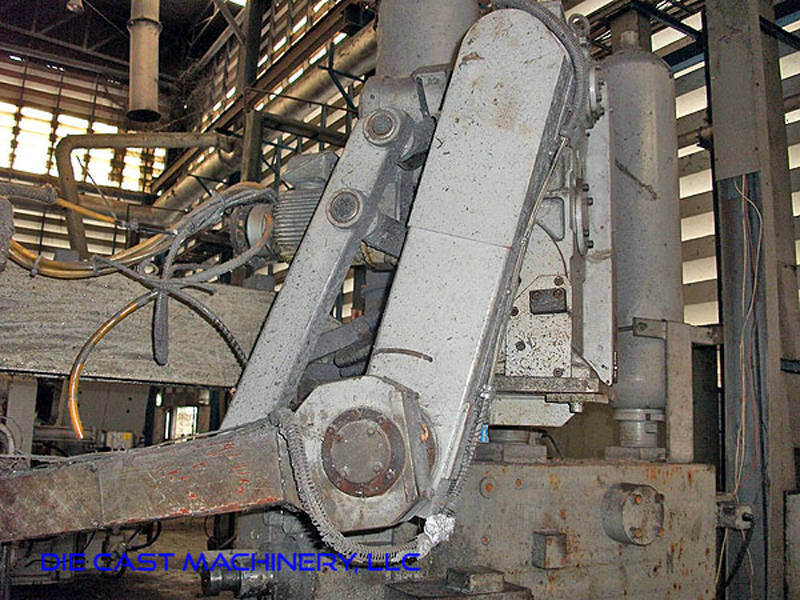

- Toyo Factory Installed Operator Side Automatic Ladle (auto-ladle)
- Automatic oil type pressurized Lubrication System
- Three (3) Auxiliary Hydraulic Core Circuit - Two (2) on Moving Platen, One (1) on Stationary

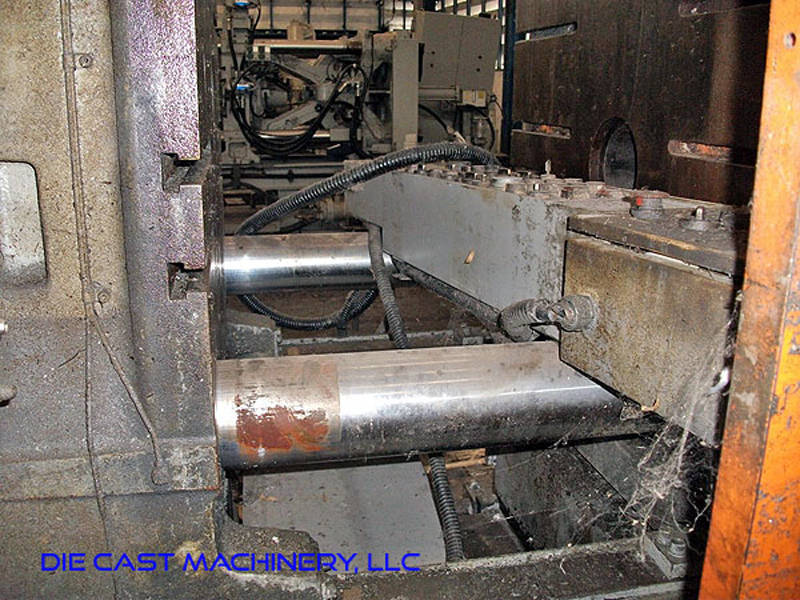

- Top Operator Side Automatic Tie Bar Puller (Tie Bar Drawing)
Item Specifications for DCM-2986
| Specifications | |
|---|---|
| Locking Force: |
385 tons
|

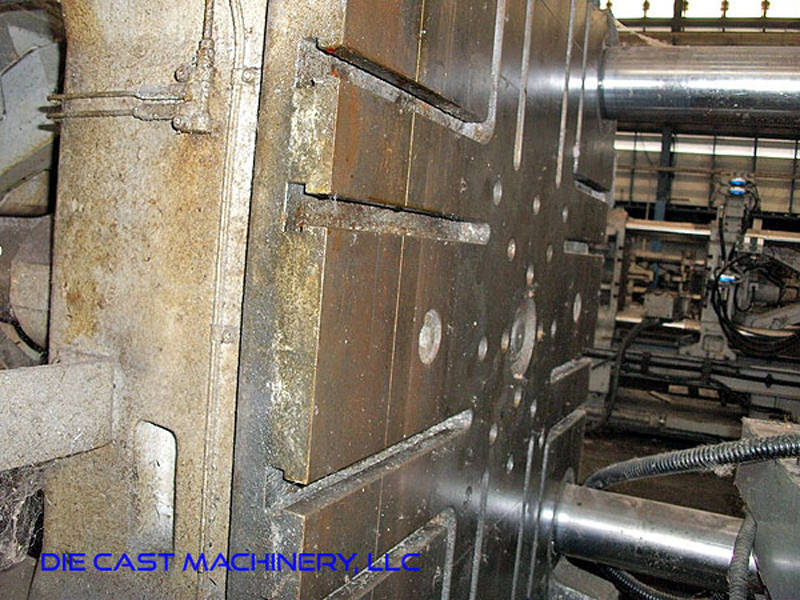

| Platen Size: |
36.8 x 39.6 inches
|
| Clearance Between Tie Bars (V x H): |
25.6 x 25.6 inches
|
| Die Stroke (max - min): |
16.5 - 11.8 inches
|
| Die Height (min - max): |
11.8 - 27.5 inches
|
| Injection Force: |
37.6 tons
|
| Shot Positions: |
-5.9 inches
|
| Ejection Stroke: |
0 - 3.9 inches
|
| Ejection Force: |
20.5 tons
|
| Number of Core Circuits: |
3
|
| Machine Weight: |
32,999 pounds
|
| Machine Size: |
21.2 x 6.2 x 13.9 feet
|
Description
Used, Toyo Machinery Model BD-350V4-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Bumper Plate Ejection System, Electric Motorized Die Height Adjustment, Toyo Factory Installed Operator Side Automatic Ladle (auto-ladle), Automatic oil type pressurized Lubrication System, Three (3) Auxiliary Hydraulic Core Circuit - Two (2) on Moving Platen, One (1) on Stationary, Top Operator Side Automatic Tie Bar Puller (Tie Bar Drawing), Toyo Programmable controls, second Hand, DCM-2986
