Trim Presses For Sale: One - Used - Second Hand - Neff 50 ton Four Post Vertical Trim Press DCM 3013 Inventory #: 3013 Condition: Used Sold 50 ton Four Post Vertical Trim Press DCM 3013 used 1
Die Cast Machinery, LLC Inventory number: 3013
We offer for sale, subject to prior sale and the terms listed below:

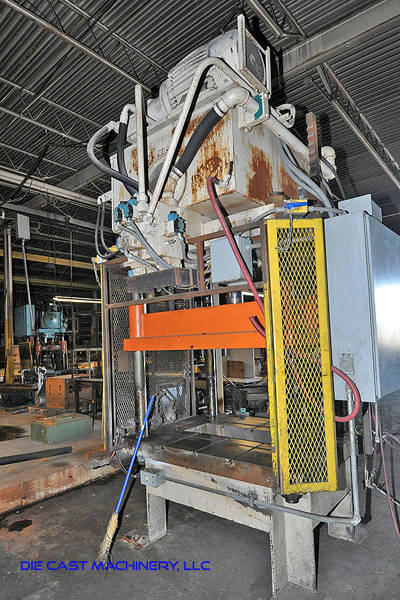

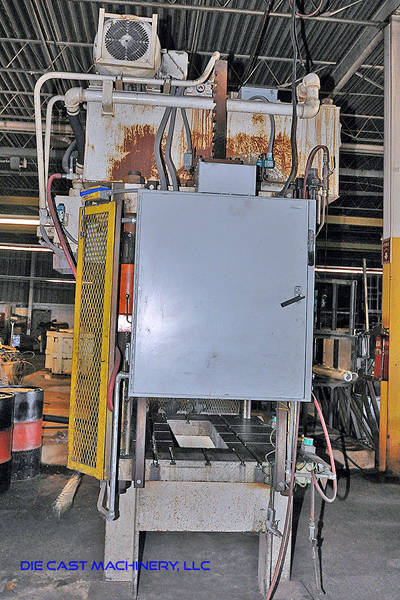

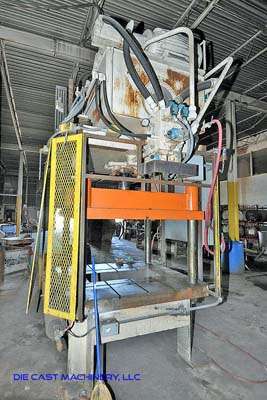

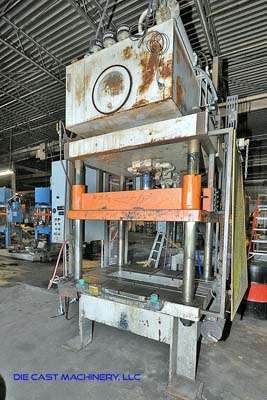

For Sale: One - Used - Second Hand - Neff 50 ton Four Post Vertical Trim Press DCM 3013

Status: Sold
Specifications: Metric / U.S. Standard
Model: 50 / 50
Pressing Tonnage: 45 tons / 50 ton
Number of Columns: 4 / 4
Daylight: 914 mm / 36 inches
Stroke: 508 mm / 20 inches
Shut Height: 406 mm / 16 inches
Clearance between Tie Bars (Left to Right): 1219 mm / 48 inches
Clearance between Tie Bars (Front to Back): 914 mm / 36 inches
Bed Size (Left to Right by Front to Back): 1574 x 1270 inches / 62 x 50 inches

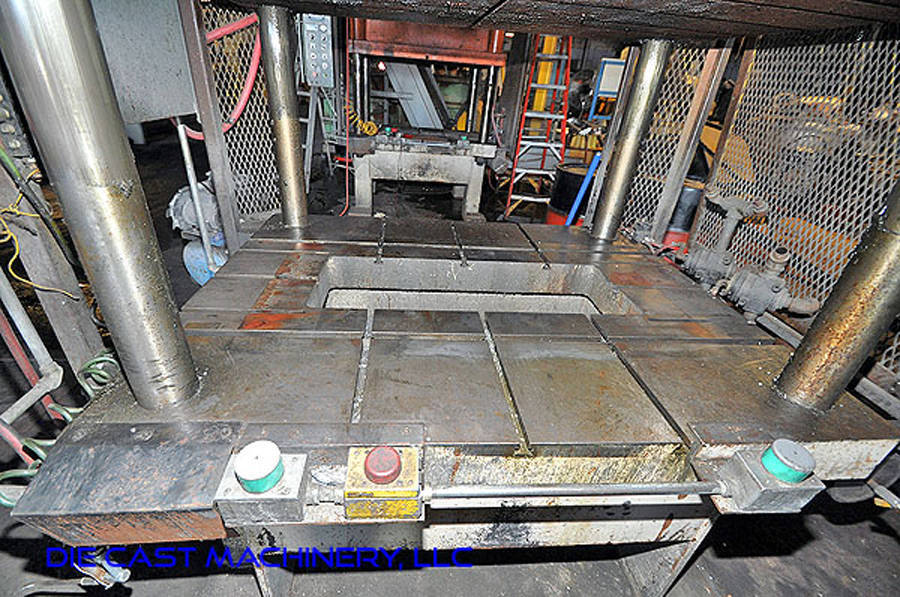

Cut out Size in Bed (Left to Right by Front to Back): 965 x 355 mm / 38 x 14 inches
Overall Height: 4.57 meters / 15 feet
Features & Accessories:
Air Safety Ratchet

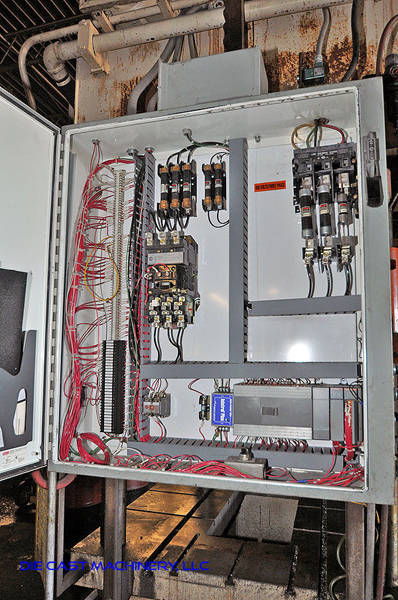

Allen Bradley SLC 5/03 Controls

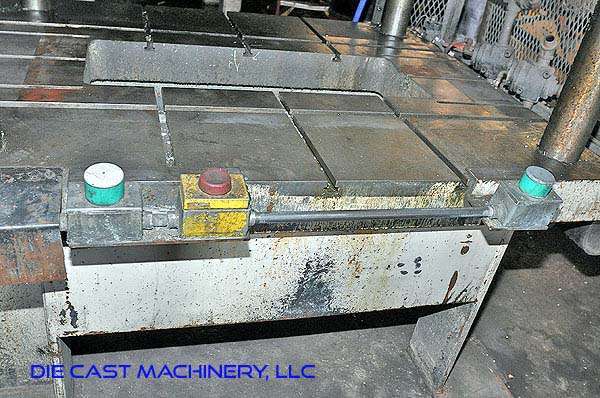

Dual Palm Buttons

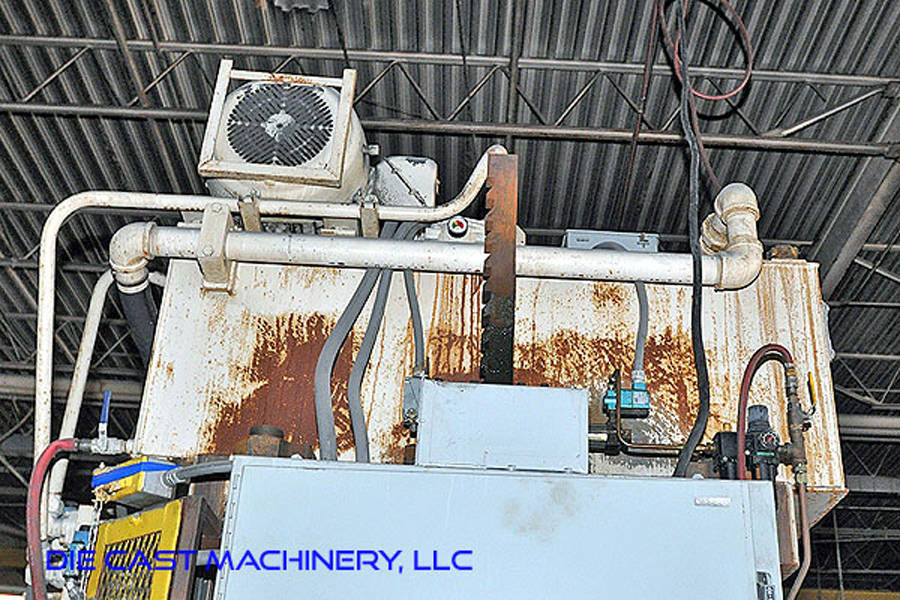

Top Mounted Hydraulics
T-Slotted Platens
Terms of Sale:
Price: request quotation
Shipping Terms: F.O.B. Location

Description: One Used (Second Hand) Neff 50 ton Four Post Hydraulic Vertical Trim Press. DCM 3013


PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
