Used Ube Model: UB 800 G 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Ube

Model: UB 800 G

Size: 800 Metric Ton

Inventory Number: DCM-3592

Used Ube Model: UB 800 G 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

Features & Accessories:

  • Electric Motorized Die Height Adjustment System
  • Hydraulic Bumper Plate Ejection System
  • Ube Factory Installed Operator Side Automatic Ladler
  • Ube Factory Installed Die Sprayer
  • Oil Type Automatic Machine Lubrication System
  • Top Operator Side Automatic Tie Bar Puller

Item Specifications for DCM-3592

Specifications
Locking Force:
882 tons
Tie Bar Diameter:
7.1 inches
Tie Bar Clearance (vertical x horizontal):
33.5 x 33.5 inches
Die Thickness (minimum - maximum):
15.7 - 37.4 inches
Die Stroke (minimum - maximum):
29.9 inches
Moving Platen Size (vertical x horizontal):
53.1 x 53.1 inches
Shot Position:
-9.8 inches
Shot Injection Speed
14.8 ft/sec
Machine Size (LxWxH):
34 x 9.42 x 12.81 feet
Machine Weight:
77,200 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

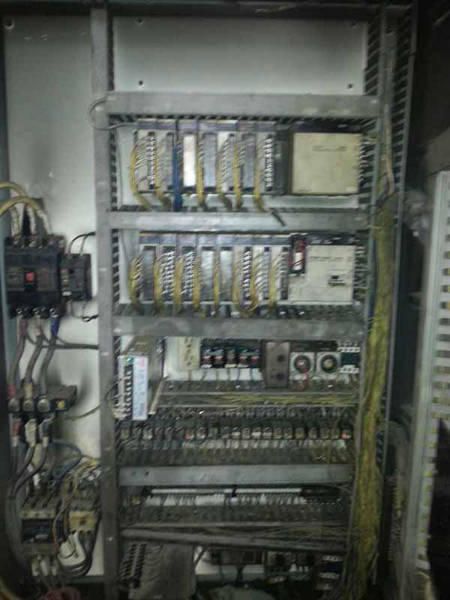

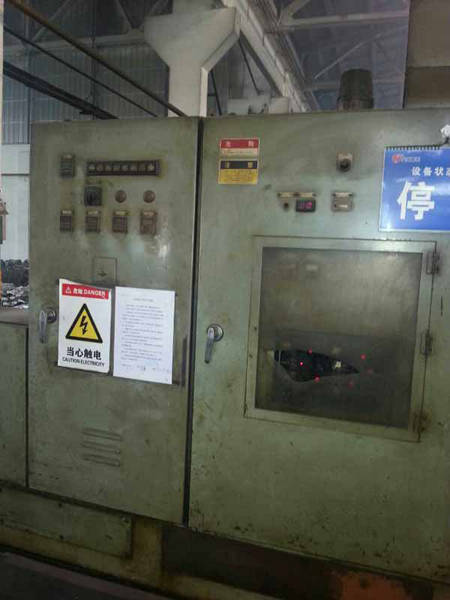

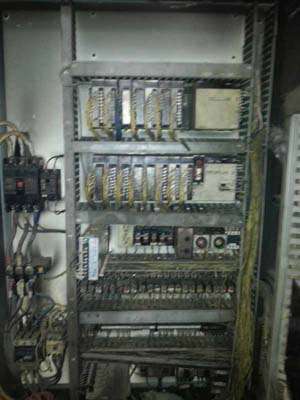

Used, Ube Model UB 800 G 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment System, Hydraulic Bumper Plate Ejection System, Ube Factory Installed Operator Side Automatic Ladler, Ube Factory Installed Die Sprayer, Oil Type Automatic Machine Lubrication System, Top Operator Side Automatic Tie Bar Puller, Ube Relay controls, second Hand, DCM-3592

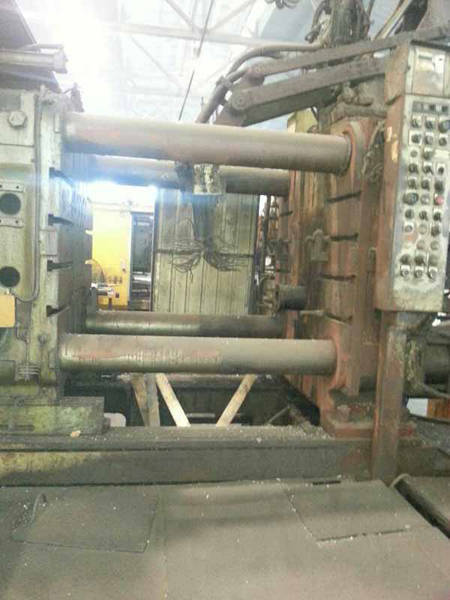

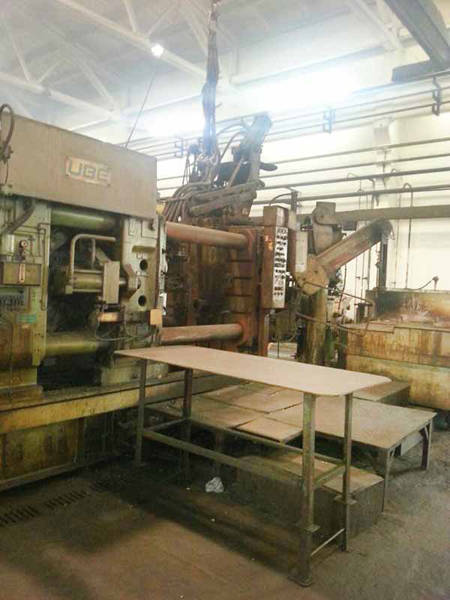

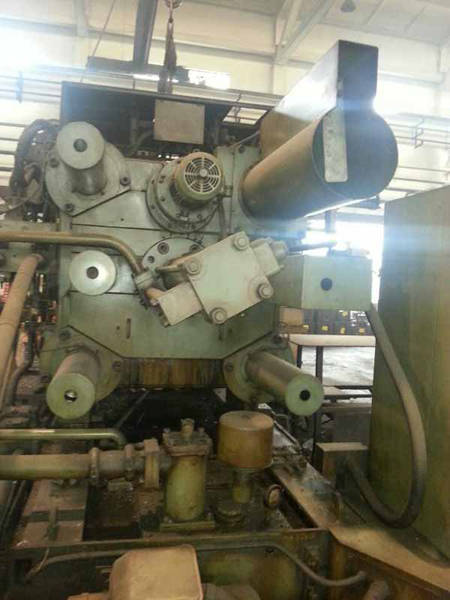

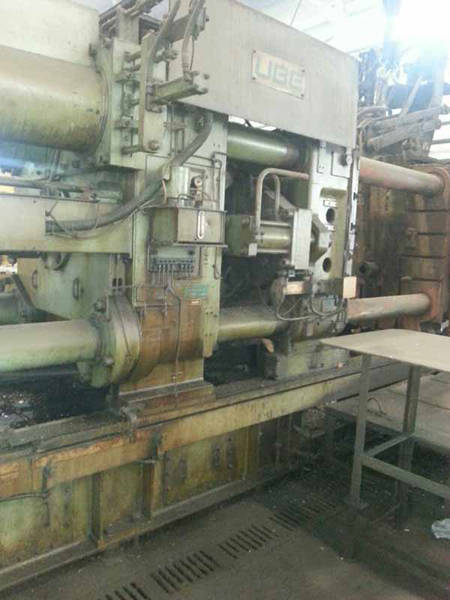

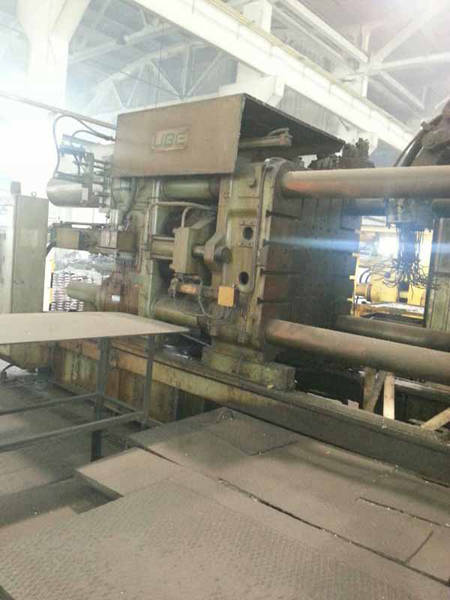

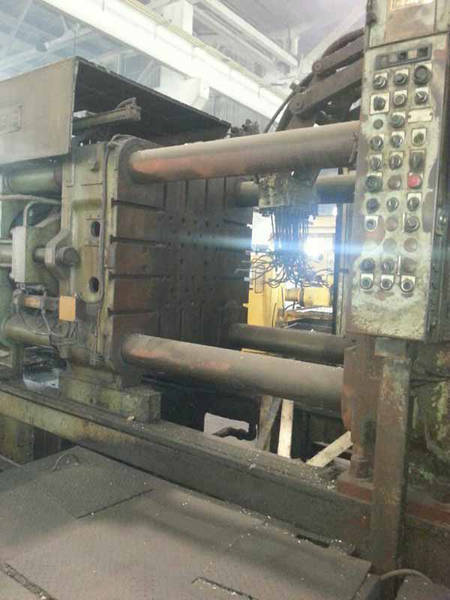

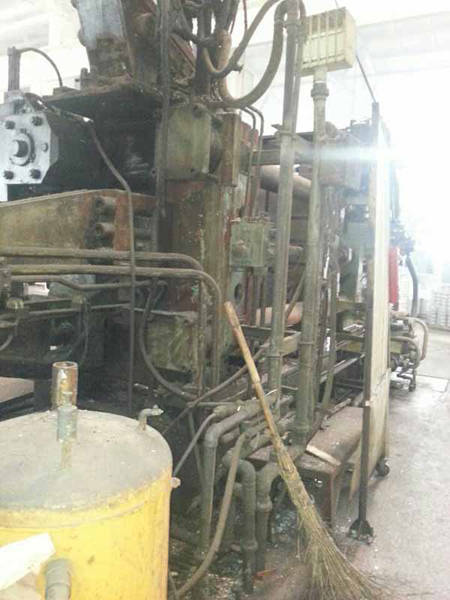

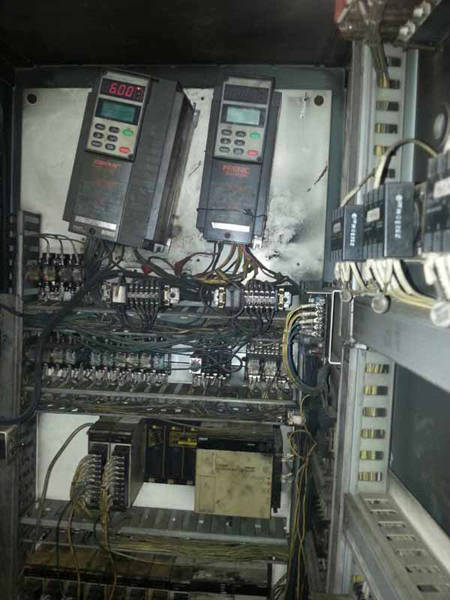

See jumbo large photos of this Ube UB 800 G
