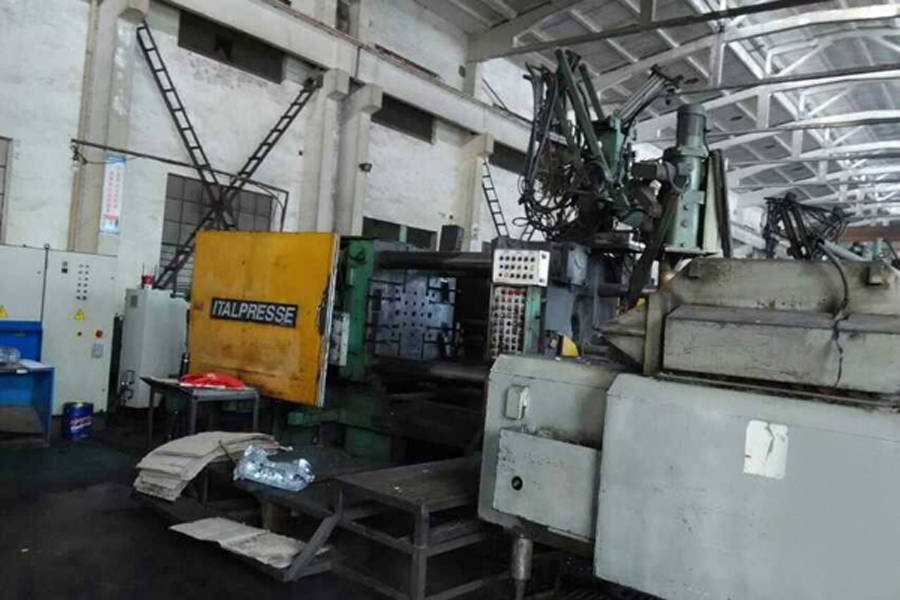

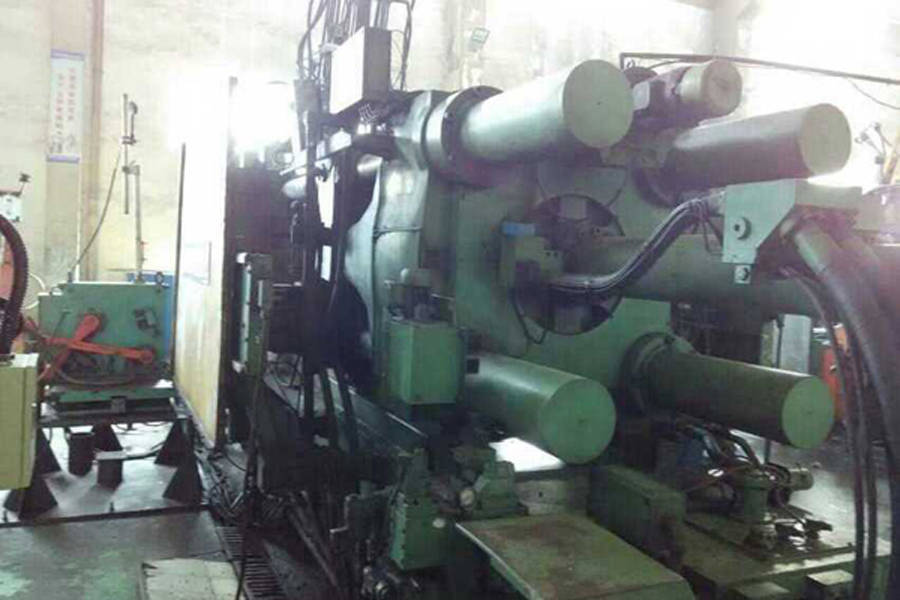

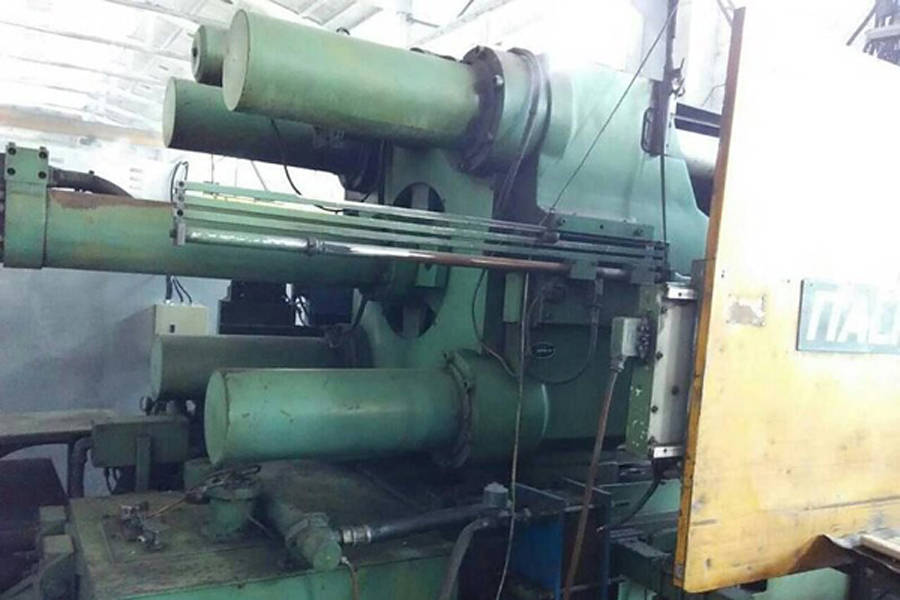

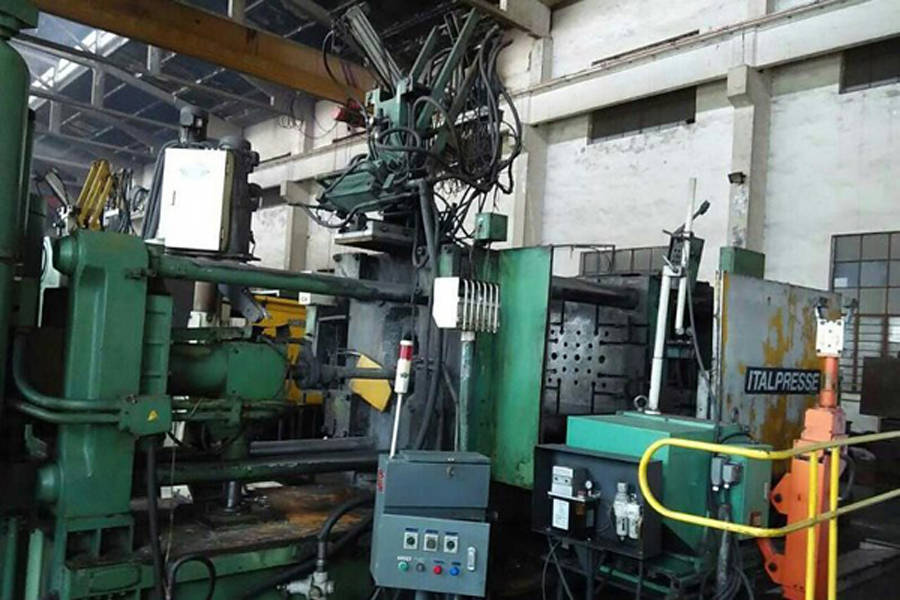

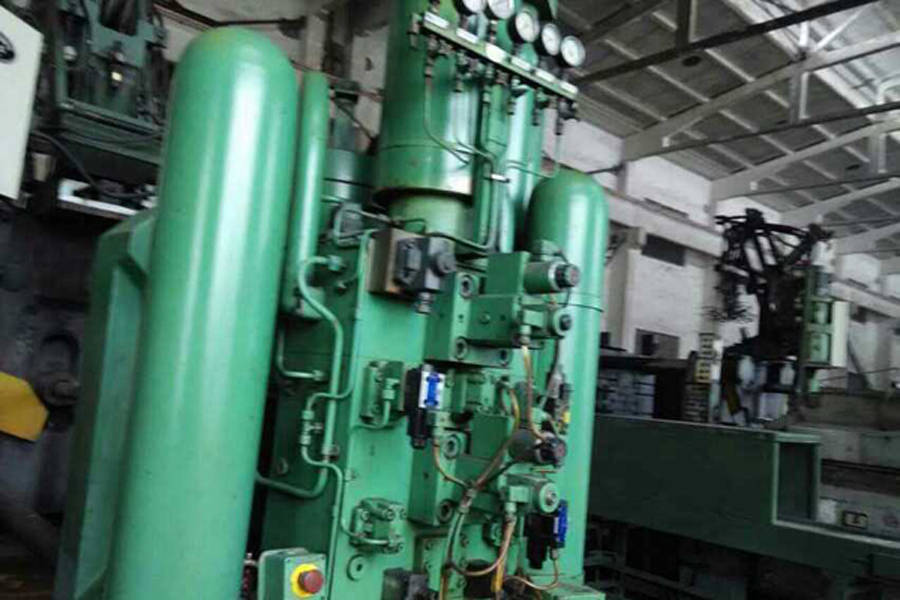

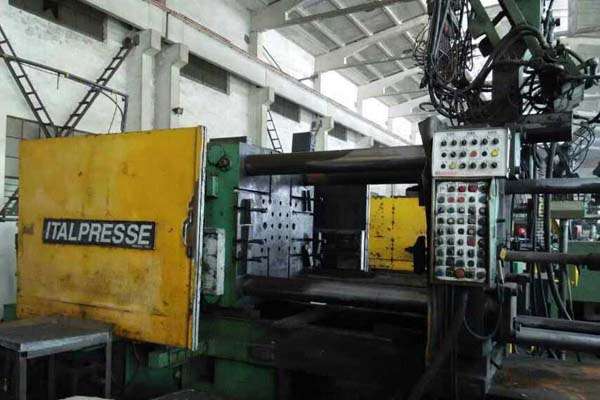

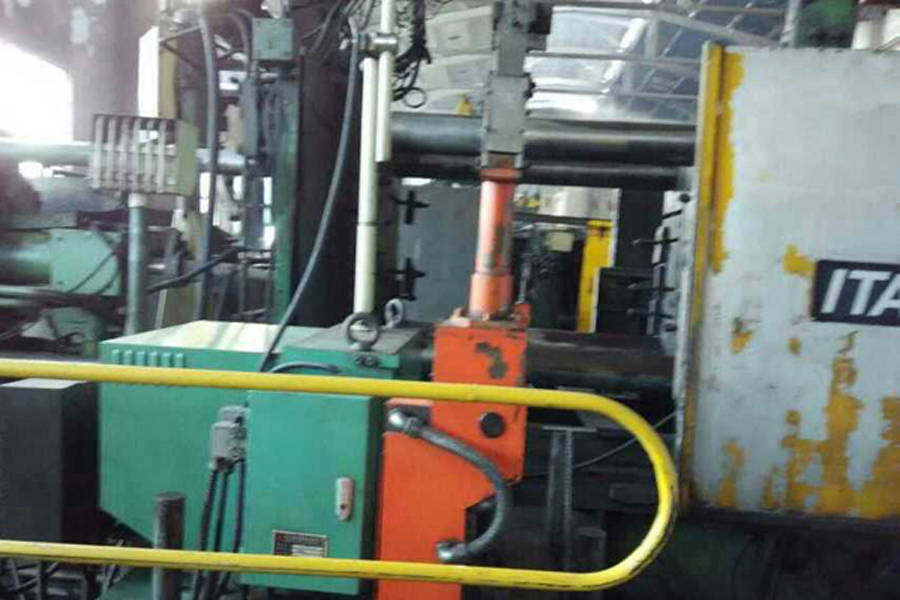

Used Italpresse 750 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF!

Status: Available

We offer for sale, subject to prior sale and the terms listed below:

Used Italpresse 750 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine. Inventory item: DCM-3634.

Manufacturer: Italpresse

Model: IP/750-SC

Features & Accessories

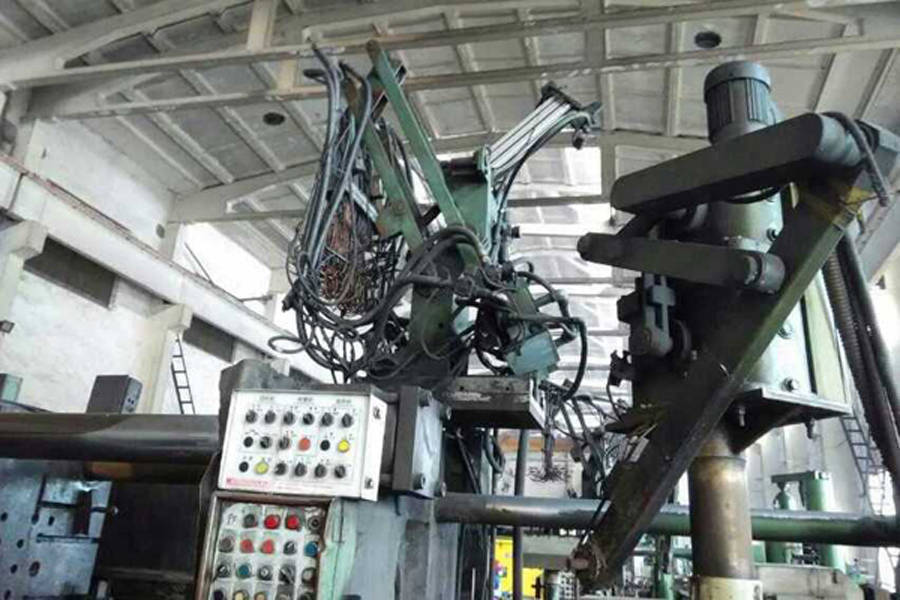

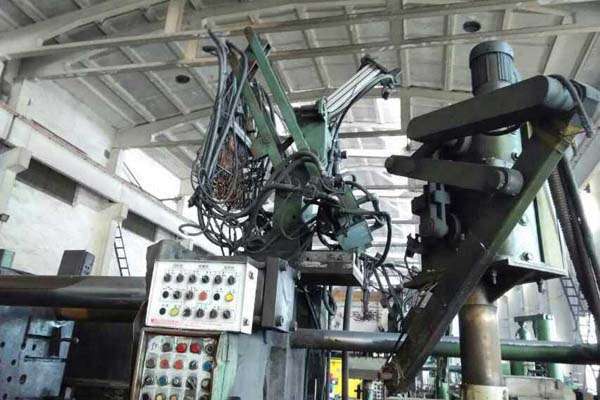

  • Equipped with extractor, sprayer and ladle

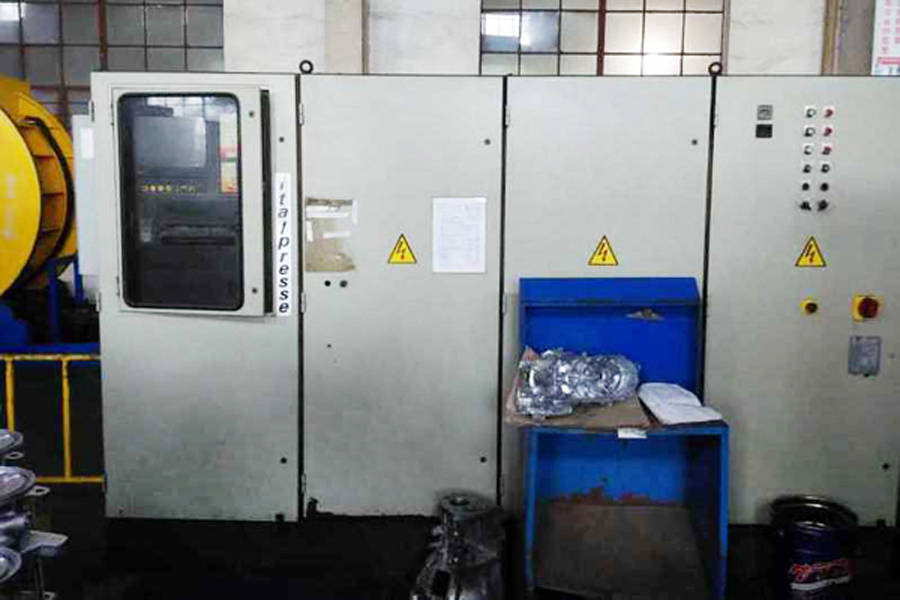

  • Italpresse SC Shot Control using Siemens S-5 PLC Controls
  • Top Operator Side Fully Automatic Tie Bar Pulling System
  • Hydraulic Bumper Plate Ejection System
  • Automatic Central Lubrication System
  • Inserted Shot Position (allows for multiple shot positions)

Item Specifications for DCM-3634

Specifications
Locking Force:
826 tons
Tie Bar Diameter:
6.49 inches
Clearance Between Tie Bars:
30.51 x 30.51 inches
Die Thickness (minimum - maximum):
15.15 - 37.00 inches
Die Stroke (maximum):
29.52 inches
Moving Platen Size:
49.40 x 49.40 inches
Shot Positions:
Inserted, multi-positions
Shot Stroke:
22.8 inches
Central Ejection Stroke:
7.08 inches
Power:
480/3/60 - 50 HP
Machine Size:
28.2 x 8.5 feet
Machine Weight:
72,600 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Italpresse Model IP/750-SC 750 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For Sale, Features include: Italpresse SC Shot Control using Siemens S-5 PLC Controls, Top Operator Side Fully Automatic Tie Bar Pulling System, Hydraulic Bumper Plate Ejection System, Automatic Central Lubrication System, Inserted Shot Position (allows for multiple shot positions) Siemens S5 Controls, Second Hand, DCM-3634
