Used Toyo Machinery 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

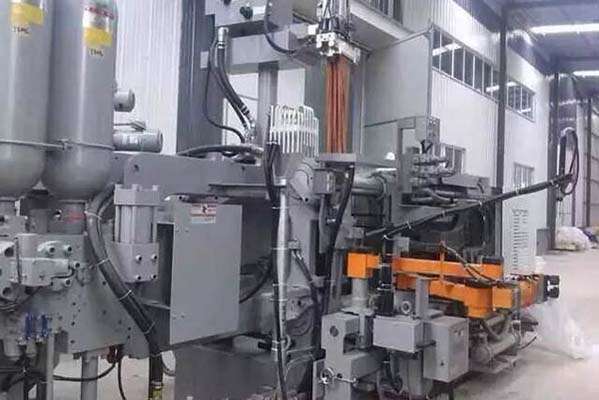

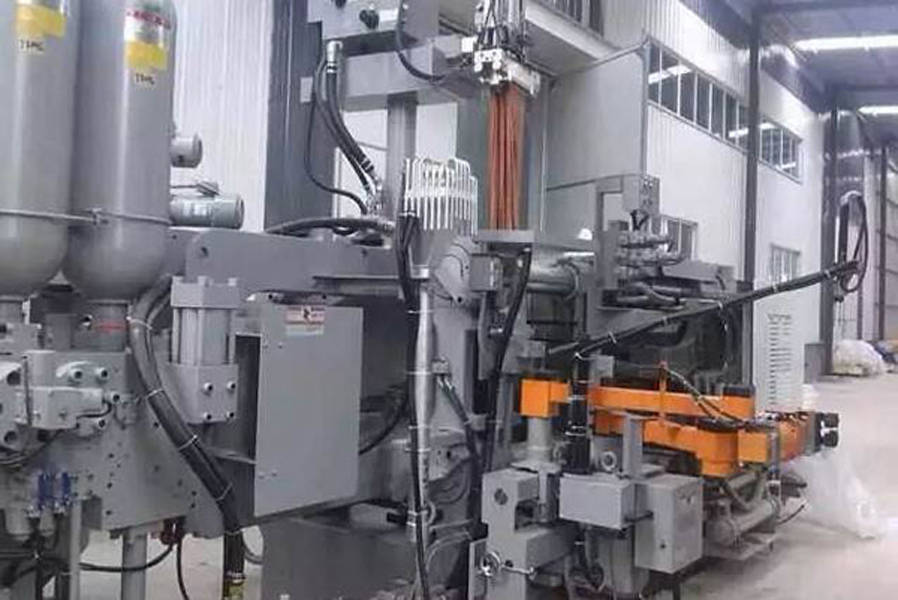

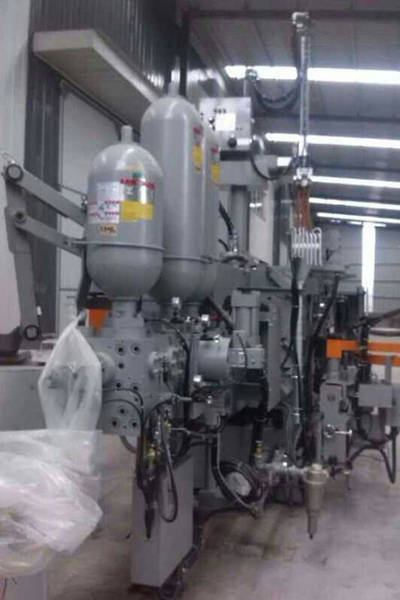

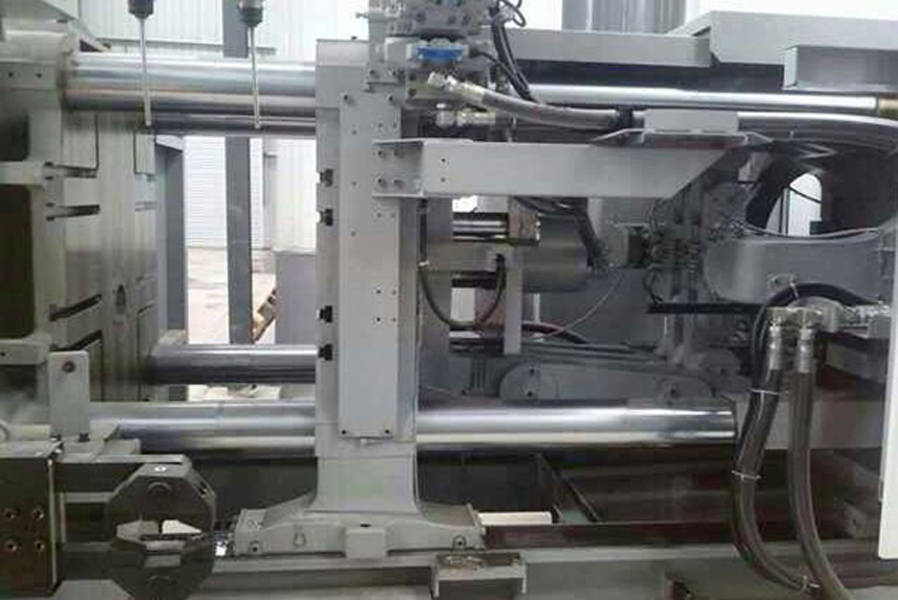

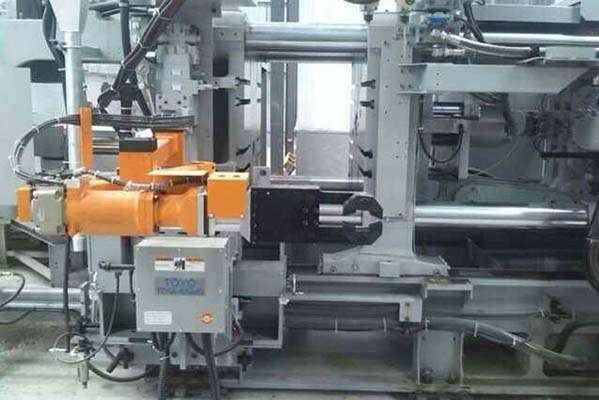

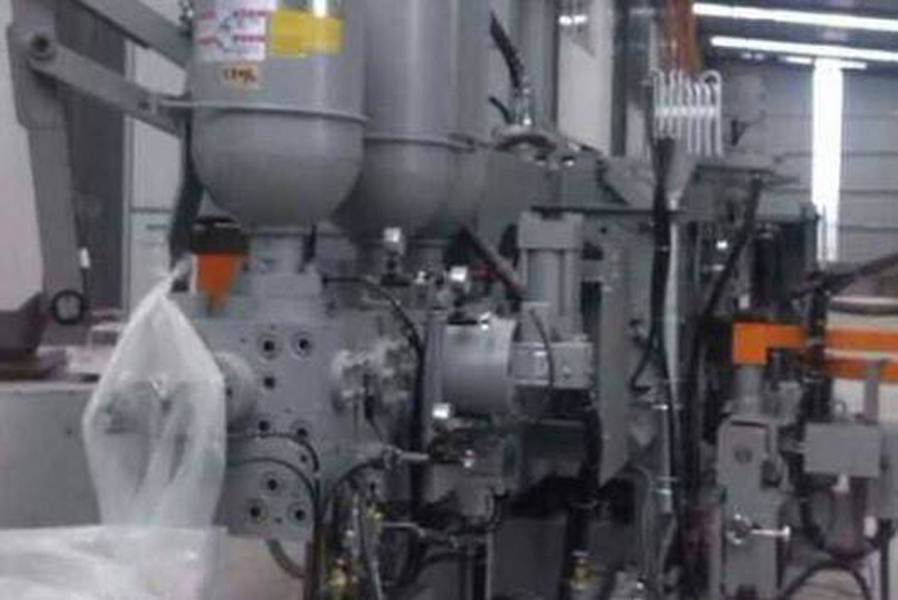

Used Toyo Machinery 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine. Inventory item: DCM-3666.

Manufacturer: Toyo Machinery

Model: BD-500V5 EX

Features & Accessories:

  • Toyo V5 Injection System

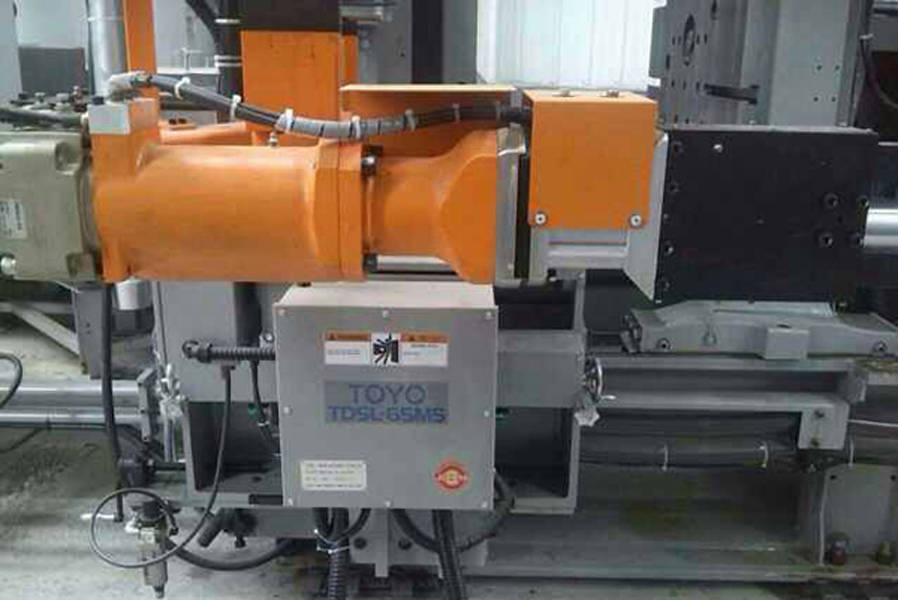

  • Factory Installed Toyo Ladle, Die Sprayer and TDSL-5MS Extractor
  • Electric Motorized Die Height Adjustment
  • Hydraulic Bumper Plate Ejection System
  • Auxiliary Hydraulic Side Core Circuits
  • Automatic Lubrication System - Pressurized Oil Type

Item Specifications for DCM-3666

Specifications
Locking Force:
500 tons
Platen Size:
42.13 x 42.13 inches
Clearance Between Tie Bars (V x H):
25.98 x 25.98 inches
Die Stroke:
22.05 inches
Die Height (min - max):
13.77 - 33.46 inches
Shot Position:
6.89 inches
Ejection Stroke
0 - 4.33 inches
Ejection Force:
26.5 ton
Number of Core Circuits:
5
Machine Weight:
20 tons
Machine Size:
24.08 x 6.56 x 10.17 feet

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Toyo Machinery Model BD-500V5 EX 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Toyo V5 Injection System, Factory Installed Toyo Ladle, Die Sprayer and TDSL-5MS Extractor, Electric Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Auxiliary Hydraulic Side Core Circuits, Automatic Lubrication System - Pressurized Oil Type, Second Hand, DCM-3666

The following technical terms are to assist you with searches: Used | Second Hand | Toyo Machinery |BD-500V5 EX | 500 Metric Ton | Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine | For Sale | Toyo V5 Injection System | Factory Installed Toyo Ladle, Die Sprayer and TDSL-5MS Extractor | Electric Motorized Die Height Adjustment | Hydraulic Bumper Plate Ejection System | Auxiliary Hydraulic Side Core Circuits | Automatic Lubrication System - Pressurized Oil Type | DCM-3666

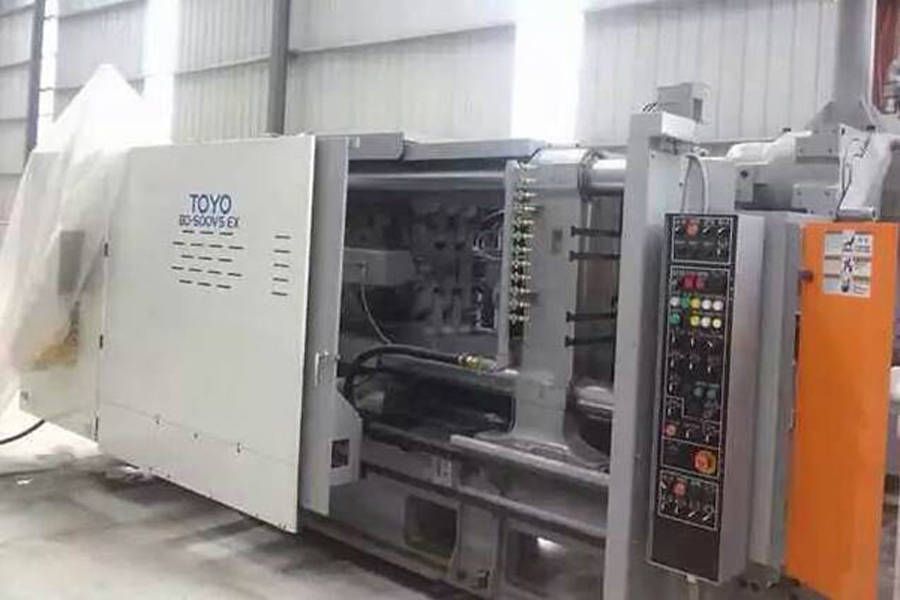

See jumbo large photos of this Toyo Machinery BD-500V5 EX
