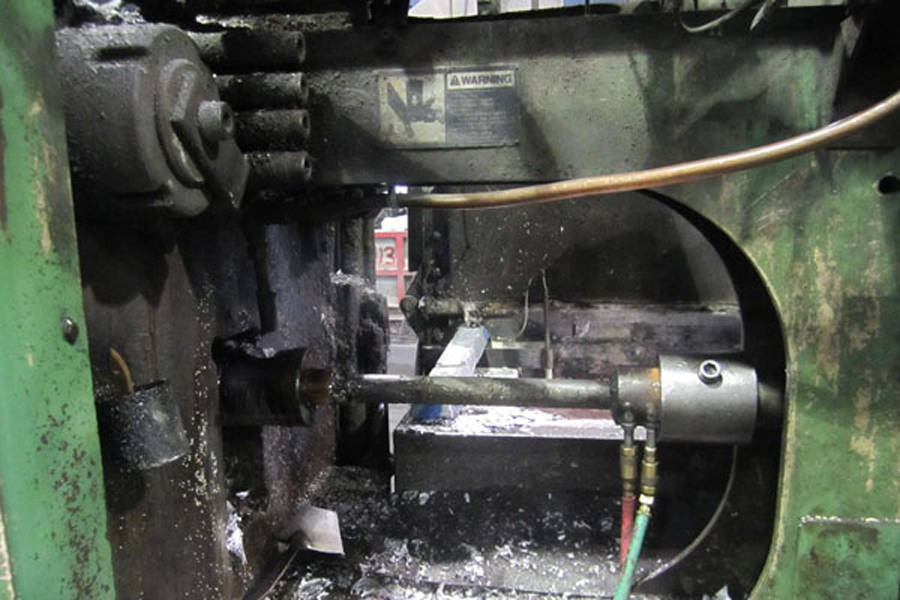

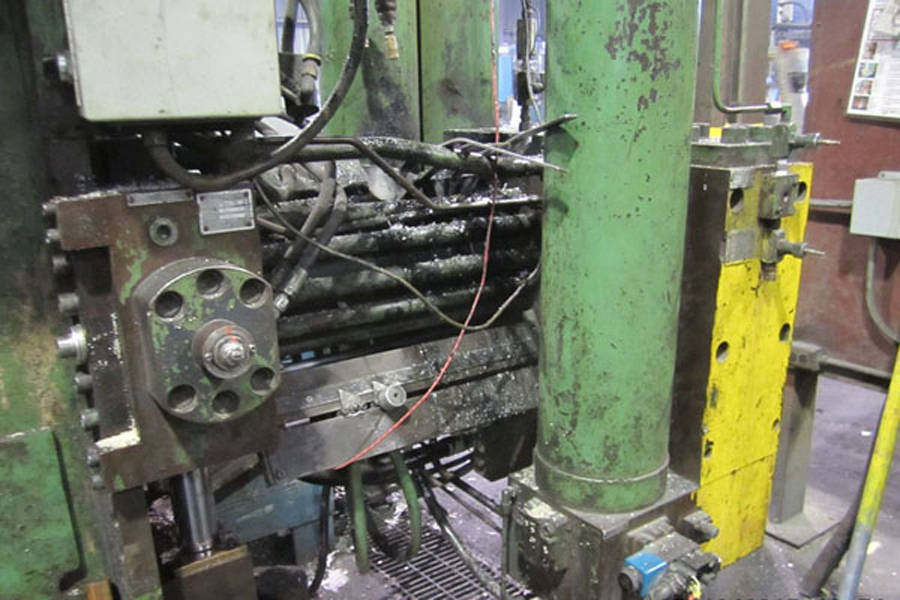

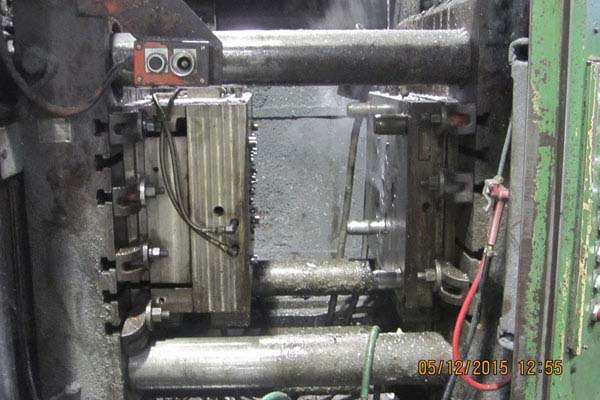

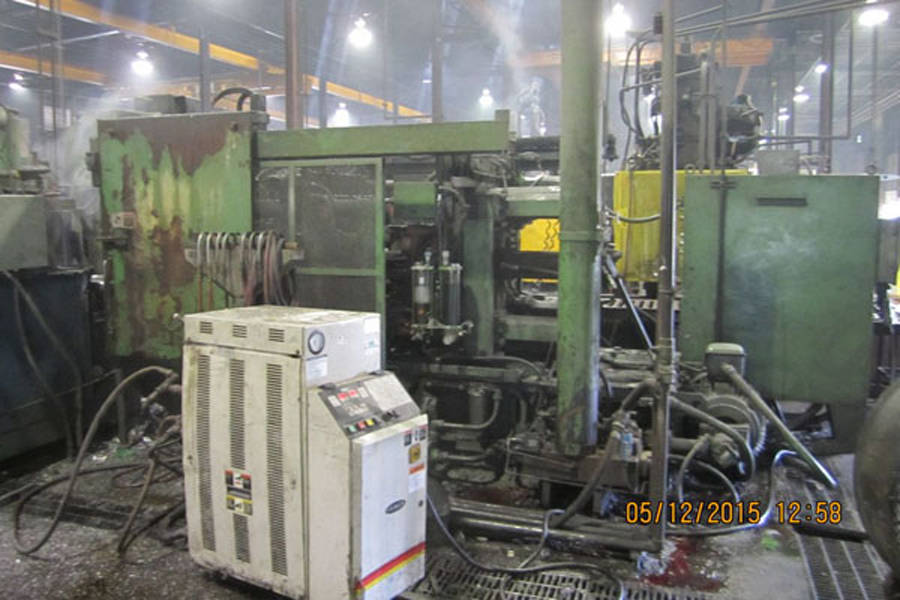

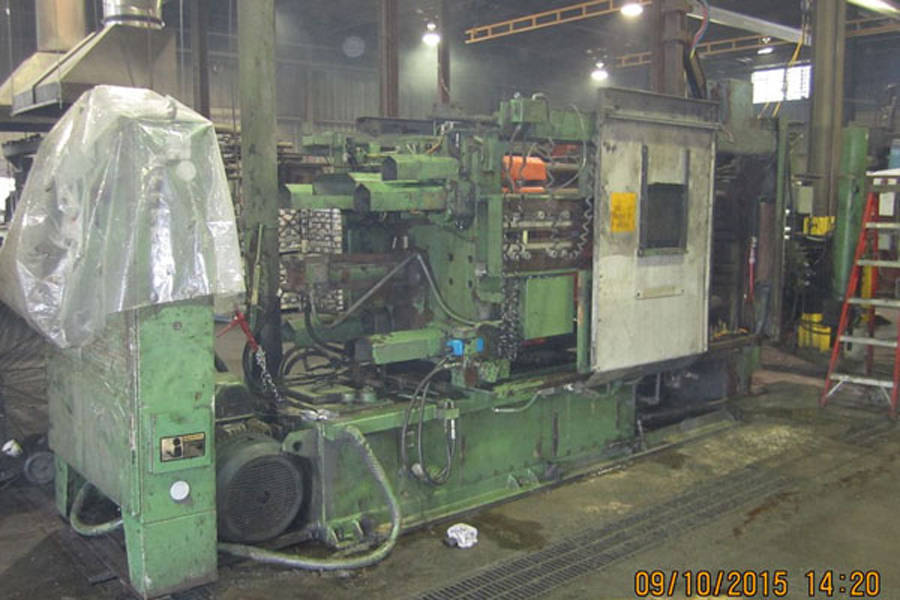

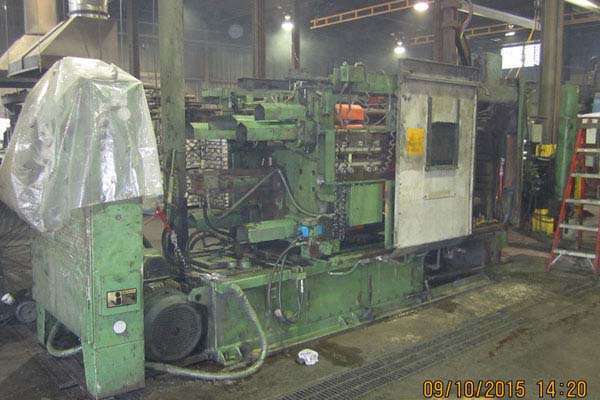

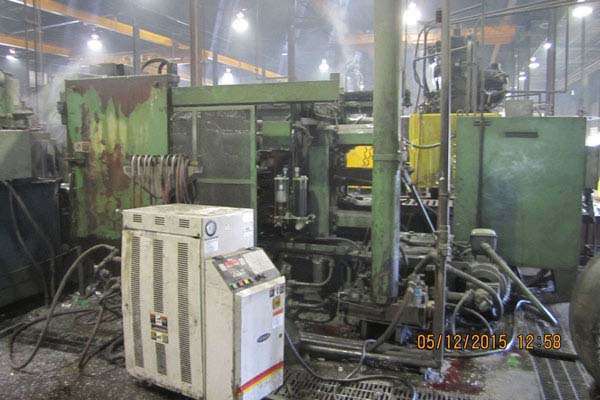

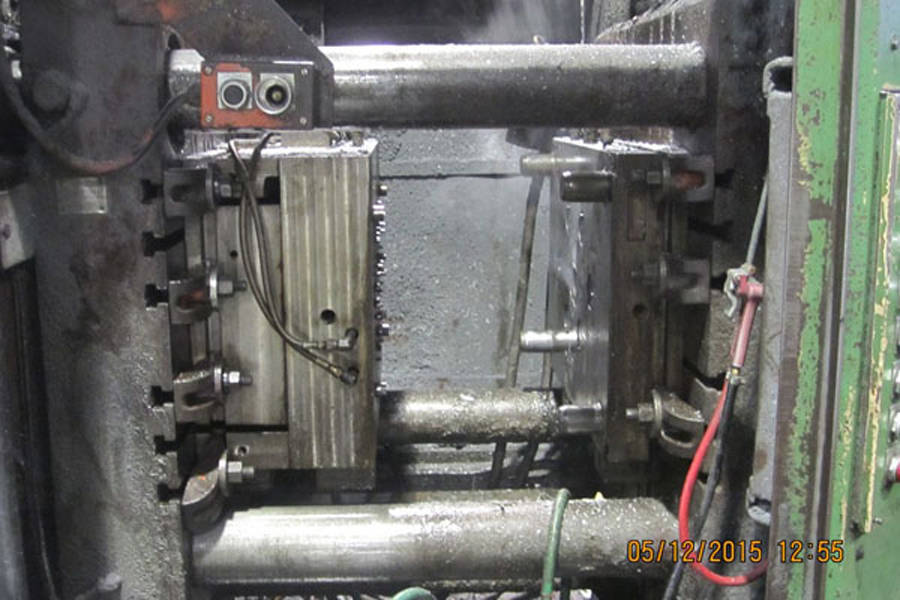

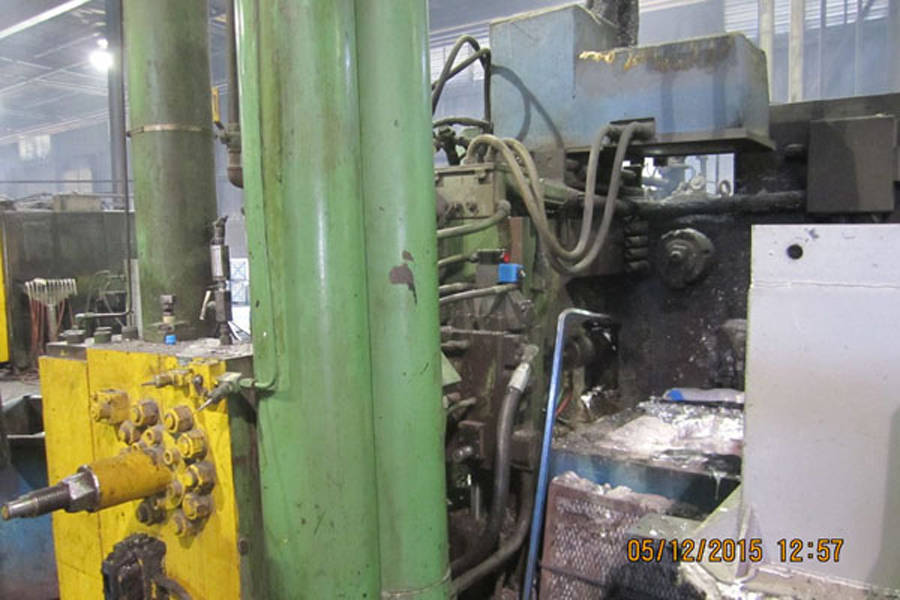

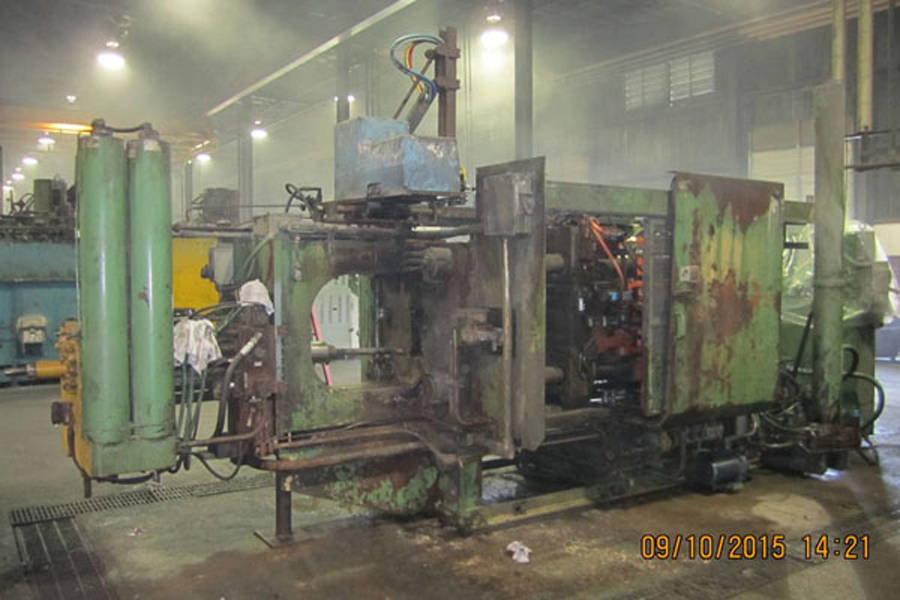

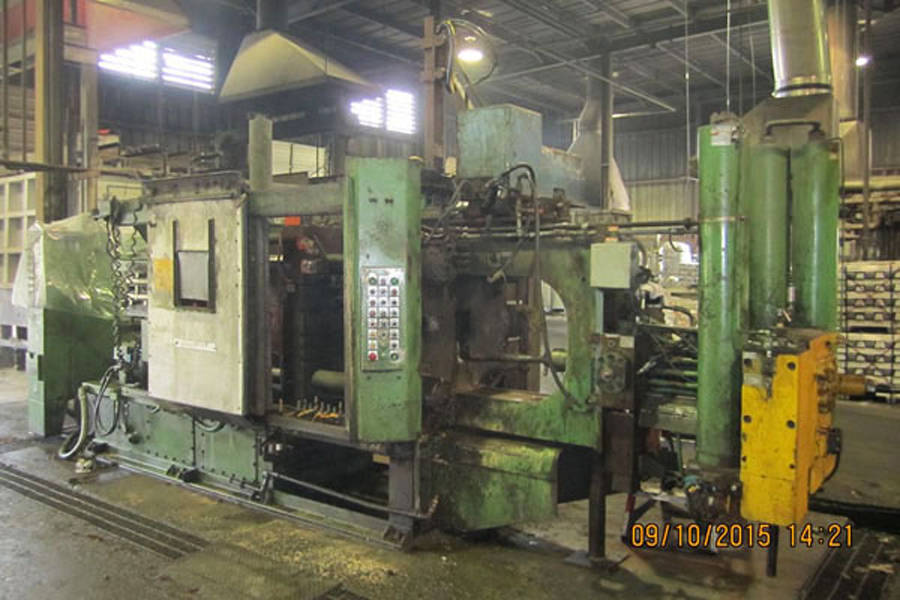

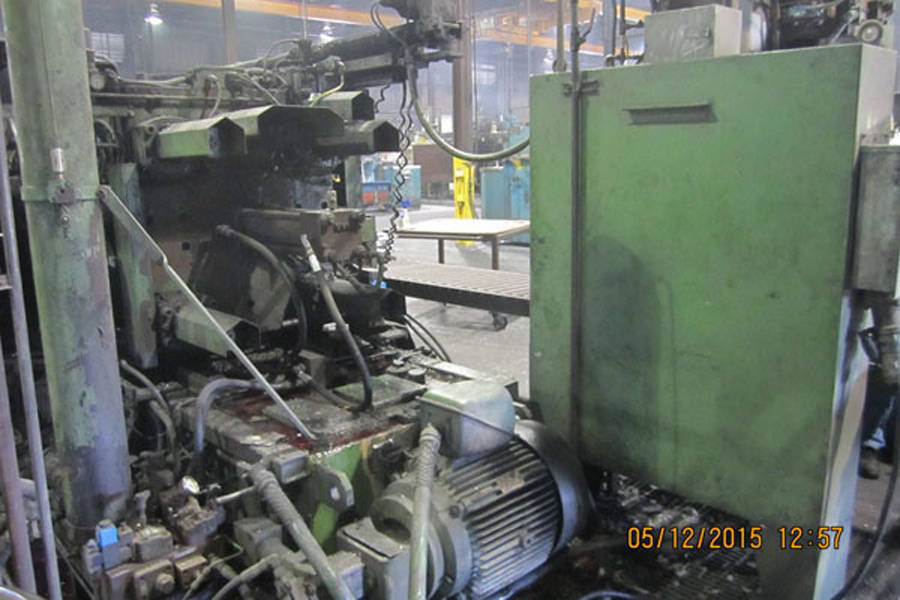

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: HPM
Model: II-400-A
Size: 400 Ton
Inventory Number: DCM-3758
Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:
- New spare parts include: 1 Tie bar, 4 Bronze Die Height Nuts, 4 Steel front Nuts (2 split), 4 Moving Platen Bushings, Die close cylinder rod, Ejector cylinder rod. These parts were purchased with the machine in 1994 but never used.
- Multiplier Cylinder Intensification with 3:1 Ratio with Dedicated Accumulator Bottle For Improved Reaction Time
- Hydraulic Central Motorized Die Height Adjustment System
- Hydraulic Center Platen Ejection System and Mechanical Bumper Plate
- Trabon Automatic Lubrication System; Two (2) Auxiliary Core Circuits - One (1) on the Cover Platen and One (1) on the Ejector Platen
- Center and Six Inch Below Center Shot Positions,
- T-Slotted Platens, Safety Ratchet Device, Automatic Lubrication System
Item Specifications for DCM-3758
| Specifications | |
|---|---|
| Clamping (Locking) Force: |
400 tons
|
| Tie Bar Diameter: |
5 inches
|
| Clearance between Tie Bars (H x V): |
24 x 24 inches
|
| Moving Platen Size (H x V x T) |
39 x 43.7 x 7.75
|
| Stationary (Fixed) Platen Size (H x V x T): |
39 x 42.7 x 8.25 inches
|
| Die Thickness (minimum to maximum): |
12 - 30 inches
|
| Die Stroke: |
15 inches
|
| Shot Cylinder Stroke: |
14.5 - 18.5 inches
|
| Rated Dry Cycles Per Hour: |
375
|
| Main Motor: |
40 hp
|
| Overall Size: |
6.7 x 21.4 x 9.8 feet
|
| Approximate Weight: |
34,000 pounds
|
Description
Used, HPM Model II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Multiplier Cylinder Intensification with 3:1 Ratio with Dedicated Accumulator Bottle For Improved Reaction Time, Hydraulic Central Motorized Die Height Adjustment System, Hydraulic Center Platen Ejection System and Mechanical Bumper Plate, Trabon Automatic Lubrication System; Two (2) Auxiliary Core Circuits - One (1) on the Cover Platen and One (1) on the Ejector Platen, Center and Six Inch Below Center Shot Positions,, T-Slotted Platens, Safety Ratchet Device, Automatic Lubrication System, Allen-Bradley 700P Relay controls, second Hand, DCM-3758
