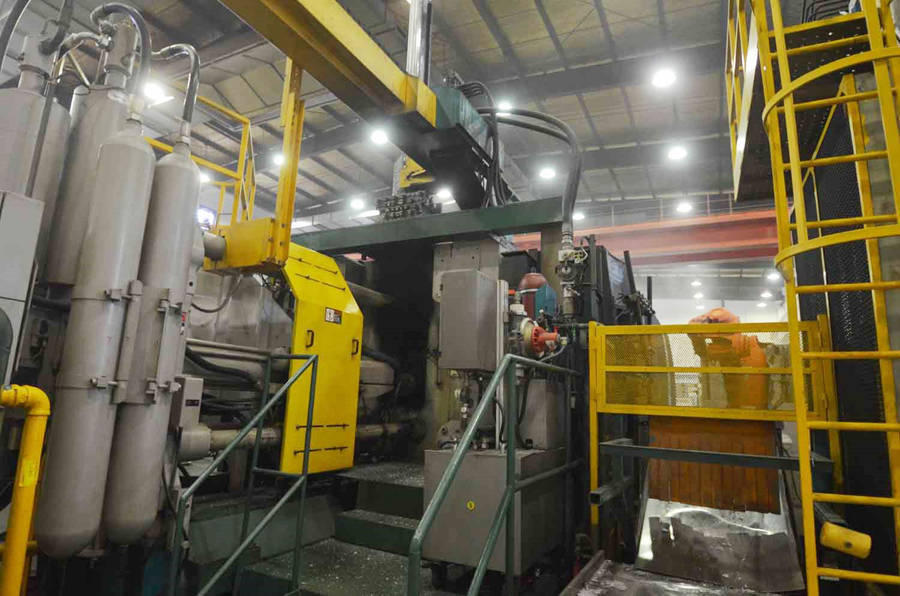

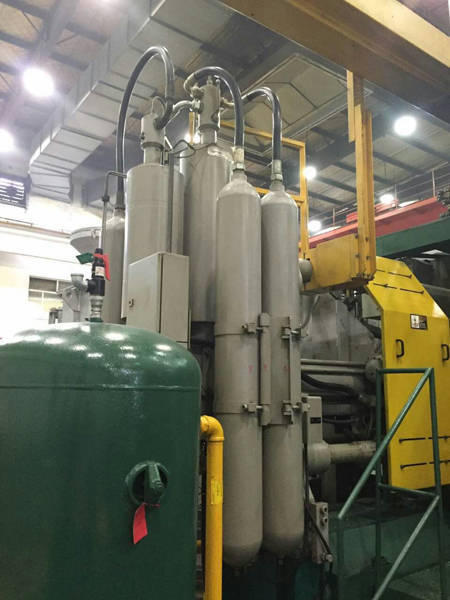

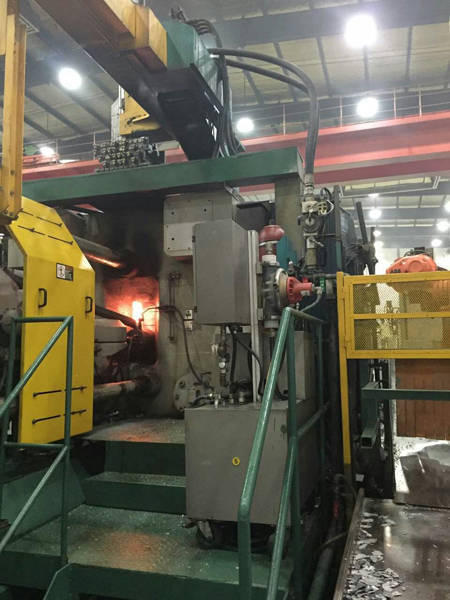

Used Buhler 1400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

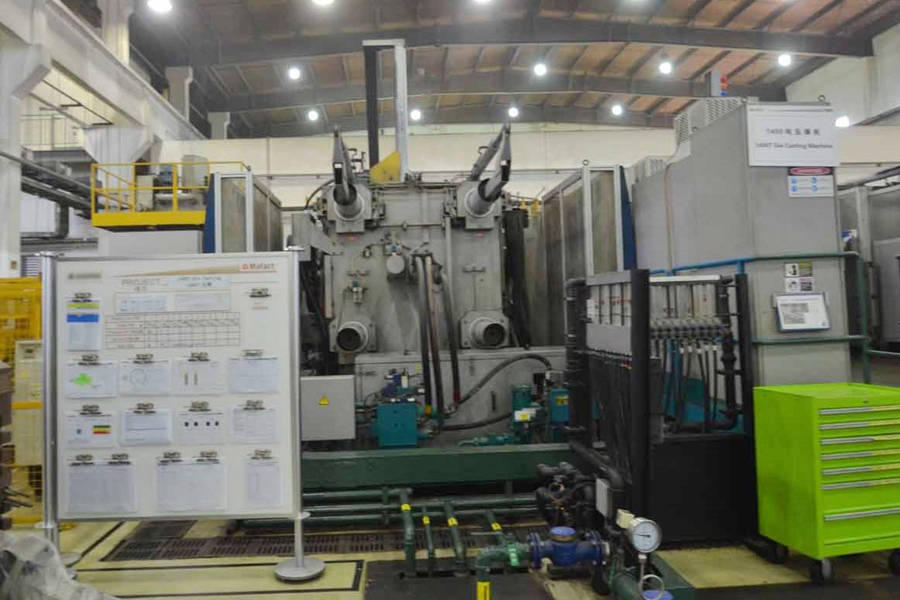

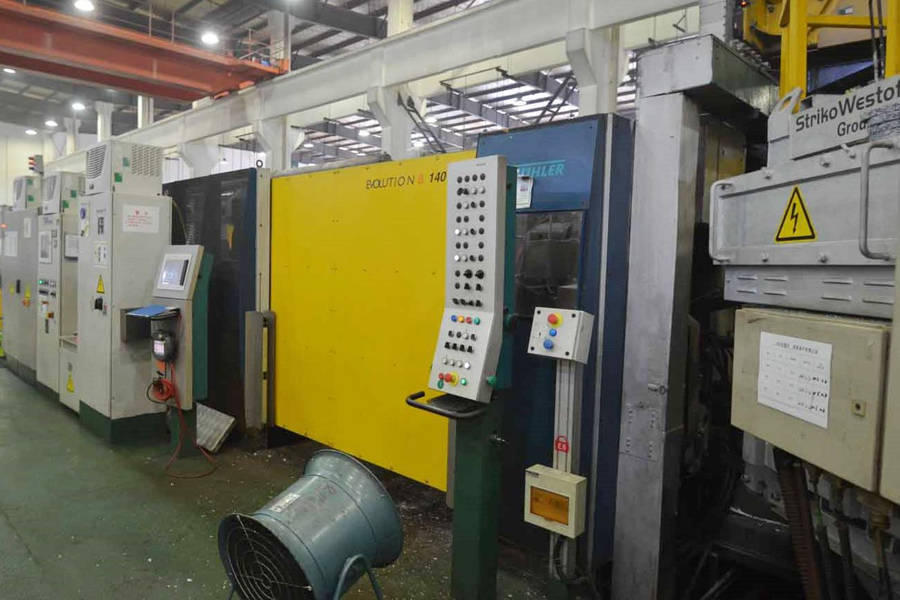

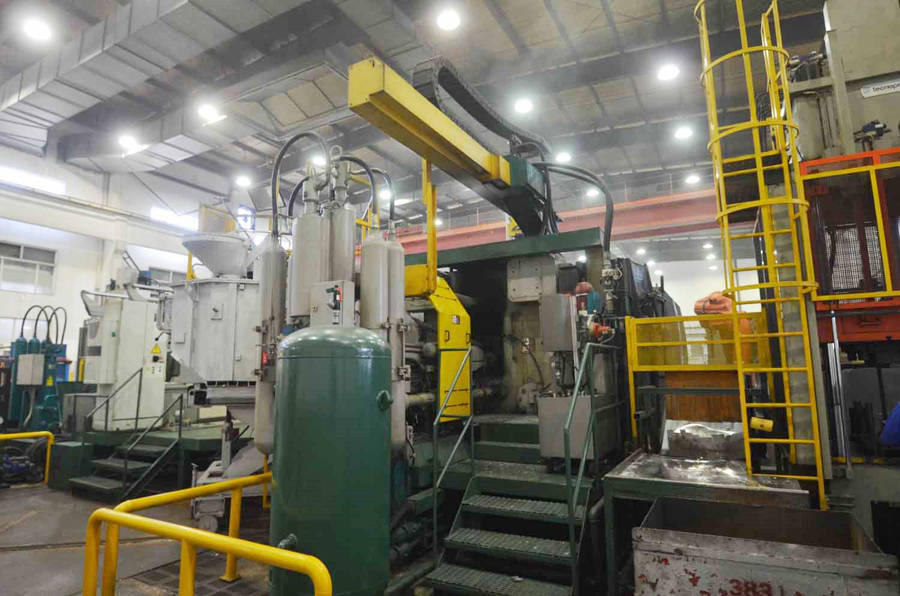

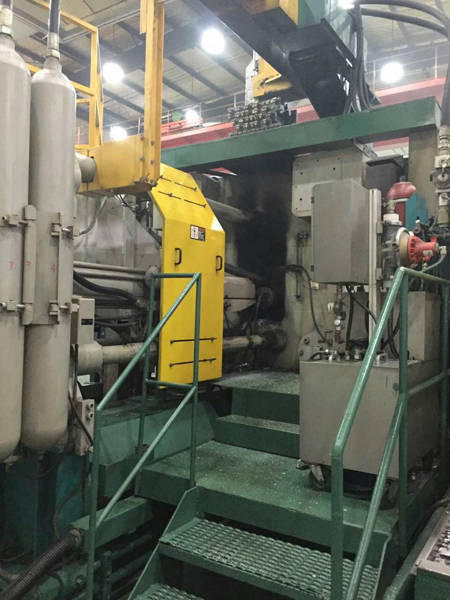

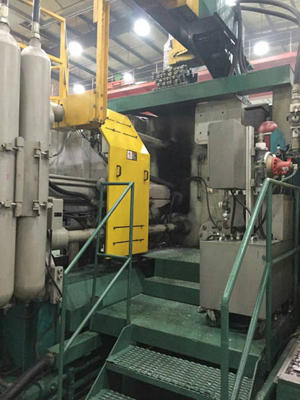

Used Buhler 1400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine. Inventory item: DCM-4020.

Manufacturer: Buhler

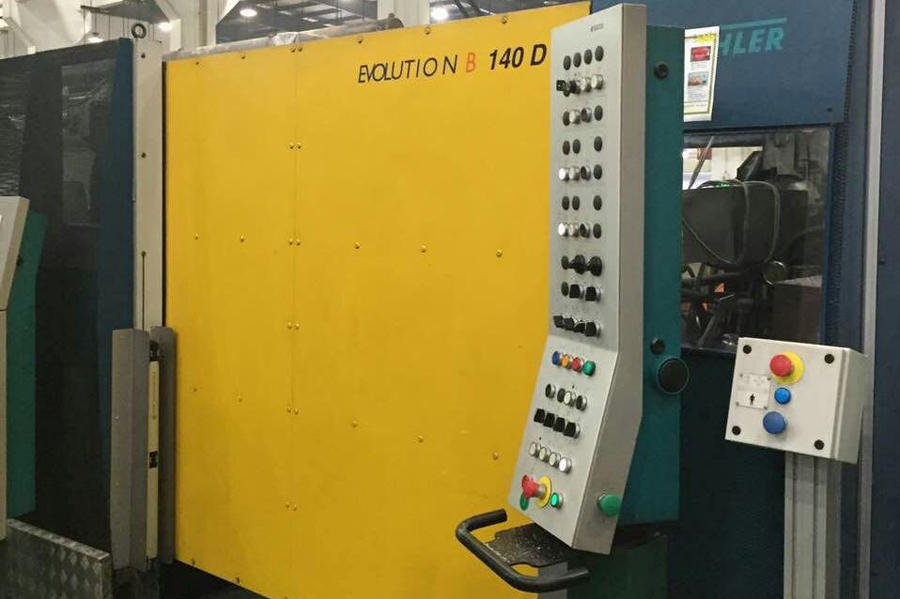

Model: Evolution B 140 DL

Features & Accessories

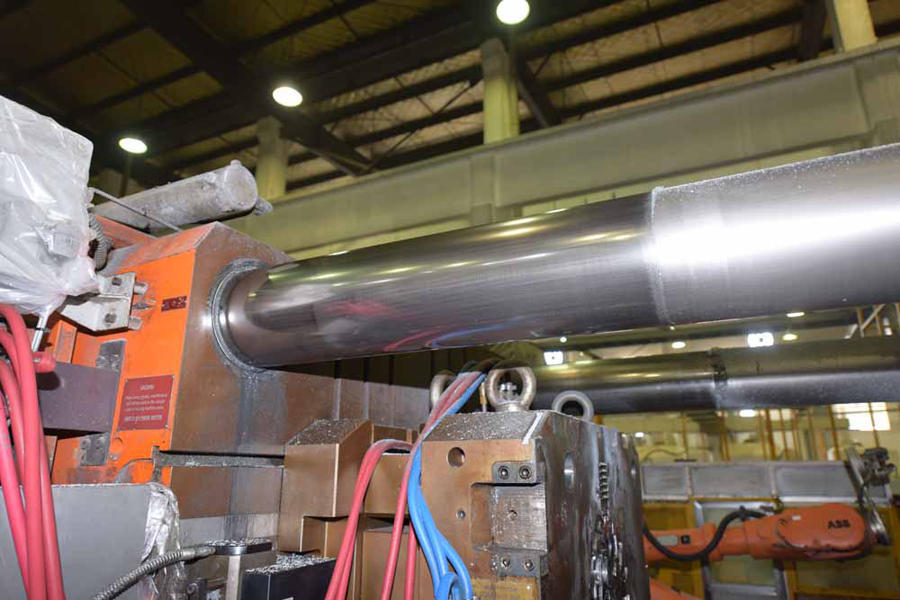

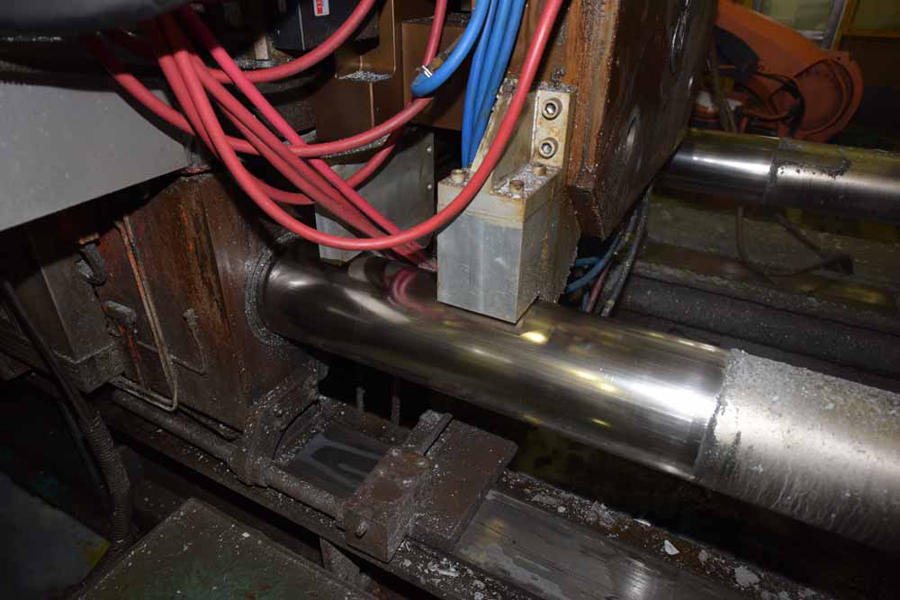

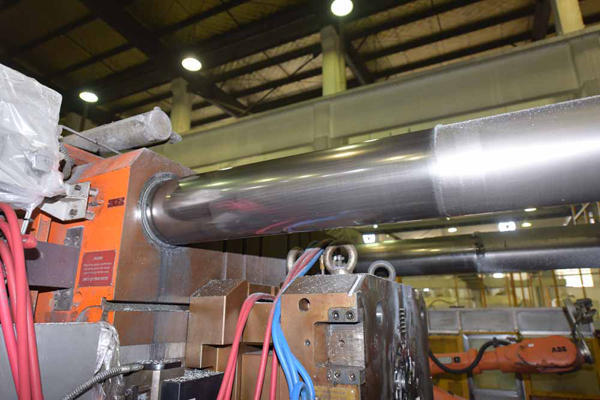

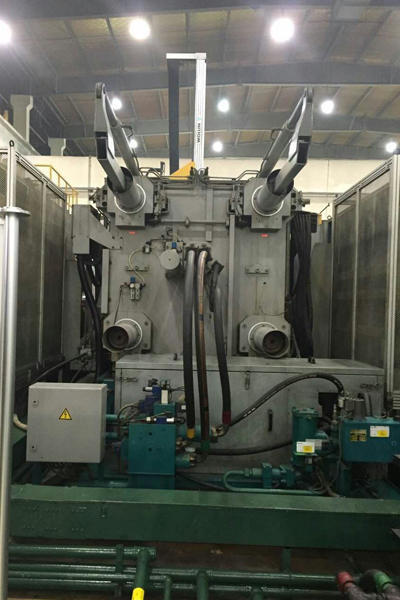

  • Dual Fully Automatic Tie Bar Pullers of Top Two Tie Bars, Twin Cylinder Hydraulic Bumper Plate Ejection

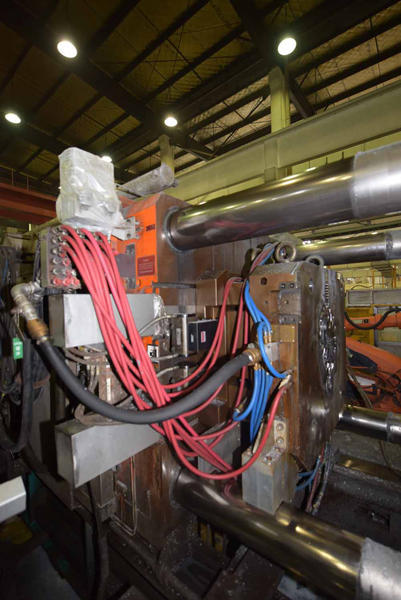

  • Two Hydraulic Core Circuits on Moving Platen, Two Hydraulic Core Circuits on Fixed Platen, One Auxillary Squeeze Pin Intensification Circuit
  • Central Motorized Die Height Adjustment System with Tie Bar Tonnage Monitoring System

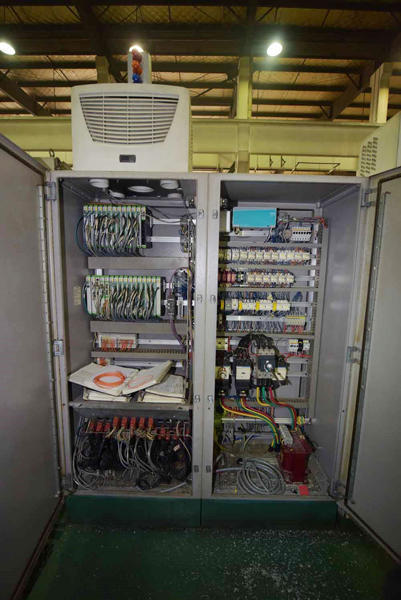

  • Buhler DataNet Controls

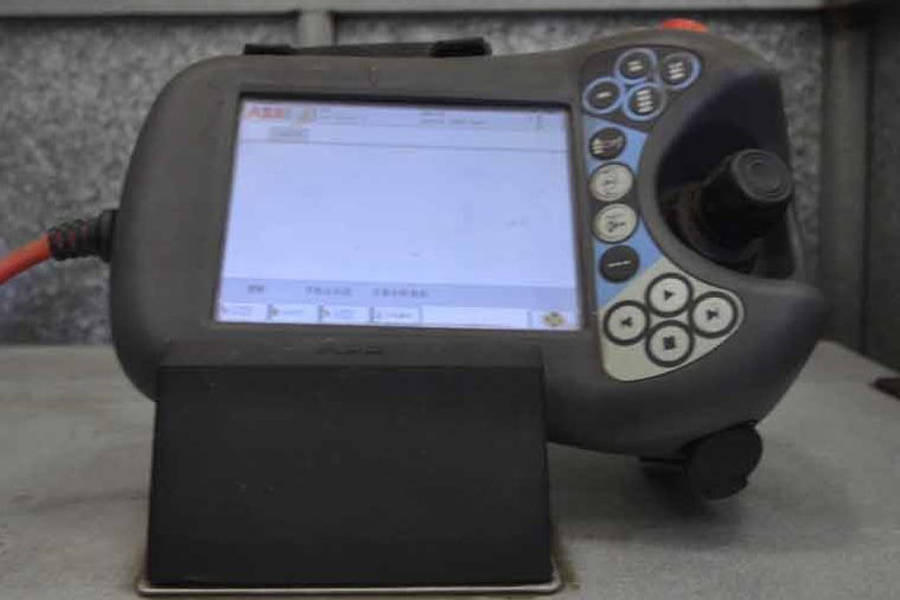

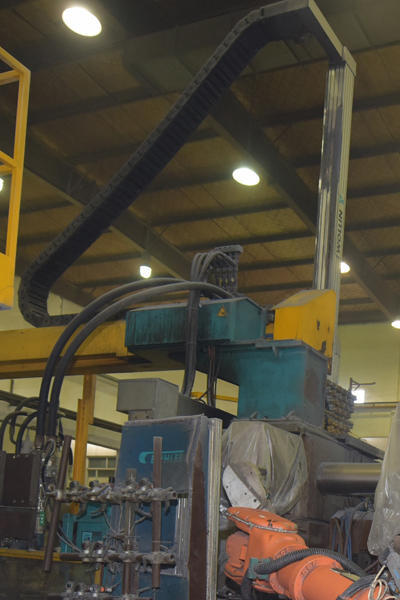

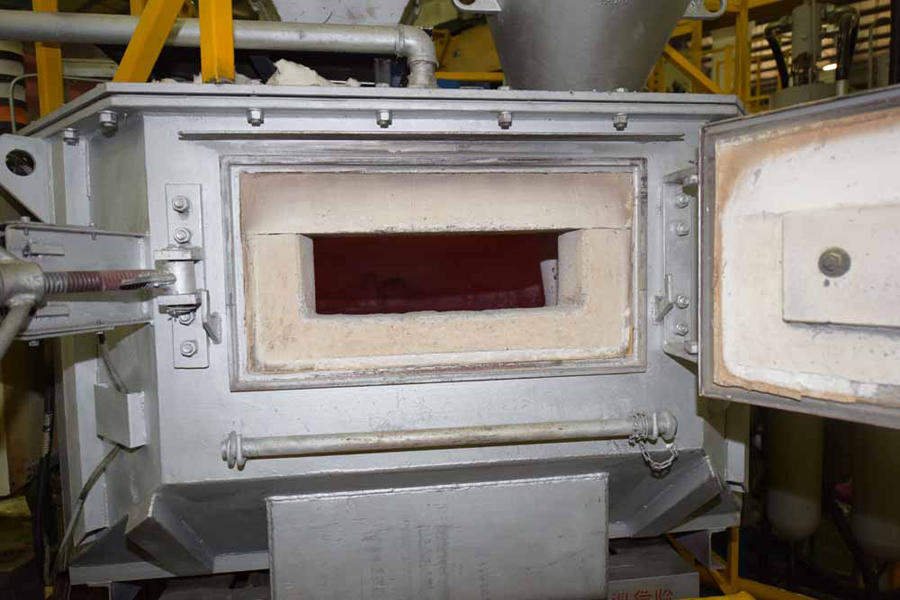

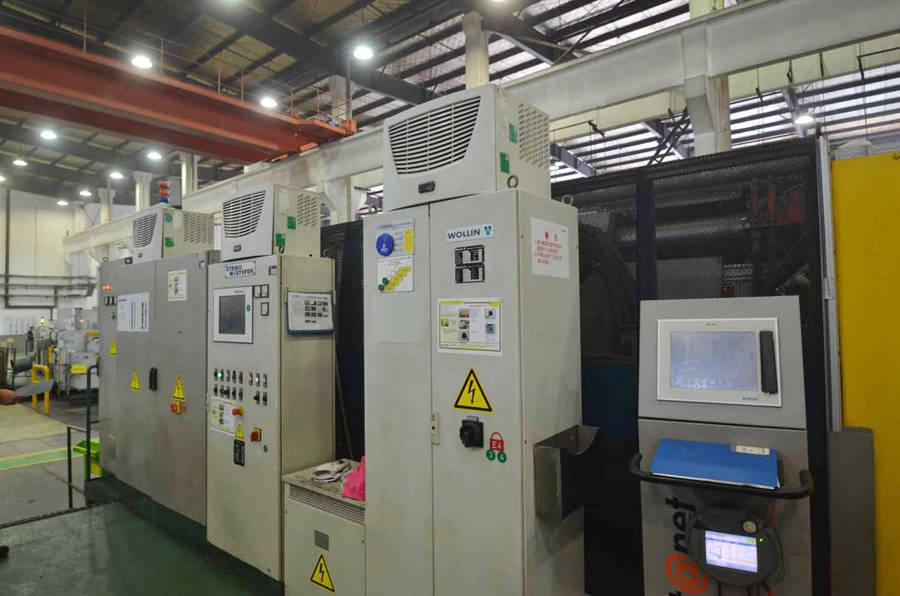

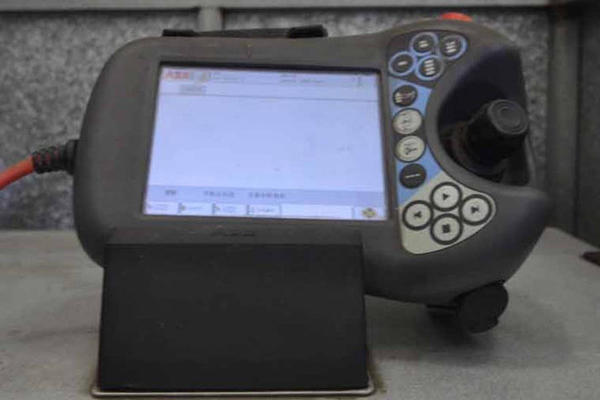

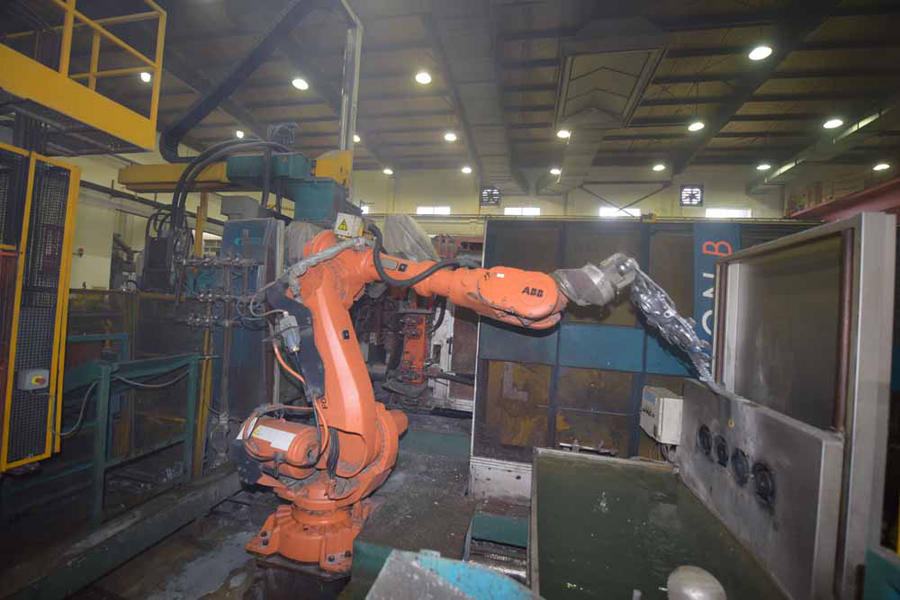

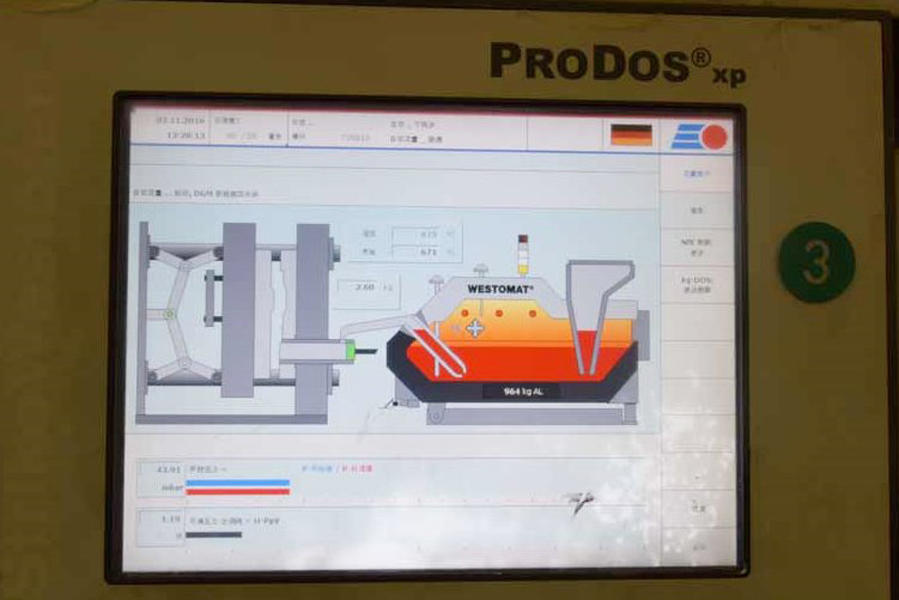

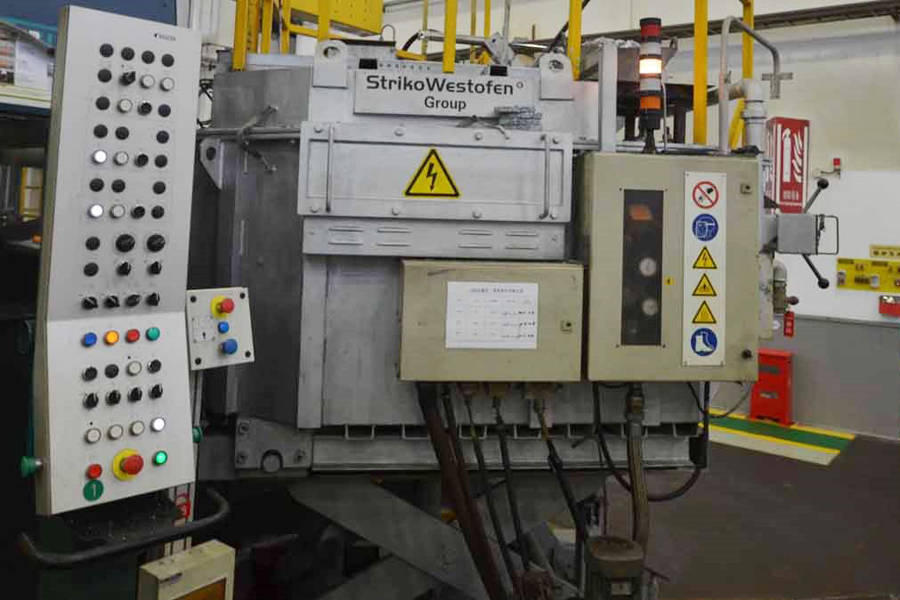

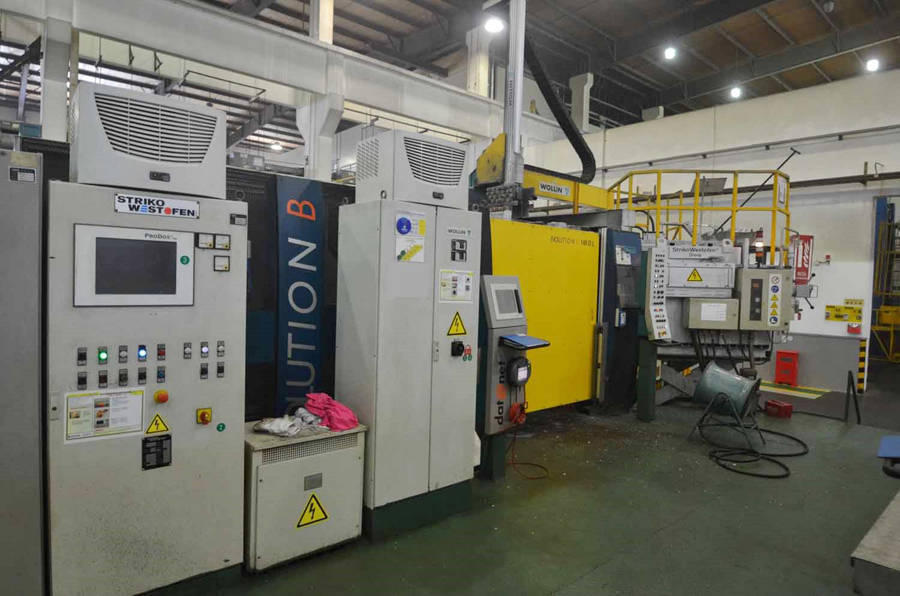

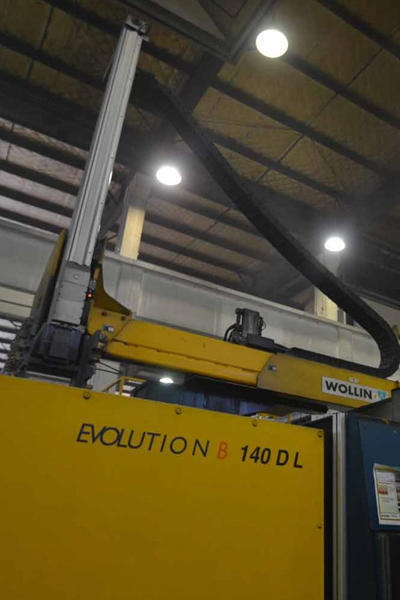

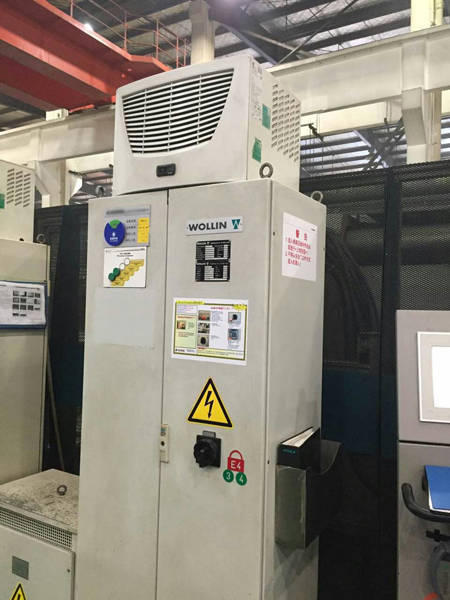

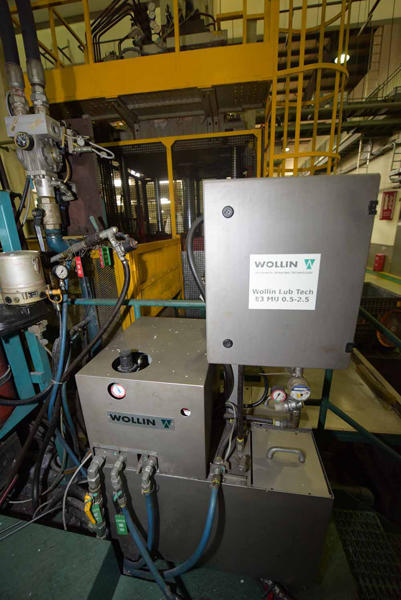

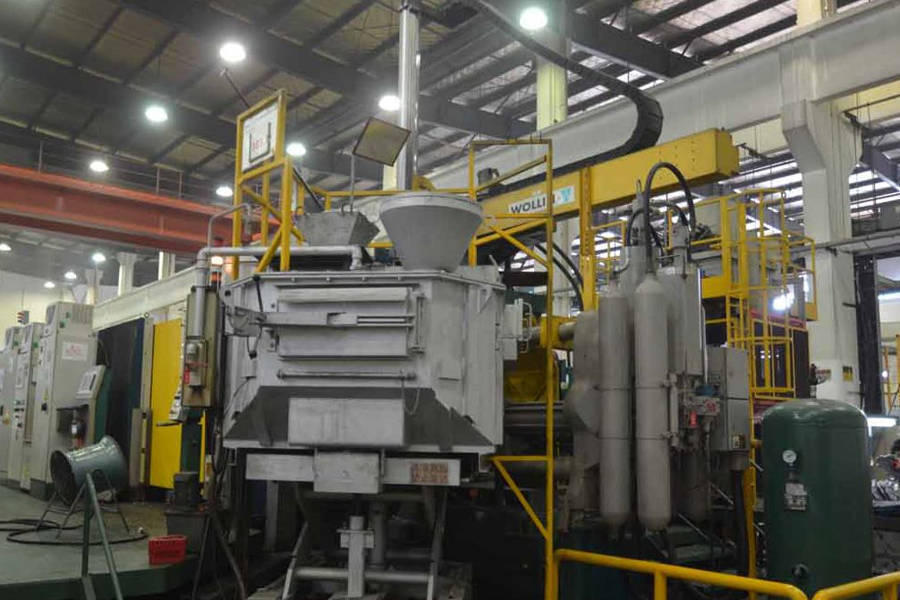

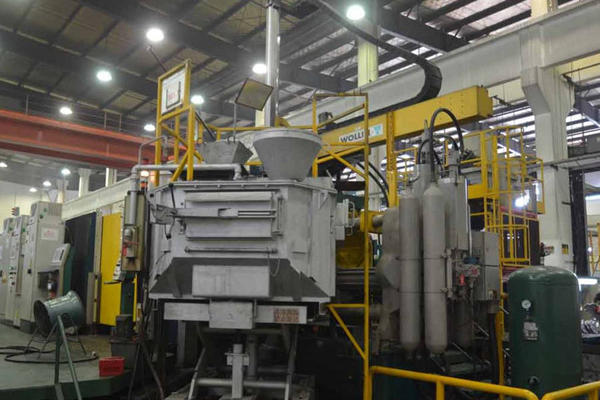

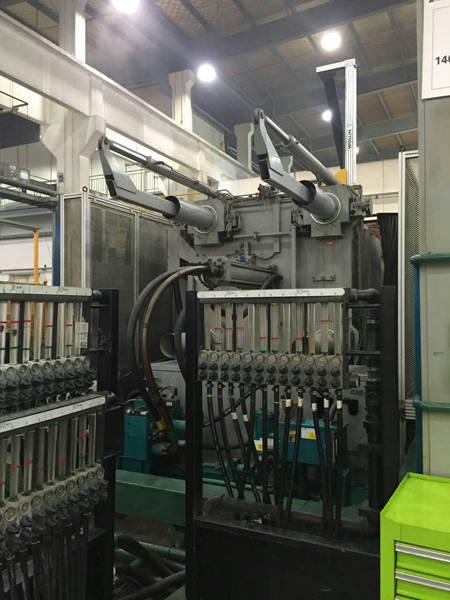

  • Available as a fully automated cell including Wollin PSM4F 2,000 mm stroke die sprayer, Striko Westoffen Model W 1700 S ProDos Electric Heated Aluminum Dosing Furnace, ABB IRB 6600 Industrial Robot

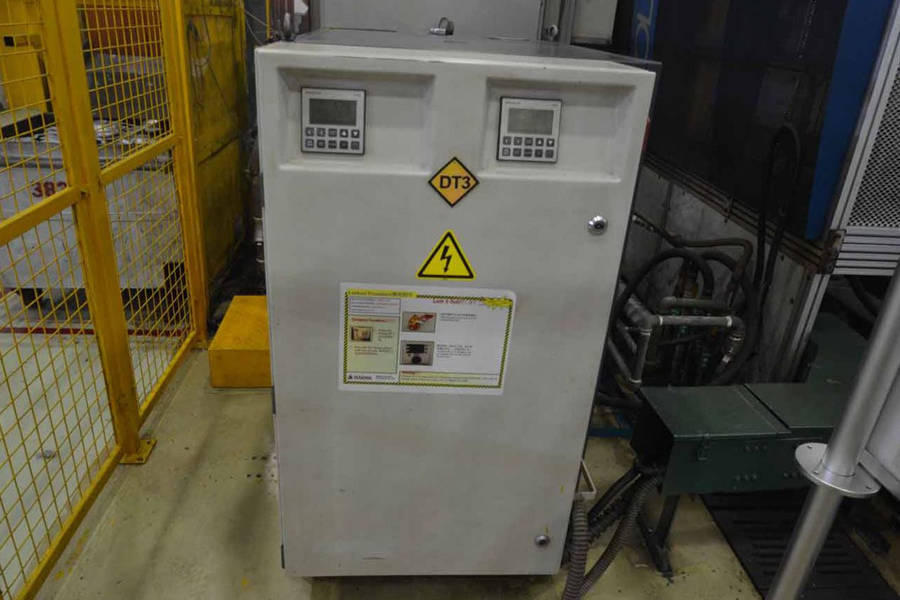

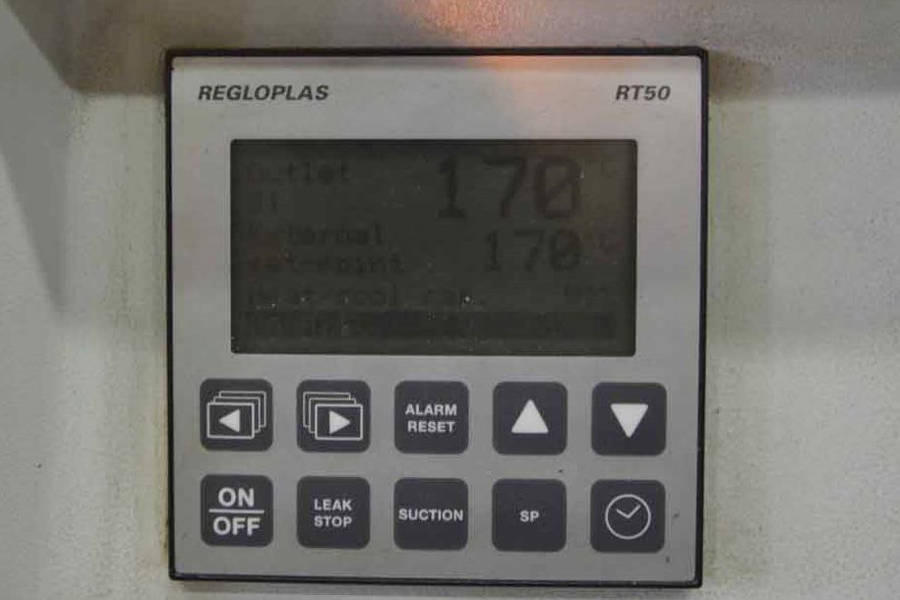

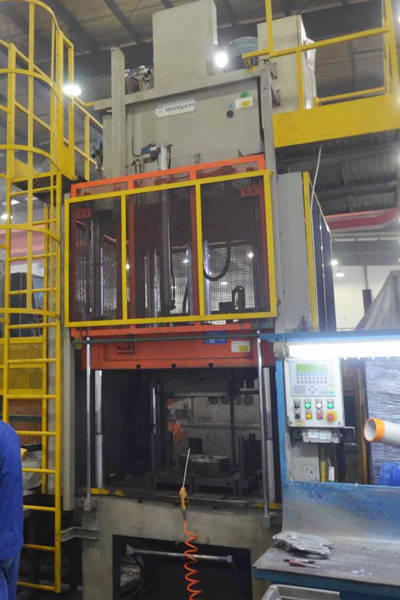

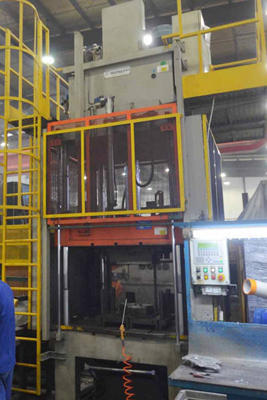

  • Also including Regloplas 80 KW dual zone hot oil unit with RT 50 controls and Tecnopres 60 ton four post hydraulic trim press

Item Specifications for DCM-4020

Specifications
Clamping Force:
1582 Tons
Die Thickness (Minimum - Maximum):
24 to 55.1 inches
Platen Dimensions (horizontal x vertical):
73.2 x 73.2 inches
Clearance between tie bars:
49.2 x 49.2 inches
Moving Platen Stroke (maximum):
36 inches
Injection Plunger Stroke/Diameter:
35.43 inches / 1.18 - 3.54 inches
Injection Positions:
Inserted, multi-position 0 to -13.77 inch
Injection Force / Intensified:
45 / 123 tons
Maximum Ejector Force / Stroke:
45.2 tons / 8.7 inches
Machine Controls:
Buhler DataNet Controller
Machine Dimensions:
35.8 x 15.1 x 12.5 feet
Machine Weight
162,000 pounds

Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description

Used, Buhler Model Evolution B 140 DL 1400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For Sale, Features include: Dual Fully Automatic Tie Bar Pullers of Top Two Tie Bars, Twin Cylinder Hydraulic Bumper Plate Ejection, Two Hydraulic Core Circuits on Moving Platen, Two Hydraulic Core Circuits on Fixed Platen, One Auxillary Squeeze Pin Intensification Circuit, Central Motorized Die Height Adjustment System with Tie Bar Tonnage Monitoring System, Buhler DataNet Controls, Available as a fully automated cell including Wollin PSM4F 2,000 mm stroke die sprayer, Striko Westoffen Model W 1700 S ProDos Electric Heated Aluminum Dosing Furnace, ABB IRB 6600 Industrial Robot, Also including Regloplas 80 KW dual zone hot oil unit with RT 50 controls and Tecnopres 60 ton four post hydraulic trim press, Buhler DataNet Controls, Second Hand, DCM-4020
