Sorry, this machine is sold.
Click here to view other available machines

Used Die Cast Press Trim Press Model: DCP-40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Die Cast Press Trim Press

Model: DCP-40

Size: 40 Ton

Inventory Number: DCM-4333

Used Die Cast Press Trim Press Model: DCP-40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press.

Click above for larger image

Features & Accessories:

  • Top Mounted Hydraulics

Item Specifications for DCM-4333

Specifications
Model:
DCP-40
Pressing Tonnage:
40 tons
Number of Columns:
4
Column Diameter:
3.5 inches
Daylight:
30 inches
Stroke:
16 inches
Shut Height:
14 inches
Clearance between Tie Bars (Left to Right):
40.5 inches
Clearance between Tie Bars (Front to Back):
40 inches
Bed Size (Left to Right by Front to Back):
52 x 52 inches

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Die Cast Press Trim Press Model DCP-40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Top Mounted Hydraulics Relay controls, second Hand, DCM-4333

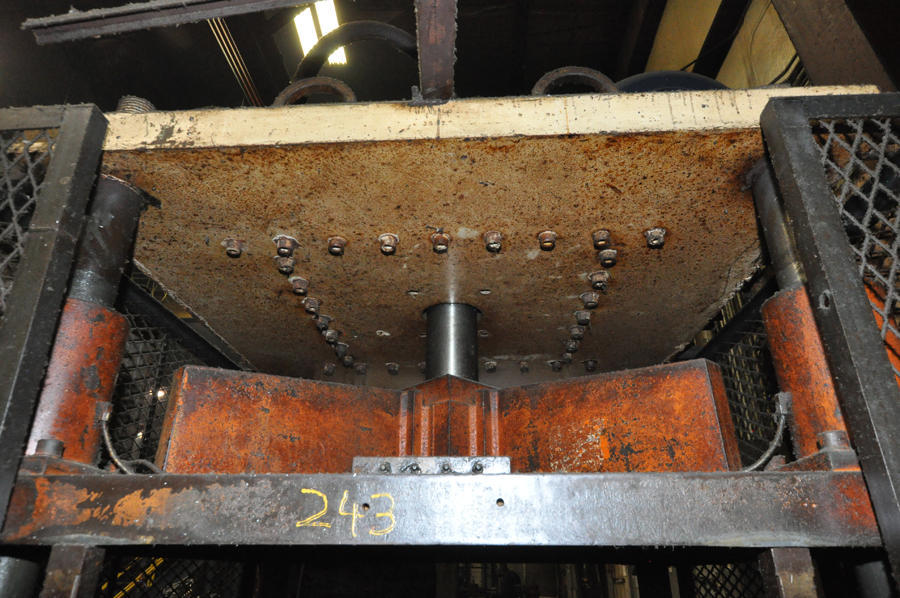

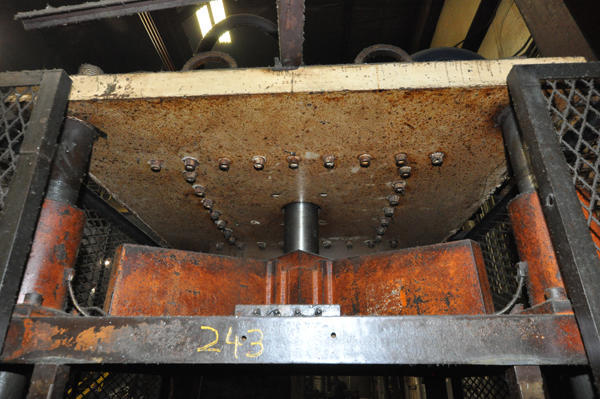

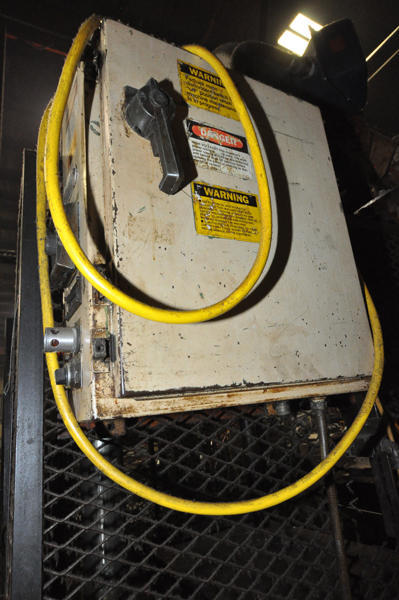

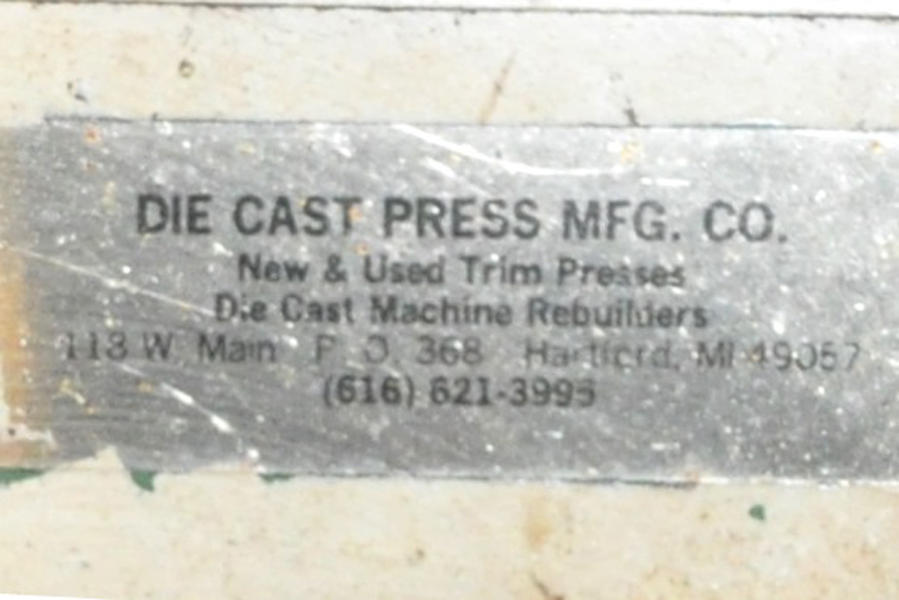

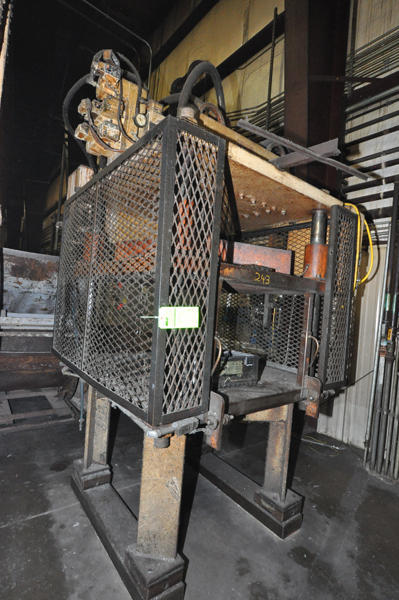

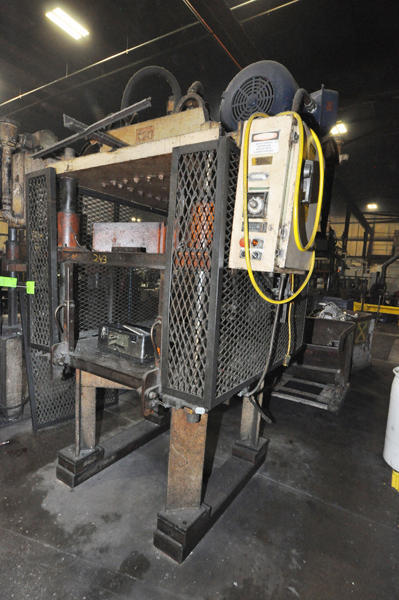

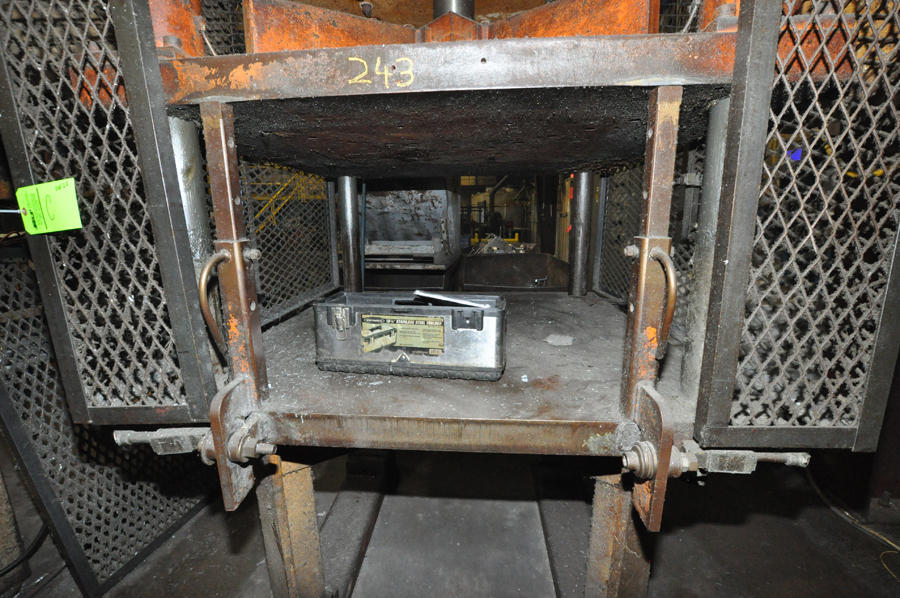

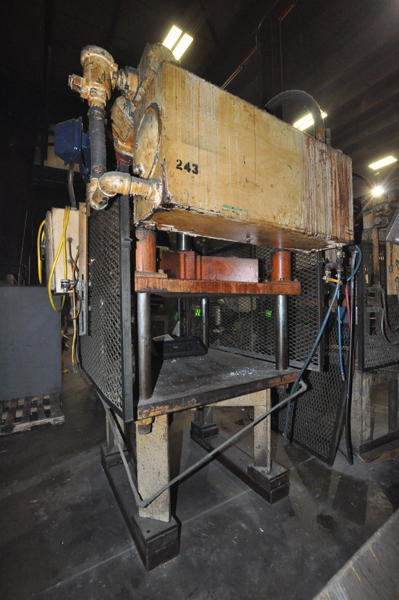

See jumbo large photos of this Die Cast Press Trim Press DCP-40
