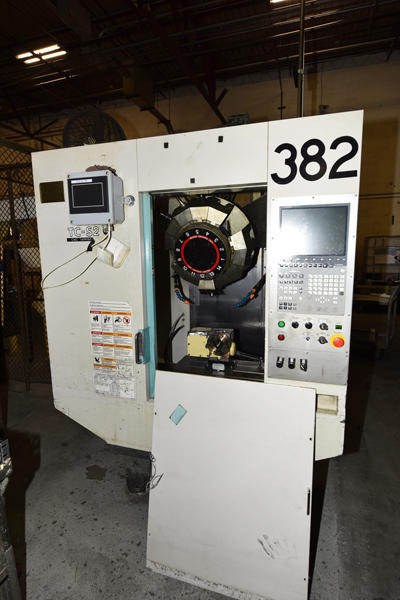

Used Brother Model: TC-S2D 2 500 x 400 x 300 mm x-y-z axis travel Three Axis CNC Vertical Machining Centers (VMC)
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Brother
Model: TC-S2D
Size: 2 500 x 400 x 300 mm x-y-z axis travel
Inventory Number: DCM-4600
Used Brother Model: TC-S2D 2 500 x 400 x 300 mm x-y-z axis travel Three Axis CNC Vertical Machining Centers (VMC).
Features & Accessories:
- New in February, 2011; Serial Number: T.B.D.

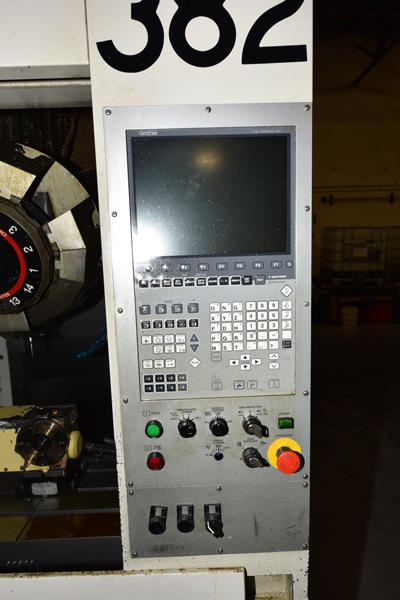

- Brother CNC-B00 CNC Control; Control axes 5 axes (X, Y, Z, two additional axe; Positioning: (X, Y, Z, A, B) Linear: 4 axes (X, Y, Z, one additional axis), Interpolation: Circular 2 axes,, Helical/Conical: 3 axes(X, Y, Z)
- Wired for Indexers (Indexer not included)
- Used only to Machine Aluminum Die Castings; ADC #382
- IMPORTANT NOTE: Any 4th or 5th axis tables/Indexers in pictures are optional at additional cost
Item Specifications for DCM-4600
| Specifications | |
|---|---|
| Main Spindle Power/Maximum Spindle Speed/Nose: |
10 hp/16,000 rpm/BT 30
|
| Distance between table top and spindle nose end: |
7.08- 18.89 inches
|
| Table Size/Work Load: |
23.6 x 15.7 inches/550 pounds
|
| X-Axis Travel & Feedrate: |
27.55 inches/1,968 inches per minute
|
| Y-Axis Travel & Feedrate: |
15.7 inches/1,968 inches per minute
|
| Z-Axis Travel & Feedrate: |
16.3 inches/1,968 inches per minute
|
| Cutting Feed Rates; X, Y, Z: |
0.04 - 394 inches per minute
|

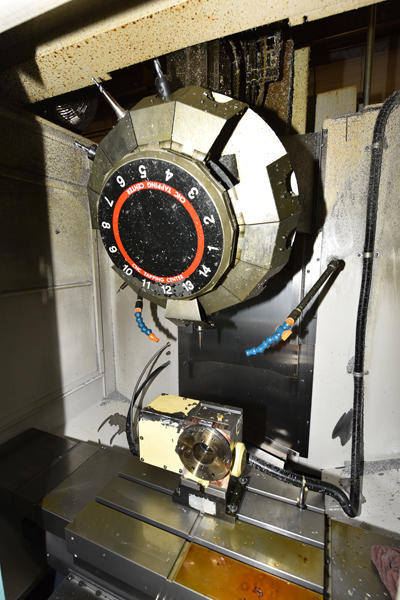

| Number of Tool Stations: |
14 tools
|
| Maximum Tool Length x Diameter x weight: |
7.9 x 9.8 inches x 6.6 pounds
|
| Tool Change Time (Chip to Chip): |
1.4 Seconds
|
| Overall Dimensions (L x D x H): |
61.4 x 86.9 x 102 inches
|
| Machine Weight: |
3,960 Pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Brother Model TC-S2D 2 500 x 400 x 300 mm x-y-z axis travel Three Axis CNC Vertical Machining Centers (VMC) For_Sale, Features Include: Brother CNC-B00 CNC Control; Control axes 5 axes (X, Y, Z, two additional axe; Positioning: (X, Y, Z, A, B) Linear: 4 axes (X, Y, Z, one additional axis), Interpolation: Circular 2 axes,, Helical/Conical: 3 axes(X, Y, Z), Wired for Indexers (Indexer not included), Used only to Machine Aluminum Die Castings; ADC #382, IMPORTANT NOTE: Any 4th or 5th axis tables/Indexers in pictures are optional at additional cost, Brother CNC-B00 controls, second Hand, DCM-4600
