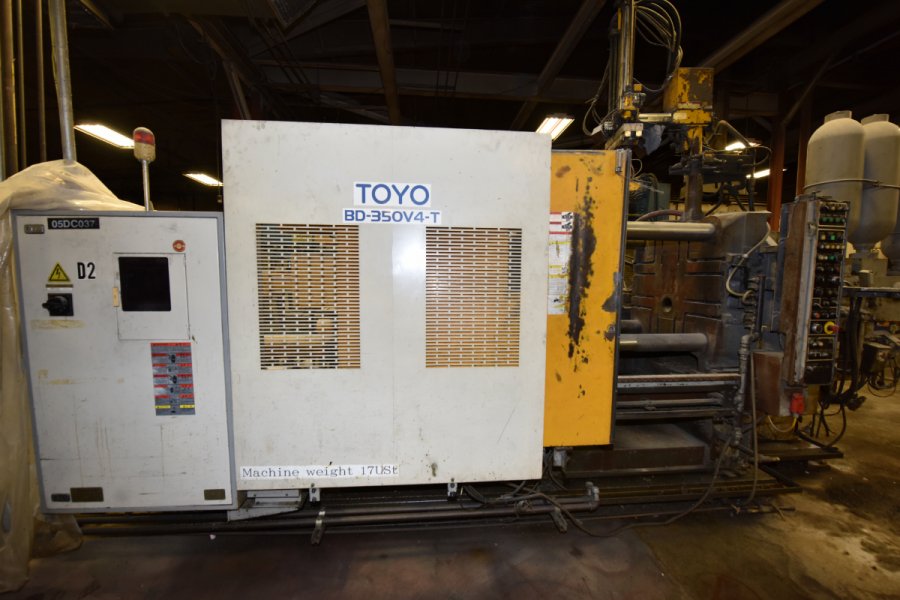

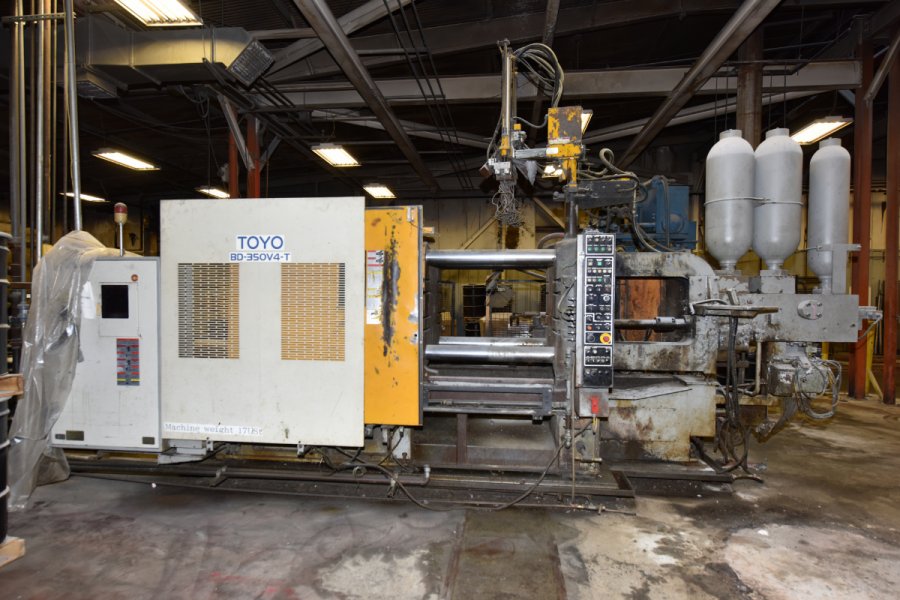

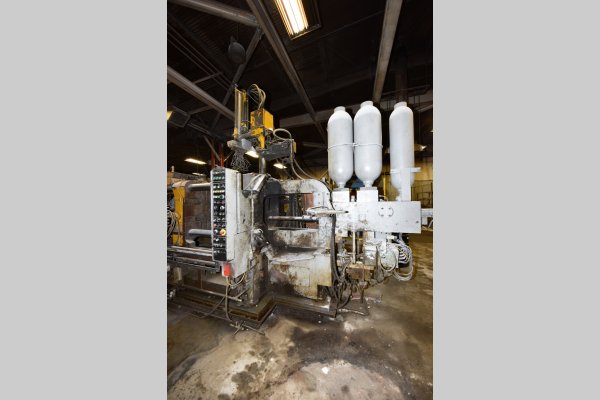

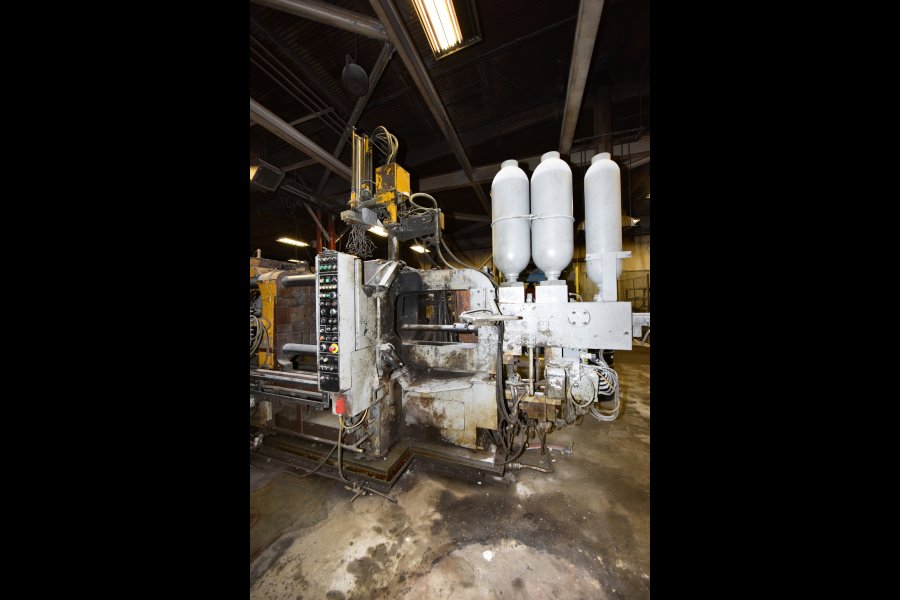

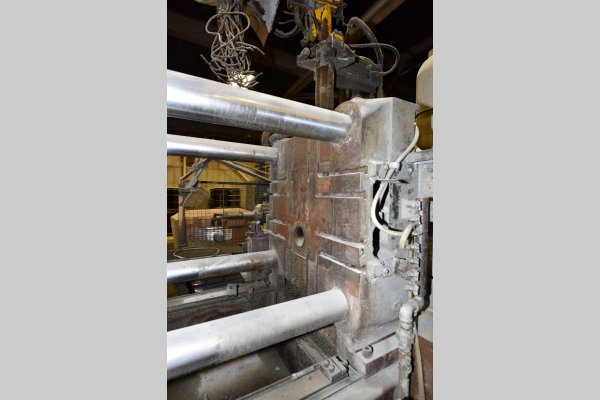

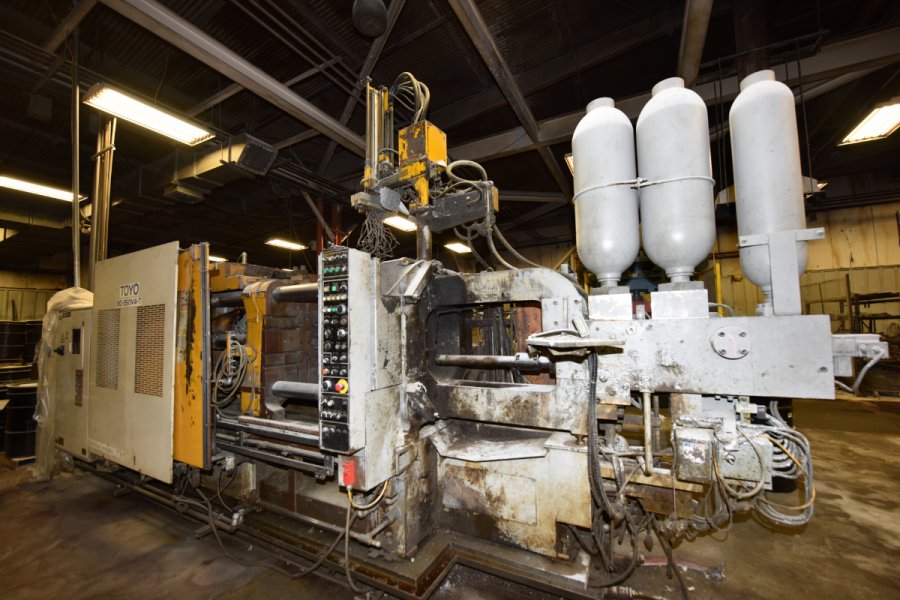

Used Toyo Machinery Model: BD-350V4 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Toyo Machinery
Model: BD-350V4
Size: 350 Metric Ton
Inventory Number: DCM-4662
Used Toyo Machinery Model: BD-350V4 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:

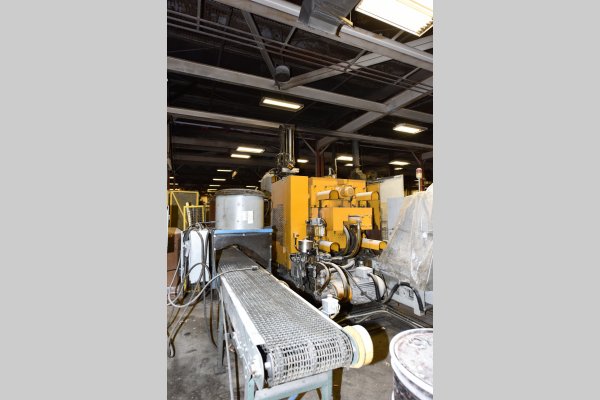

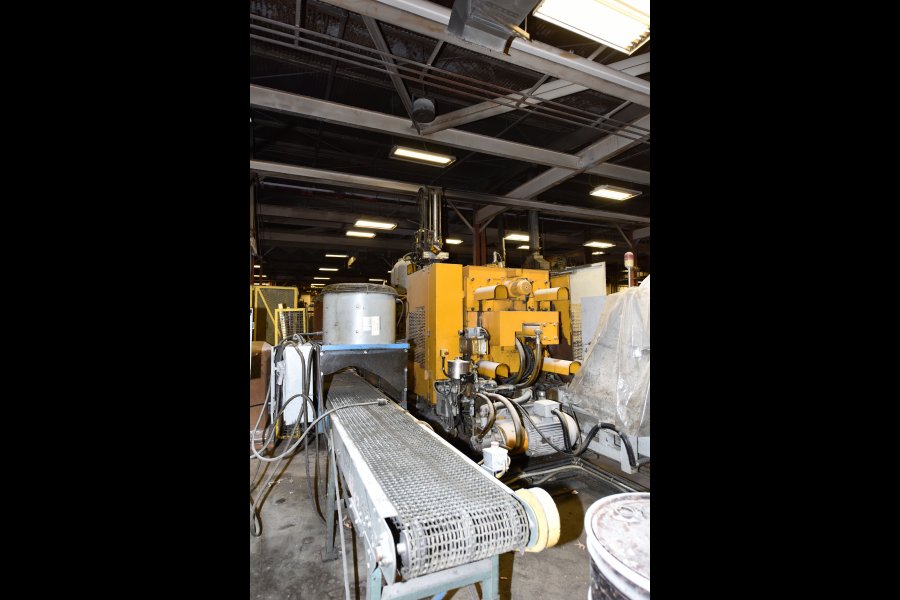

- Purchase Price includes Factory Installed Toyo Ladle, Toyo Sprayer and Toyo Parts Extractor
- Top Operator Side Fully Automatic Tie Bar Pulling System - Quick Die Change
- Hydraulic Bumper Plate Ejection System

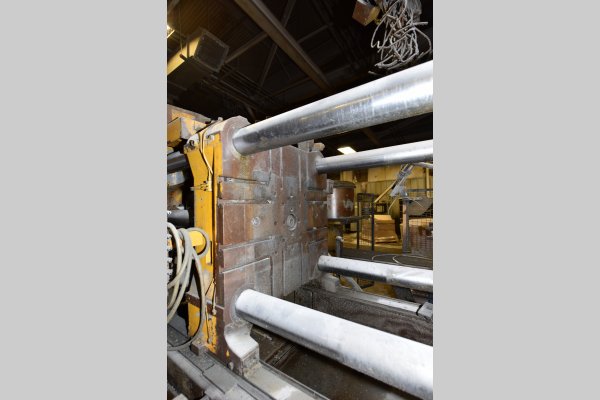

- Two (2) Core Circuits on moving platen
- Electric Motorized Die Height Adjustment System
- Air Safety Ratchet Device
- Oil Type Central Pressurized Lubrication System
Item Specifications for DCM-4662
| Specifications | |
|---|---|
| Locking Force: |
393 tons
|
| Clearance Between Tie Bars (H x W): |
25.67 x 25.67 inches
|
| Die Stroke (max - min): |
16.5 - 11.8 inches
|
| Die Height (max - min): |
27.5 - 11.8 inches
|
| Hydraulic Ejection Force: |
21.6 tons
|
| Injection System: |
Toyo Multi Injection
|
| Injection Force: |
29.6 - 37.6 tons
|
| Injection Speed (low speed): |
1.18 - 39.37 in/sec
|
| Injection Speed (High speed): |
39.37 - 354.33 in/sec
|
| Shot Positions: |
-5.91 inches
|
| Machine Weight: |
33,000 pounds
|
| Machine Size: |
20.9 x 6.6 x 9.2 feet
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
| Toyo Machinery BD-350V5 EX |
Description
Used, Toyo Machinery Model BD-350V4 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Fully Automatic Tie Bar Pulling System - Quick Die Change, Hydraulic Bumper Plate Ejection System , Two (2) Core Circuits on moving platen, Electric Motorized Die Height Adjustment System, Air Safety Ratchet Device, Oil Type Central Pressurized Lubrication System, Toyo System 500 Controls controls, second Hand, DCM-4662
