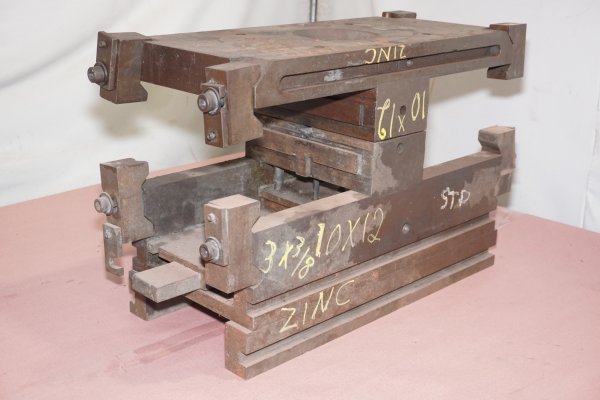

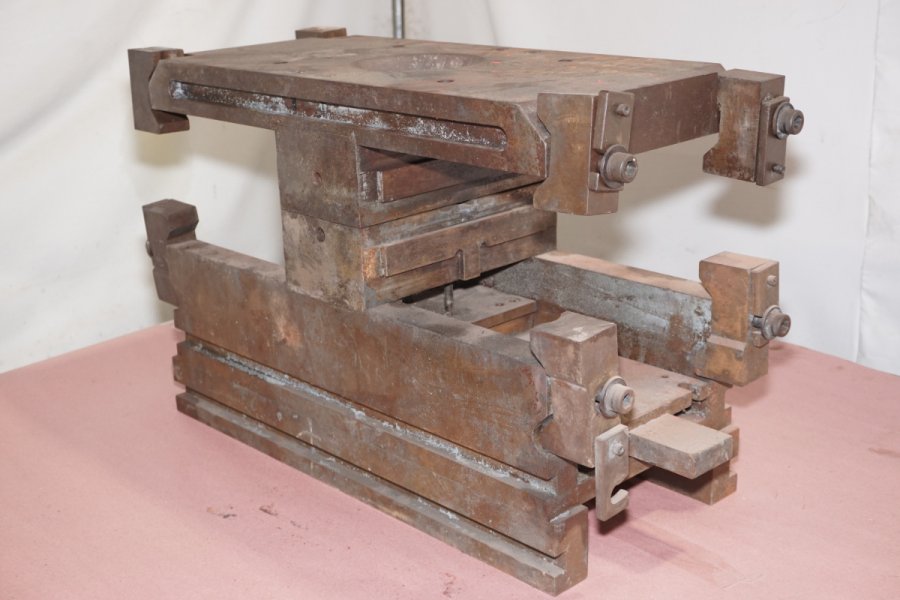

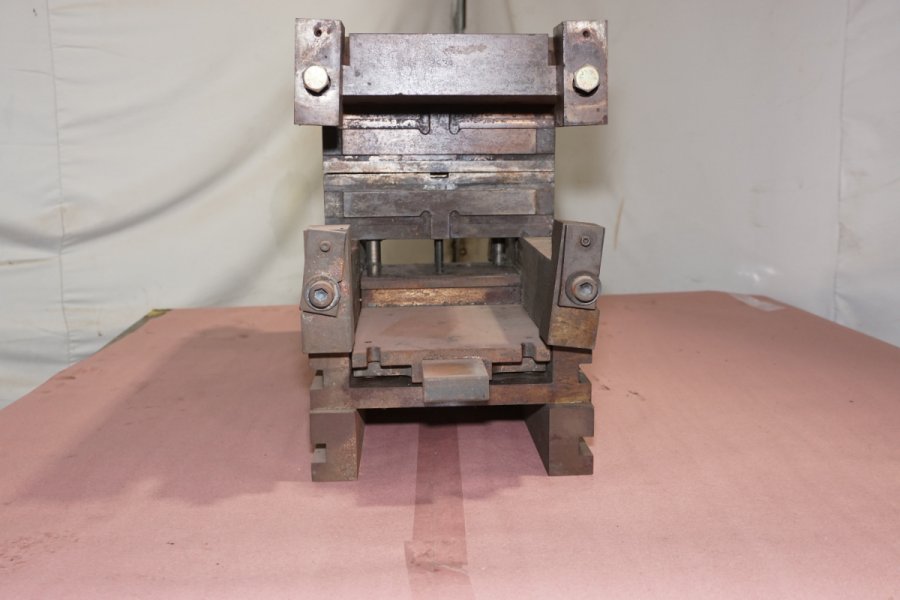

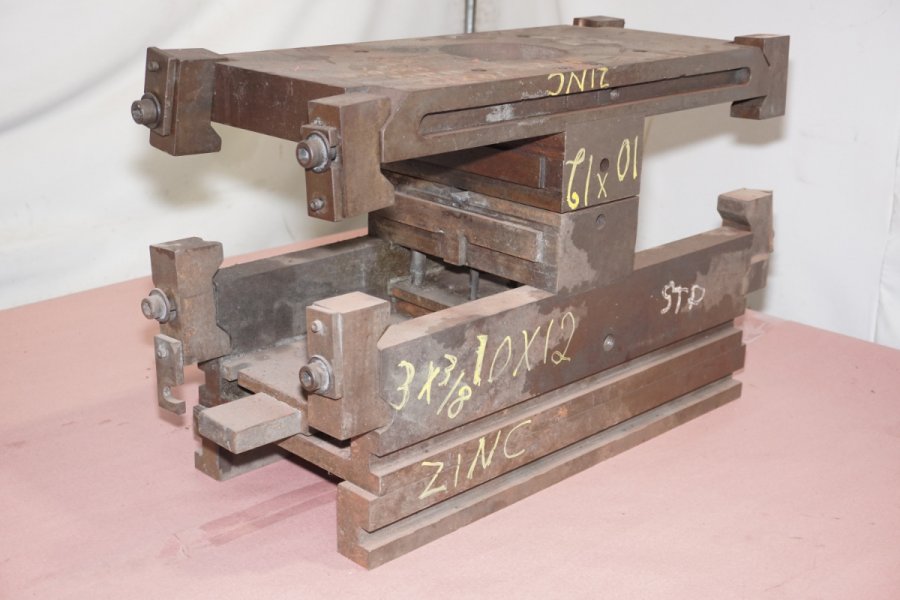

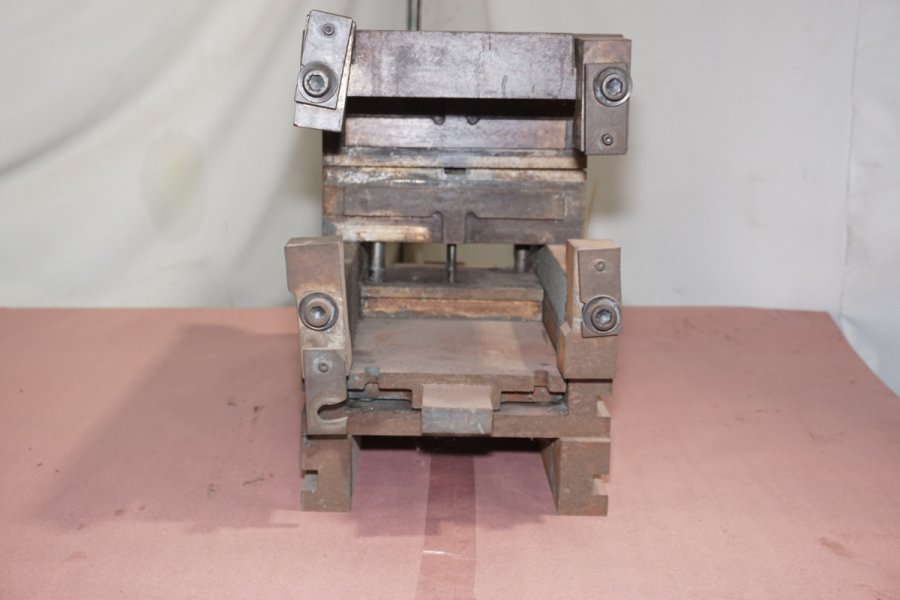

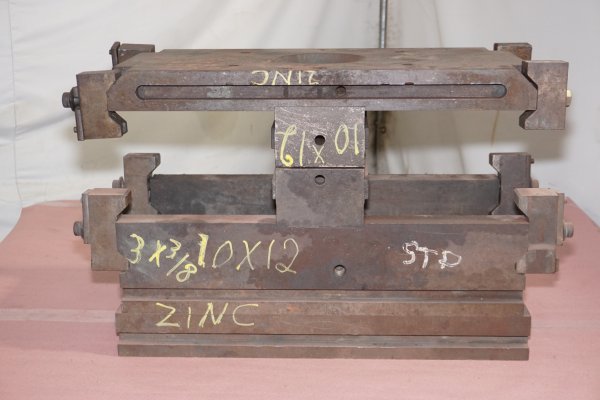

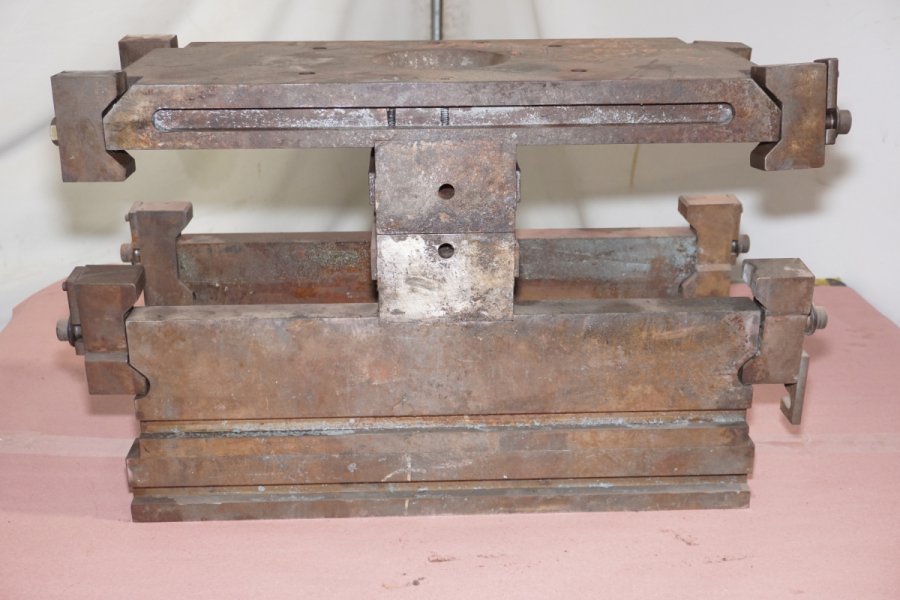

Used DME Model: DC-1012-Z 1012 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder

Print PDF
Play Video

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: DME

Model: DC-1012-Z

Size: 1012 Inch

Inventory Number: DCM-4720

Used DME Model: DC-1012-Z 1012 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder.

View Available DME Die Cast Tooling

Features & Accessories:

  • Quick Die Change
  • Standard Duty Design
  • Double Holder - holds two inserts
  • Hot Chamber Configuration
  • Ships from stock from our Waukegan warehouse

Item Specifications for DCM-4720

Overall Width:
11.875 inches
Overall Length:
25.0625 inches
Overall Height (thickness):
15.125 inches
Cover Half Thickness:
5.75 inches
Ejector Half Thickness:
9.375 inches
Insert Size - Cover Side:
9.875 x 11.875 x 3.375 inches
Insert Size - Ejector Side
9.875 x 11.875 x 3.375 inches
Approximate Weight:
645 pounds

Document(s) For This Machine

Shipping Terms: F.O.B. Warehouse

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.


Used, DME Model DC-1012-Z 1012 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder For_Sale, Features Include: Quick Die Change, Standard Duty Design, Double Holder - holds two inserts, Hot Chamber Configuration, Ships from stock from our Waukegan warehouse controls, second Hand, DCM-4720

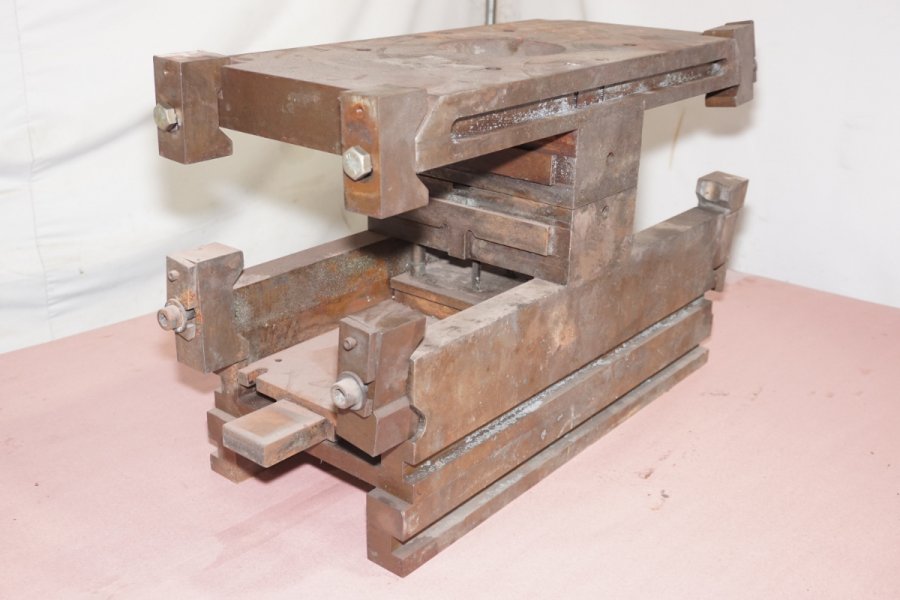

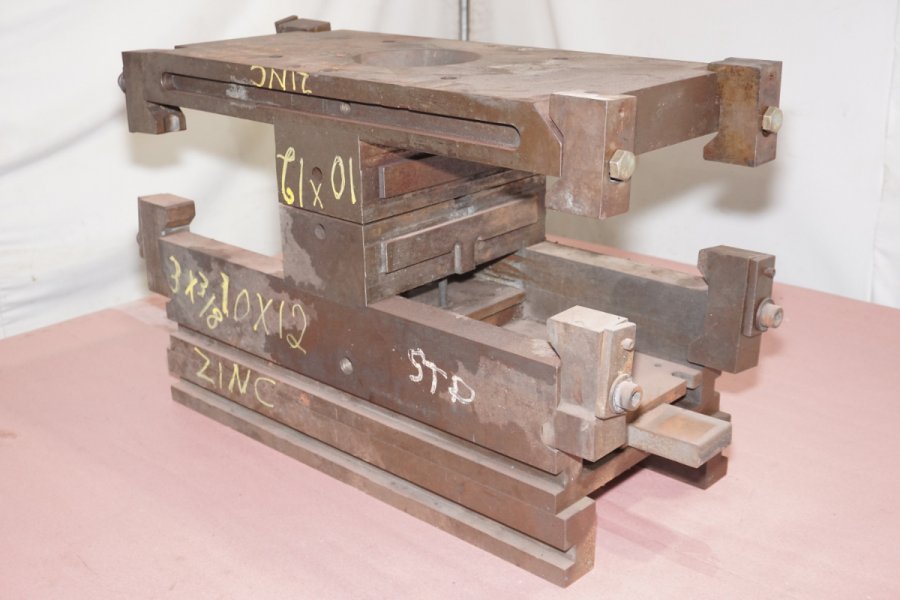

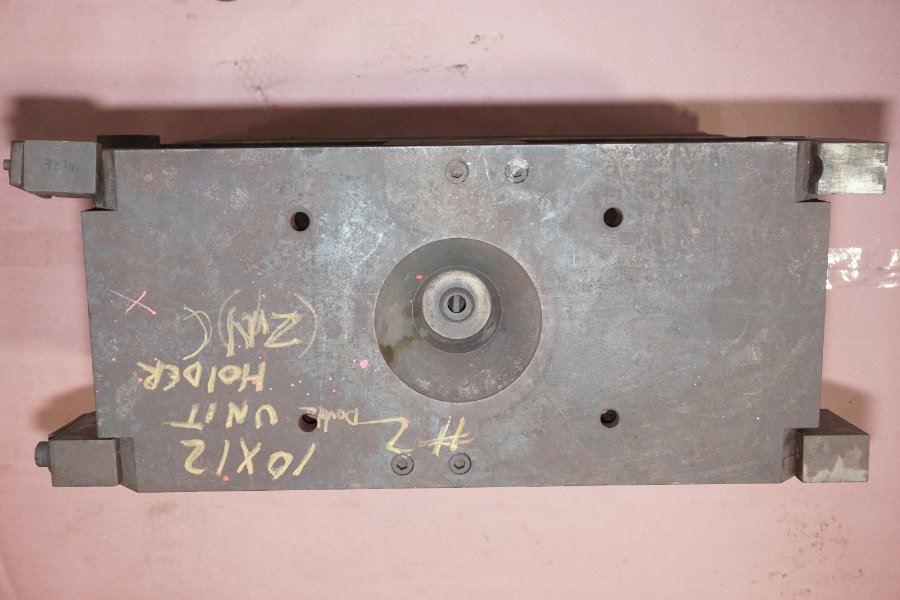

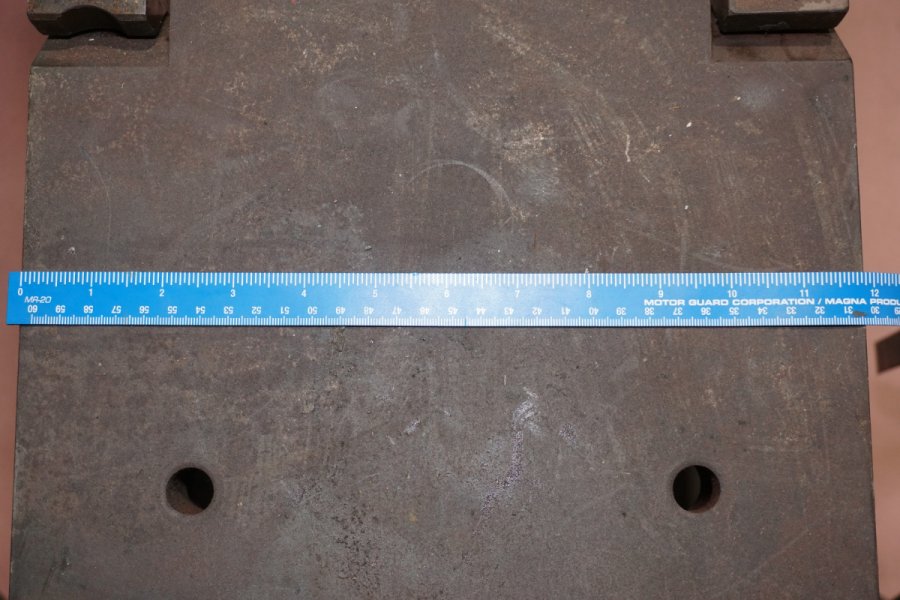

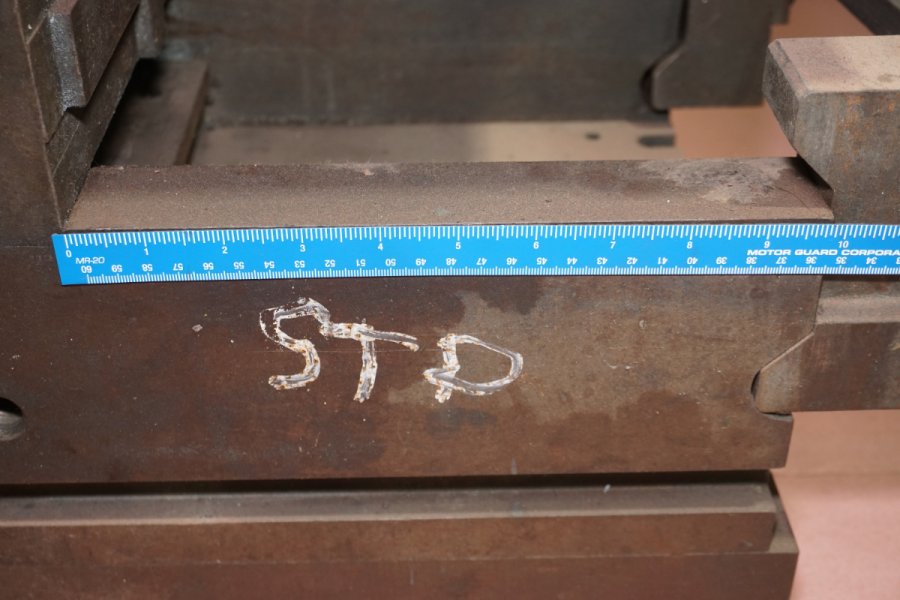

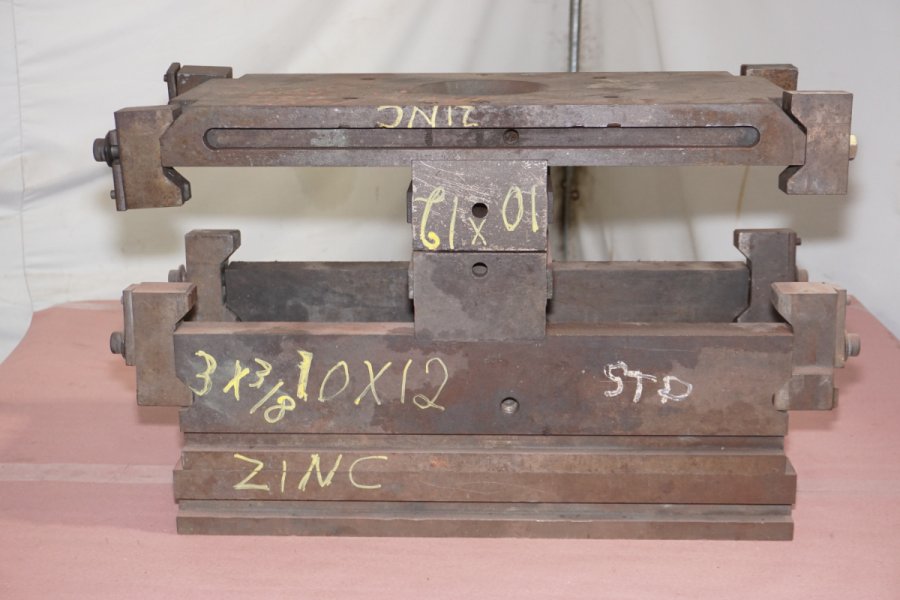

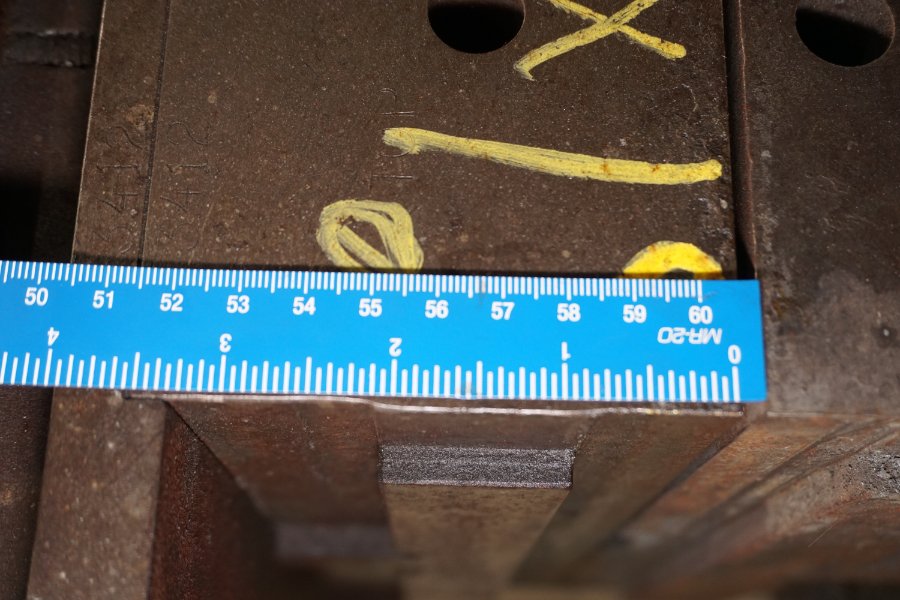

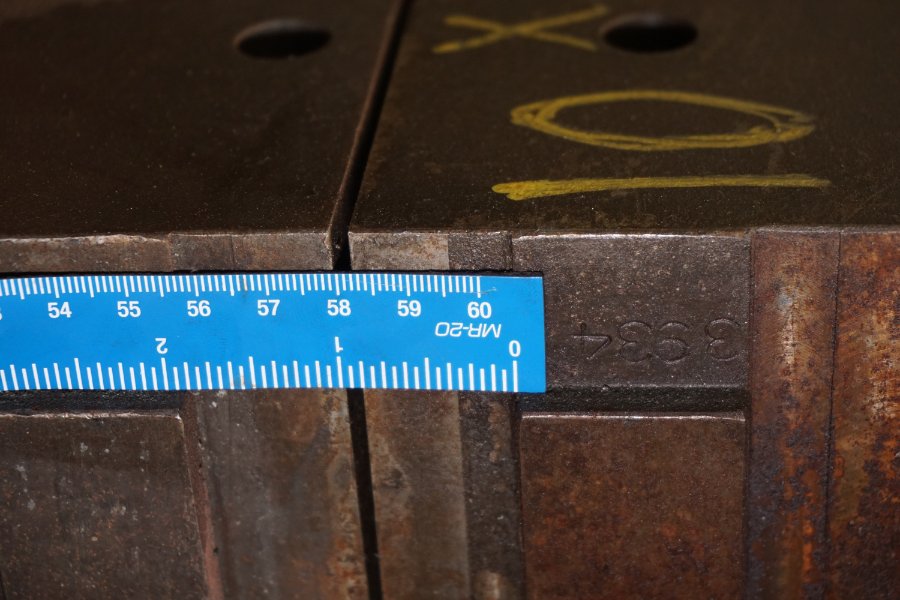

See jumbo large photos of this DME DC-1012-Z
