Used Birch Trim Press Model: BMC-30-A 30 Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Birch Trim Press

Model: BMC-30-A

Size: 30 Tons

Inventory Number: DCM-4929

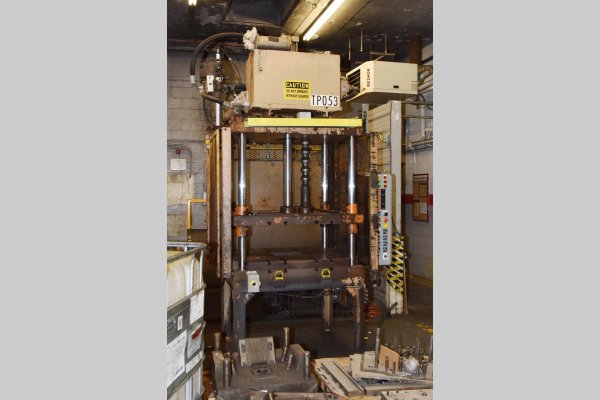

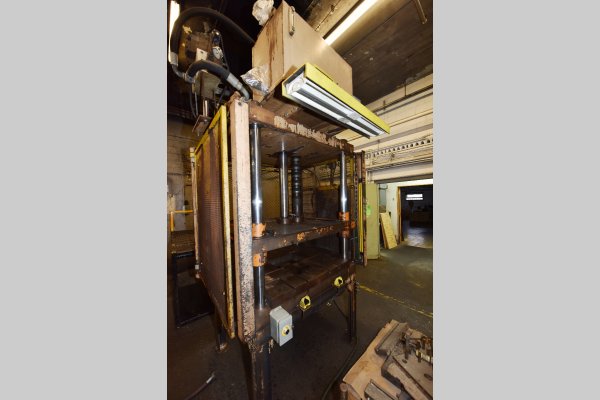

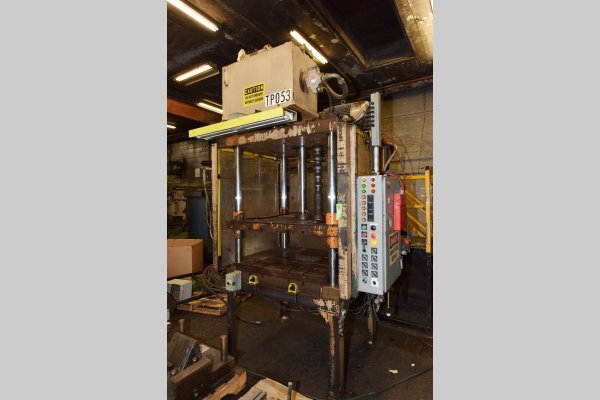

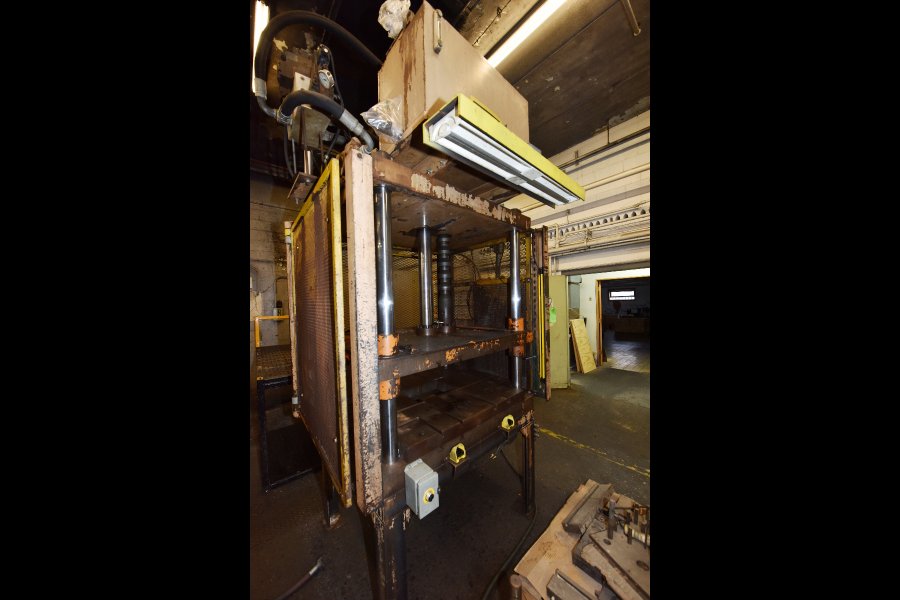

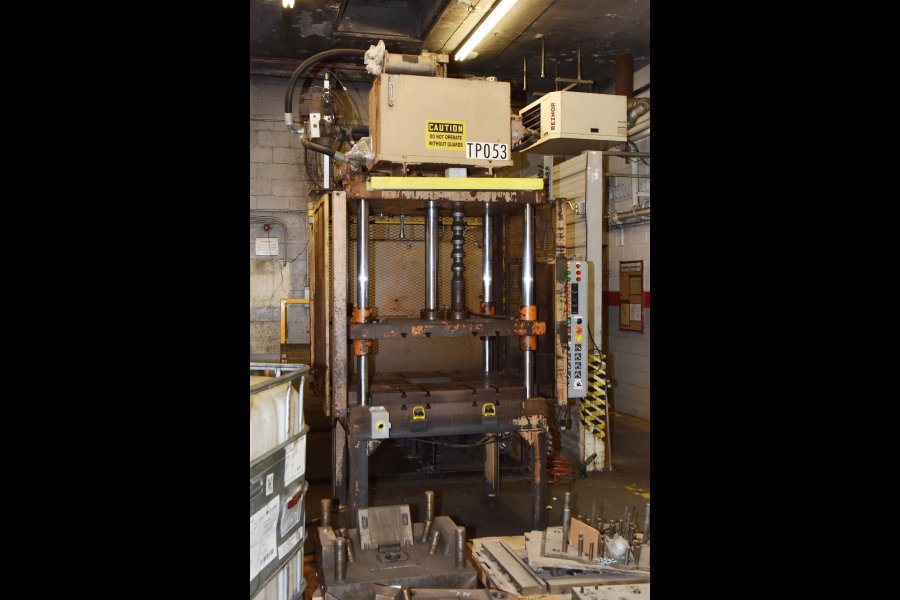

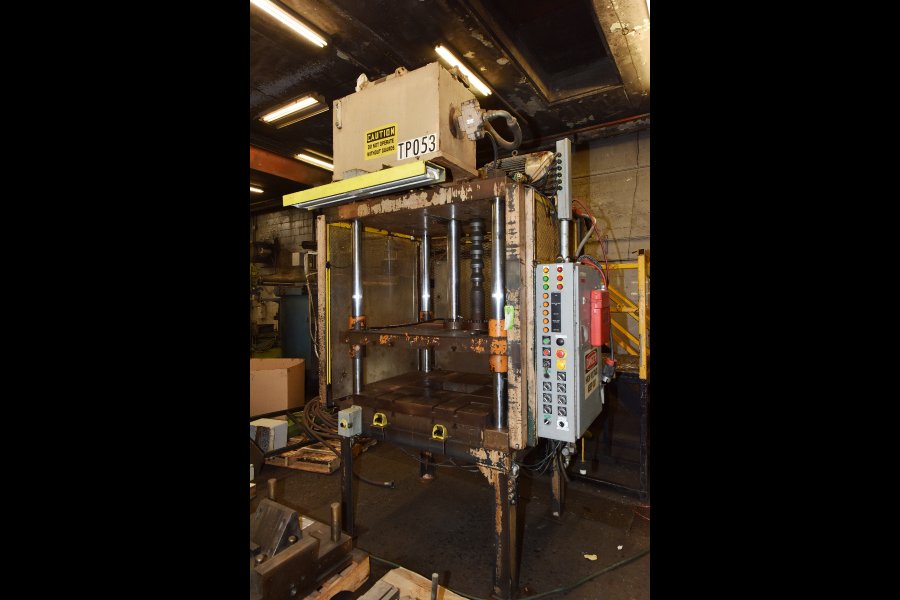

Used Birch Trim Press Model: BMC-30-A 30 Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press.

Click above for larger image

Features & Accessories:

  • Trim Press ID: TP53; Near die cast cell #17
  • Air Safety Ratchet
  • T-Slotted Base and Moving Platen
  • Dual Palm Button Controls with Light Curtains

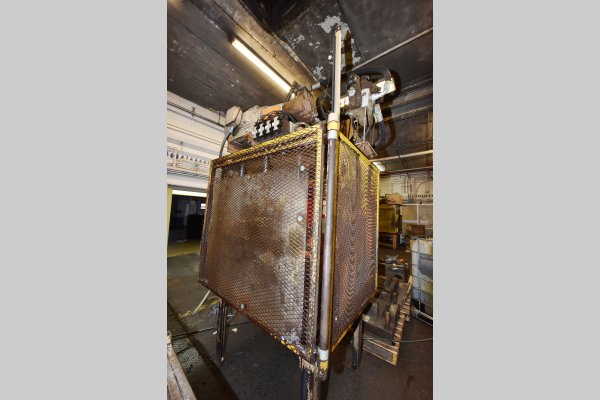

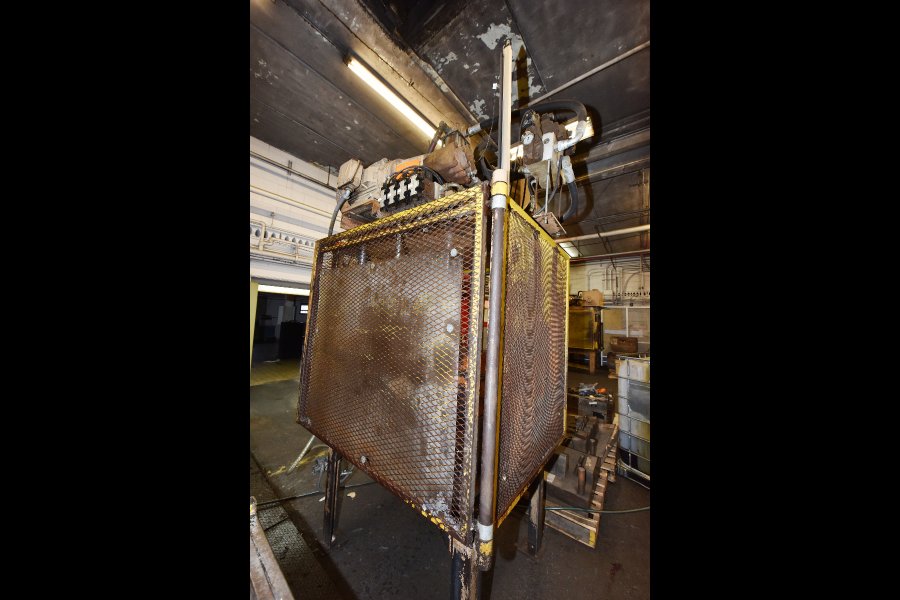

  • Top Mounted Hydraulics
  • Allen Bradley Solid State PLC Controls
  • Two (2) auxiliary hydraulic Side Core/Side-Punch Circuit

Item Specifications for DCM-4929

Specifications
Pressing Tonnage:
30 tons
Number of Columns:
4
Column Diameter:
3.5 inches
Daylight:
34 inches
Stroke:
26 inches
Shut Height:
8 inches
Clearance between Tie Bars (Left to Right):
40 inches
Clearance between Tie Bars (Front to Back):
30 inches
Bed Size (Left to Right by Front to Back):
50 x 40 inches
Cut out Size in Bed: (L/R x F/B):
14 x 10 inches
Overall Size (L x w x H):
84 x 52 x 139 inches

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Metal Mechanics 35 Ton Trim Press
Metal Mechanics 35 Ton Trim Press
Metal Mechanics 50 Ton Trim Press
Kard 30 Ton Trim Press

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Birch Trim Press Model BMC-30-A 30 Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, T-Slotted Base and Moving Platen, Dual Palm Button Controls with Light Curtains, Top Mounted Hydraulics, Allen Bradley Solid State PLC Controls, Two (2) auxiliary hydraulic Side Core/Side-Punch Circuit, Allen Bradley PLC Solid State controls, second Hand, DCM-4929


See jumbo large photos of this Birch Trim Press BMC-30-A
